NMRV090 10:1 Worm Gearbox – B5 Flange, IEC 80, 19mm Input

$738.00 In Stock Sold out
Add to wishlist Added to wishlist

1-7 DAYS DELIVERY

100% ORIGINAL AND QUALITY

12 MONTHS GUARANTEE

  • Description
10:1 worm gear reducer, NMRV090, for flange-mounting a 19 mm shaft IEC 80 motor. Expect around 140 rpm at the output with a standard 1400 rpm motor and a 35 mm hollow bore to fit your driven shaft. In stock at Glen Waverley, VIC.

Speed you get from a 10:1 ratio

Low reduction (10:1) is mainly about turning the drive through 90 degrees and taking the edge off the motor speed. Think packing-line conveyors, tumblers and rotating screens.

1400 rpm motor in about 140 rpm Output, 6-pole motor about 96 rpm

Nameplate speed divided by the ratio. Under load the motor runs a few percent slower.

If 140 rpm is not quite right, one step slower is 15:1 (about 93 rpm). Also in stock: 20:1, 25:1, 30:1, 40:1, 50:1, 80:1.

Will it bolt onto your motor?

Check three numbers on your motor flange: outside diameter 200 mm, bolt circle 165 mm, spigot 130 mm. Those are the IEC 80 B5 figures from the NMRV090 drawing. The shaft goes into a 19 mm bore with a 6 mm key.

Have a foot-mount motor? Add a B5 flange for your frame size and it can drive this gearbox.

If your motor shaft is 11 mm, a keyed shaft sleeve takes it up to 19 mm. The motor flange still has to match the gearbox flange.

Other input bores at 10:1: 24 mm (IEC 90), 28 mm (IEC 100).

Working out the ratio

Ratio = motor rpm ÷ required output rpm. A 4-pole motor (1400 rpm) through 10:1 gives about 140 rpm; a 6-pole motor (960 rpm) gives about 96 rpm.

Gearbox data

Model NMRV090-10-80 Ratio 10:1 Input B5 flange, IEC 80 Input bore 19 mm Hollow output bore 35 mm, 10 mm key Weight without motor approx. 13 kg

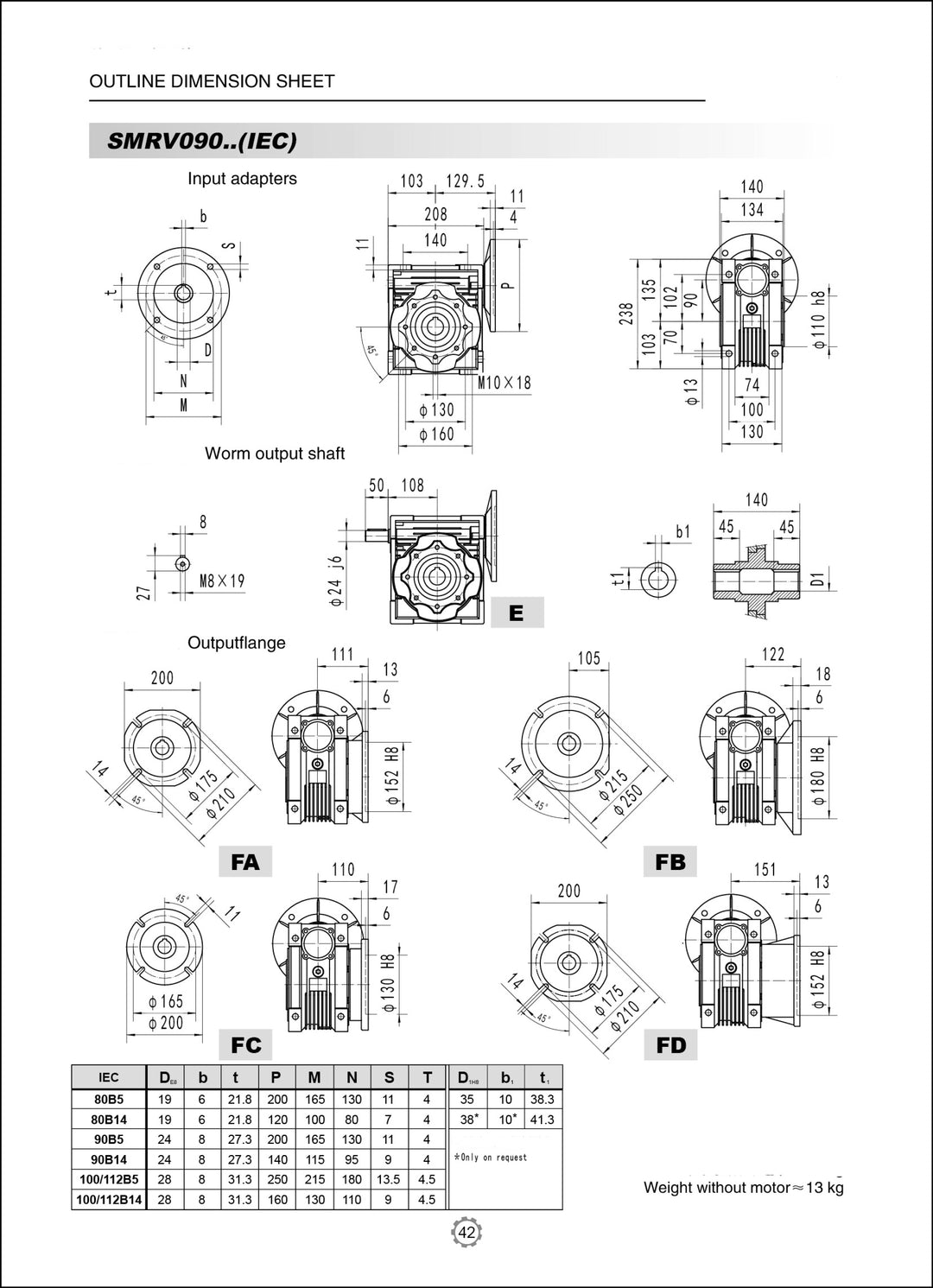

Housing, foot and output flange dimensions for size 90 are on the drawing in the product images.

Fitting tips
  • Do not rely on the worm to hold a load. For hoists, lifts or anything that could run back under gravity, fit a proper brake.
  • Have a licensed electrician connect the motor.
  • Run it for a short time without load first and listen for knocking or grinding before putting it to work.

Shipping

Ships Australia-wide from Glen Waverley, VIC; postage is calculated at checkout. Warranty and returns: see our Returns, Refunds & Warranty Policy.

Have a drawing or a photo of the old gearbox? Send it to hankemotors@gmail.com or call 0401 634 280 and we will match it.
