Hankemotor

0.75kW 1HP Single Phase 240V Geared Motor – NMRV050 7.5:1–30:1

$582.40 In Stock Sold out
Reduce Ratio
Add to wishlist Added to wishlist
Categories: Geared Motors

1-7 DAYS DELIVERY

100% ORIGINAL AND QUALITY

12 MONTHS GUARANTEE

  • Description

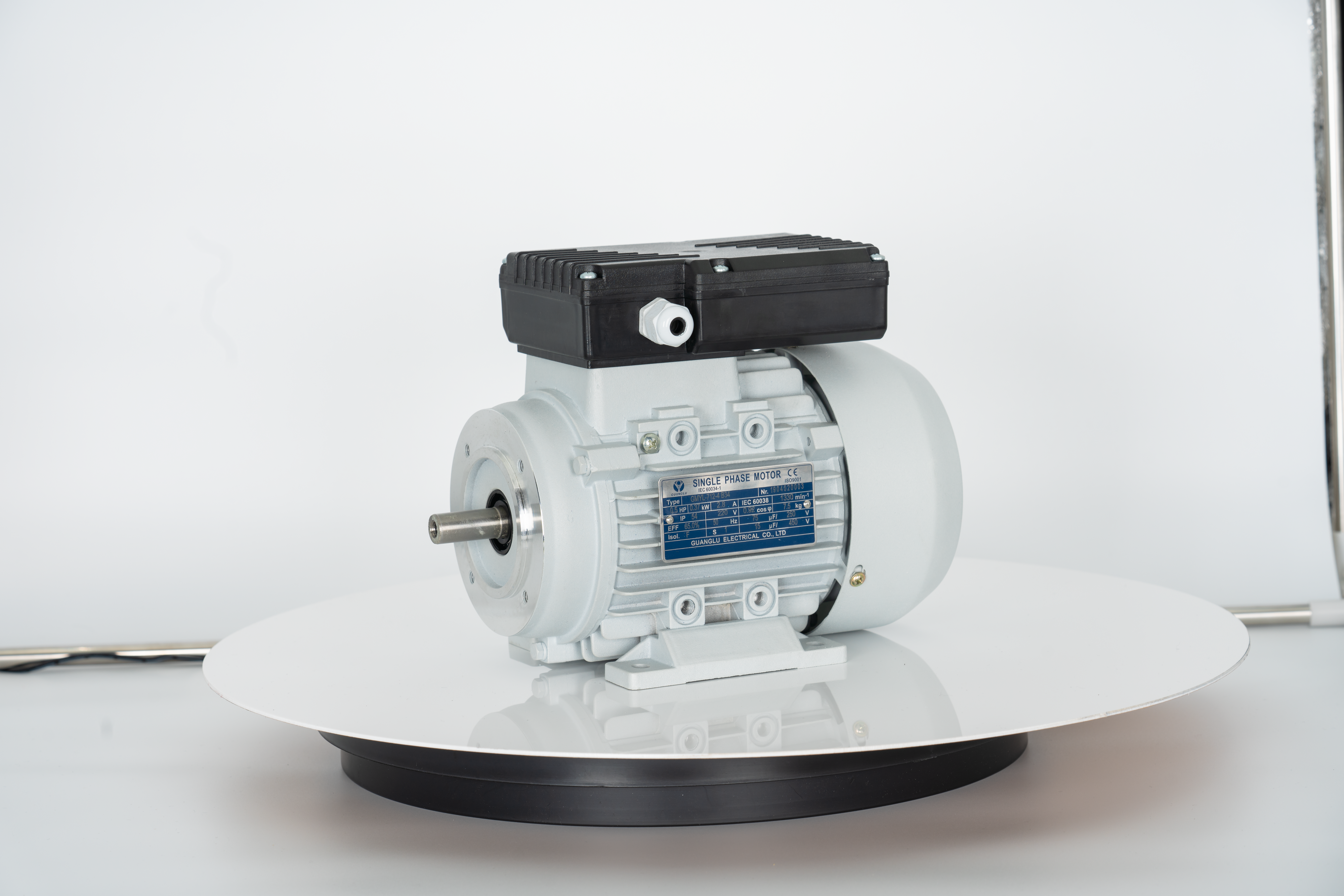

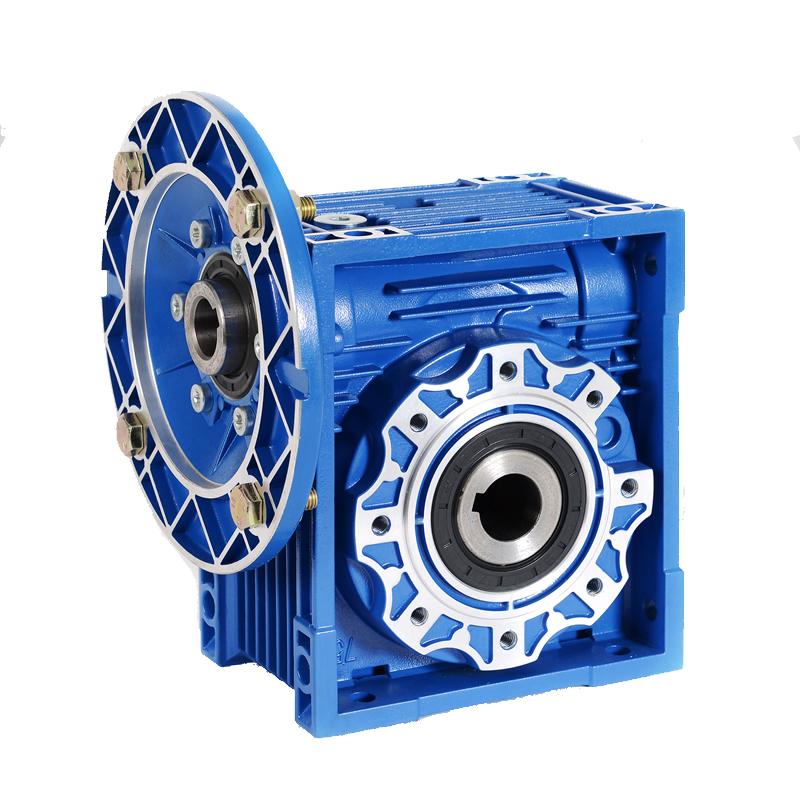

Size 050 worm gearbox with a 0.75 kW 240 V single phase motor and 25 mm hollow output, supplied assembled. Choose one of 6 ratios below. Ships from Glen Waverley.

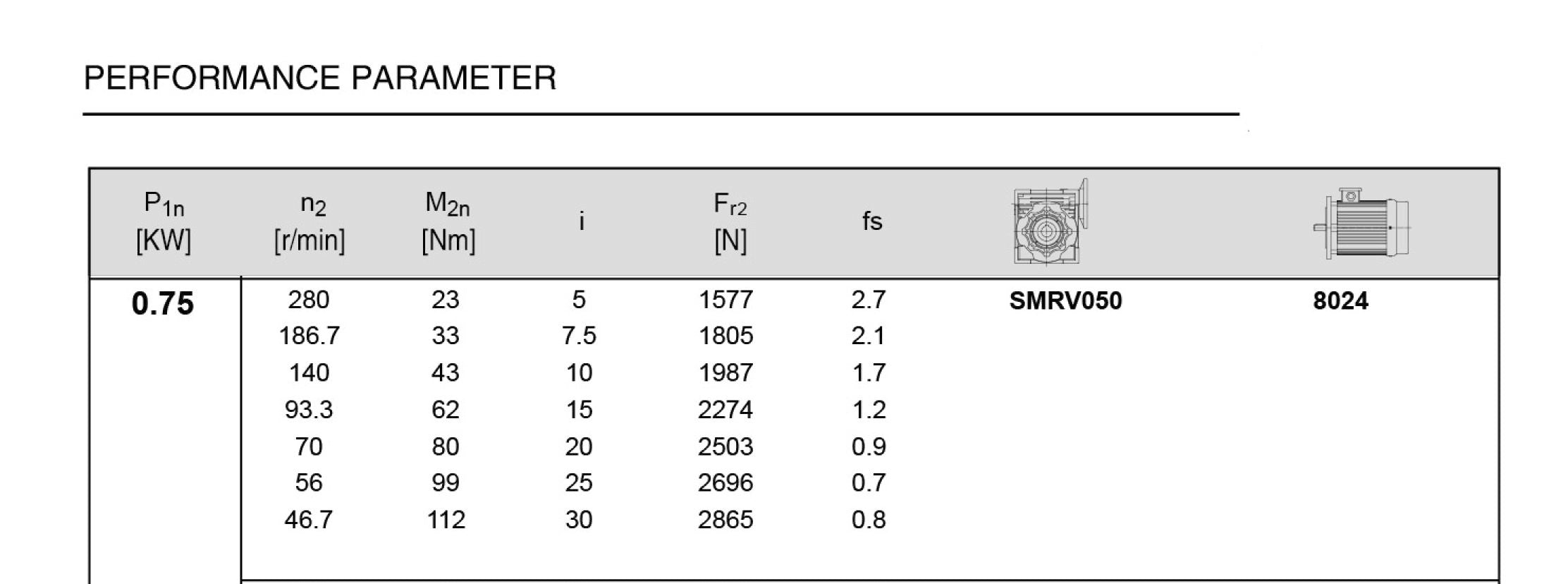

Ratios and output speeds

Speeds below assume the motor's 1400 rpm:

7.5:1, 25 mm output about 187 rpm 10:1, 25 mm output about 140 rpm 15:1, 25 mm output about 93 rpm 20:1, 25 mm output about 70 rpm 25:1, 25 mm output about 56 rpm 30:1, 25 mm output about 47 rpm

Speeds are approximate and assume no slip.

Listed peak output torque is 112 Nm. If your job needs close to that at a low ratio, ask us to check the sizing.

Single or three phase?

Runs from 240 V single phase. Output speed is set by the ratio, so choose it to suit the job.

Picking the ratio

If you are between two ratios, choose the slower one when the load is heavy to start, and the faster one when cycle time matters more than torque.

Motor and gearbox data

Voltage 240 V single phase, 50 Hz Motor power 0.75 kW / 1 HP Motor rpm 1400 rpm Gearbox Worm, size 050 Output shaft 25 mm hollow shaft Output torque, max. 112 Nm Duty rating S1 (continuous)

What it suits

With ratios from 7.5:1 to 30:1, this NMRV050 set keeps the output fairly quick (47 to 187 rpm). That range suits light conveyors, packing and labelling lines, rotisserie and spit drives, and small agitators. Being 240 V single phase, it suits home workshops and small factories without a three phase supply.

Running on 415 V? The three phase 0.75 kW NMRV050 set has the same ratios. For slower speeds or more torque, the 0.75 kW NMRV063 set goes up to 50:1, and the 1.1 kW NMRV063 set adds power. More options: geared motors.

Good to know
  • Never use the gearbox as the only means of holding a load.
  • Guard the output shaft and anything connected to it.
  • The motor must be connected by a licensed electrician.

Shipping and warranty

Freight is worked out at checkout and the geared motor leaves from Glen Waverley, VIC. See the Returns, Refunds & Warranty Policy for warranty.

Ring 0401 634 280 or email hankemotors@gmail.com before you order if you are unsure.
