1.1 kW (1.5 HP) 240 V single phase motor fitted to a size 063 worm gearbox. Choose the ratio from the menu: 7.5:1, 10:1, 15:1, 20:1, 25:1, 30:1. Output speeds run from about 187 rpm down to about 47 rpm. In stock at Glen Waverley, VIC.
Ratio menu explained

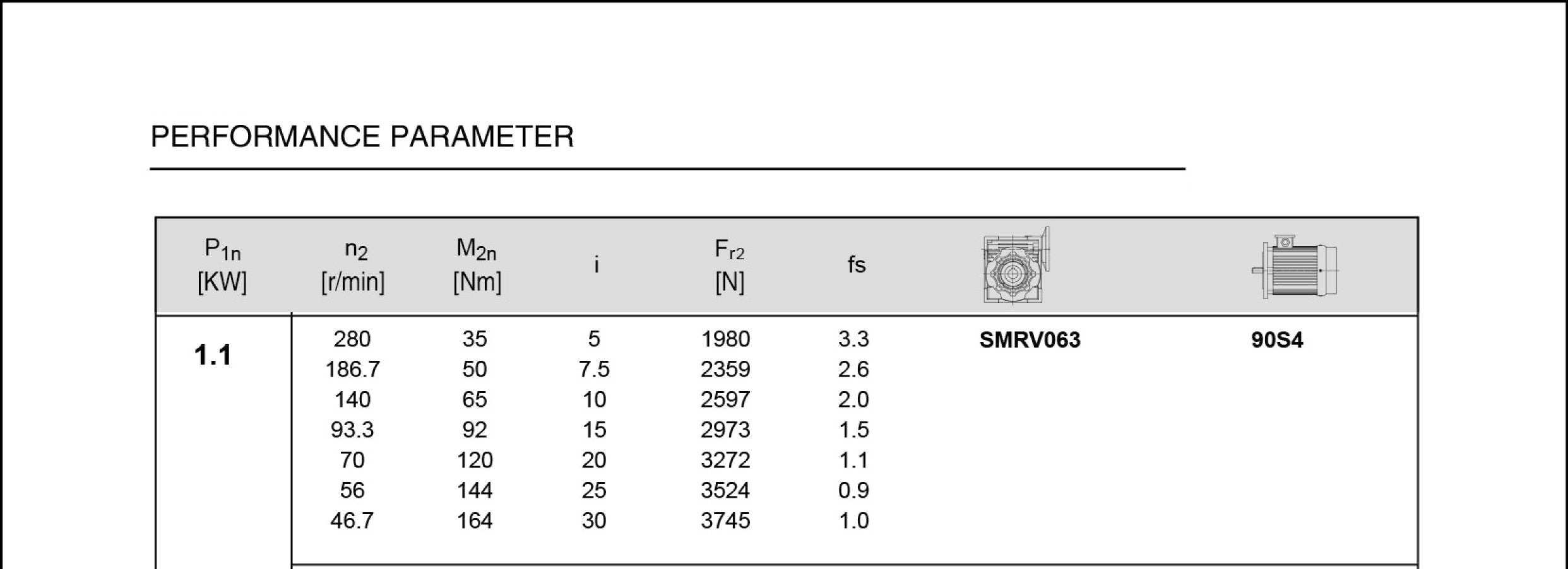

Each option in the menu gives a different output speed from the 1400 rpm motor:
7.5:1, 25 mm output
about 187 rpm
10:1, 25 mm output
about 140 rpm
15:1, 25 mm output
about 93 rpm
20:1, 25 mm output
about 70 rpm
25:1, 25 mm output
about 56 rpm
30:1, 25 mm output
about 47 rpm
Figures are motor speed ÷ ratio, rounded.
Torque: up to 164 Nm according to the listing, at the high-ratio end. Faster ratios produce less.
Running it
Runs from 240 V single phase. Output speed is set by the ratio, so choose it to suit the job.
Where it is used
A 1.1 kW worm gear motor like this suits conveyors, screw feeders, mixers, rotating tables and gate drives, wherever you need slow, steady turning force.
Technical data
Motor power
1.1 kW / 1.5 HP
Voltage
240 V single phase, 50 Hz
Motor speed
1400 rpm
Reducer
Worm, size 063
Output
25 mm hollow shaft
Output torque, max.
164 Nm
Duty
S1 (continuous)
Before you install
- For hoisting or holding, add a brake; the worm alone is not enough.
- Guard the output shaft and anything connected to it.
- Get a licensed electrician to connect the supply.
Postage, returns and warranty
Sent from our Glen Waverley warehouse to any Australian address, with postage shown at checkout. Warranty terms are in our Returns, Refunds & Warranty Policy.
Call 0401 634 280 or email hankemotors@gmail.com and we will help choose the ratio and size.
