1 HP worm gear motor, 240 V single phase. Size 063 gearbox with a 25 mm hollow output. Pick from 7 ratios; the slowest gives about 28 rpm. In stock at Glen Waverley, VIC.
Ratio menu explained
Speeds below assume the motor's 1400 rpm:
10:1, 25 mm output
about 140 rpm
15:1, 25 mm output
about 93 rpm
20:1, 25 mm output
about 70 rpm
25:1, 25 mm output
about 56 rpm
30:1, 25 mm output
about 47 rpm
40:1, 25 mm output
about 35 rpm
50:1, 25 mm output
about 28 rpm
Figures are motor speed ÷ ratio, rounded.

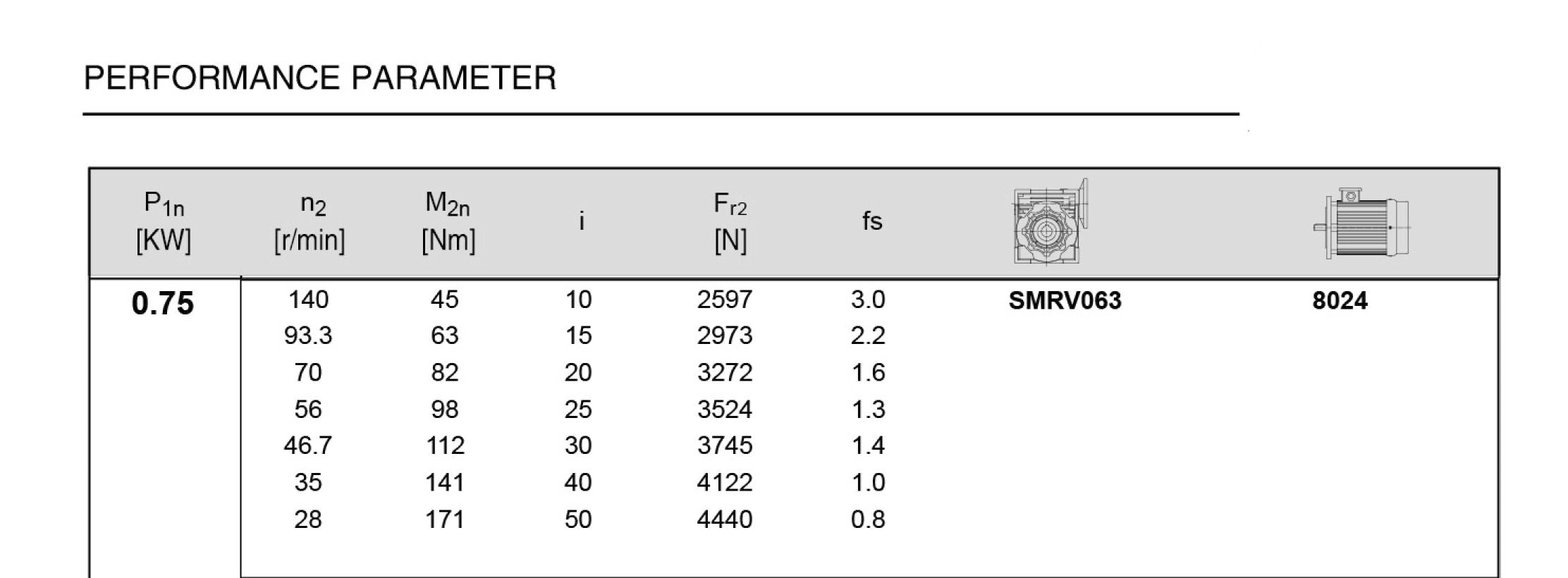

Maximum output torque is listed as 171 Nm. Lower ratios give more speed but less torque than that figure; check with us if your load is close to it.
Electrical supply
Runs from 240 V single phase. Output speed is set by the ratio, so choose it to suit the job.
Already have a motor?
This set includes the motor. To reuse a motor you already have, pick a size 063 gearbox on its own with the matching B5 input.
Motor and gearbox data
Motor power
0.75 kW / 1 HP
Input speed
1400 rpm
Gearbox
Worm, size 063
Hollow output
25 mm hollow shaft
Max. output torque
171 Nm
Duty rating
S1 (continuous)
Supply
240 V single phase, 50 Hz
Safety and fitting
- Worm gears can creep back under load or vibration, so lifting jobs need a brake.
- Restrain the gearbox housing so it cannot rotate; hollow-shaft mounting needs a torque arm.
- Wiring is a job for a licensed electrician.
Delivery and warranty
Dispatched from Glen Waverley, VIC. Enter your address at checkout for postage. Returns and warranty follow our Returns, Refunds & Warranty Policy.
Not sure which ratio? Tell us the speed you need at the output: 0401 634 280 or hankemotors@gmail.com.
