Hankemotor

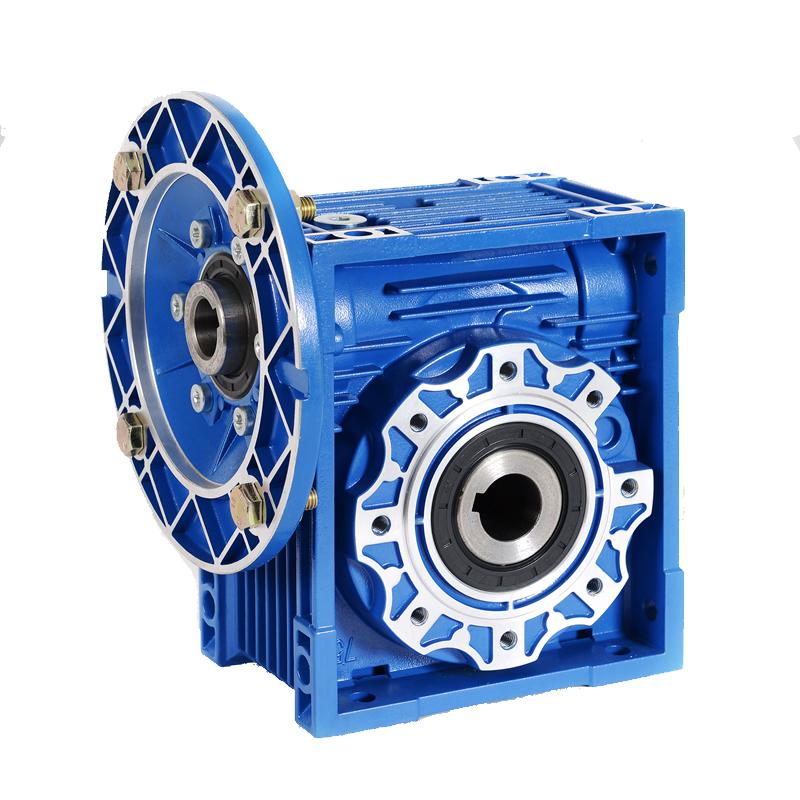

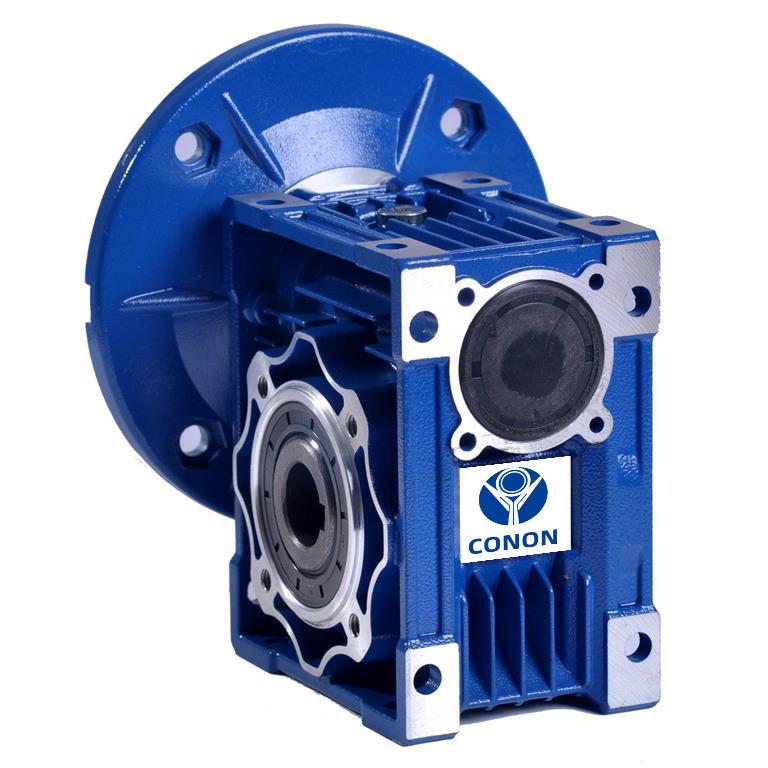

0.55kW 0.75HP Single Phase 240V Geared Motor – NMRV090 40:1–100:1

$873.60 In Stock Sold out
Reduce Ratio
Add to wishlist Added to wishlist
Categories: Geared Motors

1-7 DAYS DELIVERY

100% ORIGINAL AND QUALITY

12 MONTHS GUARANTEE

  • Description
Motor and gearbox set: 0.55 kW, 240 V single phase, NMRV090. Output from about 35 rpm (40:1) to 14 rpm (100:1). Ships from Glen Waverley.

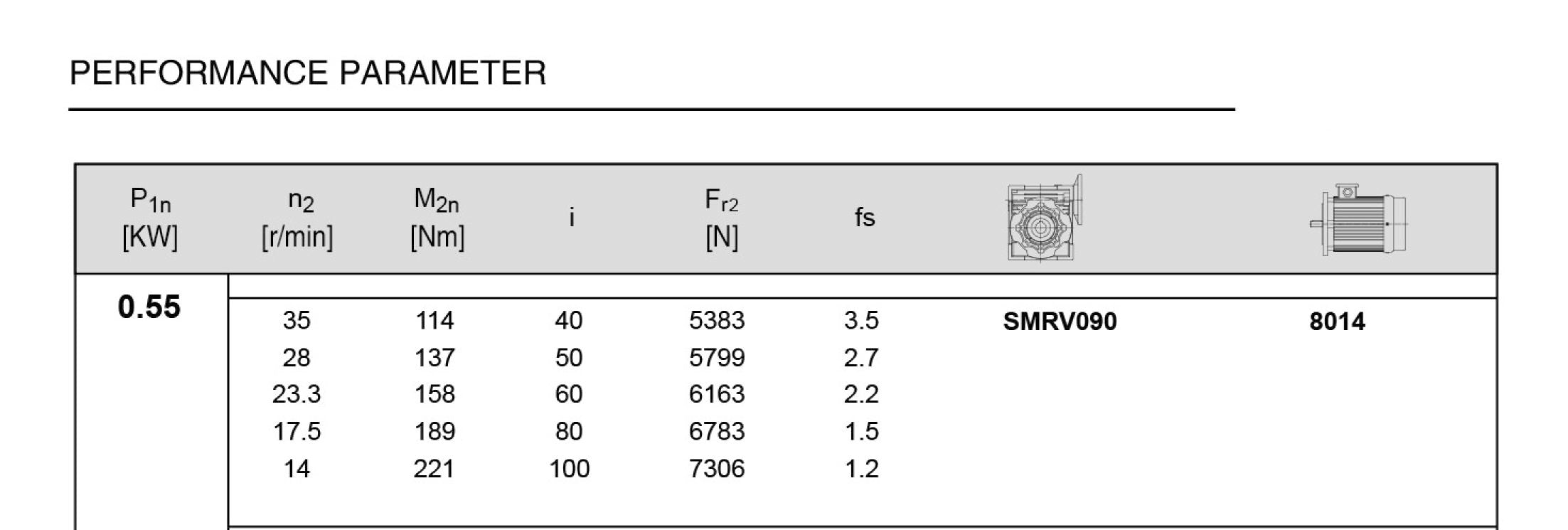

Output speed for each ratio

The motor runs at 1400 rpm. Divide by the ratio to get the output speed:

40:1, 35 mm output about 35 rpm 50:1, 35 mm output about 28 rpm 60:1, 35 mm output about 23 rpm 80:1, 35 mm output about 17.5 rpm 100:1, 18 mm output about 14 rpm

Rounded figures; real speed drops a few percent at full load.

Listed peak output torque is 221 Nm. If your job needs close to that at a low ratio, ask us to check the sizing.

Single or three phase?

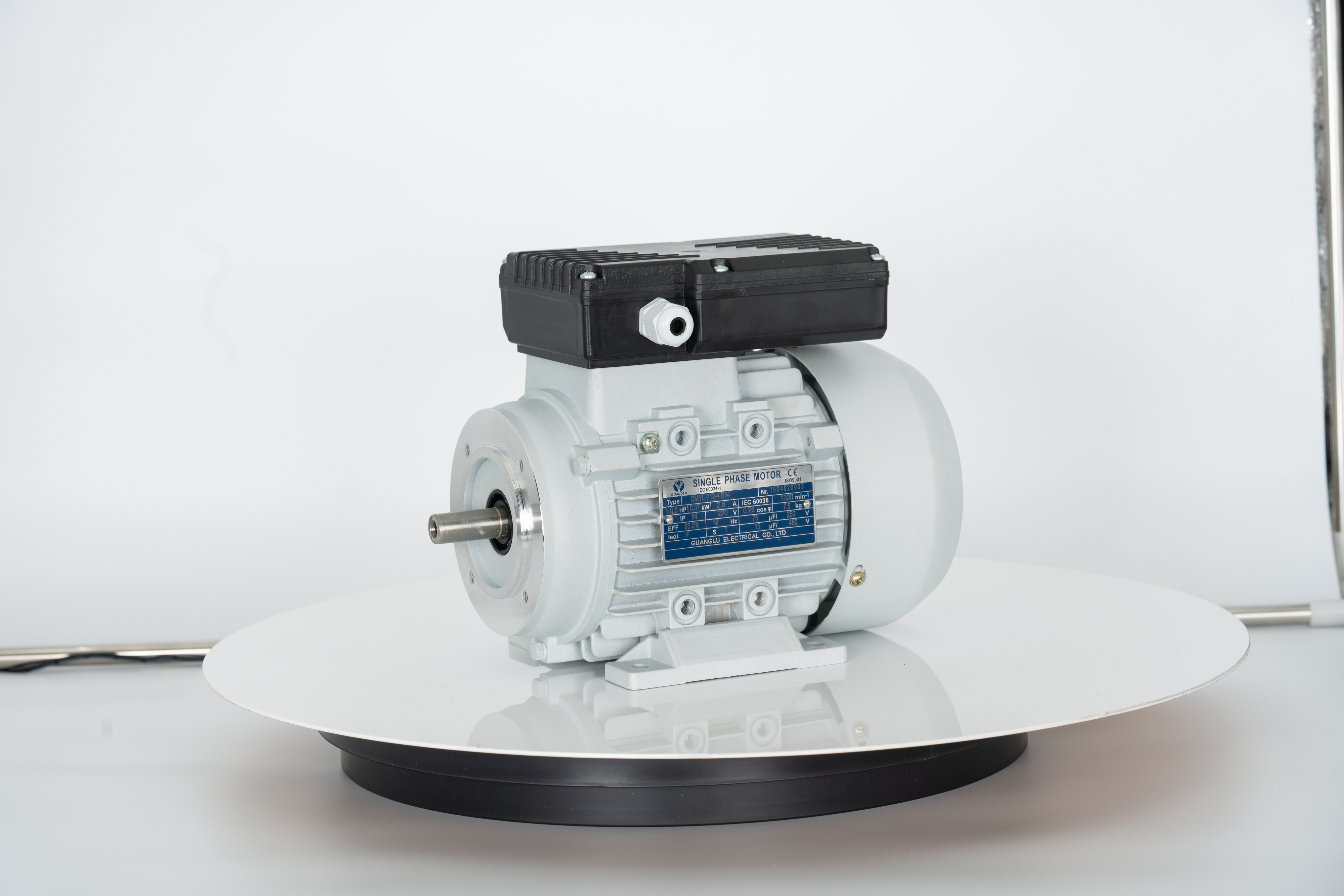

Runs from 240 V single phase. Output speed is set by the ratio, so choose it to suit the job.

Which option to order

Divide 1400 rpm by the output speed your machine needs; the answer is the ratio to pick. Need roughly 14 rpm? That is the 100:1 option.

Motor and gearbox data

Motor power 0.55 kW / 0.75 HP Input speed 1400 rpm Gear unit Worm, size 090 Output shaft 35 mm hollow shaft Output torque, max. 221 Nm Duty S1 (continuous) Power supply 240 V single phase, 50 Hz

Where this set is used

At 14 to 35 rpm with up to 221 Nm at the output, this NMRV090 set suits slow, heavy turning: stock feed augers, drum and paddle mixers, rotating platforms and slow conveyors. The 240 V motor plugs into the supply found in most sheds and farm buildings, so no three phase connection is needed.

Need more power on the same gearbox? See the 0.75 kW single phase NMRV090 set. A smaller box with the same motor is the 0.55 kW NMRV075 set, and the three phase 0.55 kW NMRV090 version runs on 415 V. All sizes are listed under geared motors.

Safety and fitting
  • Do not rely on the worm to hold a suspended load; fit a brake.
  • Guard the output shaft and anything connected to it.
  • Electrical connection must be done by a licensed electrician.

Delivery

We post from Glen Waverley to all states, priced at checkout by postcode. Warranty claims are handled by us directly (Returns, Refunds & Warranty Policy).

Call 0401 634 280 or email hankemotors@gmail.com and we will help choose the ratio and size.
