0.75 kW single phase gear motor (NMRV090): motor and worm gearbox supplied together, so the flange and shaft already match. 5 ratio options from 40:1 to 100:1.
Pick your ratio
Output speed is the motor's 1400 rpm divided by the ratio you choose:
40:1, 35 mm output
about 35 rpm
50:1, 35 mm output
about 28 rpm
60:1, 35 mm output
about 23 rpm
80:1, 35 mm output
about 17.5 rpm
100:1, 18 mm output
about 14 rpm
Calculated from nameplate speed. Loaded speed is a little lower.
Listed peak output torque is 302 Nm. If your job needs close to that at a low ratio, ask us to check the sizing.
Running it
The motor runs on standard 240 V single phase power, so it suits sites without three phase. Speed is fixed by the ratio you choose.
Where it is used
Typical installations at this size: farm augers, small conveyors, tumblers, turntables and slow stirrers in tanks.

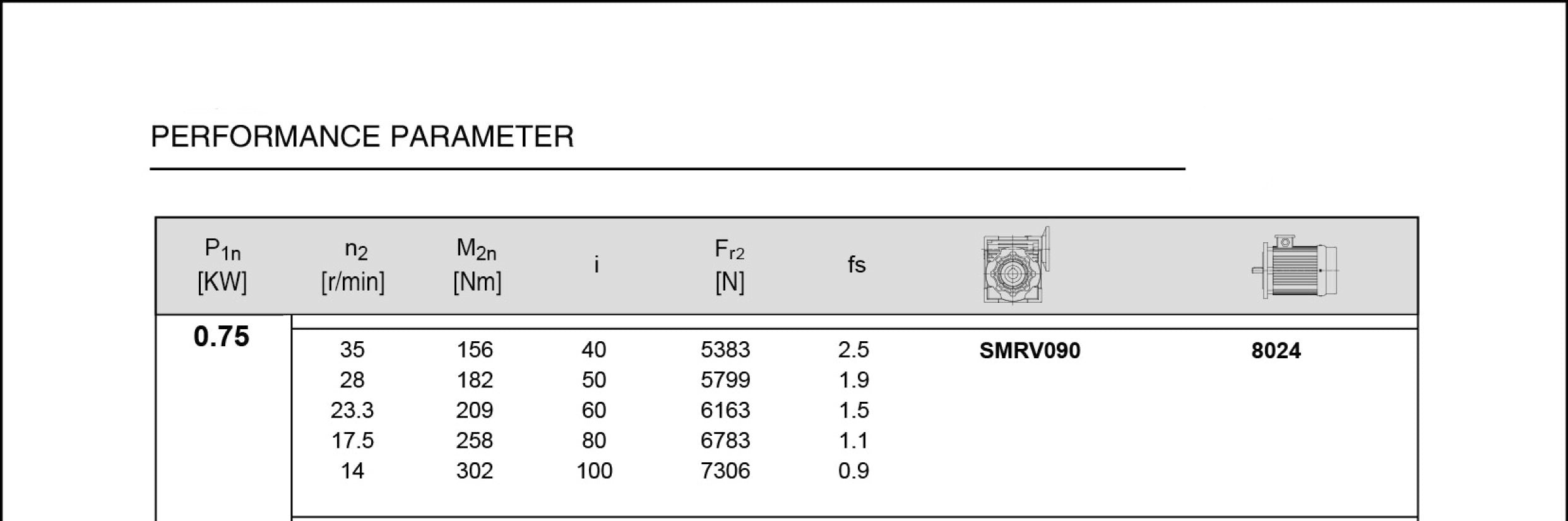

Motor and gearbox data
Voltage
240 V single phase, 50 Hz
Rated power
0.75 kW / 1 HP
Input speed
1400 rpm
Gear unit
Worm, size 090
Hollow output
35 mm hollow shaft
Peak torque (listed)
302 Nm
Duty
S1 (continuous)
Fitting tips
- Never use the gearbox as the only means of holding a load.
- Restrain the gearbox housing so it cannot rotate; hollow-shaft mounting needs a torque arm.
- Electrical connection must be done by a licensed electrician.
Postage, returns and warranty
In stock at Glen Waverley, Victoria, and delivered nationwide. Checkout works out the postage; our Returns, Refunds & Warranty Policy covers claims.
Ring 0401 634 280 or email hankemotors@gmail.com before you order if you are unsure.
