0.55 kW (0.75 HP) 415 V three phase motor fitted to a size 090 worm gearbox. Choose the ratio from the menu: 40:1, 50:1, 60:1, 80:1, 100:1. Output speeds run from about 35 rpm down to about 14 rpm.
Output speeds

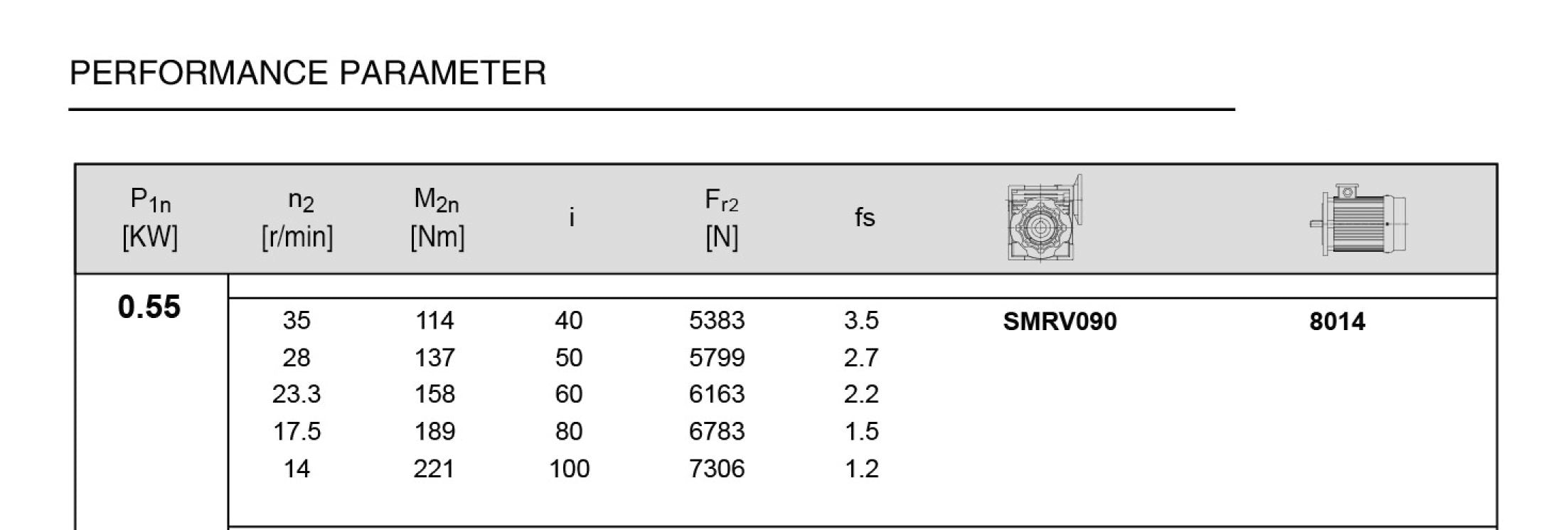

The motor runs at 1400 rpm. Divide by the ratio to get the output speed:
40:1, 35 mm output
about 35 rpm
50:1, 35 mm output
about 28 rpm
60:1, 35 mm output
about 23 rpm
80:1, 35 mm output
about 17.5 rpm
100:1, 18 mm output
about 14 rpm
Rounded figures; real speed drops a few percent at full load.
Torque: up to 221 Nm according to the listing, at the high-ratio end. Faster ratios produce less.

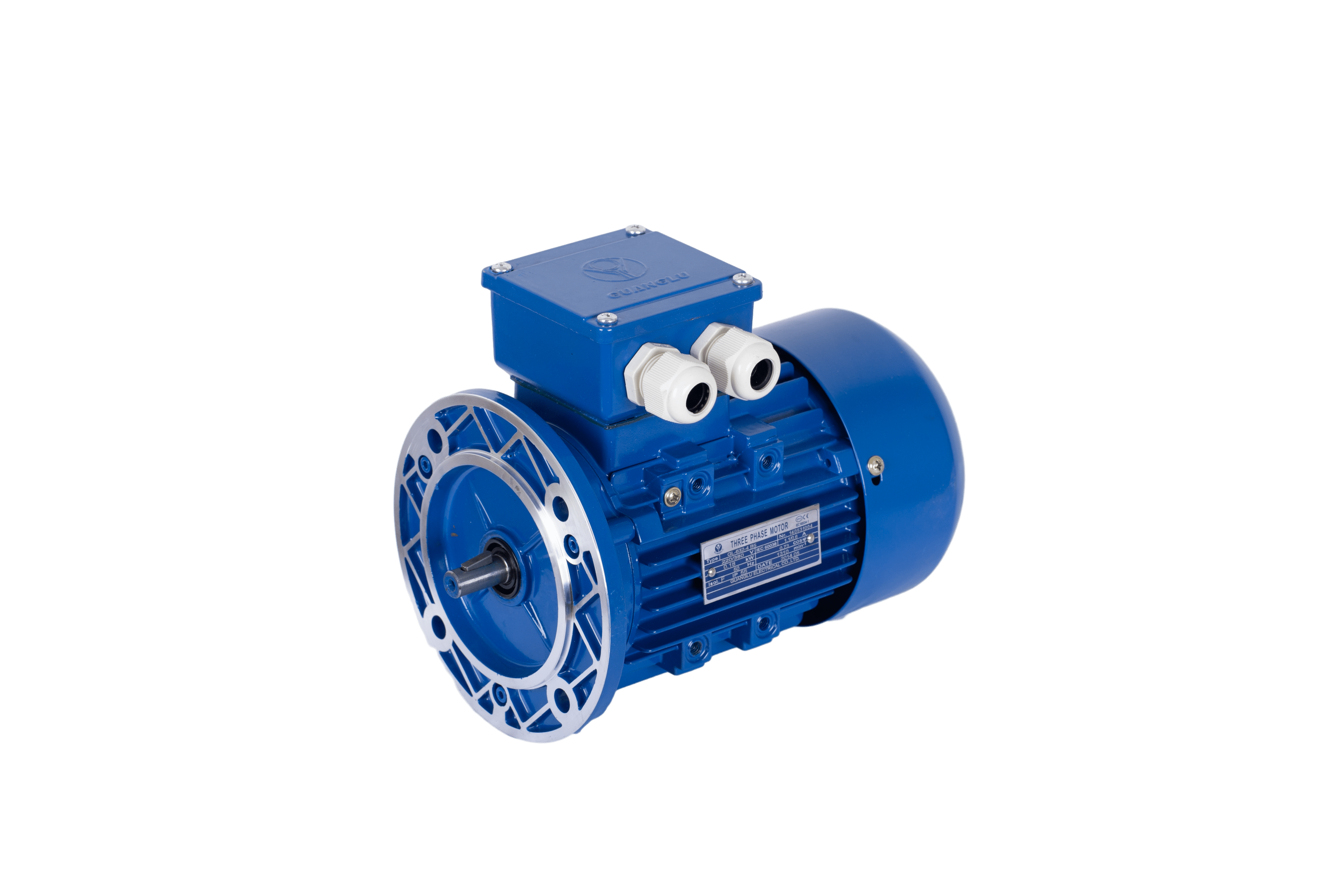

Electrical supply
The motor is 415 V three phase. If you only have 240 V, it can be run from a single phase to three phase VFD, which also lets you adjust the output speed.

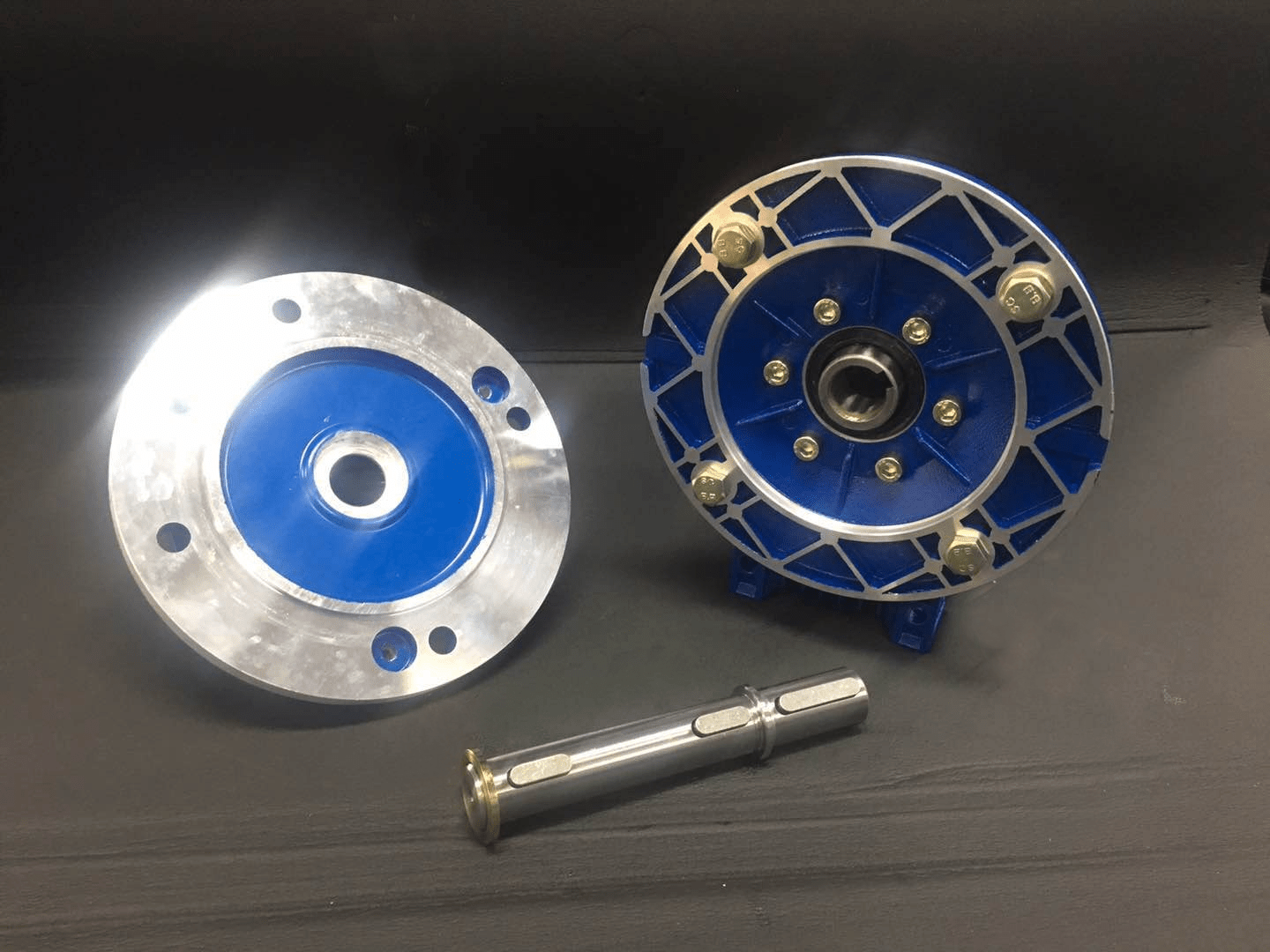

Mounting the output

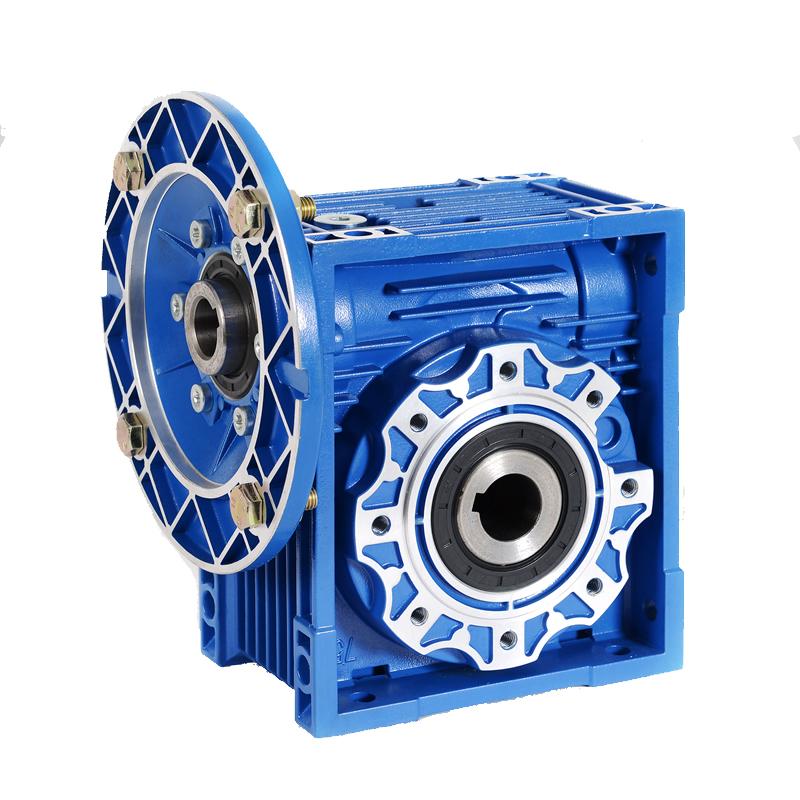

The output is a 35 mm hollow bore. Your driven shaft slides straight through and is driven by a key, so no coupling is needed.
Details
Rated power
0.55 kW / 0.75 HP
Power supply
415 V three phase, 50 Hz
Input speed
1400 rpm

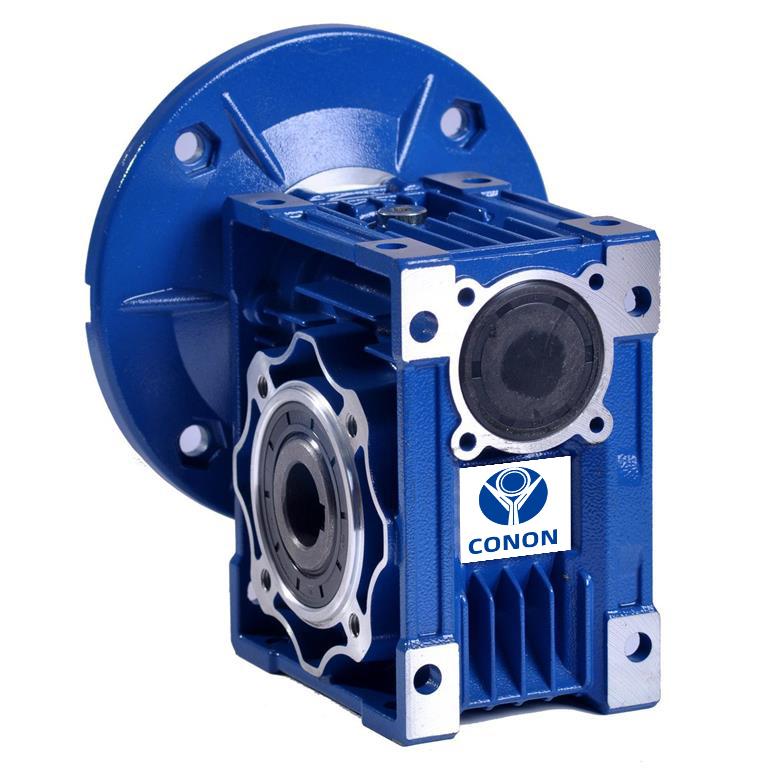

Gear unit
Worm, size 090
Output shaft
35 mm hollow shaft
Max. output torque
221 Nm
Duty rating
S1 (continuous)
Before you install
- Never use the gearbox as the only means of holding a load.
- Restrain the gearbox housing so it cannot rotate; hollow-shaft mounting needs a torque arm.
- Have a licensed electrician wire the motor.
Shipping
Freight is worked out at checkout and the geared motor leaves from Glen Waverley, VIC. See the Returns, Refunds & Warranty Policy for warranty.
Send us the job details and we will suggest a ratio: hankemotors@gmail.com, 0401 634 280.
