Hankemotor

0.55kW 0.75HP Single Phase 240V Geared Motor – NMRV063 15:1–80:1

$616.00 In Stock Sold out
Reduce Ratio
Add to wishlist Added to wishlist
Categories: Geared Motors

1-7 DAYS DELIVERY

100% ORIGINAL AND QUALITY

12 MONTHS GUARANTEE

  • Description
0.55 kW (0.75 HP) geared motor, 240 V single phase, worm gearbox size 063. Ratios from 15:1 (about 93 rpm) to 80:1 (about 17.5 rpm).

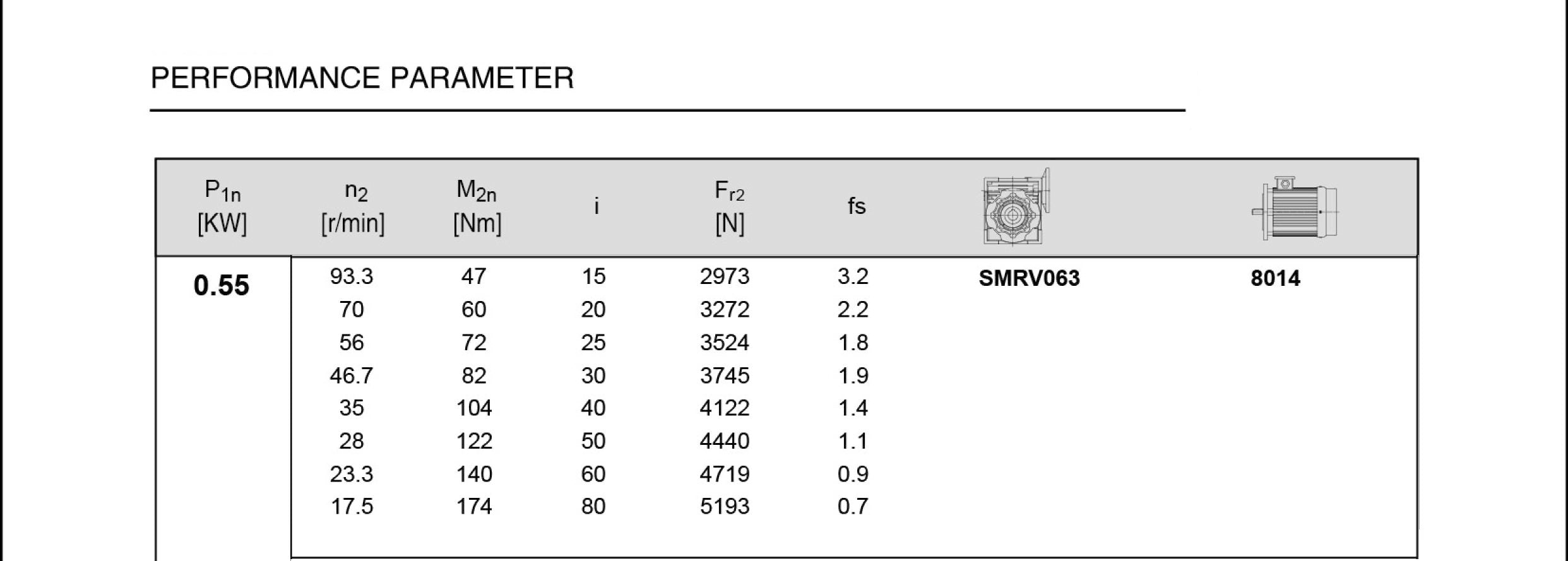

Pick your ratio

The motor runs at 1400 rpm. Divide by the ratio to get the output speed:

15:1, 25 mm output about 93 rpm 20:1, 25 mm output about 70 rpm 25:1, 25 mm output about 56 rpm 30:1, 25 mm output about 47 rpm 40:1, 25 mm output about 35 rpm 50:1, 25 mm output about 28 rpm 60:1, 25 mm output about 23 rpm 80:1, 25 mm output about 17.5 rpm

Speeds are approximate and assume no slip.

Torque: up to 174 Nm according to the listing, at the high-ratio end. Faster ratios produce less.

Supply and speed control

Runs from 240 V single phase. Output speed is set by the ratio, so choose it to suit the job.

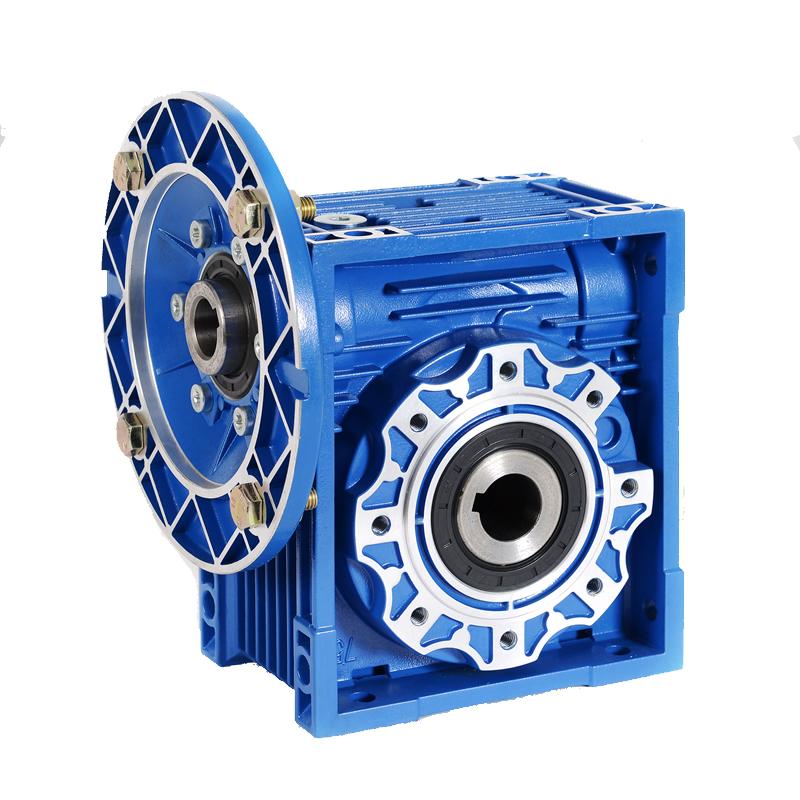

The hollow output

With a hollow output of 25 mm the gearbox can sit directly on the machine shaft. A little anti-seize on the shaft makes it much easier to remove later.

Technical data

Voltage 240 V single phase, 50 Hz Motor power 0.55 kW / 0.75 HP Motor speed 1400 rpm Gear unit Worm, size 063 Hollow output 25 mm hollow shaft Output torque, max. 174 Nm Duty class S1 (continuous)

Typical jobs for this geared motor

This is an NMRV063 worm box fitted to a 0.55 kW motor. The faster ratios (15:1 to 25:1) are commonly used for belt and roller conveyors, rotating display tables and small tumblers. The slower ratios (50:1 to 80:1) give more turning force for mixers, gate drives and feeders. It runs from a standard 240 V single phase supply.

Same NMRV063 box, other motor sizes: 0.37 kW and 0.75 kW. For a bigger gearbox on this motor, see the 0.55 kW NMRV075 set. Browse every combination in geared motors.

Good to know
  • Do not rely on the worm to hold a suspended load; fit a brake.
  • Guard the output shaft and anything connected to it.
  • Have a licensed electrician wire the motor.

Postage, returns and warranty

Australia-wide delivery from our Glen Waverley store; postage appears at checkout. Our Returns, Refunds & Warranty Policy explains warranty and returns.

Send us the job details and we will suggest a ratio: hankemotors@gmail.com, 0401 634 280.
