Size 110 worm gearbox with a 3 kW 415 V three phase motor and 35 mm hollow output, supplied assembled. Choose one of 7 ratios below. Ships from Glen Waverley.
Ratio menu explained
The motor runs at 1400 rpm. Divide by the ratio to get the output speed:
10:1, 42 mm output
about 140 rpm
15:1, 42 mm output
about 93 rpm
20:1, 42 mm output
about 70 rpm
25:1, 42 mm output
about 56 rpm
30:1, 42 mm output
about 47 rpm
40:1, 42 mm output
about 35 rpm
50:1, 42 mm output
about 28 rpm
Nominal speeds; under load the motor slows slightly.

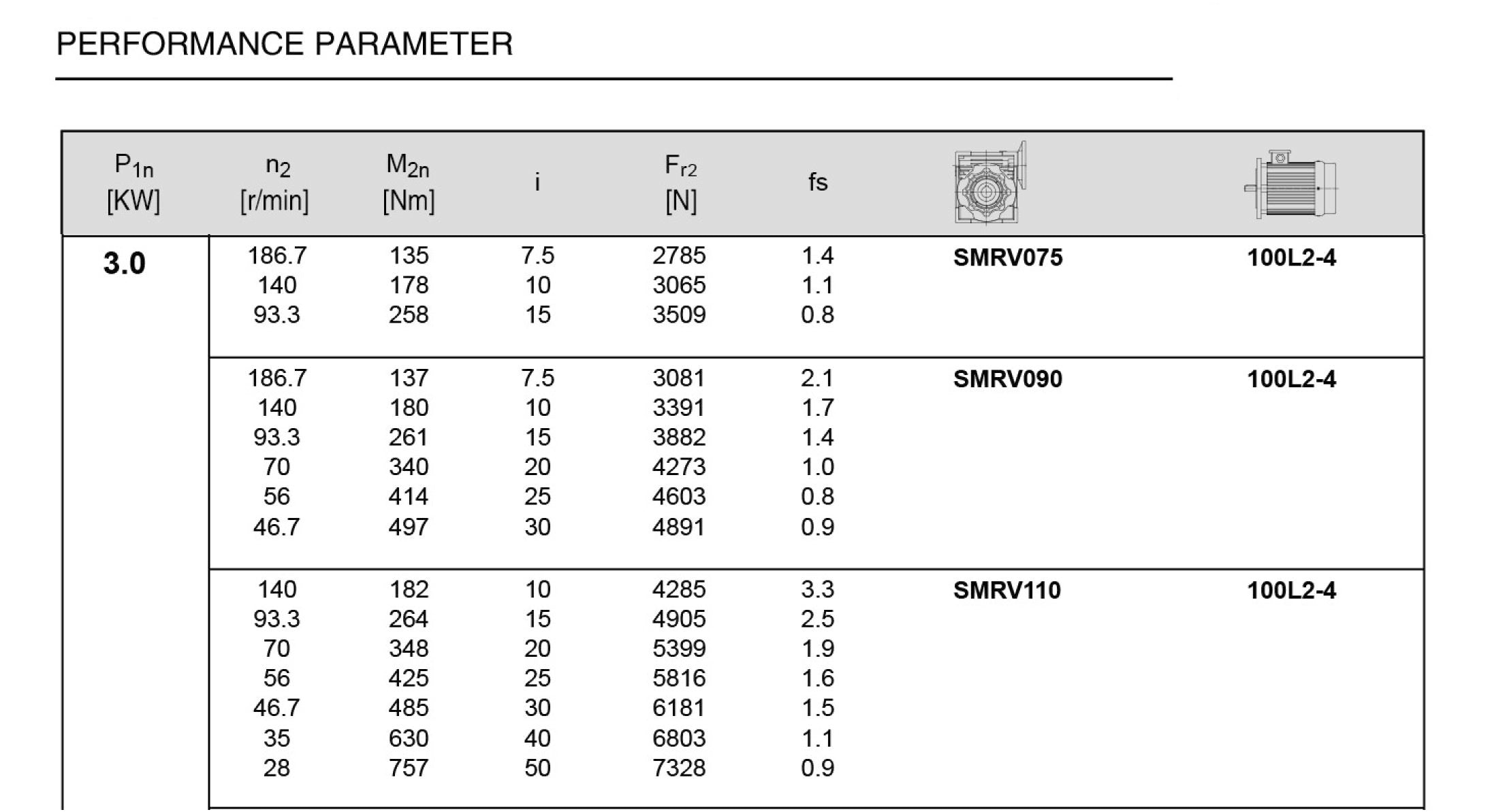

The listing gives a maximum output torque of 757 Nm. Output torque goes up as the ratio goes up and the speed comes down, so the low ratios deliver less than this figure.
Single or three phase?
Three phase 415 V. Pair it with a VFD for speed control or to run it from a 240 V single phase supply.
Mounting the output
With a hollow output of 35 mm the gearbox can sit directly on the machine shaft. A little anti-seize on the shaft makes it much easier to remove later.
Key figures
Motor power
3 kW / 4 HP
Supply
415 V three phase, 50 Hz
Duty
S1 (continuous)
Max. output torque
757 Nm
Output shaft
35 mm hollow shaft
Reducer
Worm, size 110
Input speed
1400 rpm
Good to know
- Do not rely on the worm to hold a suspended load; fit a brake.
- Restrain the gearbox housing so it cannot rotate; hollow-shaft mounting needs a torque arm.
- Electrical connection must be done by a licensed electrician.
Postage, returns and warranty
Sent from our Glen Waverley warehouse to any Australian address, with postage shown at checkout. Warranty terms are in our Returns, Refunds & Warranty Policy.
Ring 0401 634 280 or email hankemotors@gmail.com before you order if you are unsure.
