3 kW (4 HP) 415 V three phase motor fitted to a size 090 worm gearbox. Choose the ratio from the menu: 7.5:1, 10:1, 15:1, 20:1, 25:1, 30:1. Output speeds run from about 187 rpm down to about 47 rpm.

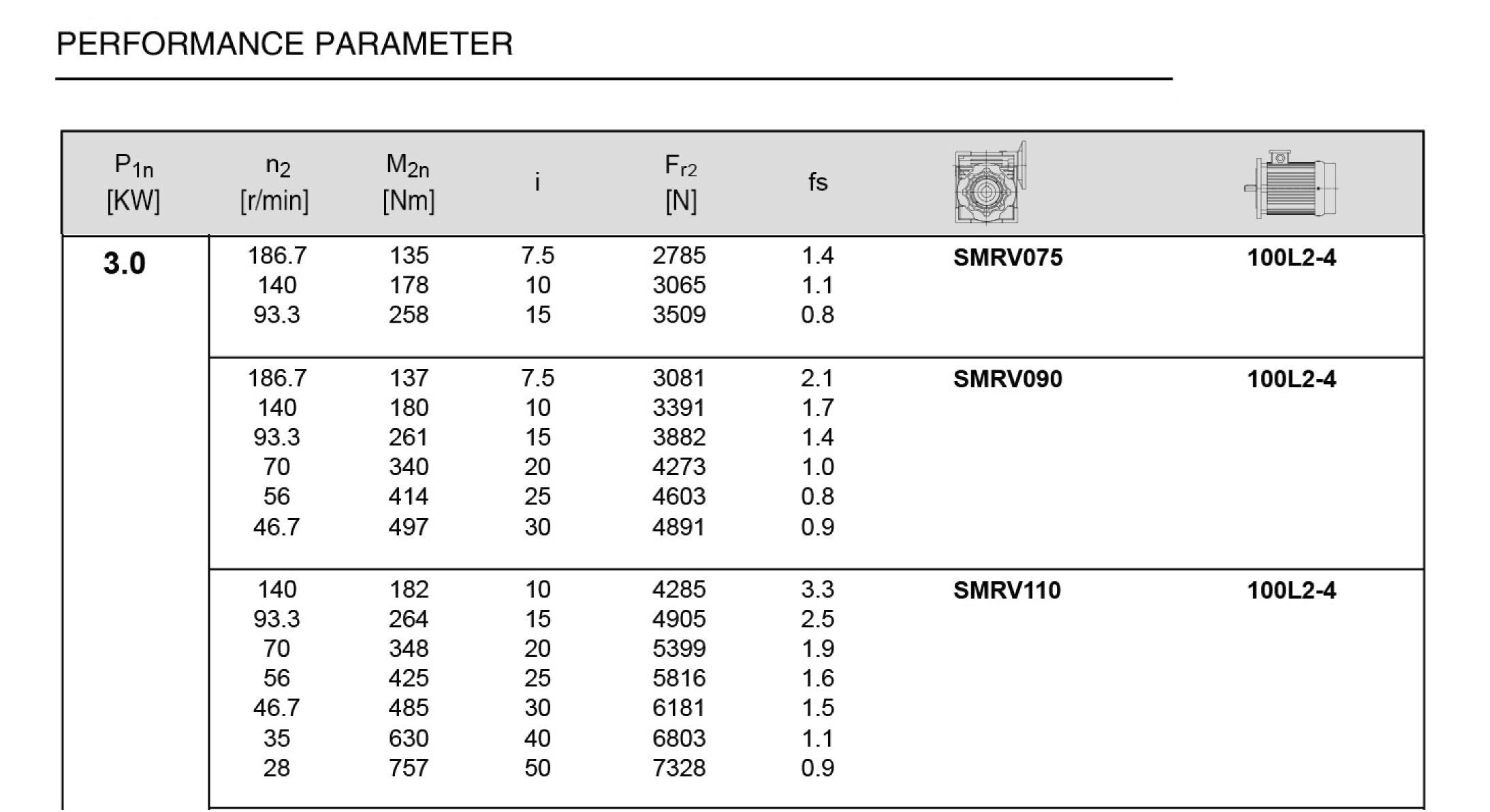

Speed options
Speeds below assume the motor's 1400 rpm:
7.5:1, 35 mm output
about 187 rpm
10:1, 35 mm output
about 140 rpm
15:1, 35 mm output
about 93 rpm
20:1, 35 mm output
about 70 rpm
25:1, 35 mm output
about 56 rpm
30:1, 35 mm output
about 47 rpm
Calculated from nameplate speed. Loaded speed is a little lower.
The listing gives a maximum output torque of 497 Nm. Output torque goes up as the ratio goes up and the speed comes down, so the low ratios deliver less than this figure.
Running it
Needs 415 V three phase, or a single-to-three phase VFD on a 240 V site. The VFD also gives you variable output speed.
Which option to order
If you are between two ratios, choose the slower one when the load is heavy to start, and the faster one when cycle time matters more than torque.
Key figures

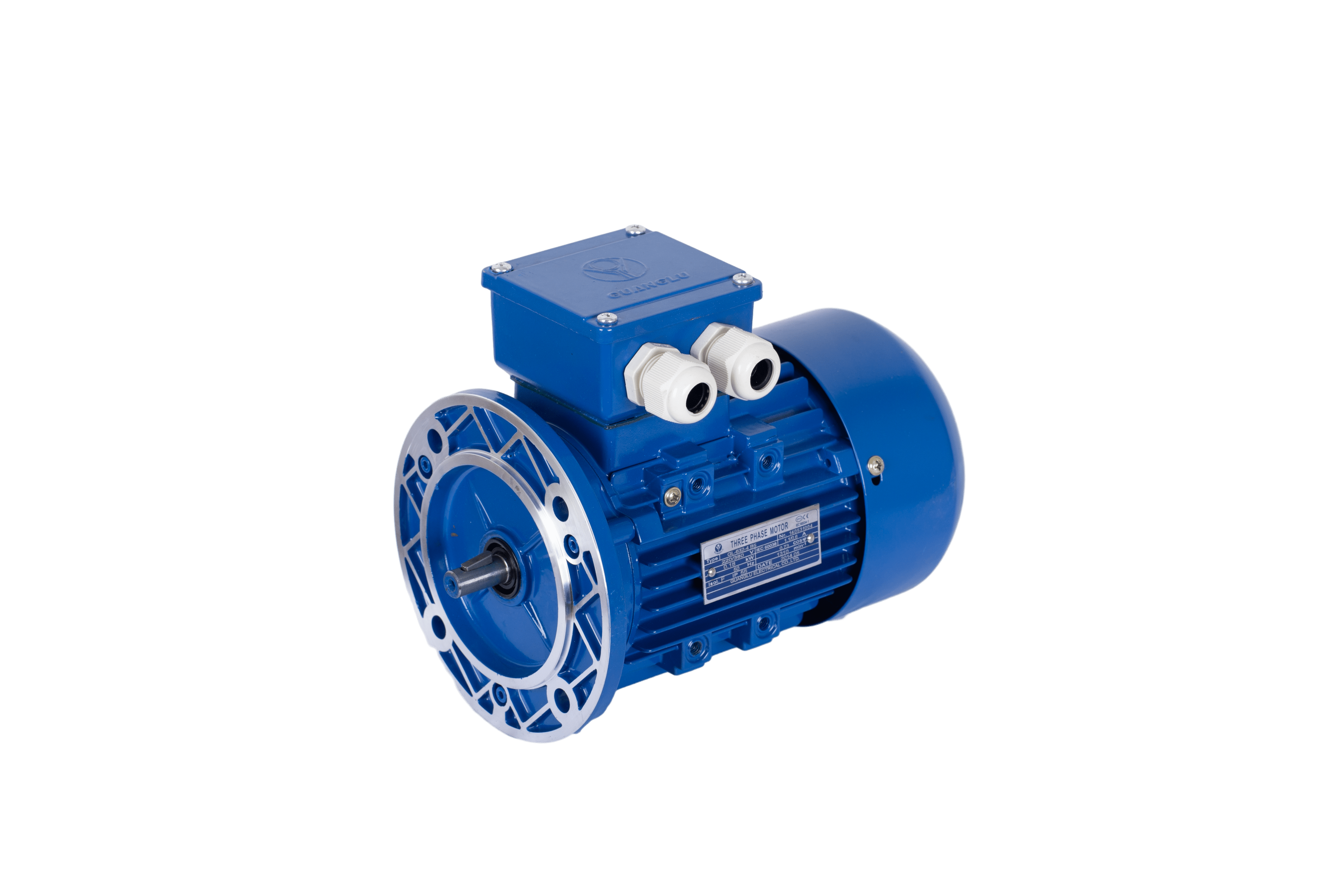

Rated power
3 kW / 4 HP
Supply
415 V three phase, 50 Hz
Input speed
1400 rpm

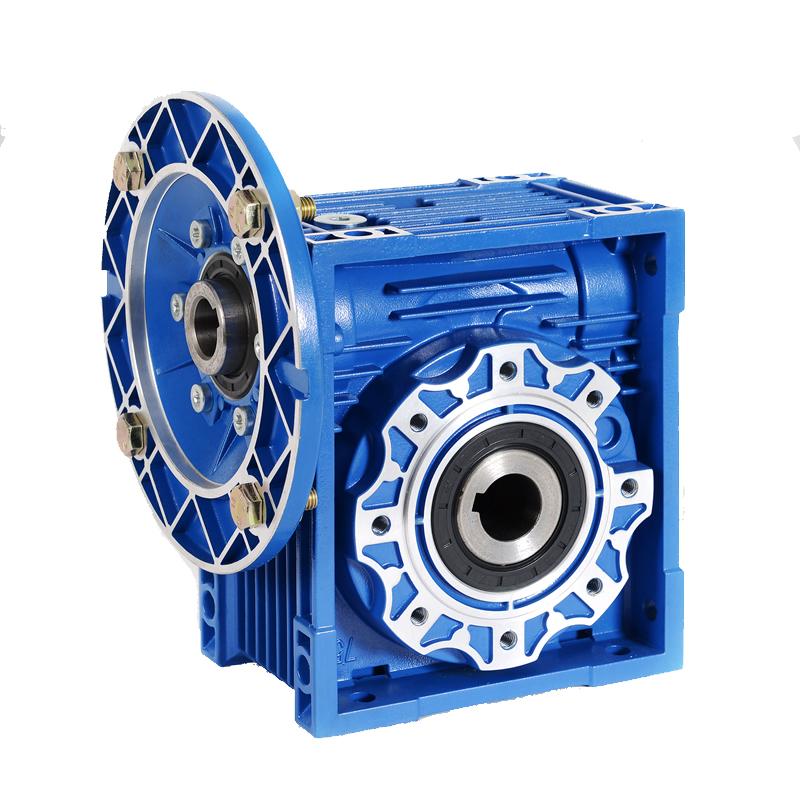

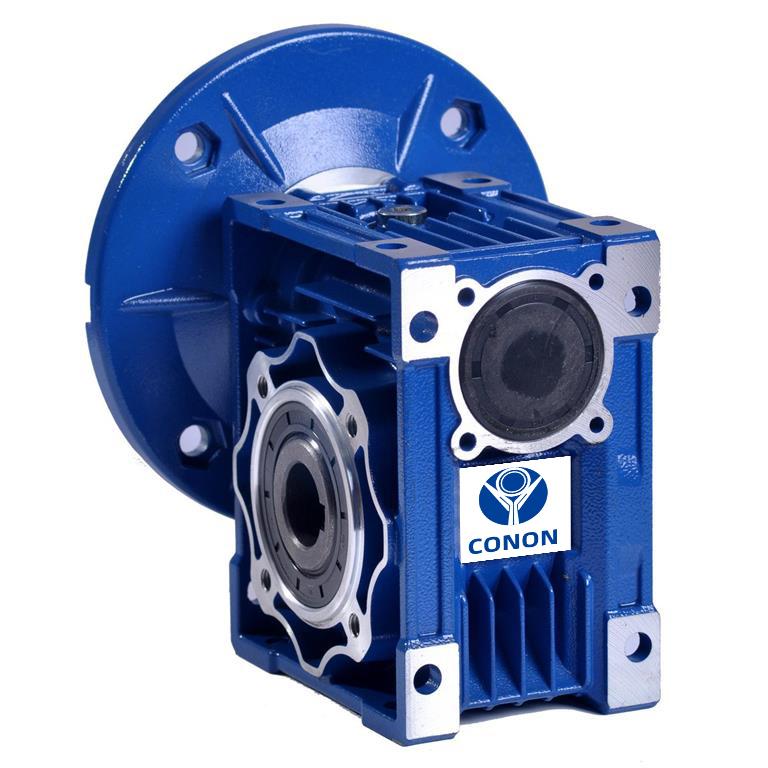

Reducer
Worm, size 090

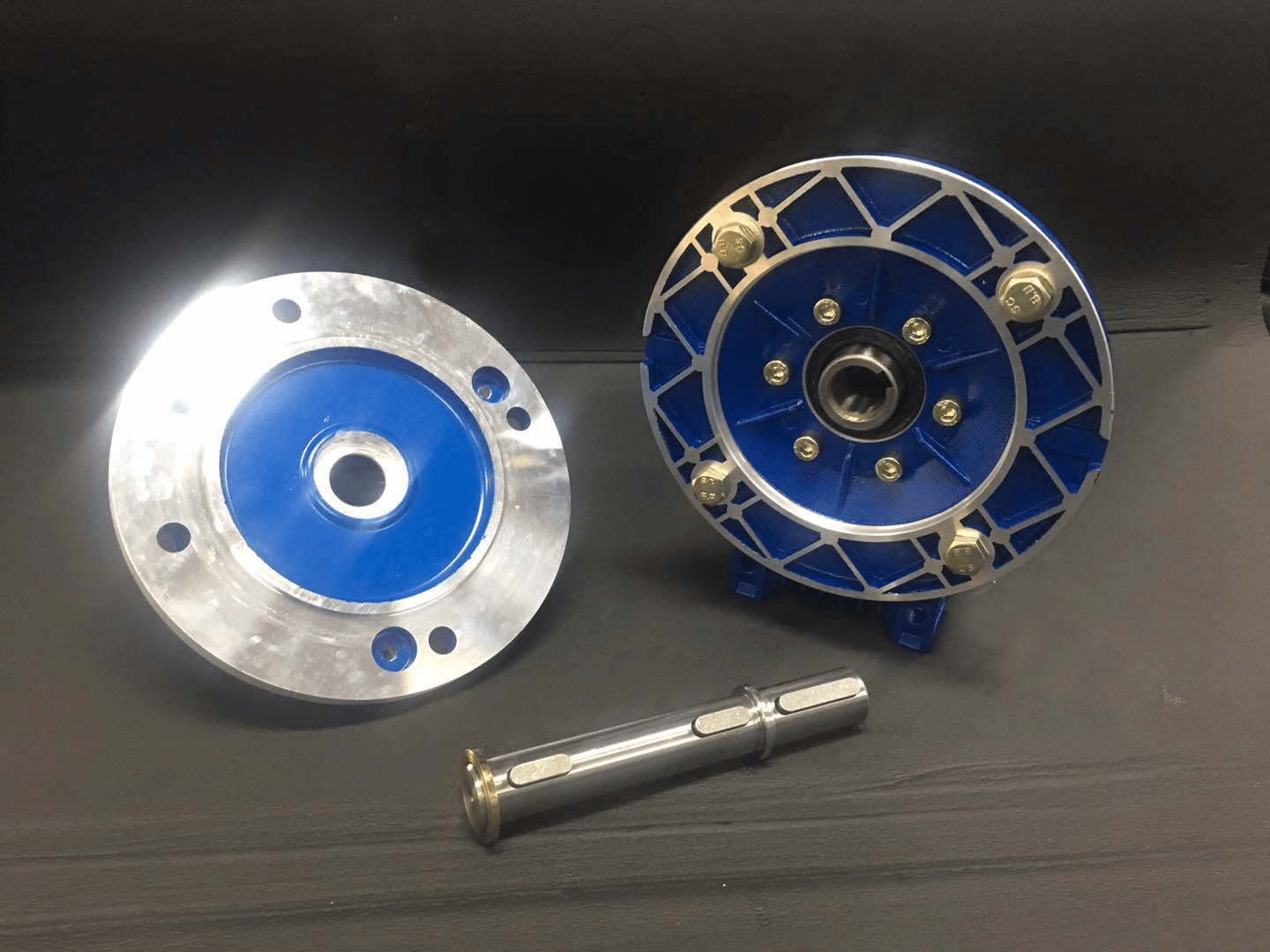

Hollow output
35 mm hollow shaft
Max. output torque
497 Nm
Duty rating
S1 (continuous)
Safety and fitting
- Never use the gearbox as the only means of holding a load.
- Restrain the gearbox housing so it cannot rotate; hollow-shaft mounting needs a torque arm.
- Electrical connection must be done by a licensed electrician.
Delivery and warranty
Ships Australia-wide from Glen Waverley, VIC; postage is calculated at checkout. Warranty and returns: see our Returns, Refunds & Warranty Policy.
Not sure which ratio? Tell us the speed you need at the output: 0401 634 280 or hankemotors@gmail.com.
