Worm geared motor, 3 kW / 4 HP, 415 V three phase, gearbox size 075 with a hollow output (28 mm). Available ratios 7.5:1 to 15:1. In stock at Glen Waverley, VIC.

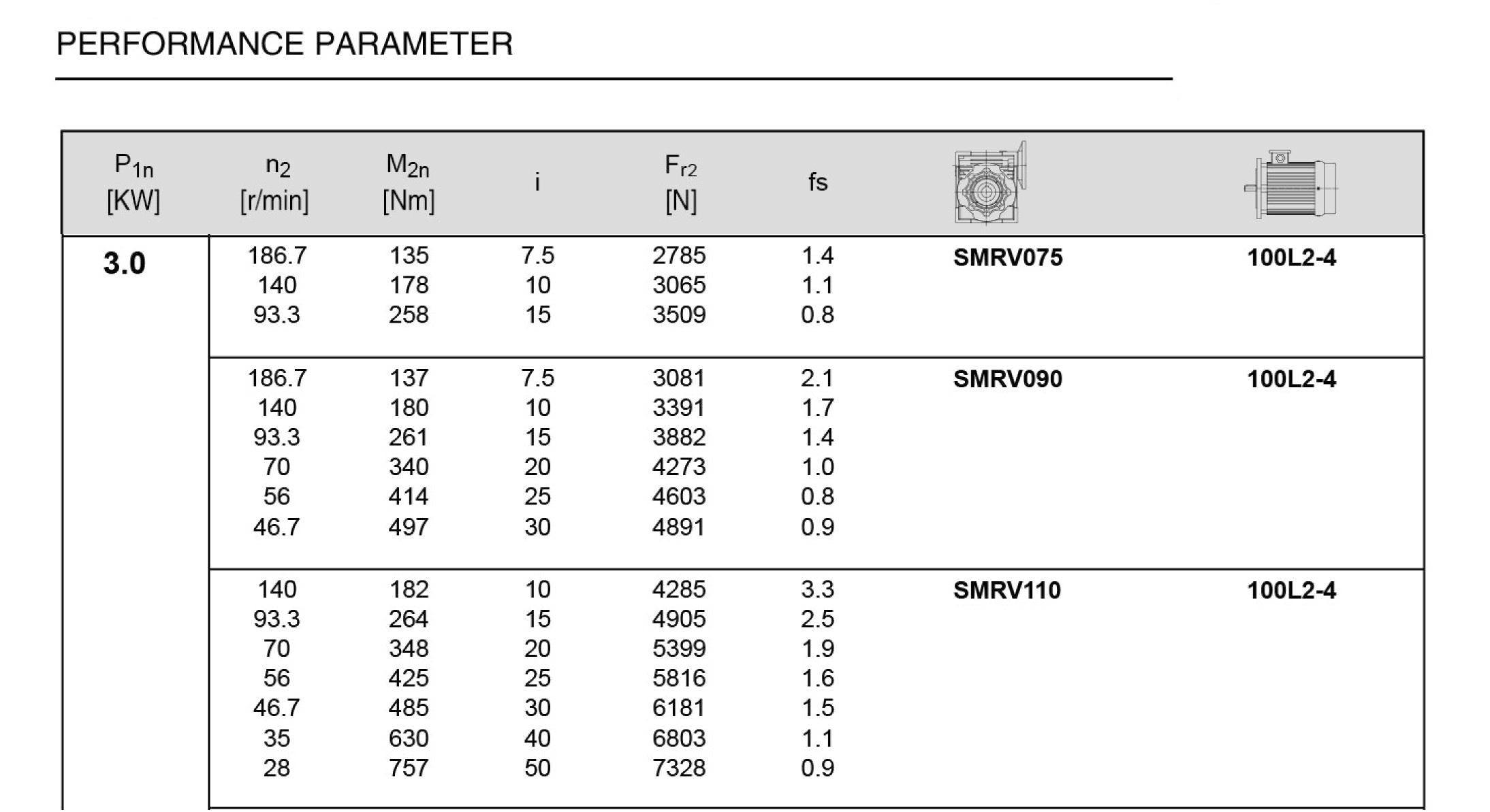

Output speed for each ratio
Each option in the menu gives a different output speed from the 1400 rpm motor:
7.5:1, 28 mm output
about 187 rpm
10:1, 28 mm output
about 140 rpm
15:1, 28 mm output
about 93 rpm
Rounded figures; real speed drops a few percent at full load.
The listing gives a maximum output torque of 258 Nm. Output torque goes up as the ratio goes up and the speed comes down, so the low ratios deliver less than this figure.
Power supply
The motor is 415 V three phase. If you only have 240 V, it can be run from a single phase to three phase VFD, which also lets you adjust the output speed.
How to choose
Work backwards from the job: a conveyor or mixer that should turn at about 187 rpm needs 7.5:1; something that should crawl at 93 rpm needs 15:1.

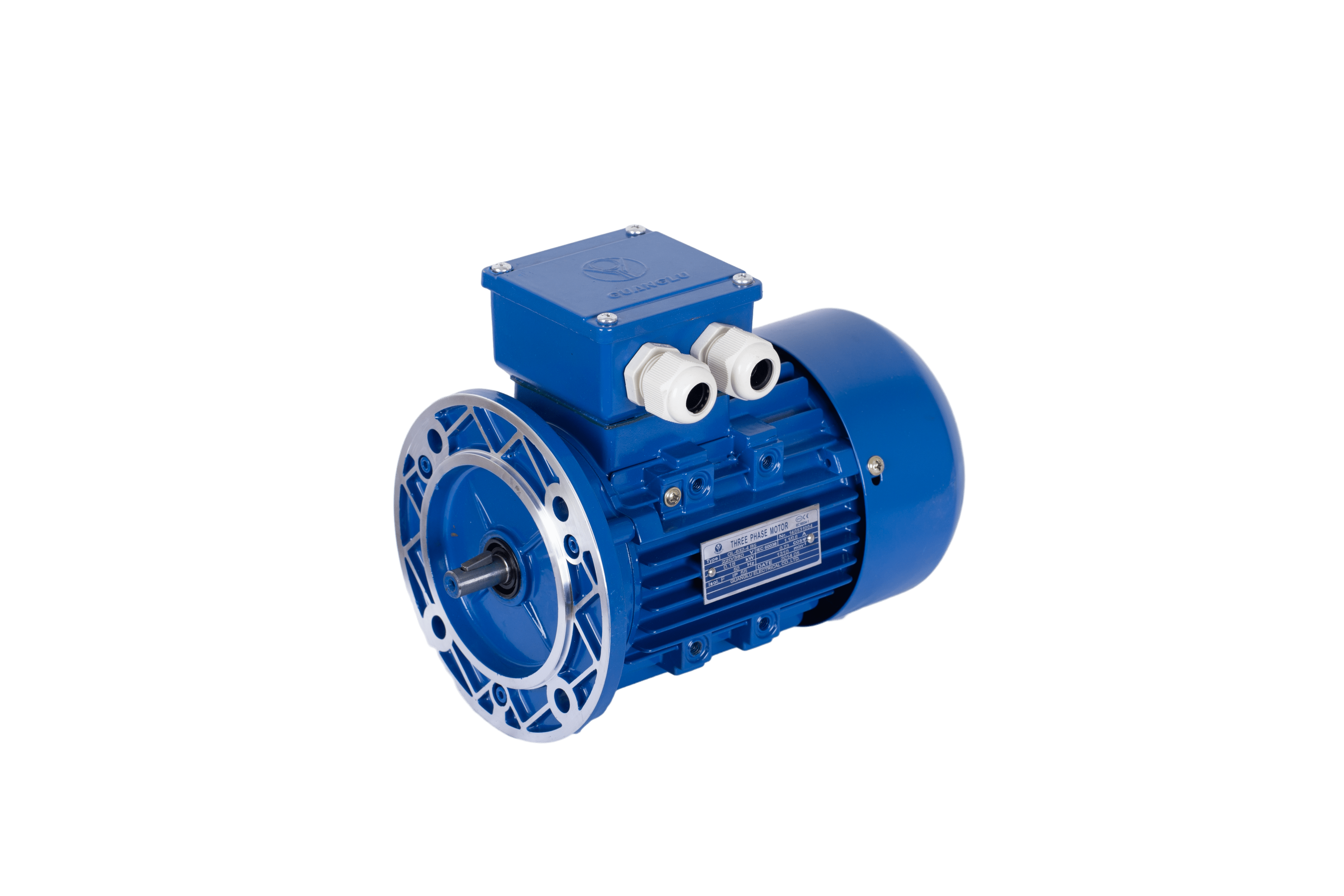

Motor and gearbox data
Motor power
3 kW / 4 HP
Supply
415 V three phase, 50 Hz
Duty
S1 (continuous)
Output torque, max.
258 Nm
Hollow output
28 mm hollow shaft
Reducer
Worm, size 075
Motor rpm
1400 rpm
Installation notes
- Never use the gearbox as the only means of holding a load.
- Restrain the gearbox housing so it cannot rotate; hollow-shaft mounting needs a torque arm.
- Have a licensed electrician wire the motor.
Shipping
We post from Glen Waverley to all states, priced at checkout by postcode. Warranty claims are handled by us directly (Returns, Refunds & Warranty Policy).
Questions about torque or speed? 0401 634 280 or hankemotors@gmail.com.
