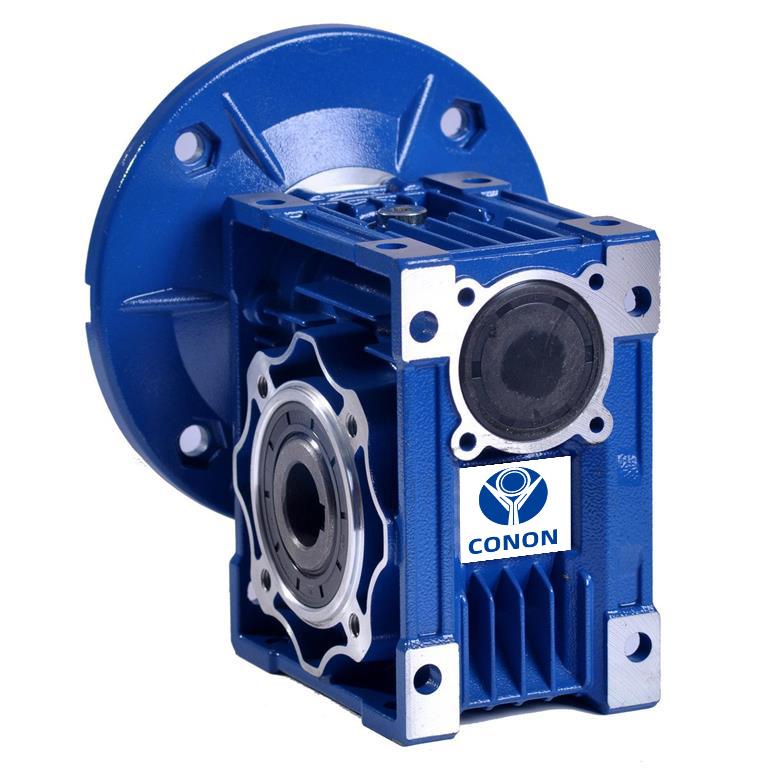

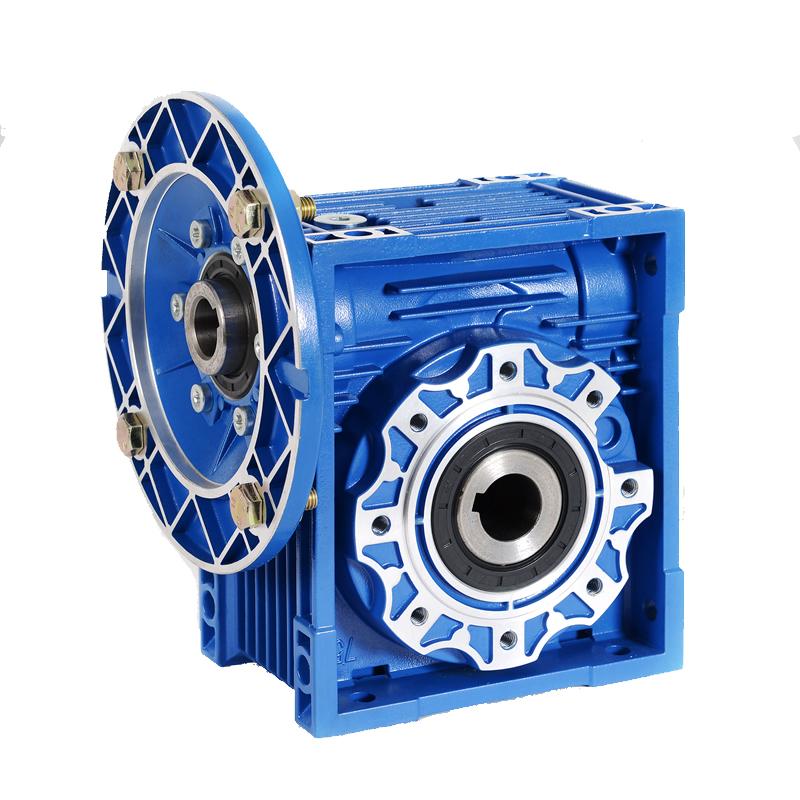

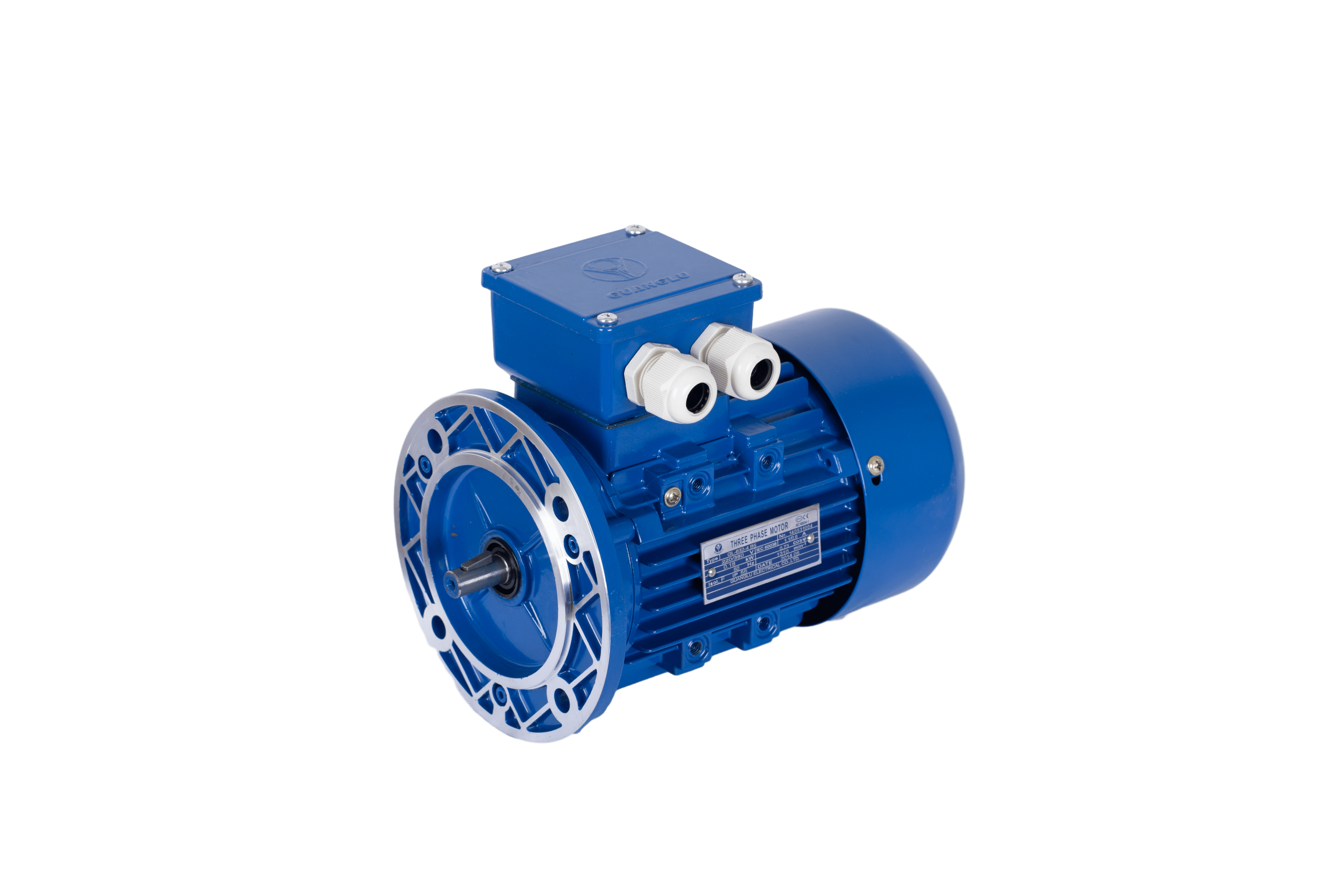

Motor and gearbox set: 1.1 kW, 415 V three phase, NMRV110. Output from about 35 rpm (40:1) to 14 rpm (100:1). In stock at Glen Waverley, VIC.
Pick your ratio
Each option in the menu gives a different output speed from the 1400 rpm motor:
40:1, 35 mm output
about 35 rpm
50:1, 18 mm output
about 28 rpm
60:1, 18 mm output
about 23 rpm
80:1, 18 mm output
about 17.5 rpm
100:1, 18 mm output
about 14 rpm
Rounded figures; real speed drops a few percent at full load.

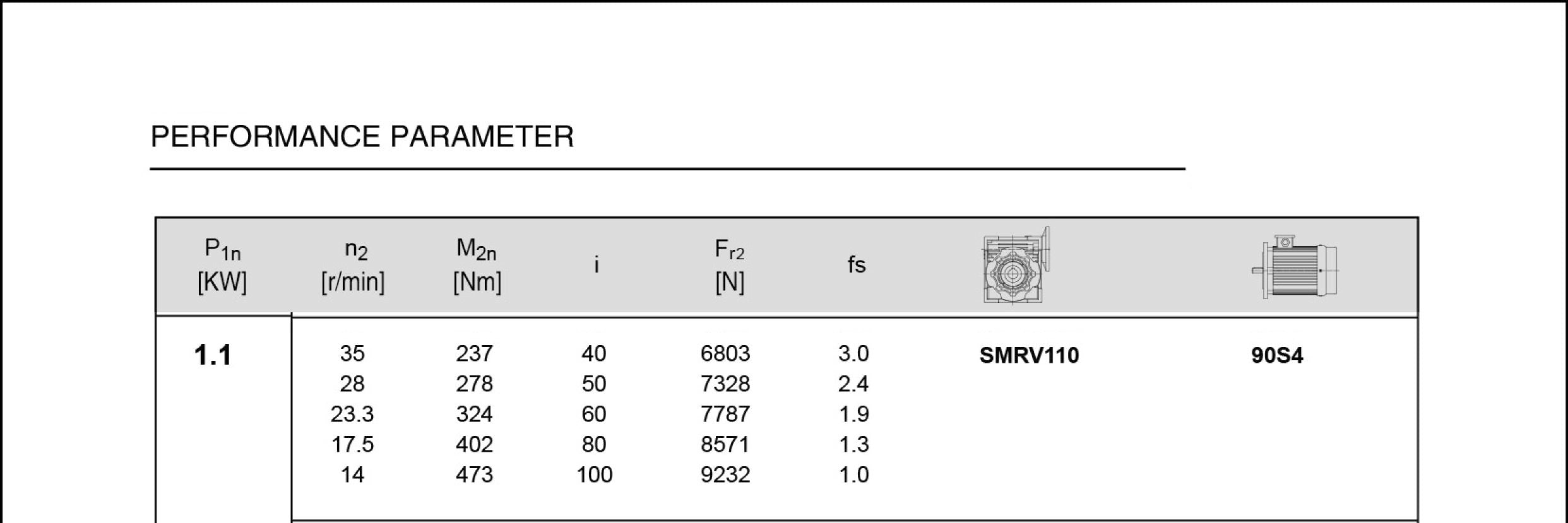

Maximum output torque is listed as 473 Nm. Lower ratios give more speed but less torque than that figure; check with us if your load is close to it.
Single or three phase?
Needs 415 V three phase, or a single-to-three phase VFD on a 240 V site. The VFD also gives you variable output speed.
Where it is used
Right-angle worm drives are popular where space is tight: the motor sits at 90 degrees to the driven shaft, which keeps the whole unit compact.
Technical data
Supply
415 V three phase, 50 Hz
Power
1.1 kW / 1.5 HP
Motor speed
1400 rpm
Gearbox
Worm, size 110
Output shaft
35 mm hollow shaft
Max. output torque
473 Nm
Duty class
S1 (continuous)
Safety and fitting
- A worm gearbox is not a brake. Anything that lifts or holds a load needs a separate brake.
- Restrain the gearbox housing so it cannot rotate; hollow-shaft mounting needs a torque arm.
- Electrical connection must be done by a licensed electrician.
Delivery and warranty
In stock at Glen Waverley, Victoria, and delivered nationwide. Checkout works out the postage; our Returns, Refunds & Warranty Policy covers claims.
Questions about torque or speed? 0401 634 280 or hankemotors@gmail.com.
