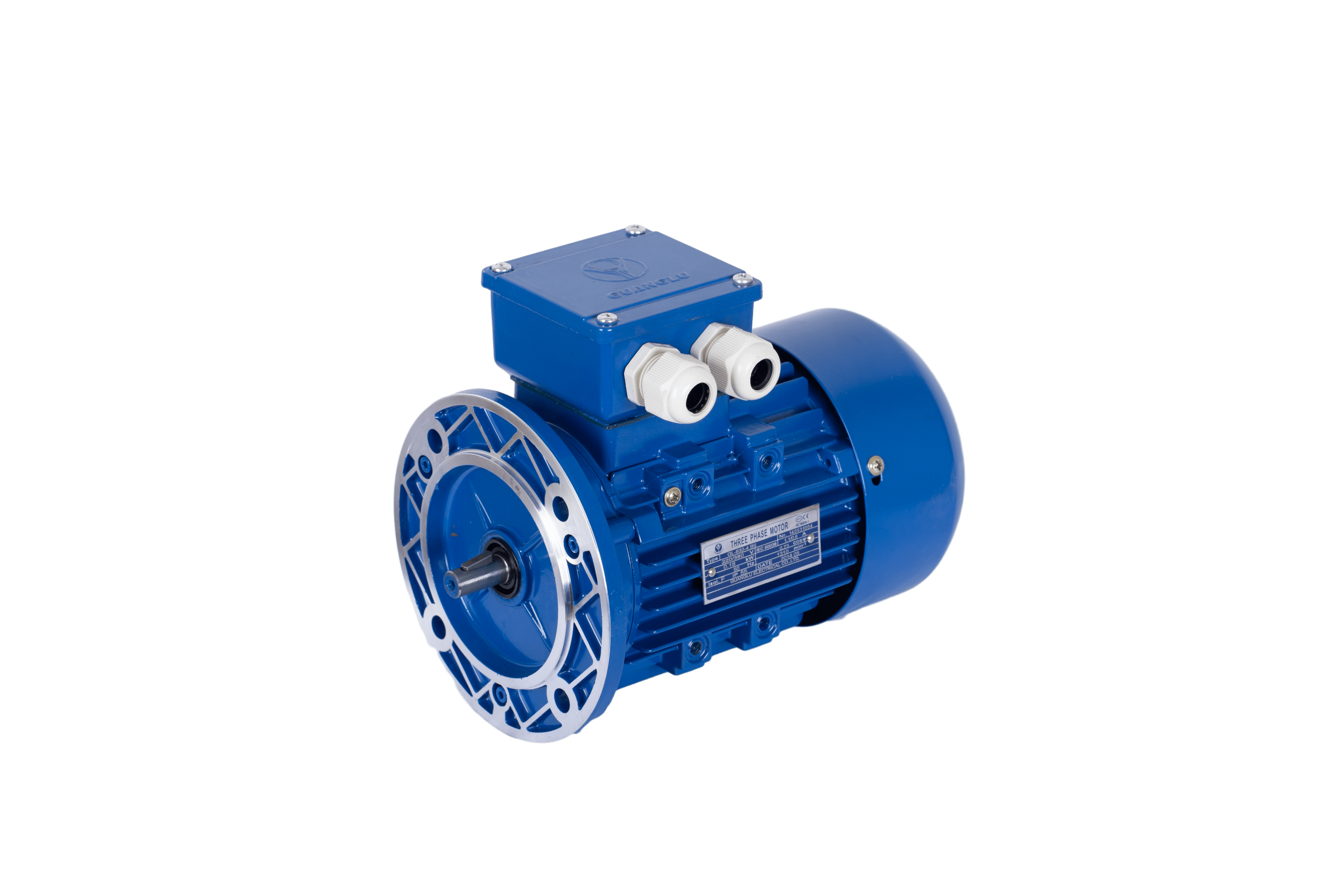

1.1 kW (1.5 HP) 415 V three phase motor fitted to a size 090 worm gearbox. Choose the ratio from the menu: 20:1, 25:1, 30:1, 40:1, 50:1, 60:1, 80:1. Output speeds run from about 70 rpm down to about 17.5 rpm. Ships from Glen Waverley.

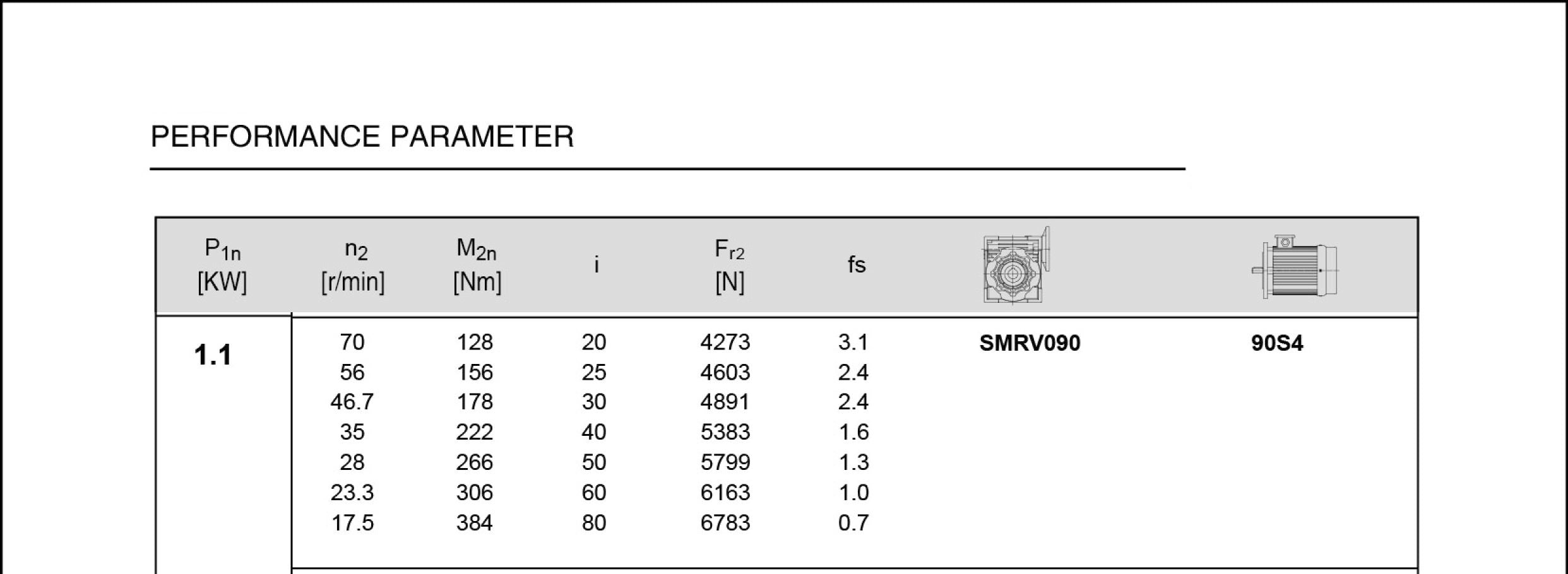

Ratios and output speeds
Output speed is the motor's 1400 rpm divided by the ratio you choose:
20:1, 35 mm output
about 70 rpm
25:1, 35 mm output
about 56 rpm
30:1, 35 mm output
about 47 rpm
40:1, 35 mm output
about 35 rpm
50:1, 18 mm output
about 28 rpm
60:1, 18 mm output
about 23 rpm
80:1, 18 mm output
about 17.5 rpm
Speeds are approximate and assume no slip.
Torque: up to 384 Nm according to the listing, at the high-ratio end. Faster ratios produce less.
Supply and speed control
Three phase 415 V. Pair it with a VFD for speed control or to run it from a 240 V single phase supply.
Picking the ratio
Work backwards from the job: a conveyor or mixer that should turn at about 70 rpm needs 20:1; something that should crawl at 17.5 rpm needs 80:1.
Details
Motor power
1.1 kW / 1.5 HP
Voltage
415 V three phase, 50 Hz
Motor speed
1400 rpm
Gearbox
Worm, size 090
Hollow output
35 mm hollow shaft
Output torque, max.
384 Nm
Duty class
S1 (continuous)
Good to know
- For hoisting or holding, add a brake; the worm alone is not enough.
- Restrain the gearbox housing so it cannot rotate; hollow-shaft mounting needs a torque arm.
- Have a licensed electrician wire the motor.
Delivery and warranty
Dispatched from Glen Waverley, VIC. Enter your address at checkout for postage. Returns and warranty follow our Returns, Refunds & Warranty Policy.
Ring 0401 634 280 or email hankemotors@gmail.com before you order if you are unsure.
