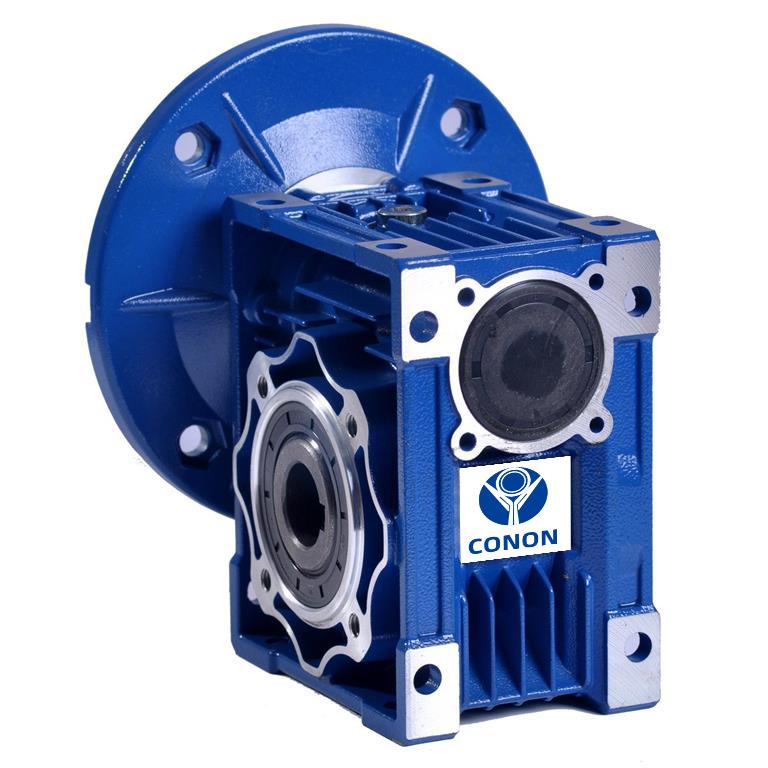

0.37 kW (0.5 HP) geared motor, 415 V three phase, worm gearbox size 063. Ratios from 25:1 (about 56 rpm) to 60:1 (about 23 rpm). In stock at Glen Waverley, VIC.
Pick your ratio
Output speed is the motor's 1400 rpm divided by the ratio you choose:
25:1, 25 mm output
about 56 rpm
30:1, 25 mm output
about 47 rpm
40:1, 25 mm output
about 35 rpm
50:1, 25 mm output
about 28 rpm
60:1, 25 mm output
about 23 rpm
Speeds are approximate and assume no slip.
Listed peak output torque is 129 Nm. If your job needs close to that at a low ratio, ask us to check the sizing.
Single or three phase?

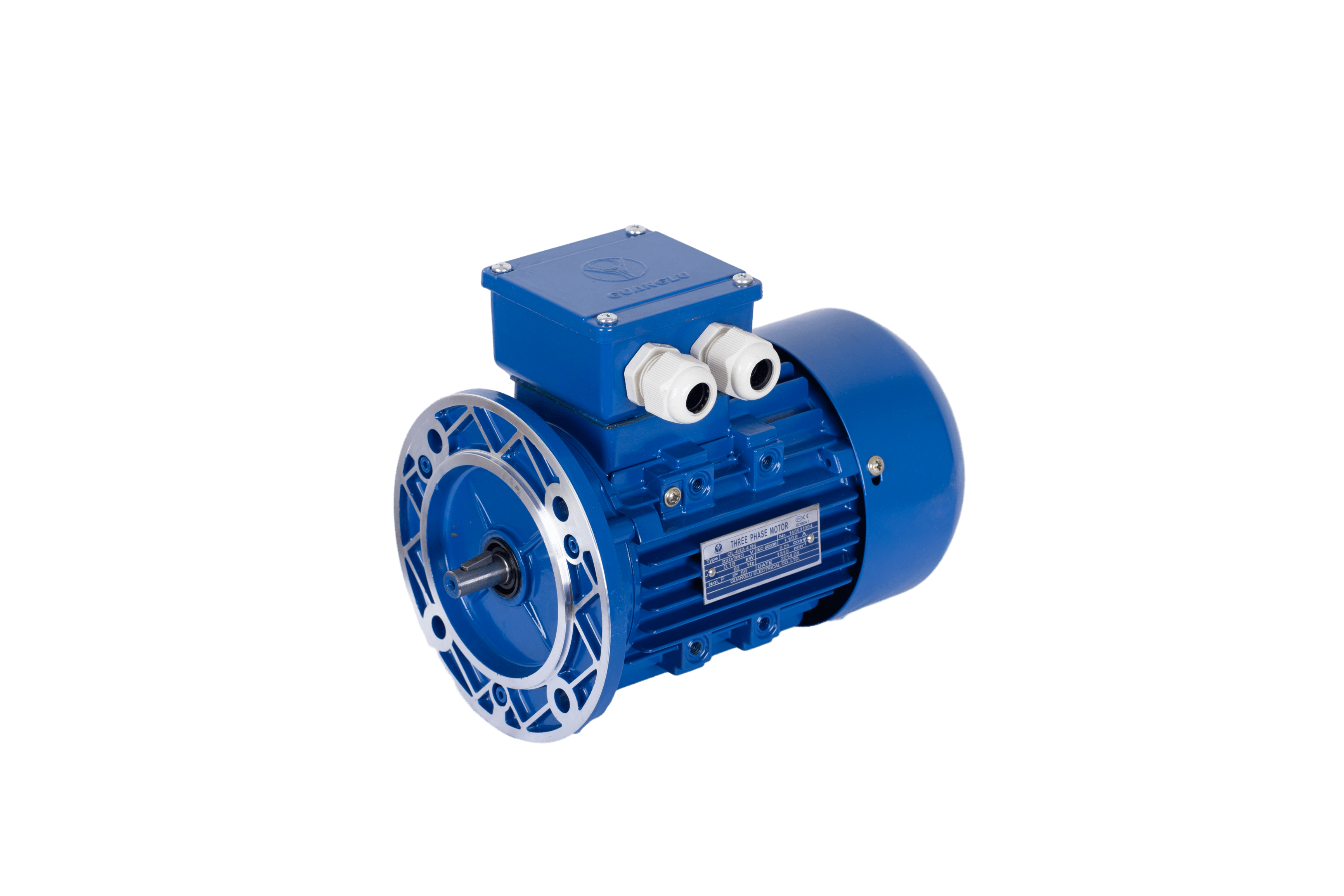

The motor is 415 V three phase. If you only have 240 V, it can be run from a single phase to three phase VFD, which also lets you adjust the output speed.
Picking the ratio
Divide 1400 rpm by the output speed your machine needs; the answer is the ratio to pick. Need roughly 23 rpm? That is the 60:1 option.
Key figures
Power supply
415 V three phase, 50 Hz
Power
0.37 kW / 0.5 HP
Motor speed
1400 rpm

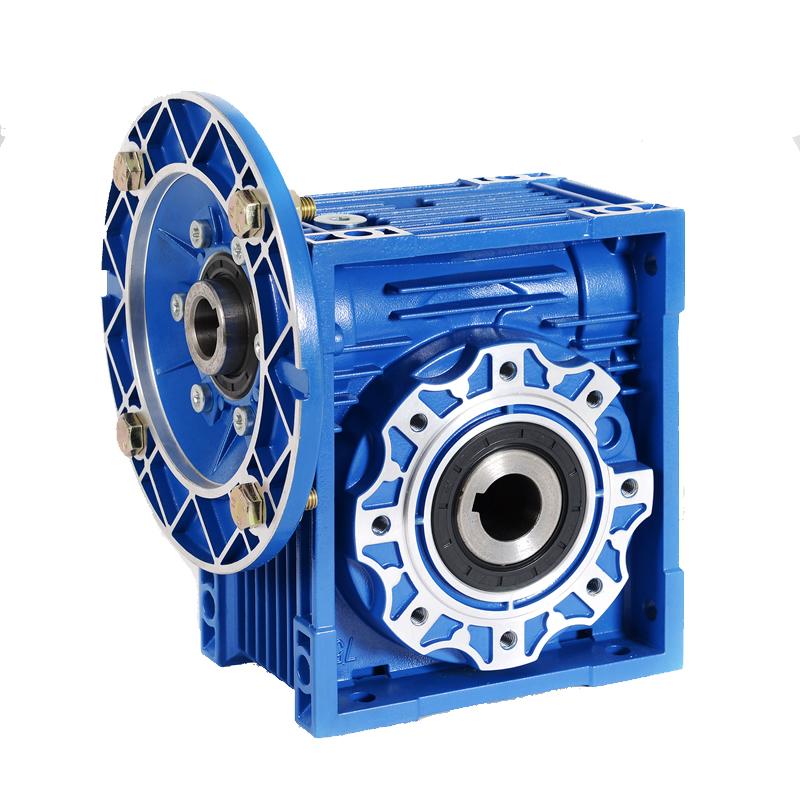

Gear unit
Worm, size 063
Output
25 mm hollow shaft
Output torque, max.
129 Nm
Duty class
S1 (continuous)
Good to know
- Worm gears can creep back under load or vibration, so lifting jobs need a brake.
- Restrain the gearbox housing so it cannot rotate; hollow-shaft mounting needs a torque arm.
- Get a licensed electrician to connect the supply.
Shipping and warranty
Sent from our Glen Waverley warehouse to any Australian address, with postage shown at checkout. Warranty terms are in our Returns, Refunds & Warranty Policy.
Not sure which ratio? Tell us the speed you need at the output: 0401 634 280 or hankemotors@gmail.com.
