Motor and gearbox set: 0.25 kW, 415 V three phase, NMRV050. Output from about 70 rpm (20:1) to 17.5 rpm (80:1). Ships from Glen Waverley.
Ratios and output speeds
Speeds below assume the motor's 1400 rpm:
20:1, 25 mm output
about 70 rpm
25:1, 25 mm output
about 56 rpm
30:1, 25 mm output
about 47 rpm
40:1, 25 mm output
about 35 rpm
50:1, 25 mm output
about 28 rpm
60:1, 25 mm output
about 23 rpm
80:1, 25 mm output
about 17.5 rpm
Nominal speeds; under load the motor slows slightly.

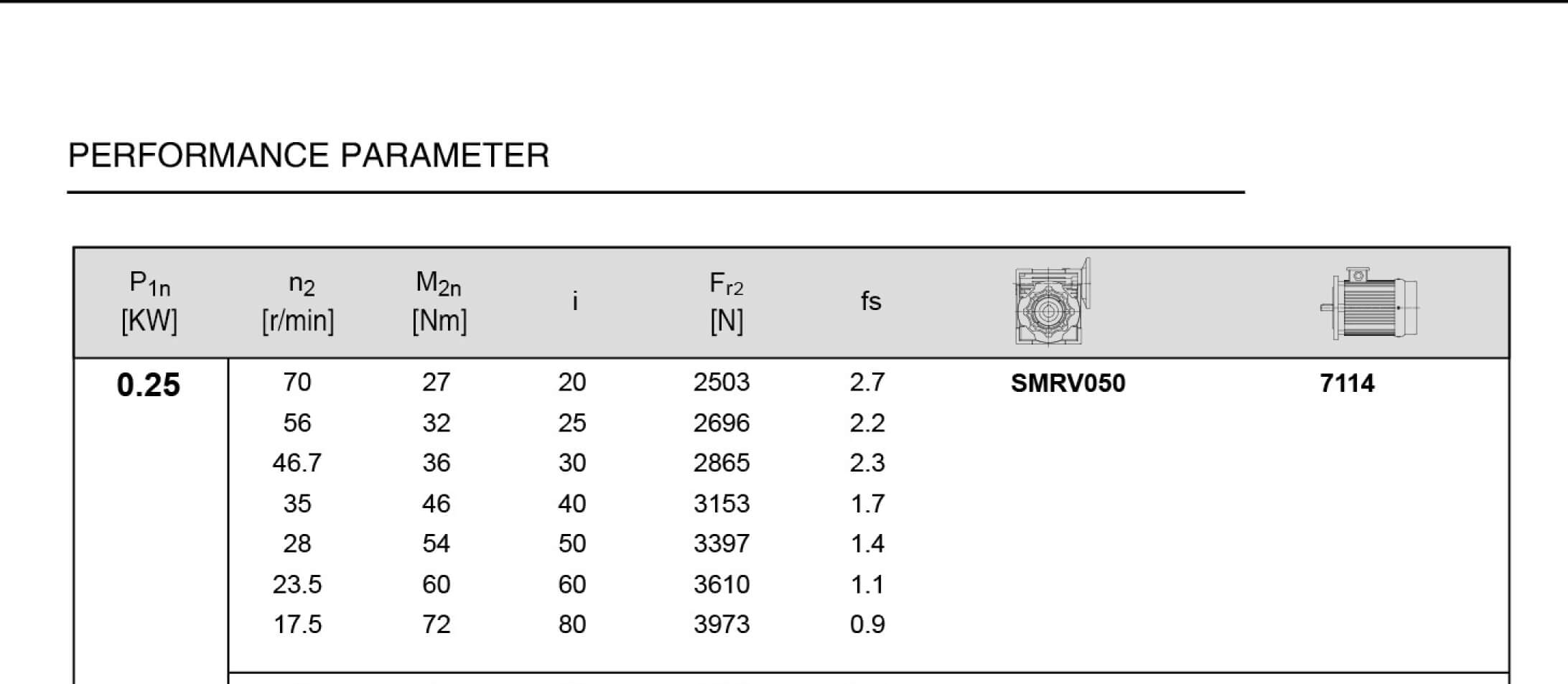

Torque: up to 72 Nm according to the listing, at the high-ratio end. Faster ratios produce less.
Power supply
Needs 415 V three phase, or a single-to-three phase VFD on a 240 V site. The VFD also gives you variable output speed.
Connecting the load
With a hollow output of 25 mm the gearbox can sit directly on the machine shaft. A little anti-seize on the shaft makes it much easier to remove later.
Motor and gearbox data
Supply
415 V three phase, 50 Hz
Rated power
0.25 kW / 0.34 HP
Input speed
1400 rpm
Gearbox
Worm, size 050
Output shaft
25 mm hollow shaft
Peak torque (listed)
72 Nm
Duty rating
S1 (continuous)
Installation notes
- A worm gearbox is not a brake. Anything that lifts or holds a load needs a separate brake.
- Restrain the gearbox housing so it cannot rotate; hollow-shaft mounting needs a torque arm.
- Get a licensed electrician to connect the supply.
Delivery
We post from Glen Waverley to all states, priced at checkout by postcode. Warranty claims are handled by us directly (Returns, Refunds & Warranty Policy).
Not sure which ratio? Tell us the speed you need at the output: 0401 634 280 or hankemotors@gmail.com.
