2.2 kW (3 HP) geared motor, 240 V single phase, worm gearbox size 110. Ratios from 15:1 (about 93 rpm) to 60:1 (about 23 rpm). In stock at Glen Waverley, VIC.
Ratios and output speeds
The motor runs at 1400 rpm. Divide by the ratio to get the output speed:
15:1, 42 mm output
about 93 rpm
20:1, 42 mm output
about 70 rpm
25:1, 42 mm output
about 56 rpm
30:1, 42 mm output
about 47 rpm
40:1, 42 mm output
about 35 rpm
50:1, 42 mm output
about 28 rpm
60:1, 42 mm output
about 23 rpm
Speeds are approximate and assume no slip.

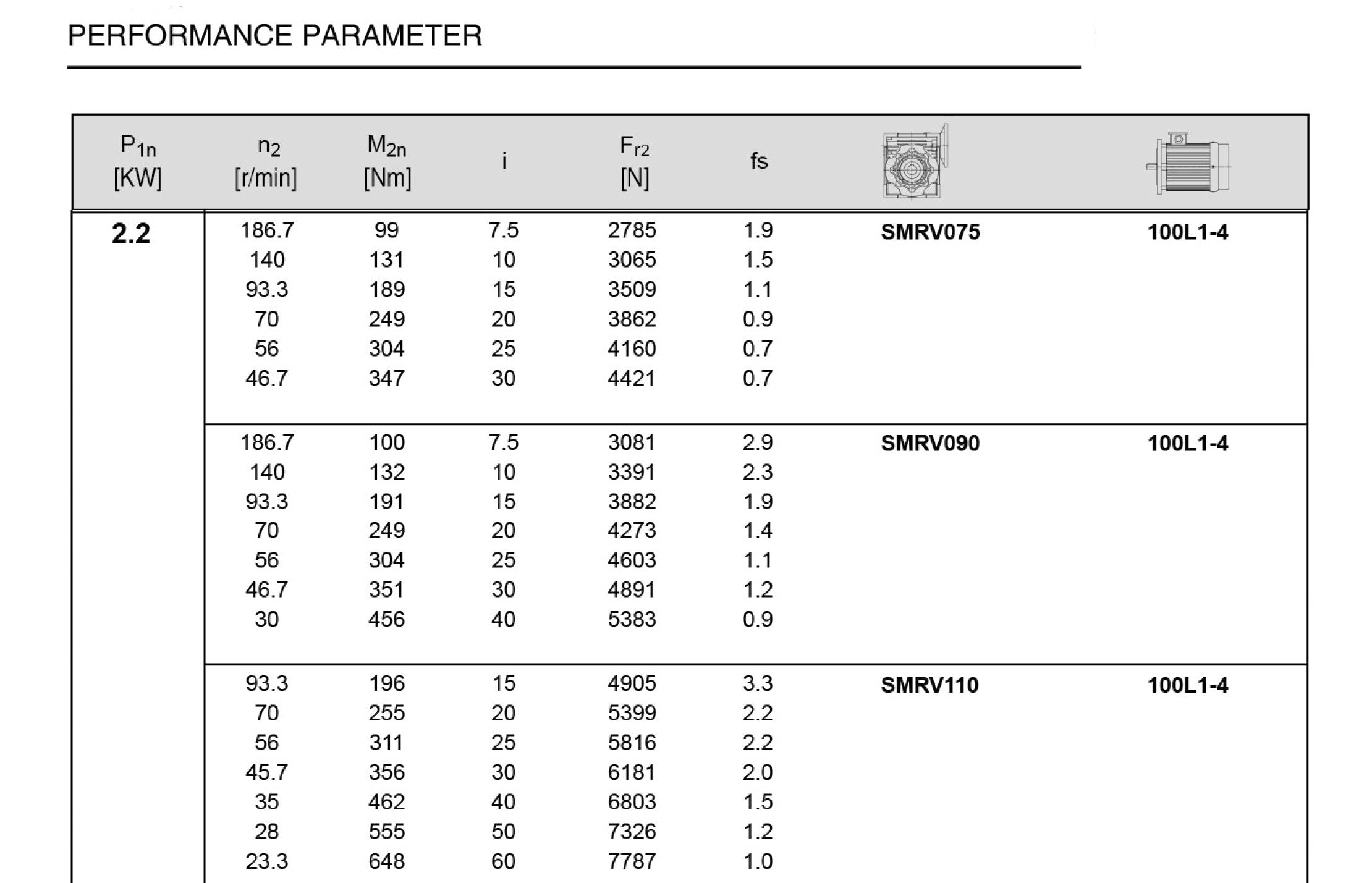

Listed peak output torque is 648 Nm. If your job needs close to that at a low ratio, ask us to check the sizing.
Running it
Single phase 240 V means it can run where only a normal supply is available. For adjustable speed, choose the three phase version with a 240 V input VFD.
Which option to order
Work backwards from the job: a conveyor or mixer that should turn at about 93 rpm needs 15:1; something that should crawl at 23 rpm needs 60:1.
Motor and gearbox data
Rated power
2.2 kW / 3 HP
Voltage
240 V single phase, 50 Hz
Duty
S1 (continuous)
Peak torque (listed)
648 Nm
Output
35 mm hollow shaft
Gearbox
Worm, size 110
Motor rpm
1400 rpm
Before you install
- Never use the gearbox as the only means of holding a load.
- Restrain the gearbox housing so it cannot rotate; hollow-shaft mounting needs a torque arm.
- Get a licensed electrician to connect the supply.
Shipping
We post from Glen Waverley to all states, priced at checkout by postcode. Warranty claims are handled by us directly (Returns, Refunds & Warranty Policy).
Send us the job details and we will suggest a ratio: hankemotors@gmail.com, 0401 634 280.
