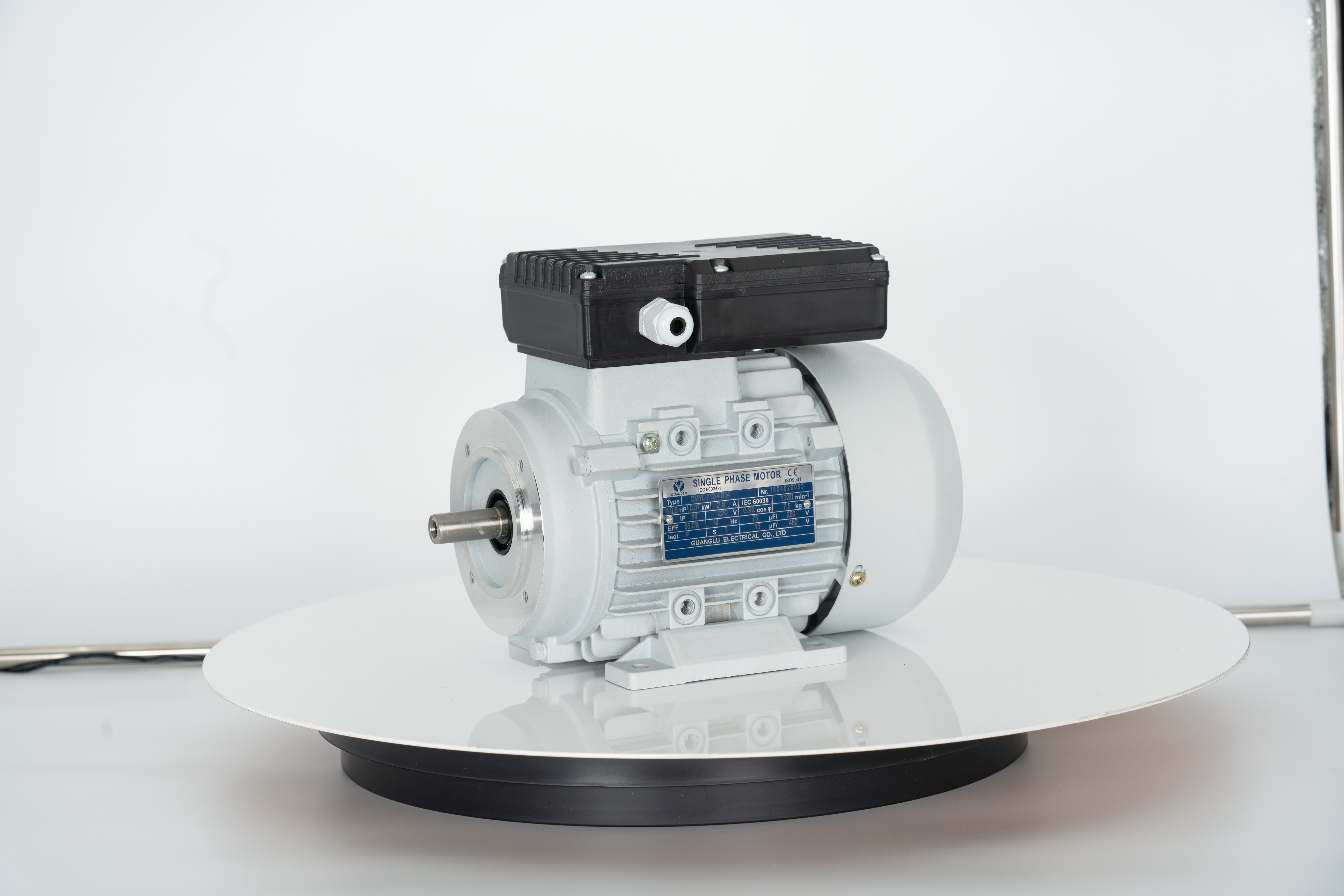

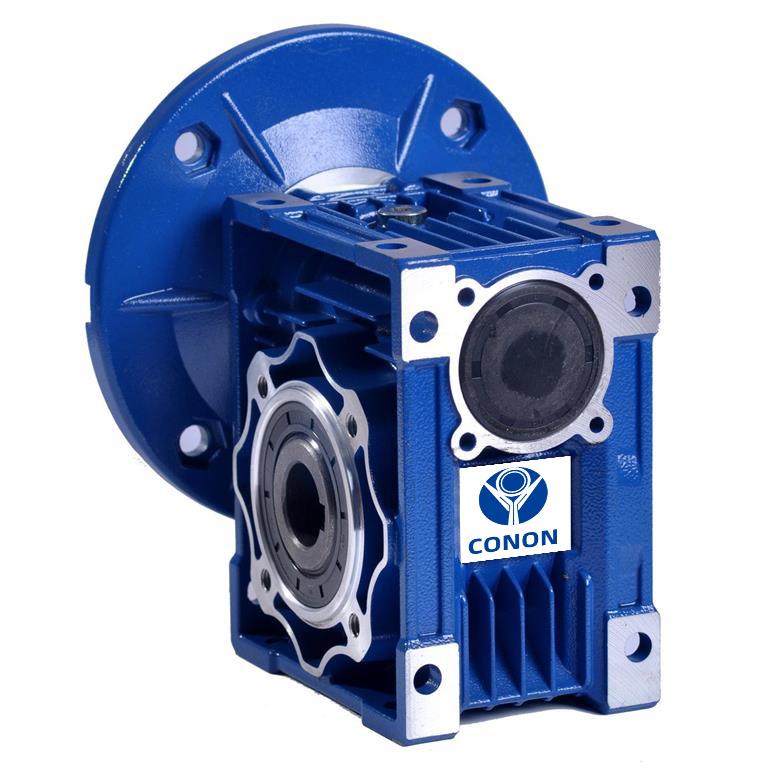

2.2 kW (3 HP) 240 V single phase motor fitted to a size 075 worm gearbox. Choose the ratio from the menu: 7.5:1, 10:1, 15:1, 20:1, 25:1, 30:1. Output speeds run from about 187 rpm down to about 47 rpm.
Ratios and output speeds
Speeds below assume the motor's 1400 rpm:
7.5:1, 28 mm output
about 187 rpm
10:1, 28 mm output
about 140 rpm
15:1, 28 mm output
about 93 rpm
20:1, 28 mm output
about 70 rpm
25:1, 28 mm output
about 56 rpm
30:1, 25 mm output
about 47 rpm
Speeds are approximate and assume no slip.

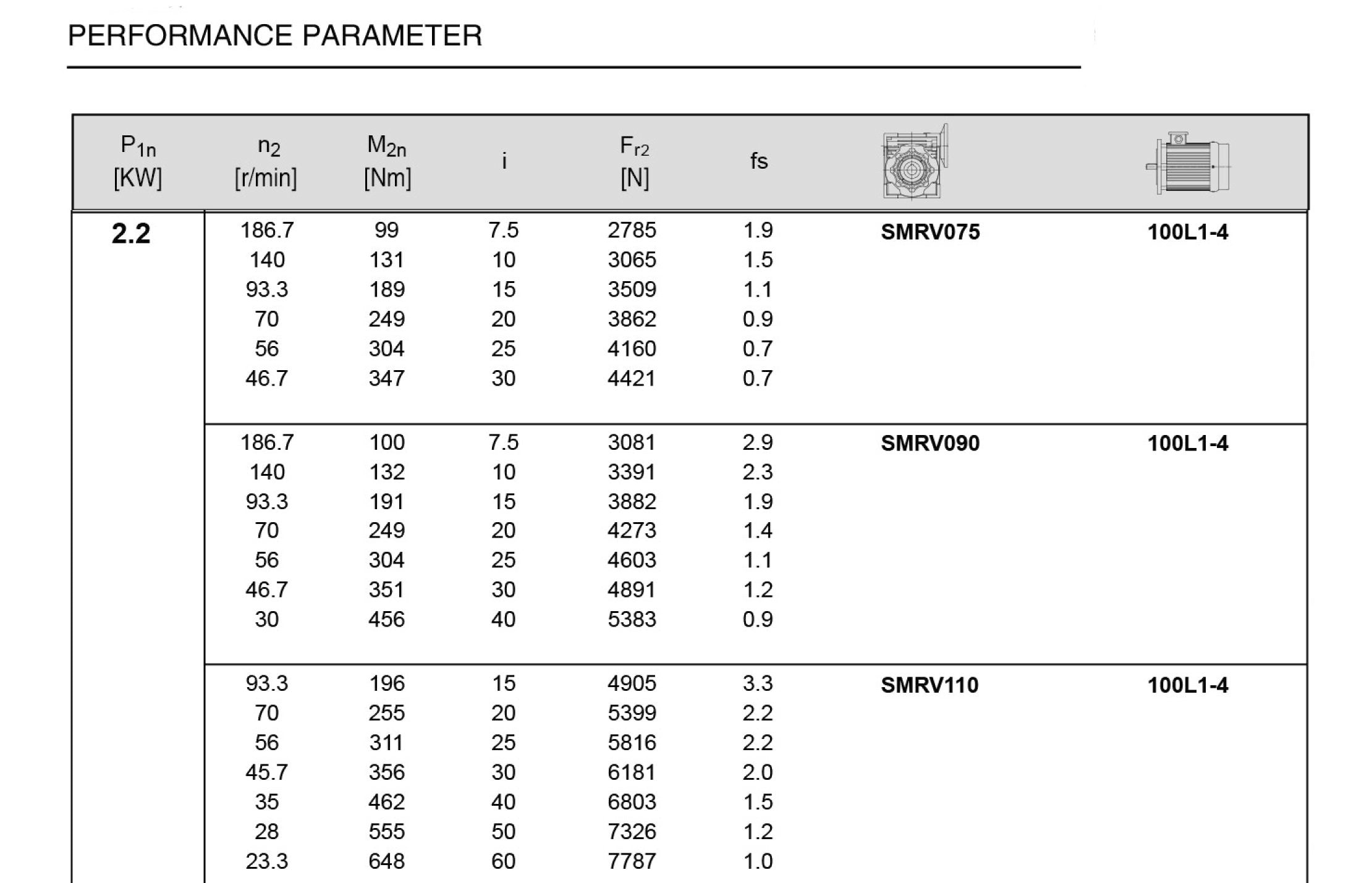

Maximum output torque is listed as 347 Nm. Lower ratios give more speed but less torque than that figure; check with us if your load is close to it.
Running it
The motor runs on standard 240 V single phase power, so it suits sites without three phase. Speed is fixed by the ratio you choose.
The hollow output

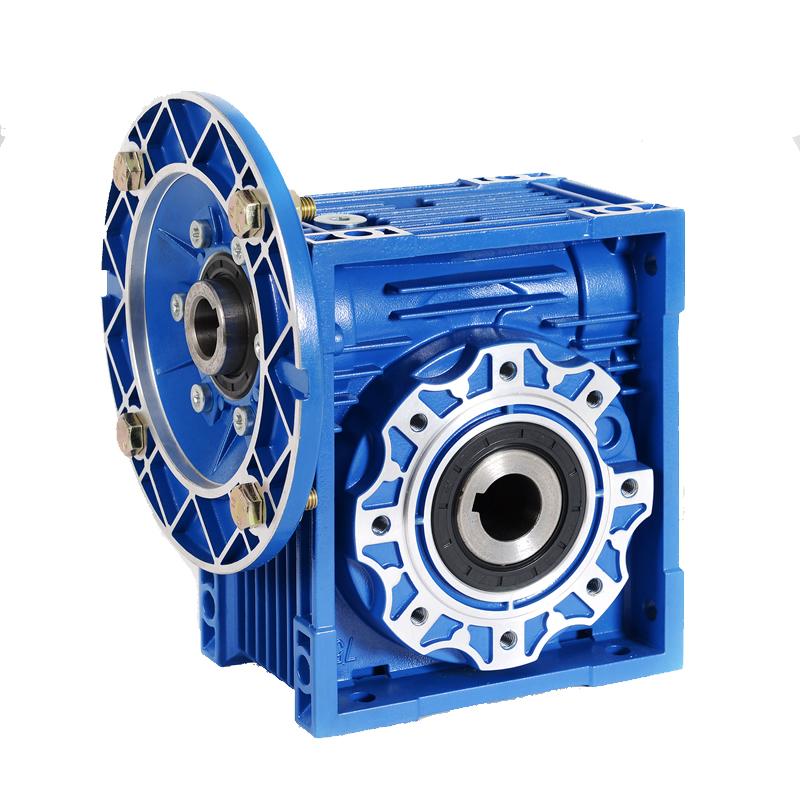

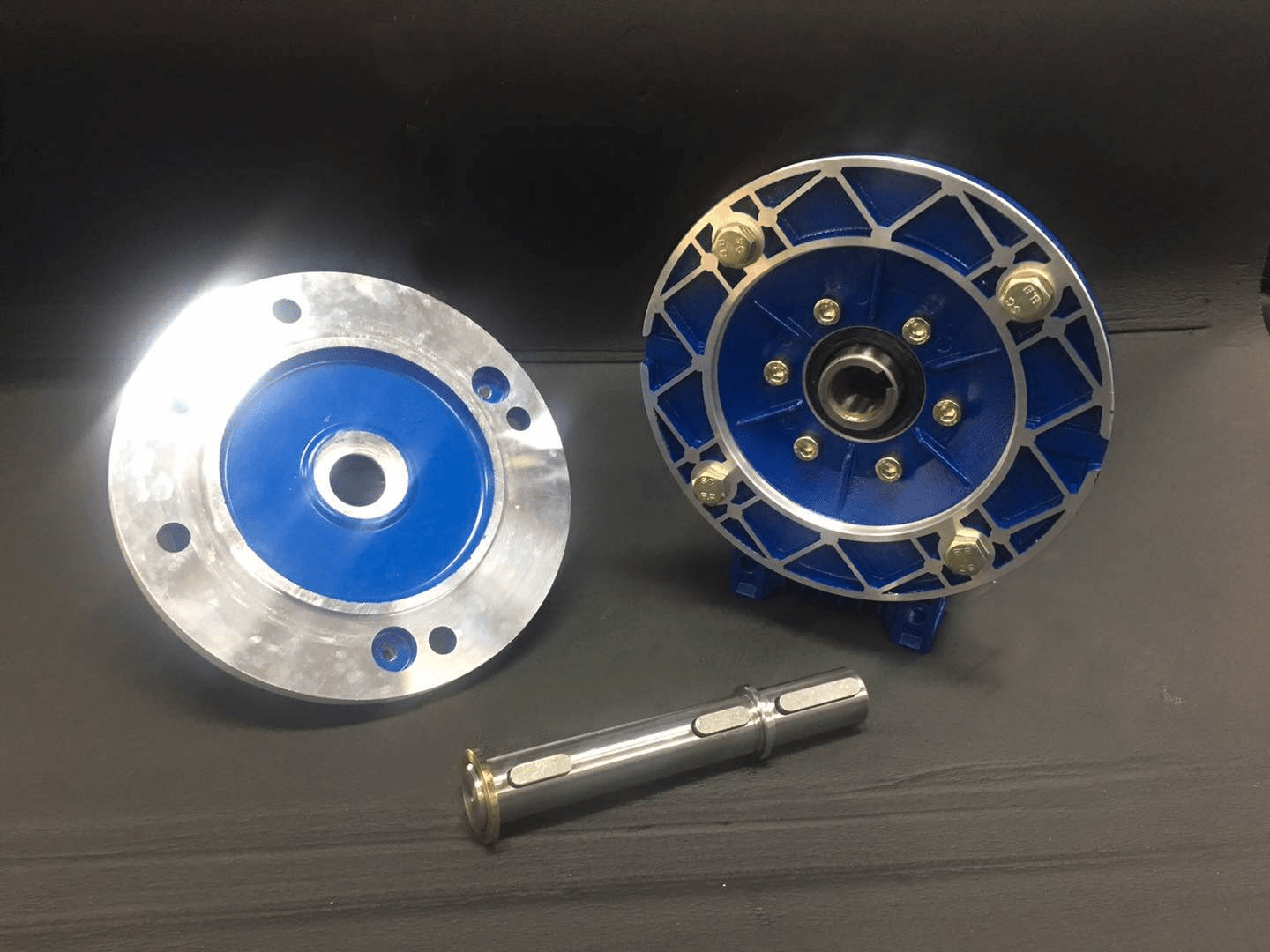

With a hollow output of 28 mm the gearbox can sit directly on the machine shaft. A little anti-seize on the shaft makes it much easier to remove later.
Motor and gearbox data
Power
2.2 kW / 3 HP
Power supply
240 V single phase, 50 Hz
Duty rating
S1 (continuous)
Peak torque (listed)
347 Nm
Output
28 mm hollow shaft
Gearbox
Worm, size 075
Input speed
1400 rpm
Safety and fitting
- For hoisting or holding, add a brake; the worm alone is not enough.
- Restrain the gearbox housing so it cannot rotate; hollow-shaft mounting needs a torque arm.
- Have a licensed electrician wire the motor.
