2 HP worm gear motor, 240 V single phase. Size 063 gearbox with a 25 mm hollow output. Pick from 3 ratios; the slowest gives about 70 rpm.
Output speed for each ratio
Output speed is the motor's 1400 rpm divided by the ratio you choose:
10:1, 25 mm output
about 140 rpm
15:1, 25 mm output
about 93 rpm
20:1, 25 mm output
about 70 rpm
Nominal speeds; under load the motor slows slightly.

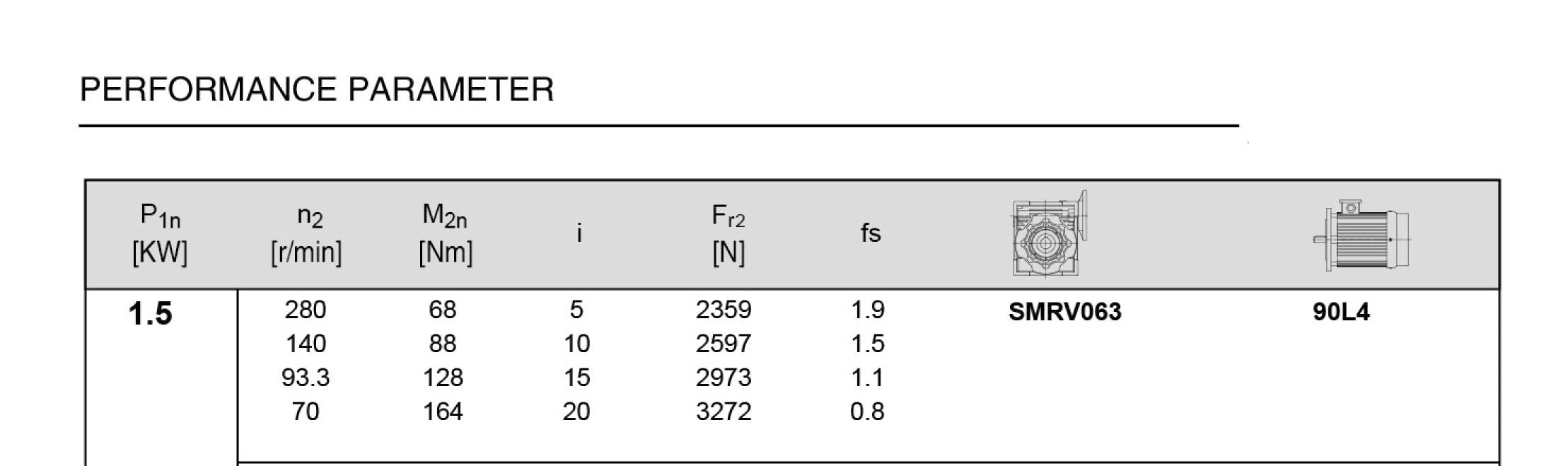

The listing gives a maximum output torque of 164 Nm. Output torque goes up as the ratio goes up and the speed comes down, so the low ratios deliver less than this figure.
Single or three phase?
The motor runs on standard 240 V single phase power, so it suits sites without three phase. Speed is fixed by the ratio you choose.
The hollow output
The output is a 25 mm hollow bore. Your driven shaft slides straight through and is driven by a key, so no coupling is needed.
Specifications
Motor power
1.5 kW / 2 HP
Power supply
240 V single phase, 50 Hz
Motor speed
1400 rpm
Gear unit
Worm, size 063
Output
25 mm hollow shaft
Peak torque (listed)
164 Nm
Duty class
S1 (continuous)
Fitting tips
- A worm gearbox is not a brake. Anything that lifts or holds a load needs a separate brake.
- Restrain the gearbox housing so it cannot rotate; hollow-shaft mounting needs a torque arm.
- The motor must be connected by a licensed electrician.
Delivery
We post from Glen Waverley to all states, priced at checkout by postcode. Warranty claims are handled by us directly (Returns, Refunds & Warranty Policy).
Call 0401 634 280 or email hankemotors@gmail.com and we will help choose the ratio and size.
