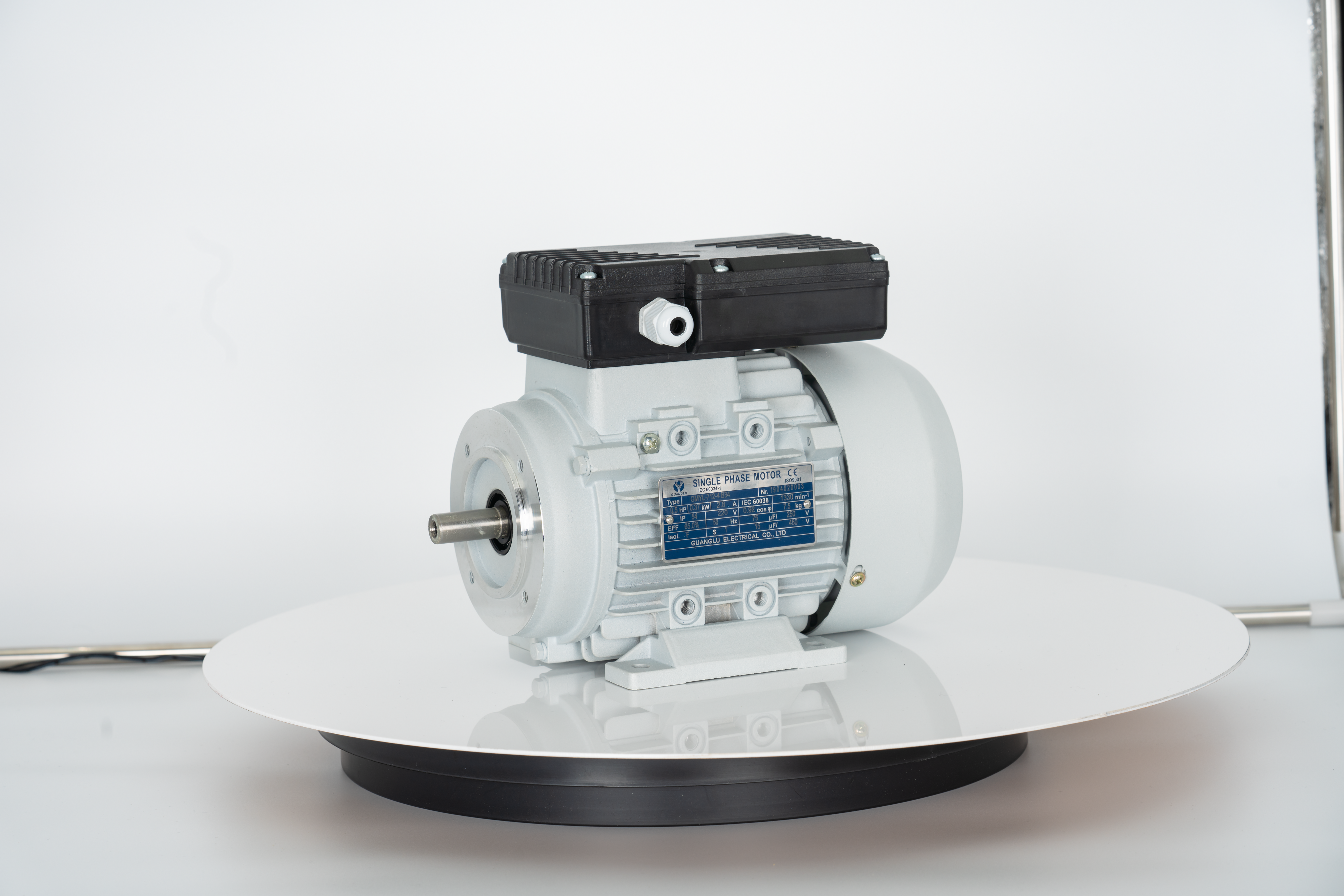

0.25 kW (0.34 HP) 240 V single phase motor fitted to a size 050 worm gearbox. Choose the ratio from the menu: 20:1, 25:1, 30:1, 40:1, 50:1, 60:1, 80:1. Output speeds run from about 70 rpm down to about 17.5 rpm.
Output speed for each ratio
The motor runs at 1400 rpm. Divide by the ratio to get the output speed:
20:1, 25 mm output
about 70 rpm
25:1, 25 mm output
about 56 rpm
30:1, 25 mm output
about 47 rpm
40:1, 25 mm output
about 35 rpm
50:1, 25 mm output
about 28 rpm
60:1, 25 mm output
about 23 rpm
80:1, 25 mm output
about 17.5 rpm
Calculated from nameplate speed. Loaded speed is a little lower.

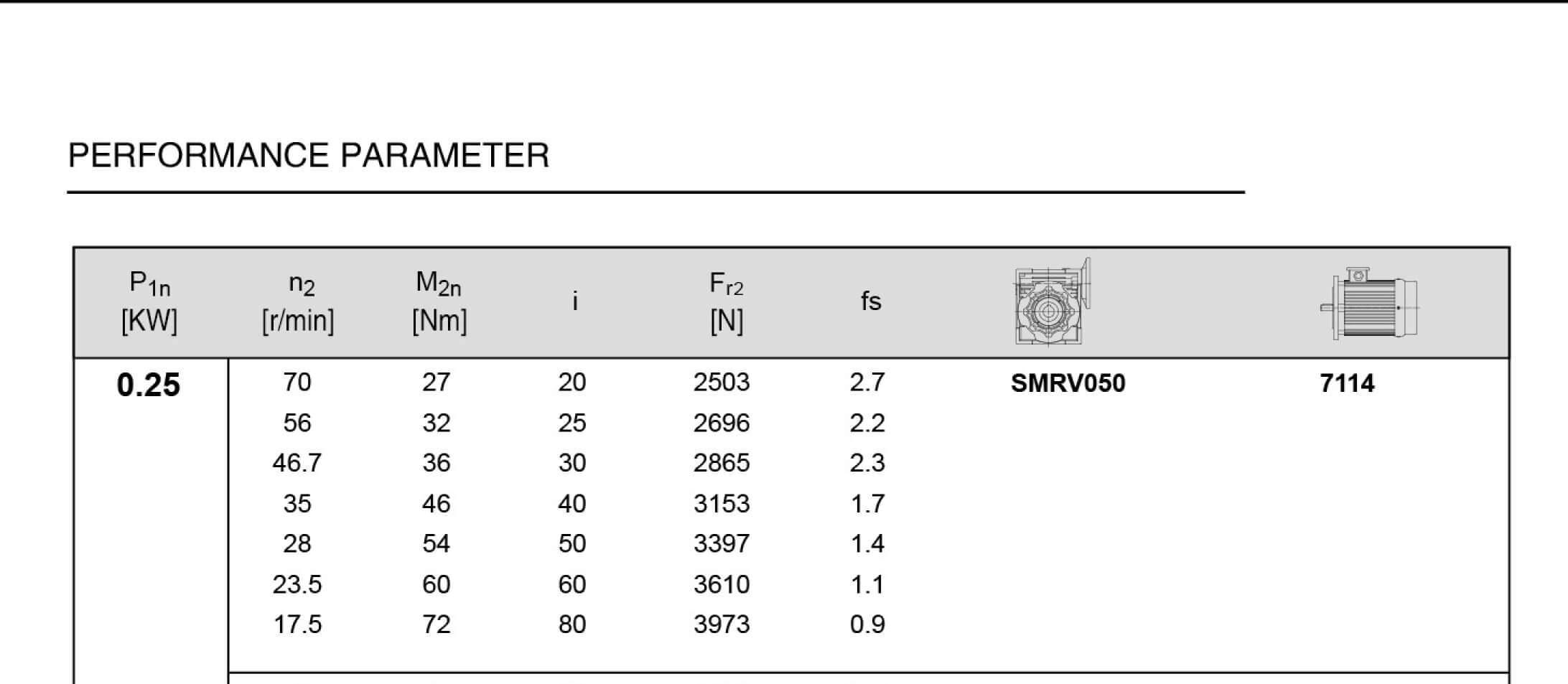

Maximum output torque is listed as 72 Nm. Lower ratios give more speed but less torque than that figure; check with us if your load is close to it.
Running it
Single phase 240 V means it can run where only a normal supply is available. For adjustable speed, choose the three phase version with a 240 V input VFD.

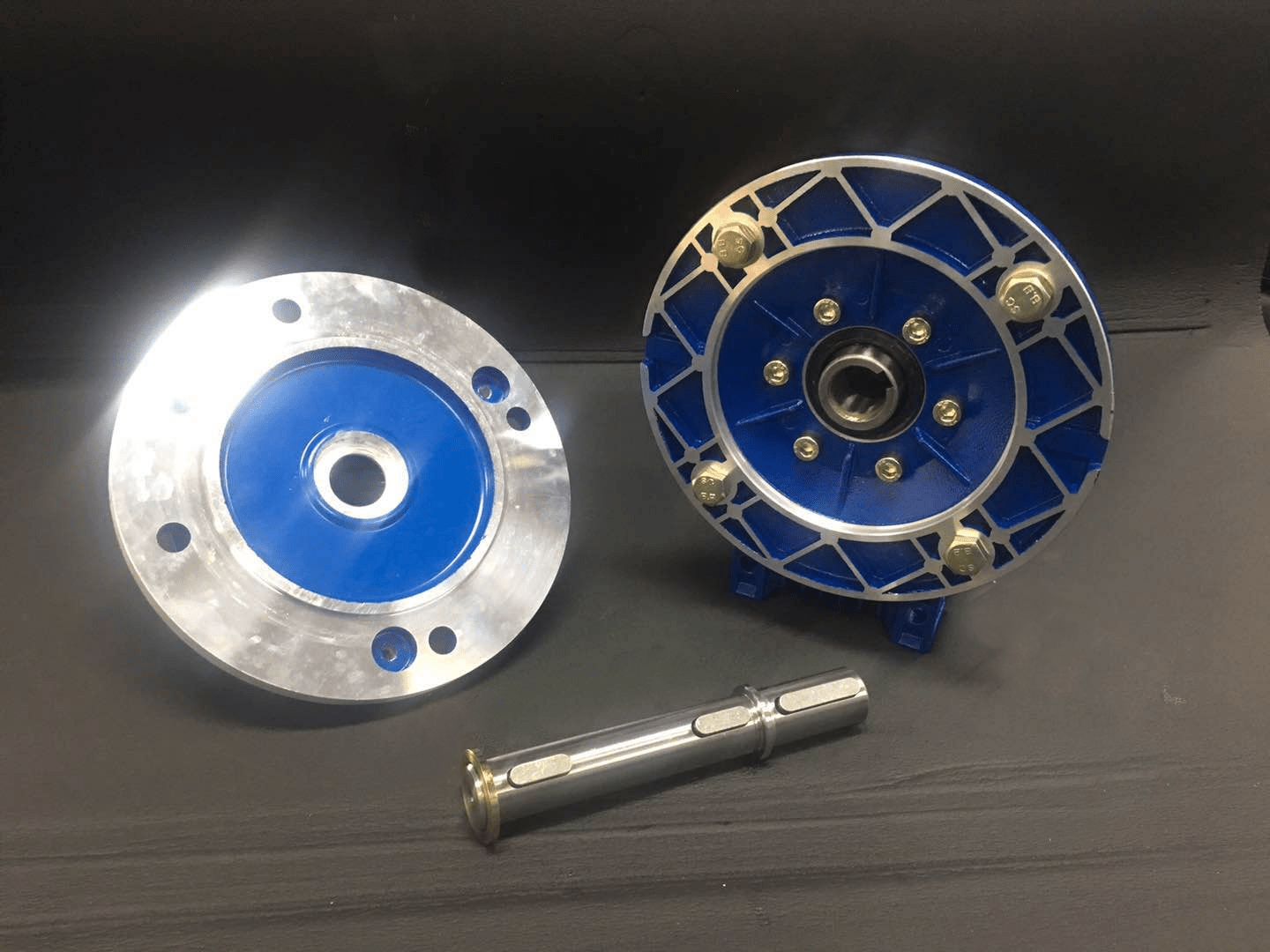

Separate gearbox options

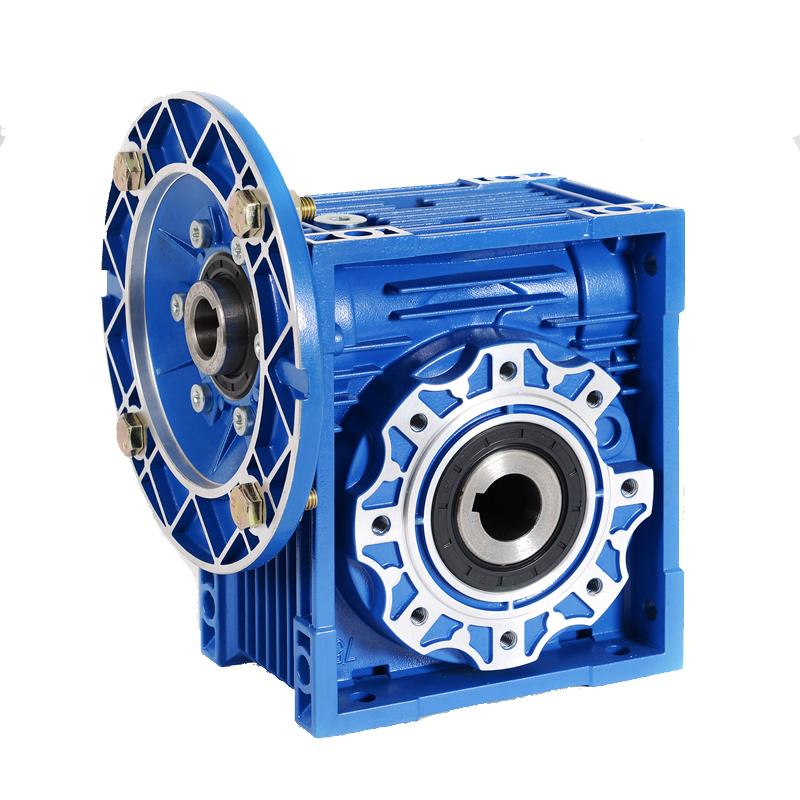

If you already own a suitable B5 flange motor, the gearbox is also sold on its own; see our NMRV worm gearboxes.
Key figures
Rated power
0.25 kW / 0.34 HP
Voltage
240 V single phase, 50 Hz
Duty
S1 (continuous)
Output torque, max.
72 Nm
Output shaft
25 mm hollow shaft
Gear unit

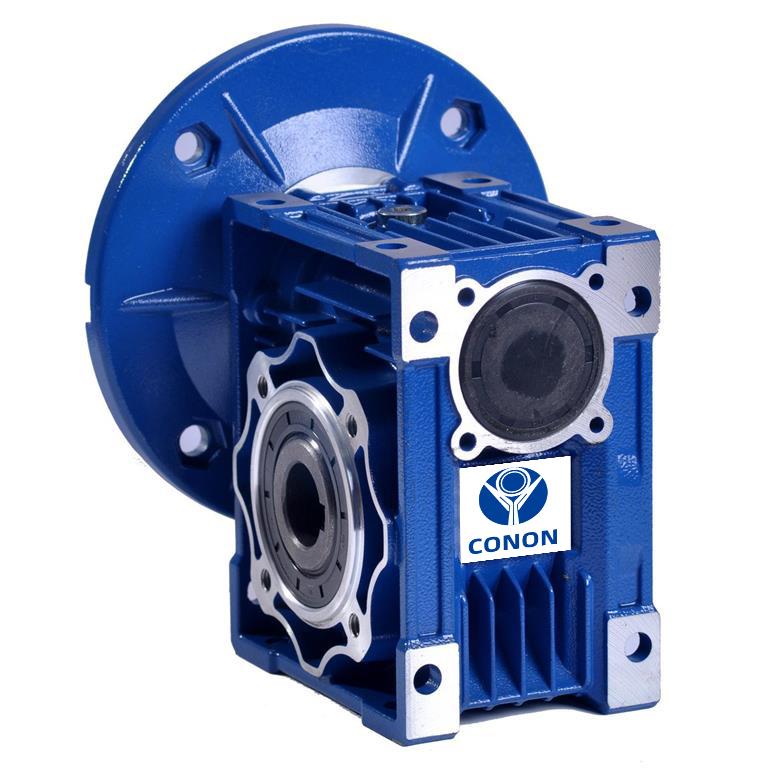

Worm, size 050
Motor rpm
1400 rpm
Good to know
- A worm gearbox is not a brake. Anything that lifts or holds a load needs a separate brake.
- Restrain the gearbox housing so it cannot rotate; hollow-shaft mounting needs a torque arm.
- Electrical connection must be done by a licensed electrician.
Shipping and warranty
Sent from our Glen Waverley warehouse to any Australian address, with postage shown at checkout. Warranty terms are in our Returns, Refunds & Warranty Policy.
Call 0401 634 280 or email hankemotors@gmail.com and we will help choose the ratio and size.
