Worm geared motor, 3 kW / 4 HP, 240 V single phase, gearbox size 075 with a hollow output (28 mm). Available ratios 7.5:1 to 15:1.

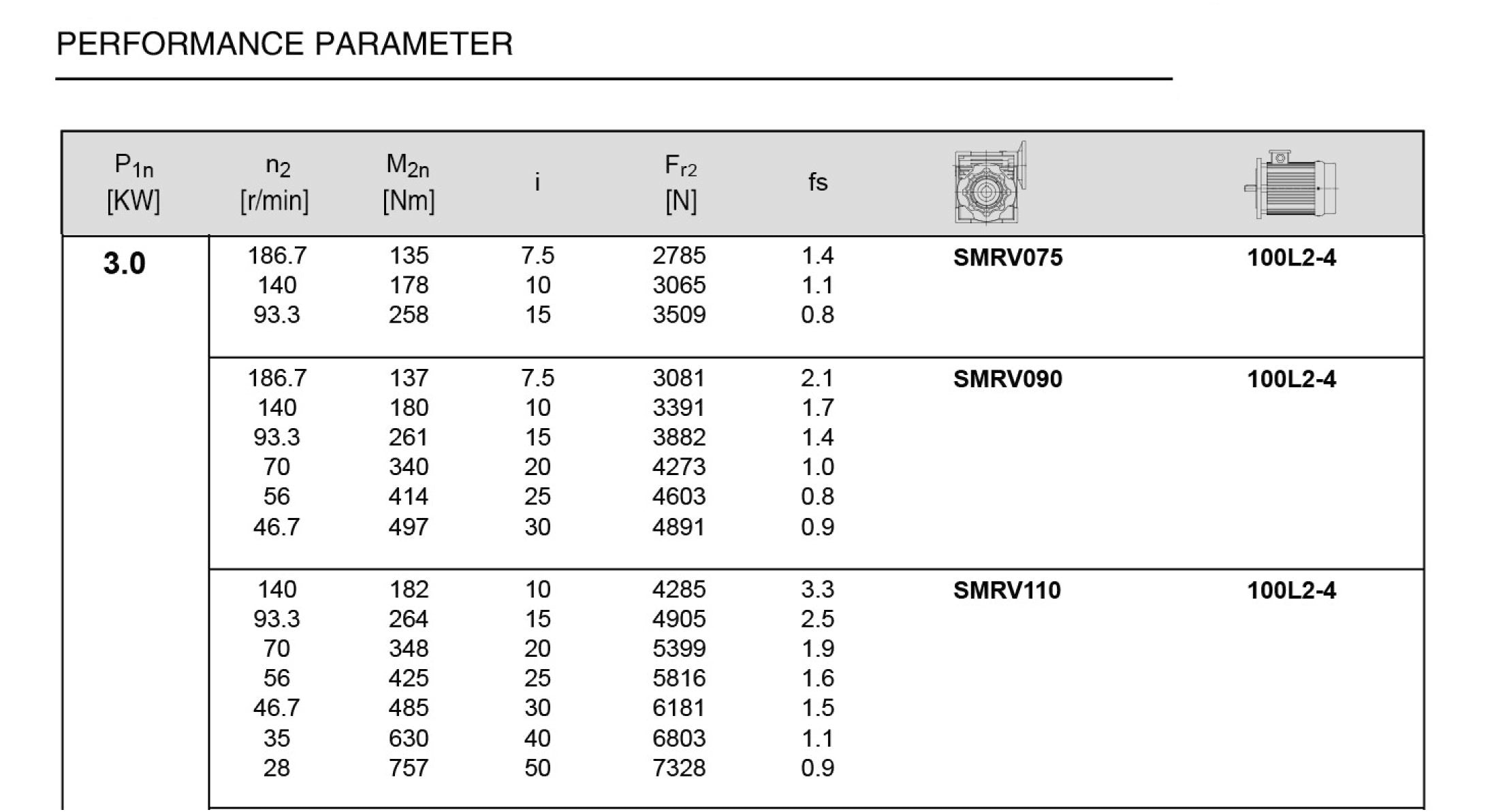

Ratios and output speeds
Each option in the menu gives a different output speed from the 1400 rpm motor:
7.5:1, 28 mm output
about 187 rpm
10:1, 28 mm output
about 140 rpm
15:1, 28 mm output
about 93 rpm
Nominal speeds; under load the motor slows slightly.
Torque: up to 258 Nm according to the listing, at the high-ratio end. Faster ratios produce less.
Electrical supply
Single phase 240 V means it can run where only a normal supply is available. For adjustable speed, choose the three phase version with a 240 V input VFD.
Which option to order
If you are between two ratios, choose the slower one when the load is heavy to start, and the faster one when cycle time matters more than torque.
Technical data
Motor power
3 kW / 4 HP
Motor rpm
1400 rpm
Gear unit
Worm, size 075
Output
28 mm hollow shaft
Max. output torque
258 Nm
Duty
S1 (continuous)
Supply
240 V single phase, 50 Hz
Before you install
- Worm gears can creep back under load or vibration, so lifting jobs need a brake.
- Restrain the gearbox housing so it cannot rotate; hollow-shaft mounting needs a torque arm.
- Electrical connection must be done by a licensed electrician.
Postage, returns and warranty
Dispatched from Glen Waverley, VIC. Enter your address at checkout for postage. Returns and warranty follow our Returns, Refunds & Warranty Policy.
Ring 0401 634 280 or email hankemotors@gmail.com before you order if you are unsure.
