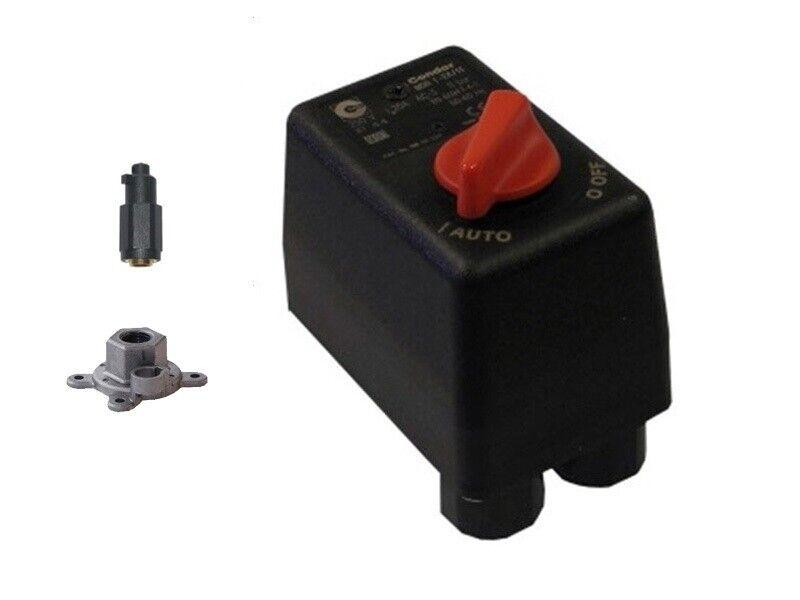

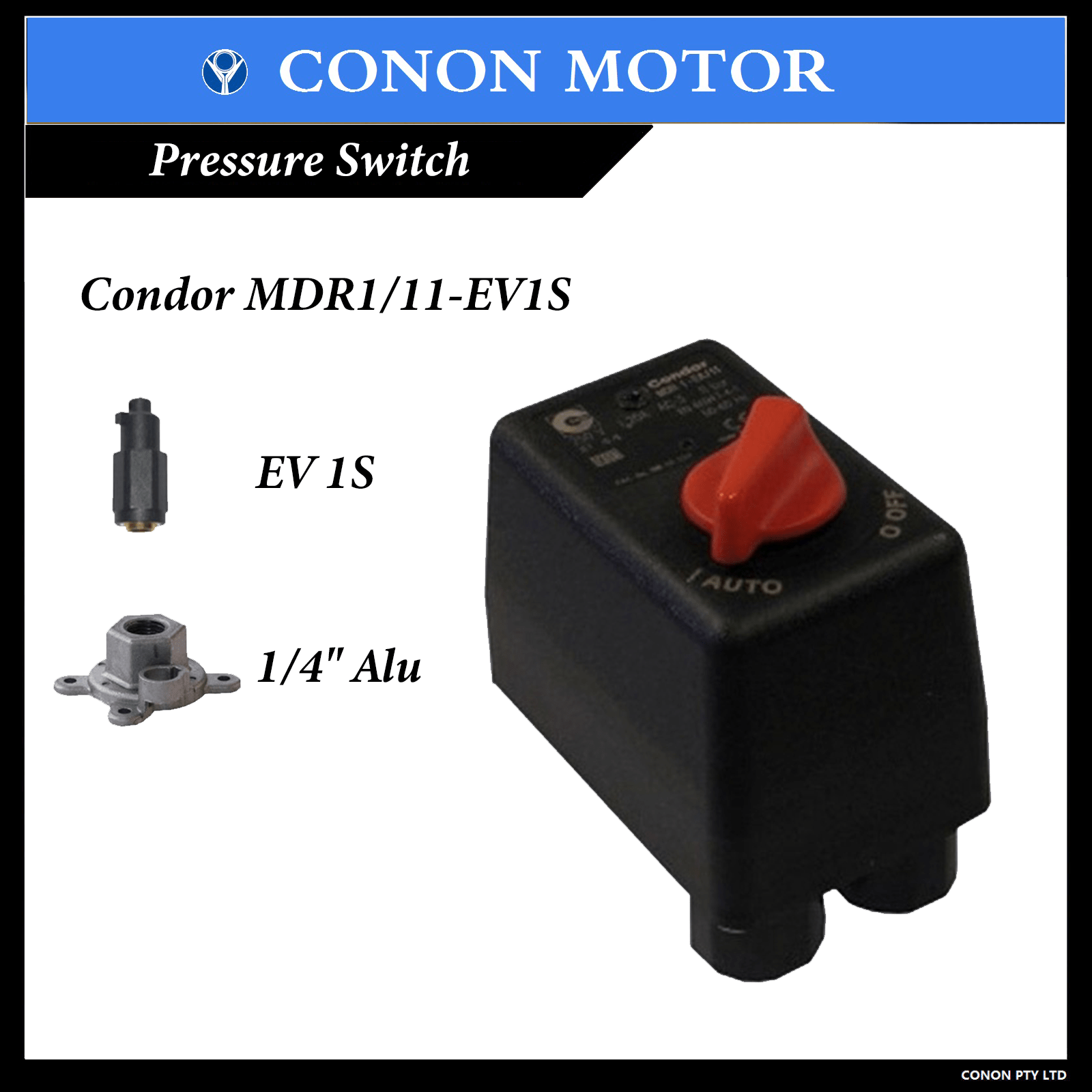

Condor MDR 1/11 pressure switch with a single 1/4" outlet: single phase, switches motors up to 4.0 kW directly, maximum cut-out 11 bar, adjustable differential. Supplied with an EV 1S unloader valve and PG 11 cable glands.
What it does
The pressure switch starts the compressor motor when tank pressure falls and stops it at the cut-out pressure. The unloader valve vents the pump head when the motor stops, so it can restart without pushing against full pressure. This switch has one 1/4" connection and suits a simple tank where a gauge and safety valve are mounted elsewhere.
Specifications
Model
MDR 1/11 EV1S
Outlets
1 × 1/4"
Supply
Single phase
Switching capacity
4.0 kW
Max cut-out
11 bar
Contacts
2-pole, normally closed
Standard
EN 60947, KEMA-EUR
Flange
Die-cast aluminium
The EV 1S unloader has a 6 mm quick-connect for plastic unloader tube. Cut-in and differential are adjustable.
Wiring safety
- Mains-voltage wiring must be done by a licensed electrician.
- Never set the cut-out above your tank's or safety valve's rating.
- For motors over 4.0 kW, use the switch to control a contactor.
Need gauge and safety valve ports on the switch itself? Choose the four-outlet MDR 1/11. More fittings are under pneumatic parts.
