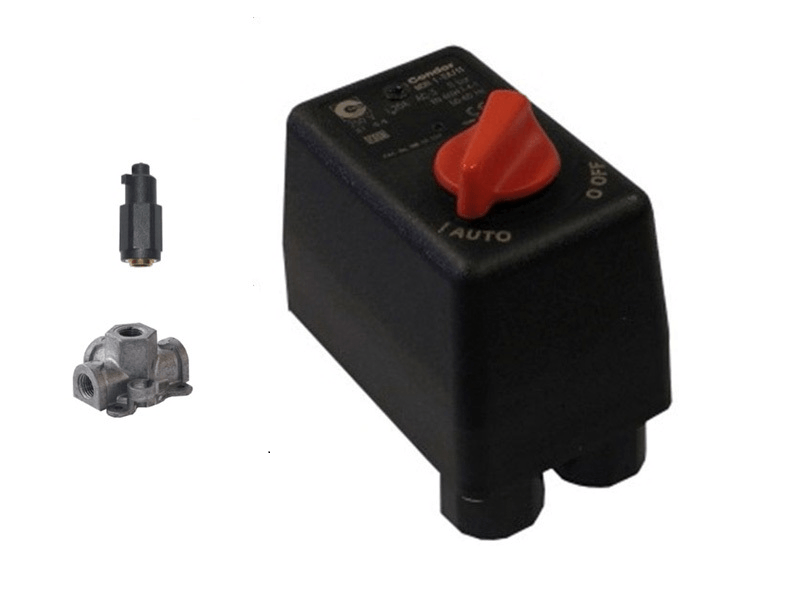

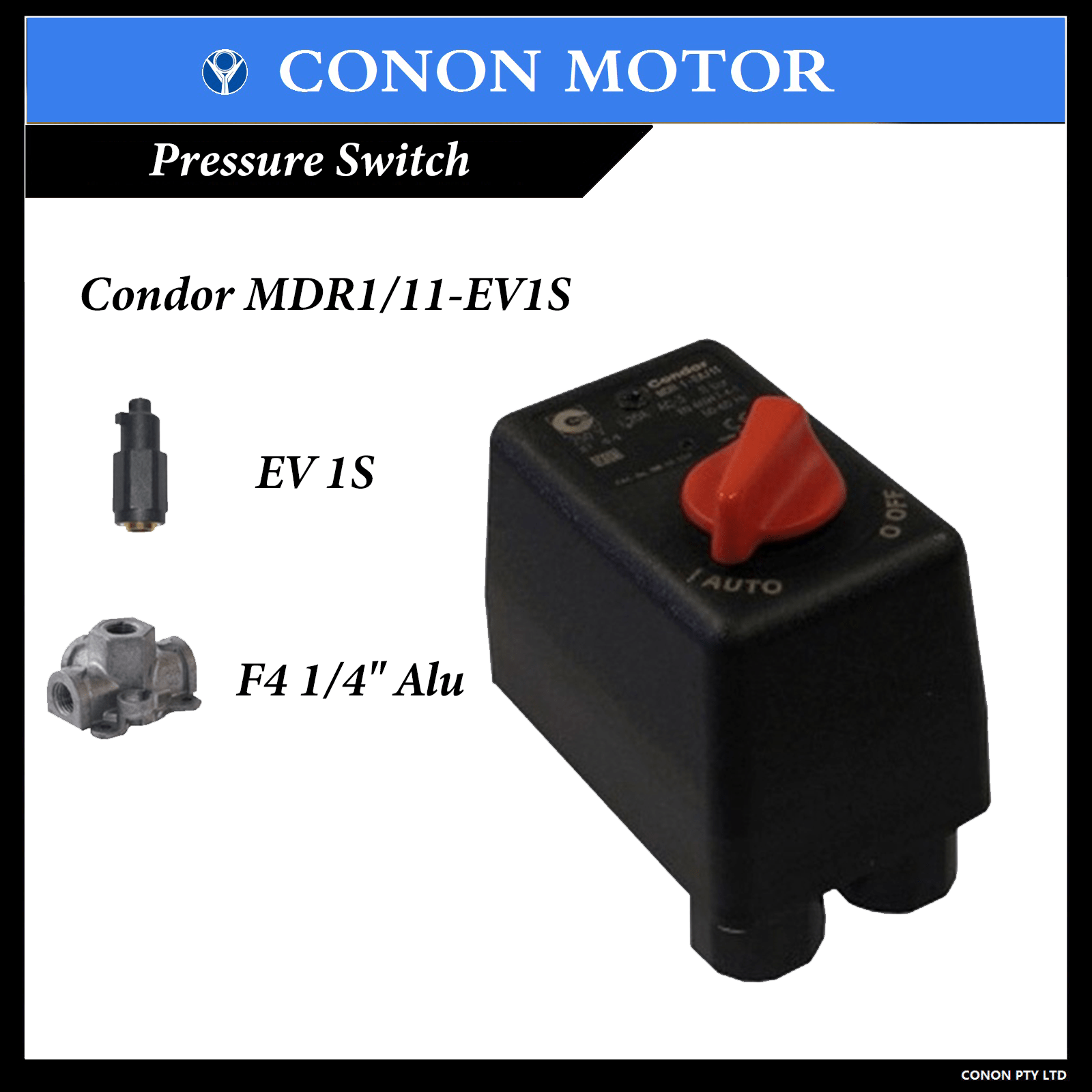

Condor MDR 1/11, four-outlet (F4) version: four 1/4" ports so the gauge, safety valve and tank connection mount on the switch body. Single phase, 4.0 kW switching capacity, 11 bar maximum cut-out, EV 1S unloader included.
Why choose four outlets
Many small piston compressors mount the pressure gauge and safety valve straight onto the switch manifold. The F4 body gives you those ports, which keeps plumbing tidy and lets you swap a worn switch without re-piping the tank. It is used on single phase piston compressors up to 4.0 kW, such as the 75 L, 1.5 kW workshop compressor, which leaves the factory with an MDR 1/11 EV1S fitted.
Technical details
Type
MDR 1/11 EV1S, F4
Ports
4 × 1/4"
Power
Single phase
Max motor
4.0 kW
Cut-out (max)
11 bar
Contacts
2-pole N.C.
Approvals
EN 60947 · KEMA-EUR
Body flange
Die-cast aluminium
Supplied with PG 11 cable glands and an EV 1S unloader valve. Differential adjustment is standard.
Before you fit it
- Isolate power and drain the tank completely first.
- Have a licensed electrician wire the switch.
- Set the cut-out below the rating of the tank and safety valve. Above 4.0 kW, switch a contactor instead of the motor.
For a single port, see the single-outlet MDR 1/11. Ready-built compressors are in our piston compressor range.
Sent from Glen Waverley, VIC. Shipping is calculated at checkout. Ask us about warranty terms.
Unsure which switch you have? 0401 634 280 · hankemotors@gmail.com
