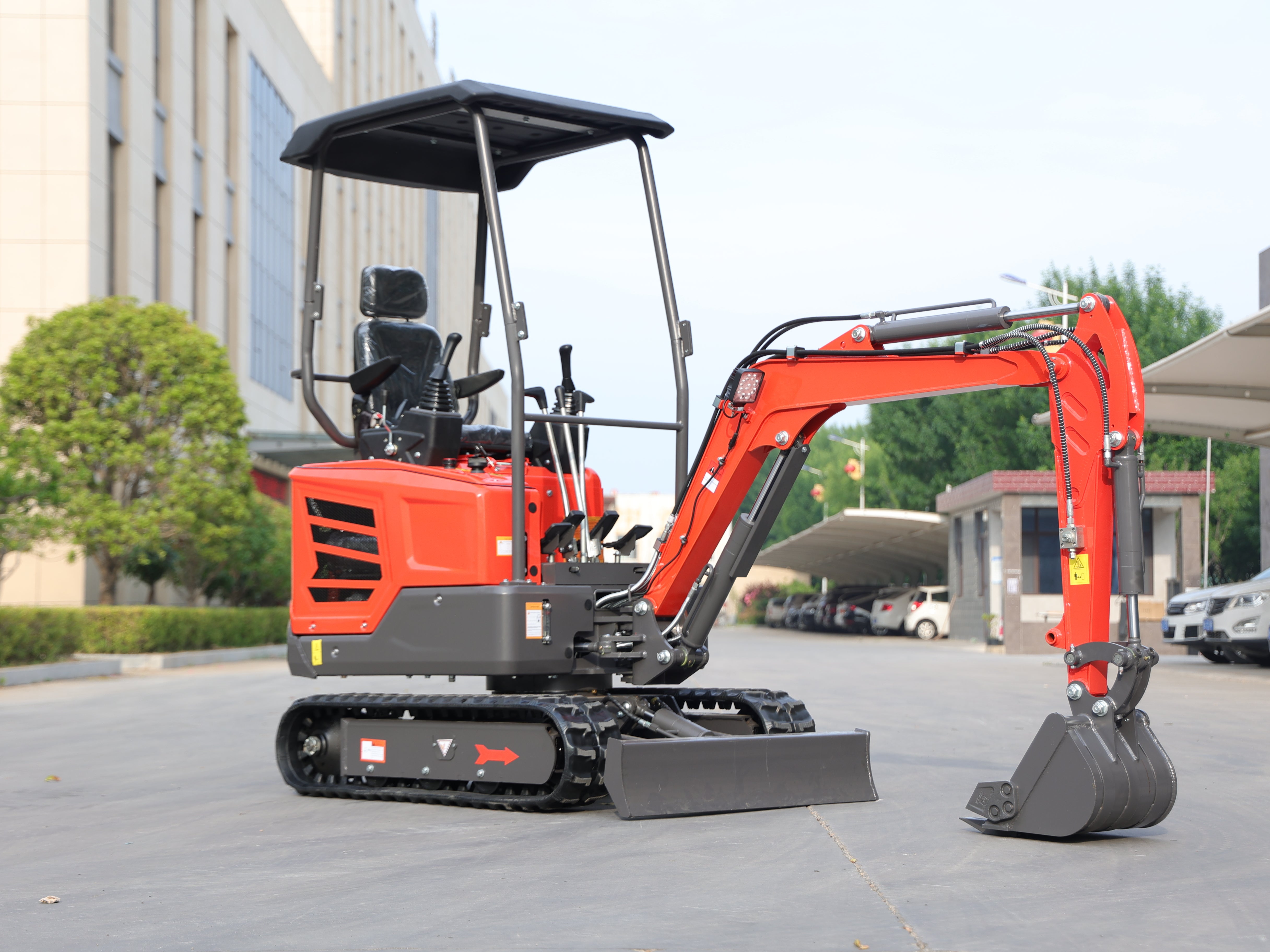

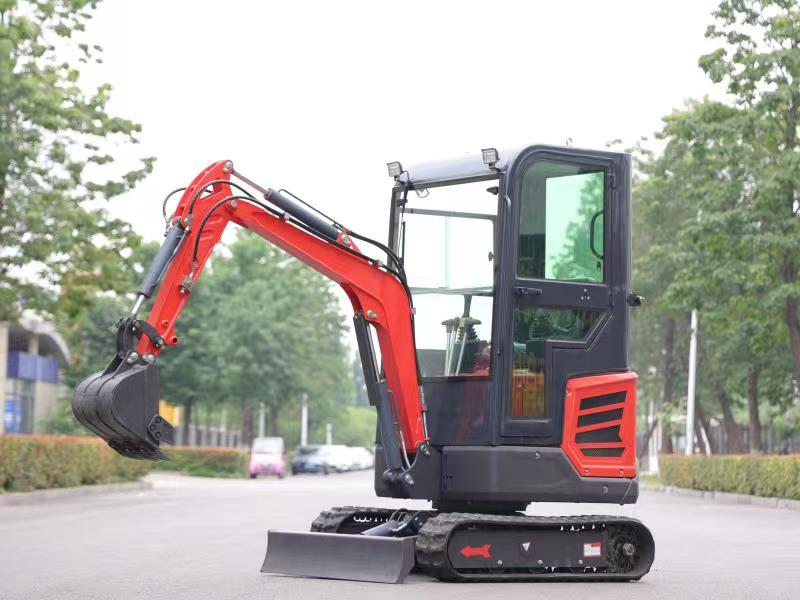

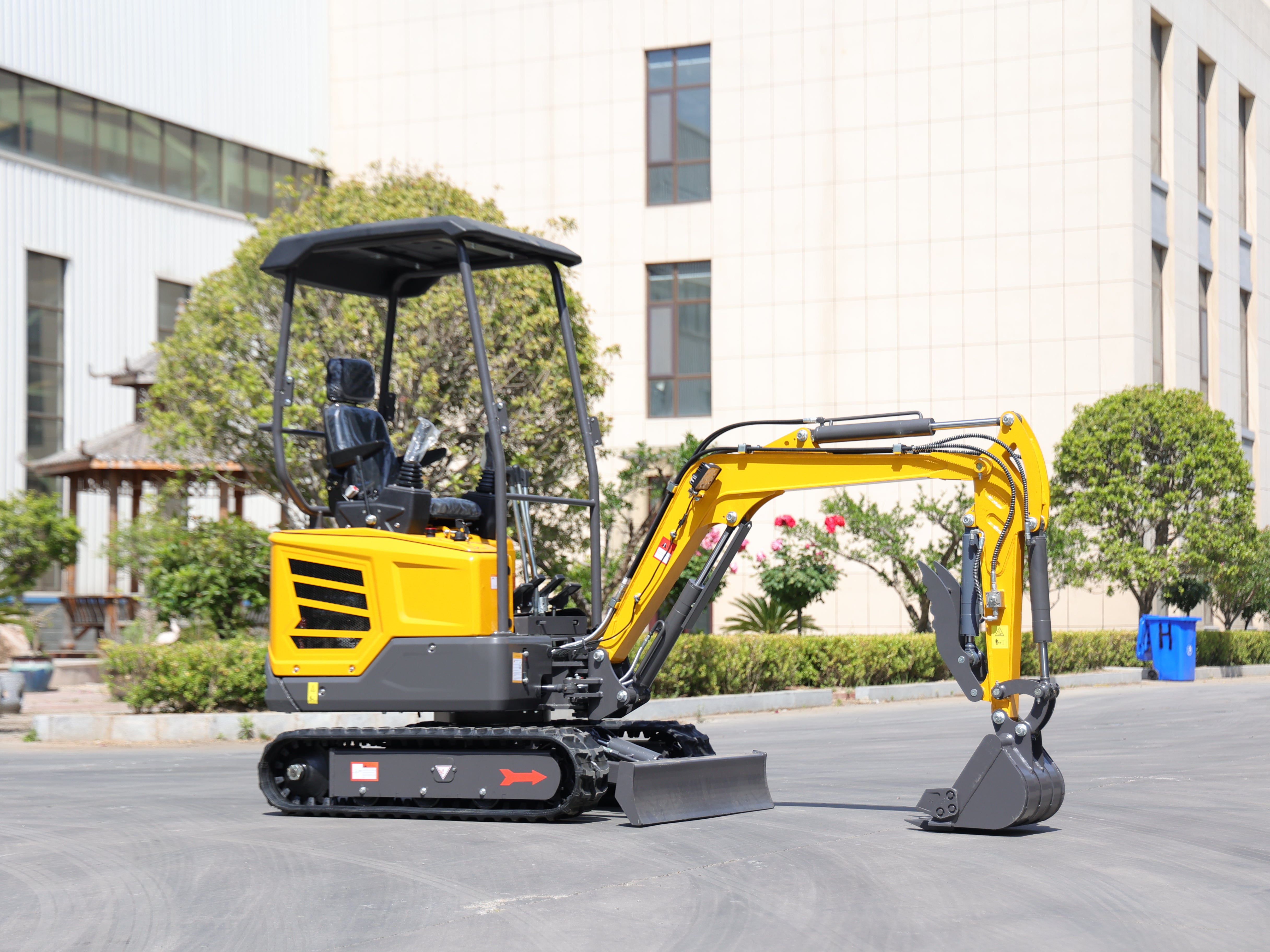

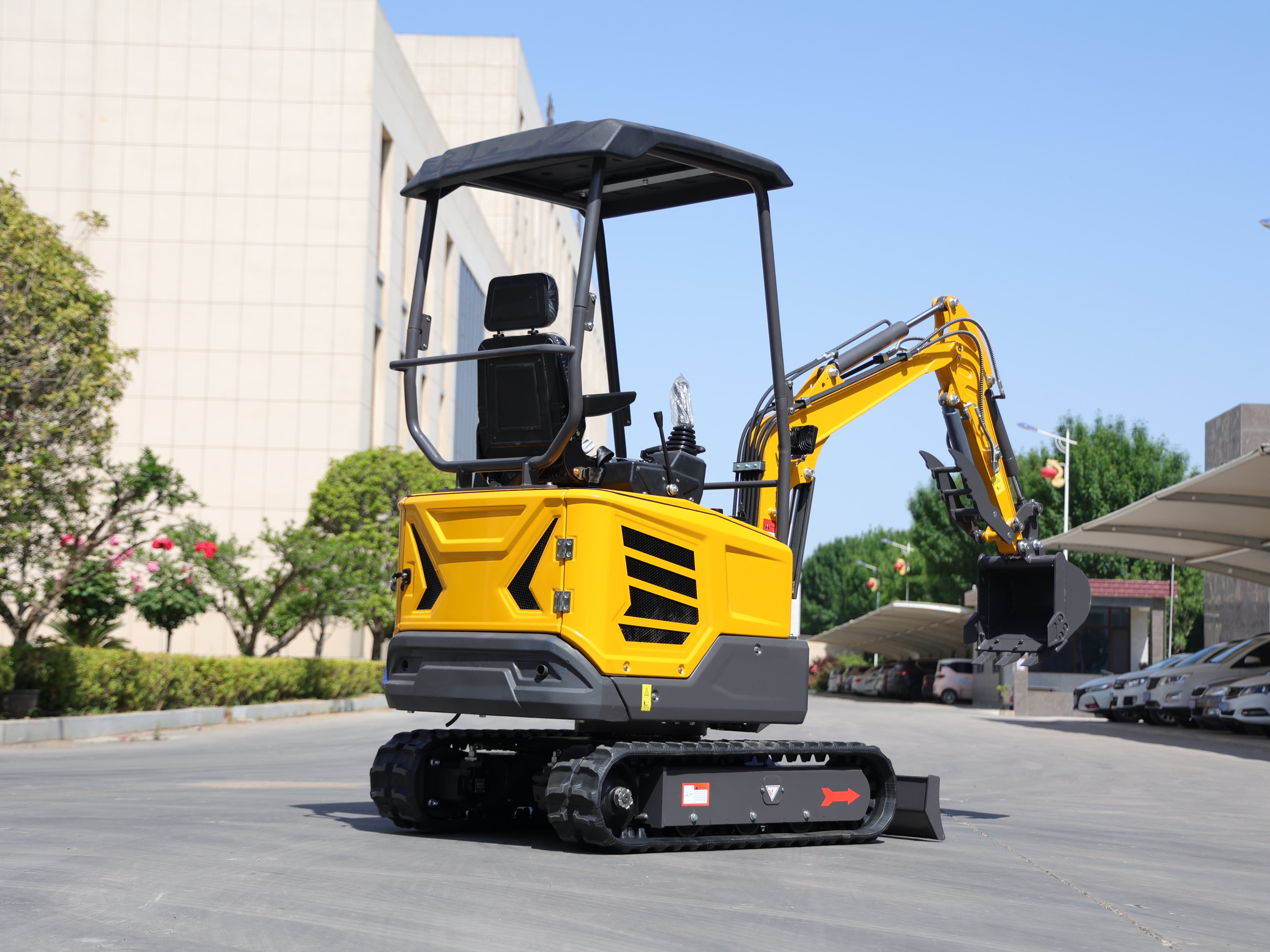

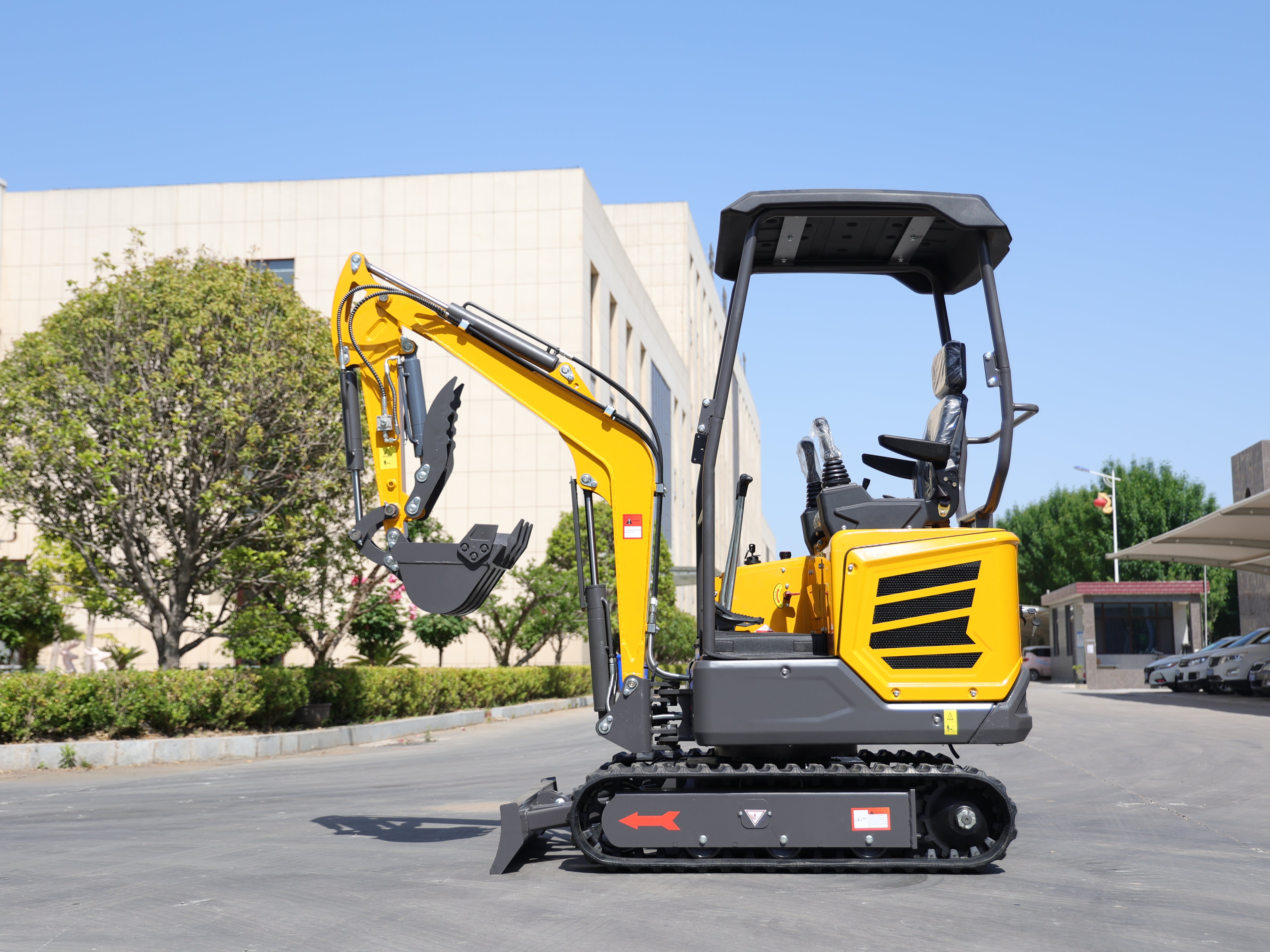

1.8 t mini excavator with a Kubota D722 diesel: 10.2 kW (14 HP) at 3000 rpm, 1900 kg operating weight, 2050 mm digging depth and 3260 mm digging radius.
Where it is used
The extra weight over a 1 tonne machine gives more stability when lifting at reach and more force at the bucket teeth. The Kubota three-cylinder diesel is built for long working days.
Typical applications are house-site footings, drainage and sewer trenches, farm work and driveway preparation. It is the largest excavator in our range.

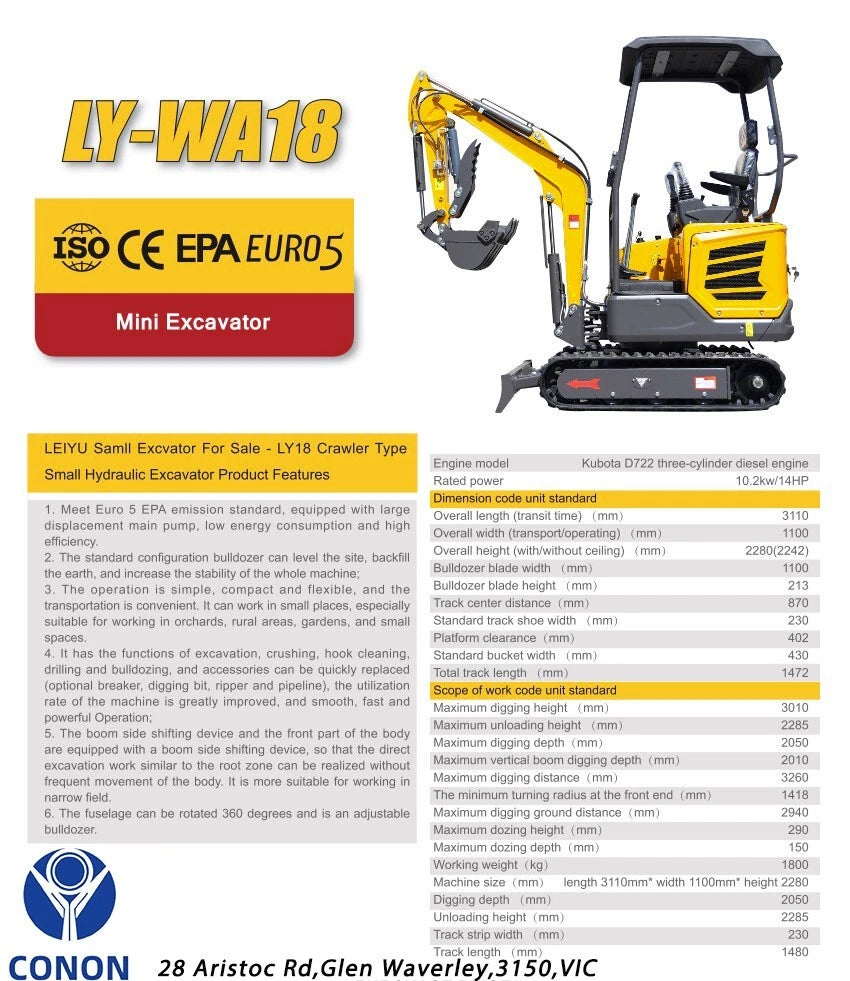

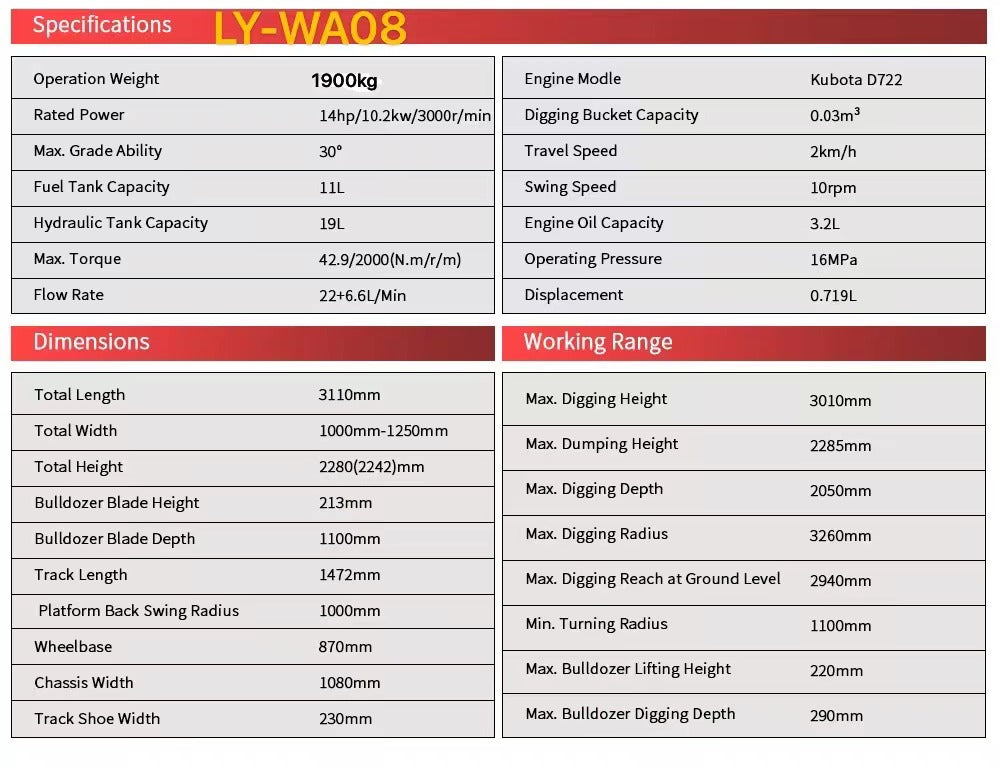

Specifications
Engine
Kubota D722 diesel, 0.719 L
Rated power
10.2 kW / 14 HP @ 3000 rpm
Max torque
42.9 N·m @ 2000 rpm
Operating weight
1900 kg
Max digging depth
2050 mm
Max digging radius
3260 mm
Reach at ground level
2940 mm
Max digging height
3010 mm
Max dumping height
2285 mm
Bucket
0.03 m³
Hydraulic flow
22 + 6.6 L/min
Operating pressure
16 MPa
Travel speed
2 km/h
Gradeability
30°
Track length · shoe
1472 mm · 230 mm
Length · height
3110 mm · 2280 mm
Fuel tank
11 L
Hydraulic tank
19 L
From the specification on the listing. Total width is listed as 1000–1250 mm.
Transport and setup
- At 1900 kg, check that your trailer, tow vehicle and licence are rated for the load before collecting it.
- Grease the pins and check engine oil (3.2 L capacity) and hydraulic oil before the first day.
- Keep bystanders outside the swing radius while it is working.
Other sizes

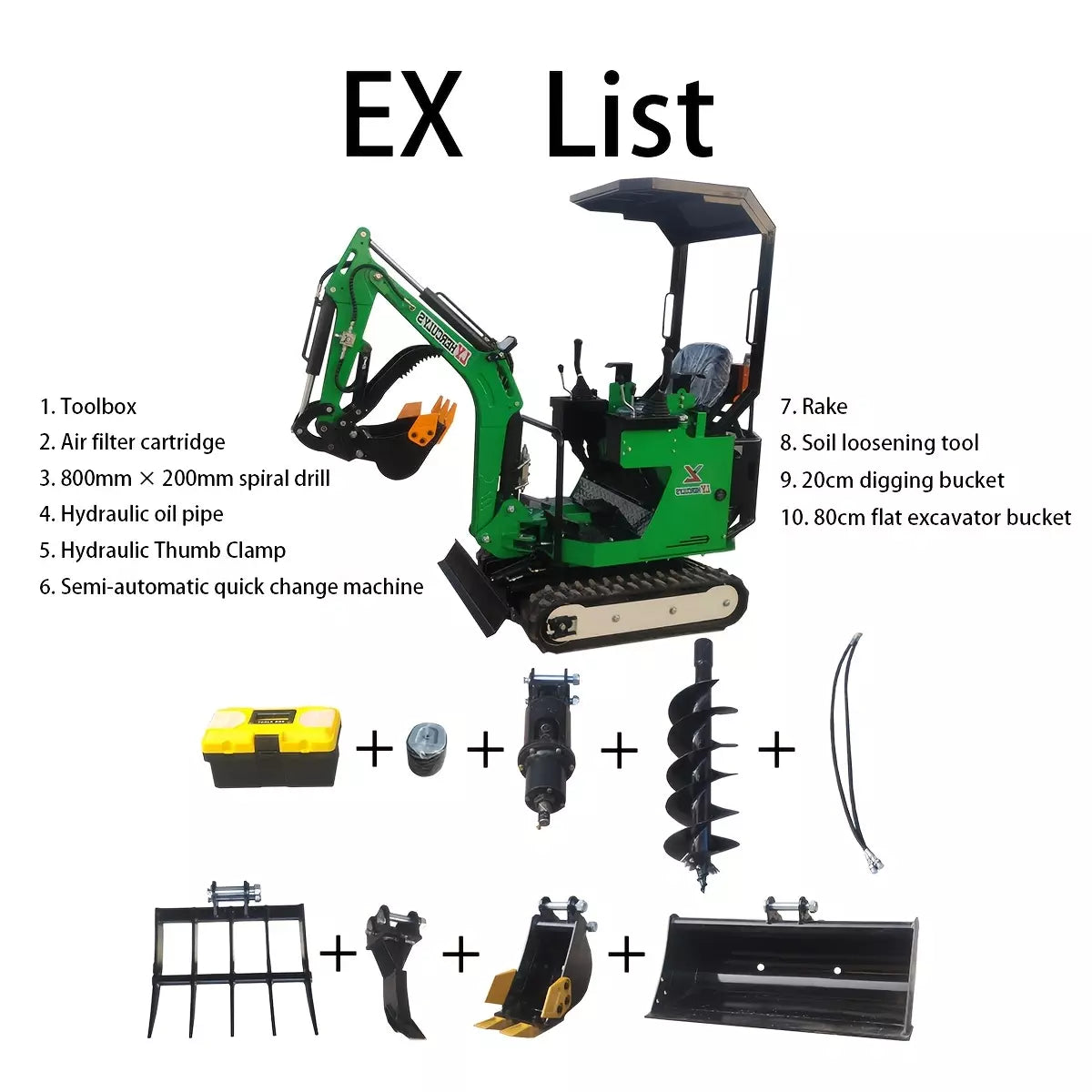

Smaller machines with petrol or diesel options: the LY-WA02 1.2 t and the LY-WD01 1 t. Add a hydraulic thumb or a tilt bucket once the pin sizes are confirmed.
Freighted from Glen Waverley, VIC; delivery cost is calculated at checkout. Ask us about warranty terms.
Ask for the full data sheet: 0401 634 280 · hankemotors@gmail.com
