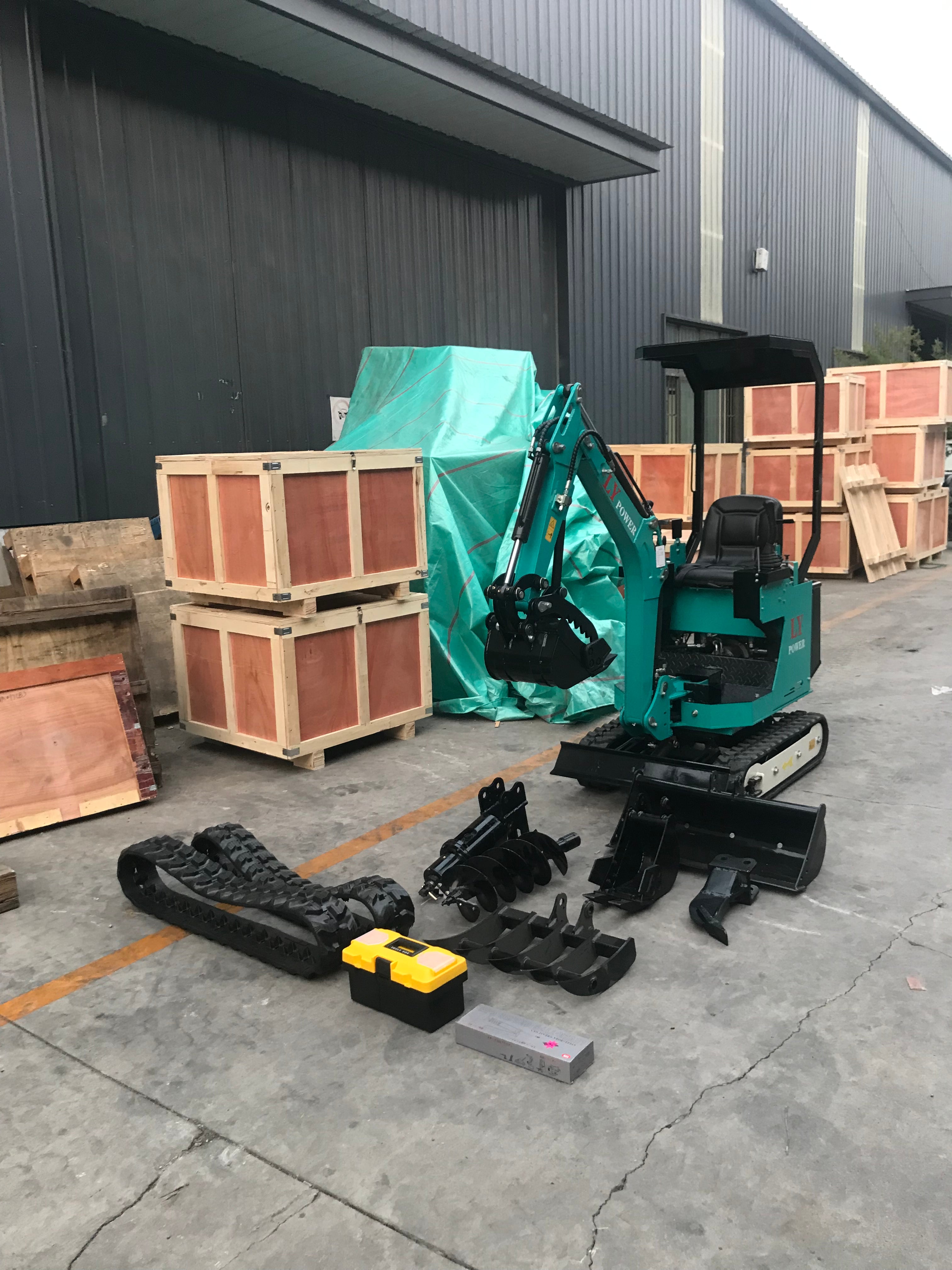

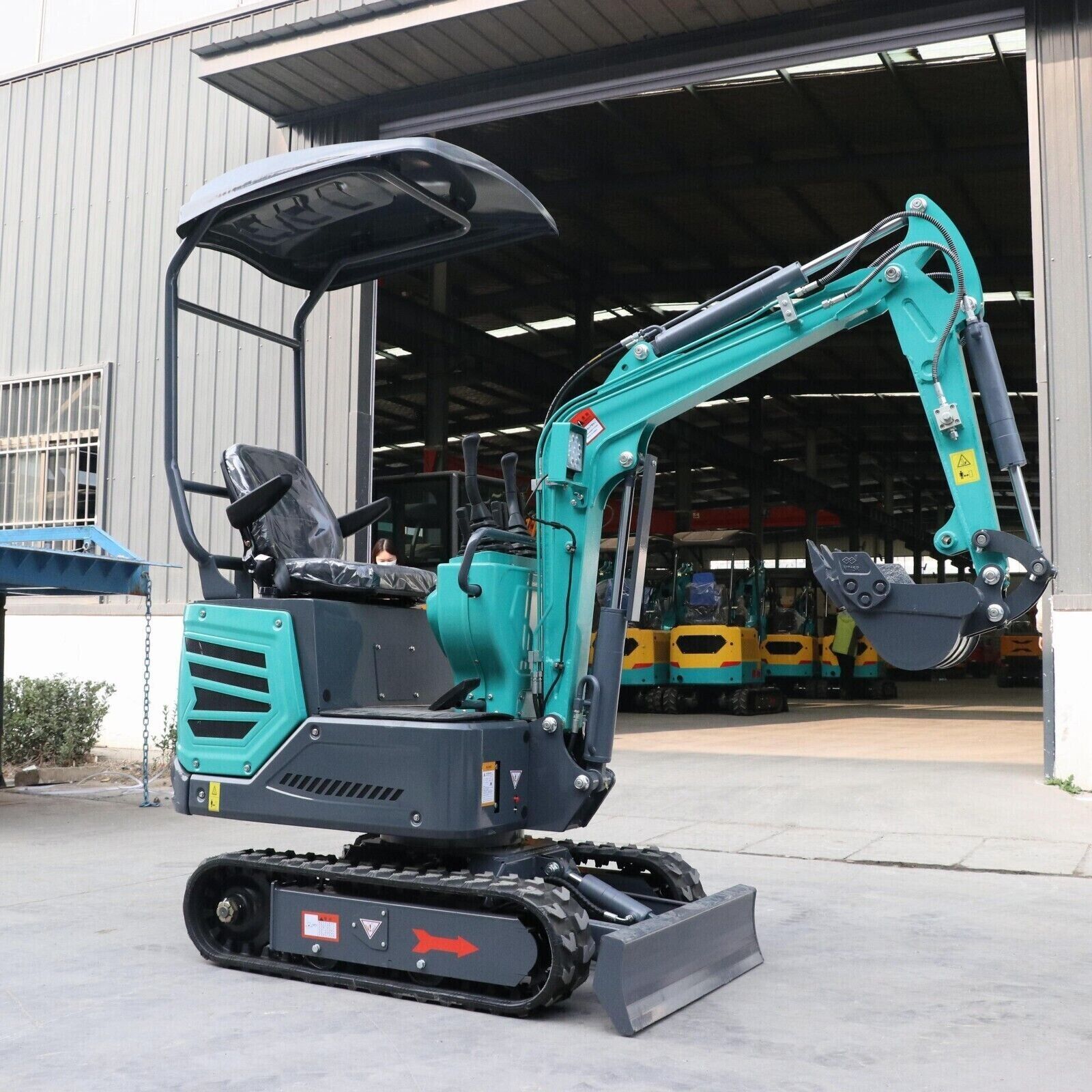

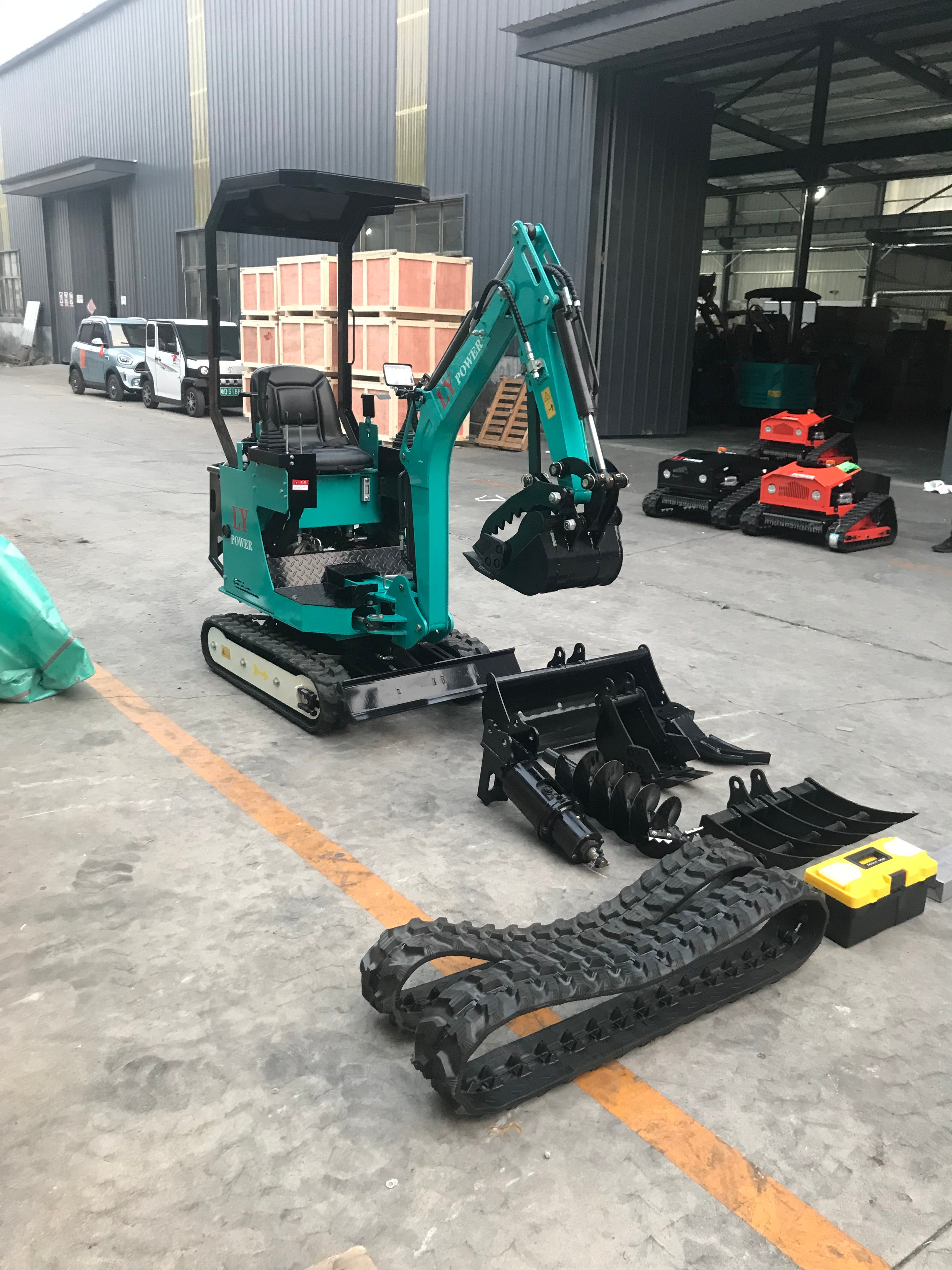

LY-WD01 1 tonne mini excavator: 1100 kg working weight, offered with a Briggs & Stratton petrol engine (13.5 HP) or a Koop Euro V diesel (12 HP). 1520 mm digging depth, 3010 mm reach, 55° boom swing each way.
Petrol or diesel
The WD01 is listed with two engine options. Diesel suits owners who run the machine for long days and already keep diesel on site. Petrol is lighter to start and service. Tell us which engine you want when you order, and we'll confirm availability.

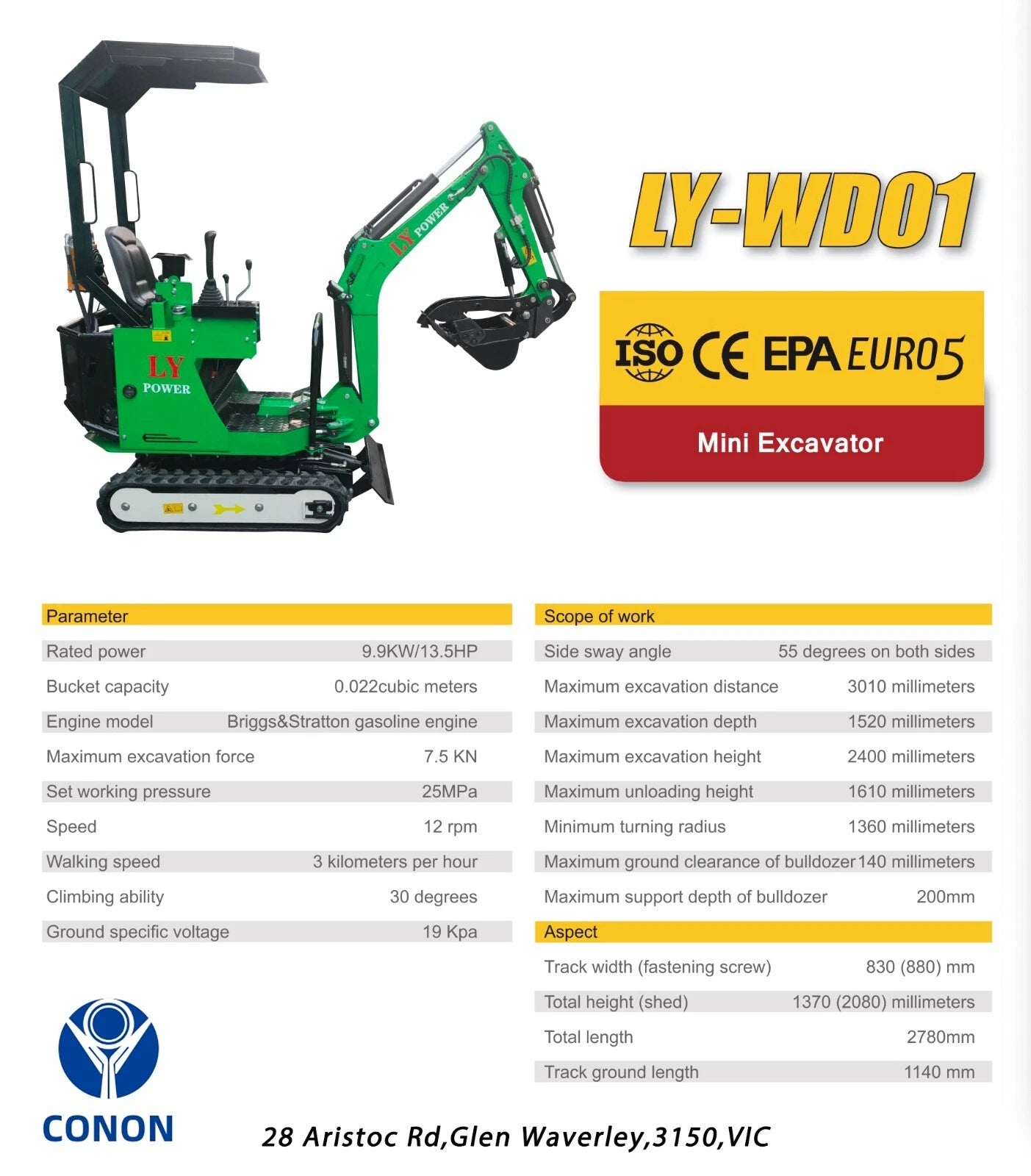

Specifications
Model
LY-WD01
Working weight
1100 kg

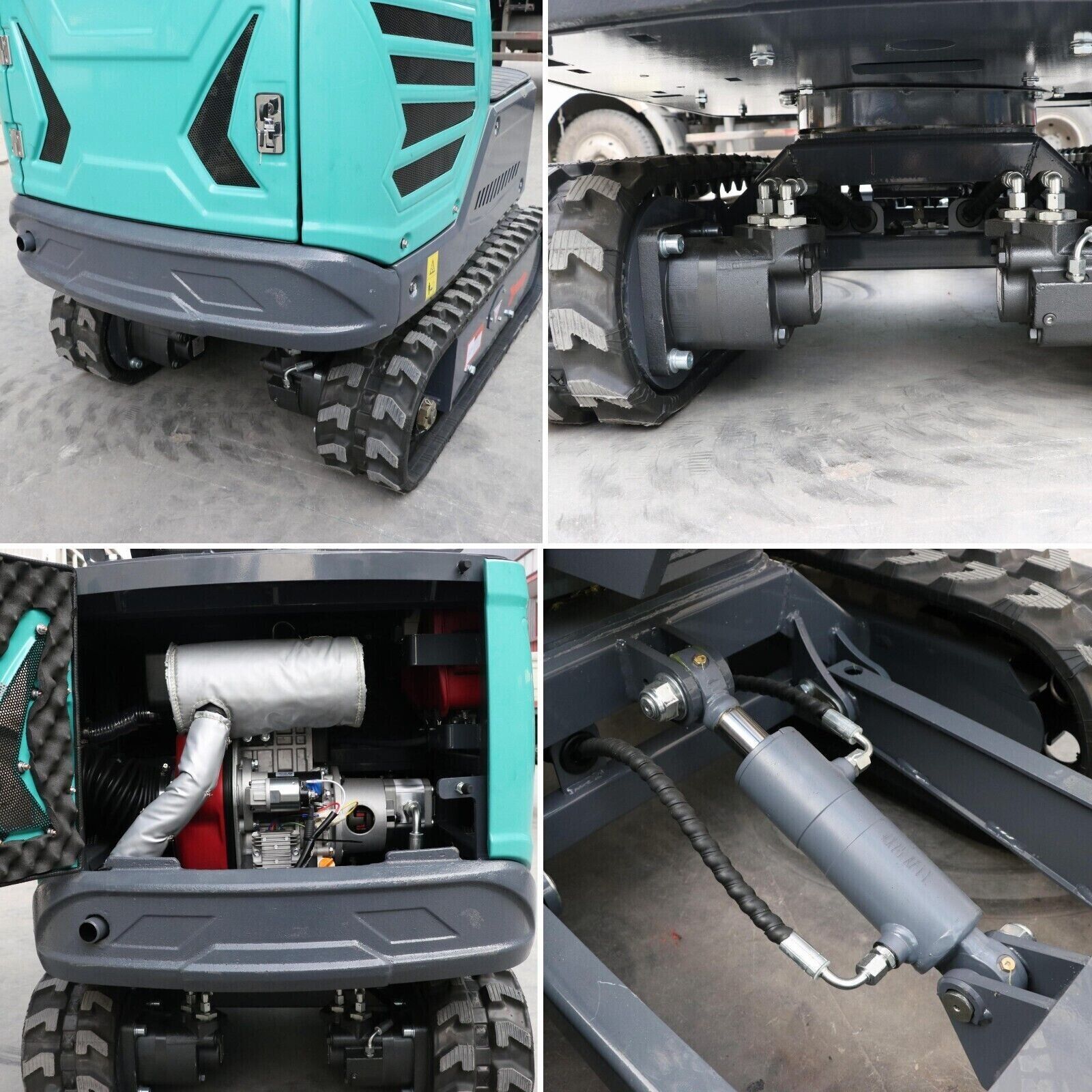

Engine options
13.5 HP petrol / 12 HP diesel
Max digging depth
1520 mm
Max reach
3010 mm

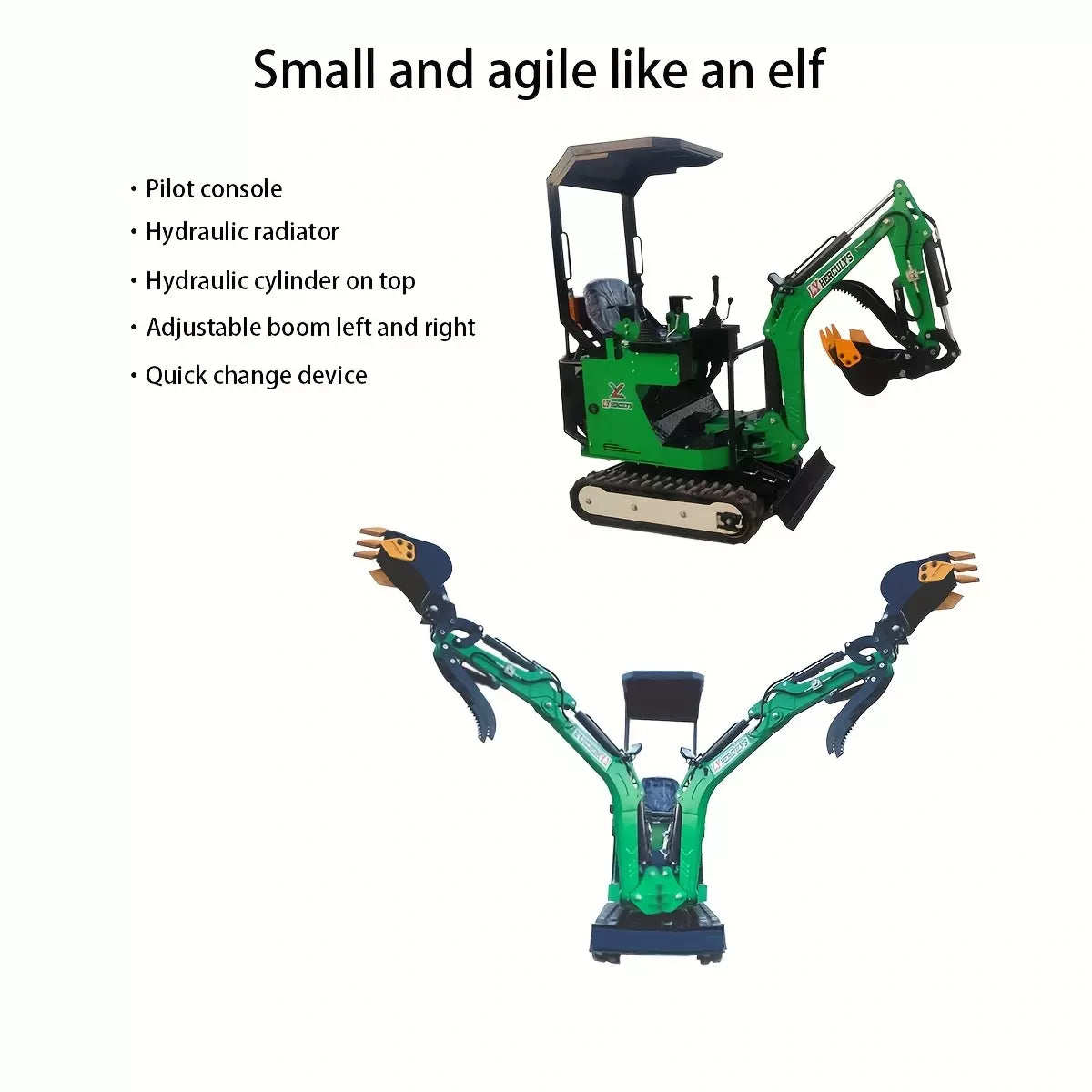

Boom swing
55° left and right
Max dig height
2400 mm
Dump height
1610 mm
Pump
Twin gear pump, 25 MPa
Digging force
7.5 kN

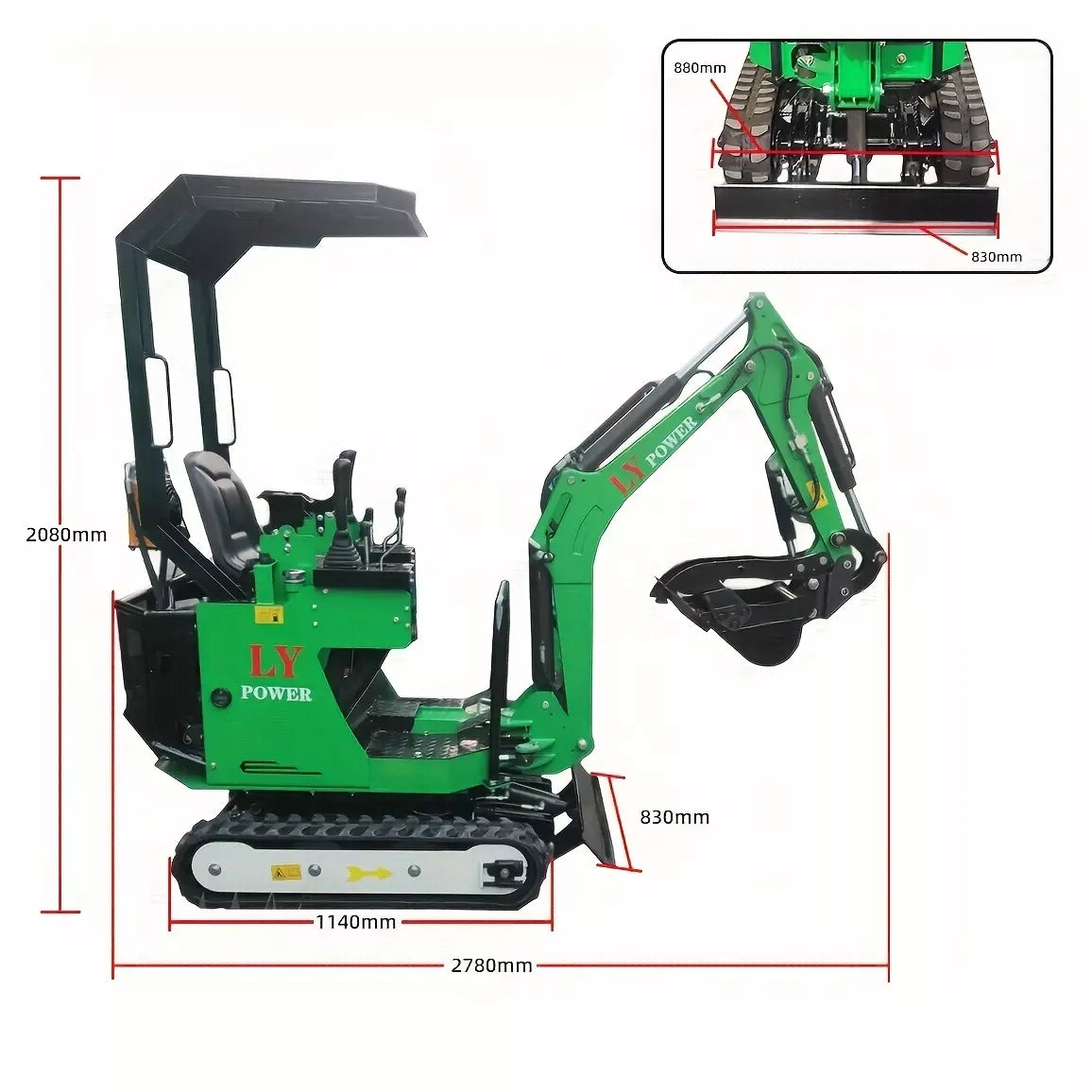

Travel speed 3 km/h, ground pressure 19 kPa, turning radius 1360 mm, length 2780 mm.
Need more reach? The 1.2 t LY-WA02 digs to 1725 mm. All machines: machinery collection.
Checklist
- Use the boom swing to dig alongside walls without repositioning.
- Operate only on stable ground, wear a seatbelt where fitted, and keep people out of the swing radius.
