2.2 kW three phase gear motor (NMRV090): motor and worm gearbox supplied together, so the flange and shaft already match. 7 ratio options from 7.5:1 to 40:1. In stock at Glen Waverley, VIC.

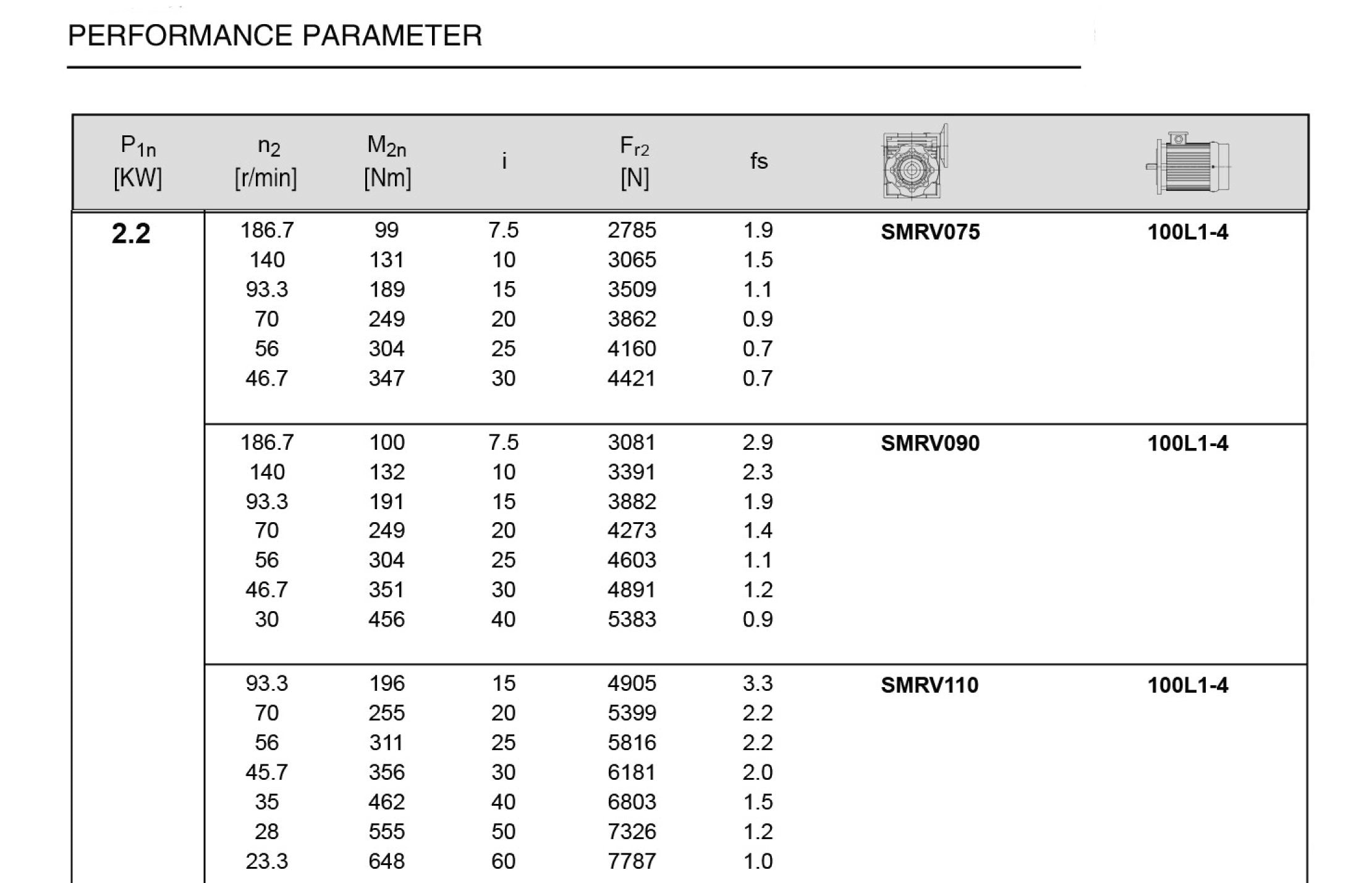

Ratios and output speeds
The motor runs at 1400 rpm. Divide by the ratio to get the output speed:
7.5:1, 35 mm output
about 187 rpm
10:1, 35 mm output
about 140 rpm
15:1, 35 mm output
about 93 rpm
20:1, 35 mm output
about 70 rpm
25:1, 35 mm output
about 56 rpm
30:1, 35 mm output
about 47 rpm
40:1, 35 mm output
about 35 rpm
Nominal speeds; under load the motor slows slightly.
Maximum output torque is listed as 456 Nm. Lower ratios give more speed but less torque than that figure; check with us if your load is close to it.
Supply and speed control
Three phase 415 V. Pair it with a VFD for speed control or to run it from a 240 V single phase supply.
Mounting the output
Need a solid shaft for a sprocket or pulley? Add a plug-in output shaft and tell us the gearbox size (090).
Motor and gearbox data
Rated power
2.2 kW / 3 HP
Supply
415 V three phase, 50 Hz
Duty rating
S1 (continuous)
Peak torque (listed)
456 Nm
Output shaft
35 mm hollow shaft
Gearbox
Worm, size 090
Input speed
1400 rpm
Fitting tips
- For hoisting or holding, add a brake; the worm alone is not enough.
- Guard the output shaft and anything connected to it.
- Get a licensed electrician to connect the supply.
Delivery
Freight is worked out at checkout and the geared motor leaves from Glen Waverley, VIC. See the Returns, Refunds & Warranty Policy for warranty.
Not sure which ratio? Tell us the speed you need at the output: 0401 634 280 or hankemotors@gmail.com.
