Size 110 worm gearbox with a 1.5 kW 415 V three phase motor and 35 mm hollow output, supplied assembled. Choose one of 7 ratios below. Ships from Glen Waverley.

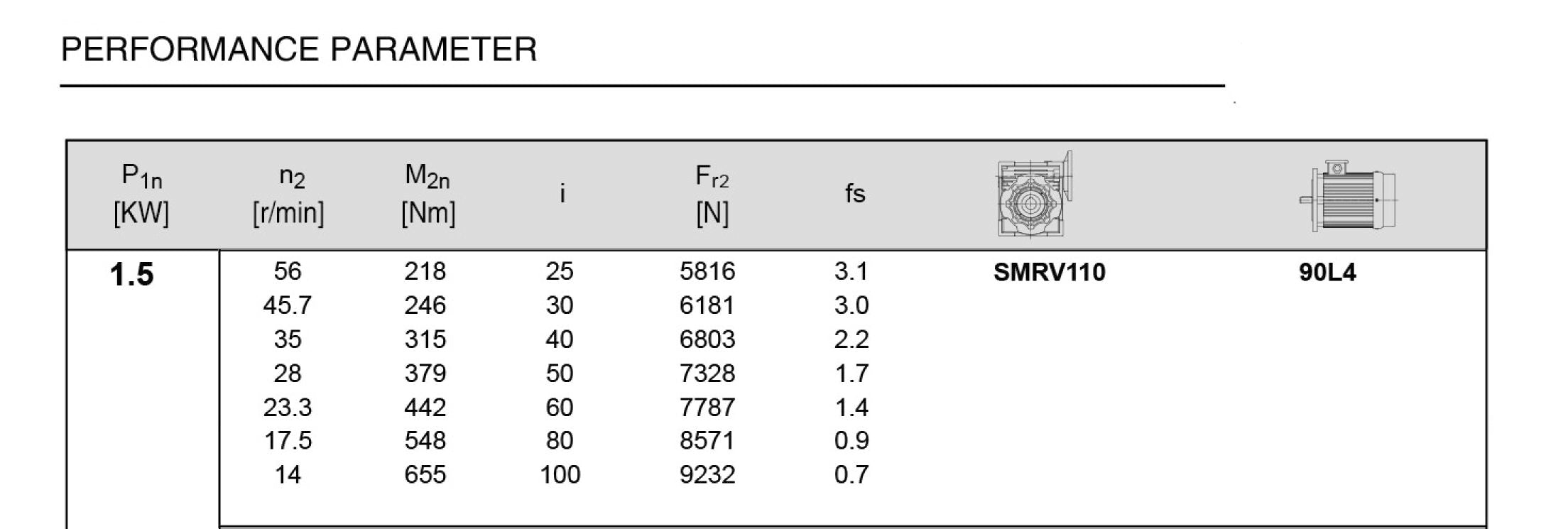

Output speed for each ratio
Output speed is the motor's 1400 rpm divided by the ratio you choose:
25:1, 42 mm output
about 56 rpm
30:1, 42 mm output
about 47 rpm
40:1, 42 mm output
about 35 rpm
50:1, 42 mm output
about 28 rpm
60:1, 42 mm output
about 23 rpm
80:1, 42 mm output
about 17.5 rpm
100:1, 42 mm output
about 14 rpm
Calculated from nameplate speed. Loaded speed is a little lower.
Maximum output torque is listed as 655 Nm. Lower ratios give more speed but less torque than that figure; check with us if your load is close to it.
Electrical supply
Three phase 415 V. Pair it with a VFD for speed control or to run it from a 240 V single phase supply.
Where it is used
A 1.5 kW worm gear motor like this suits conveyors, screw feeders, mixers, rotating tables and gate drives, wherever you need slow, steady turning force.

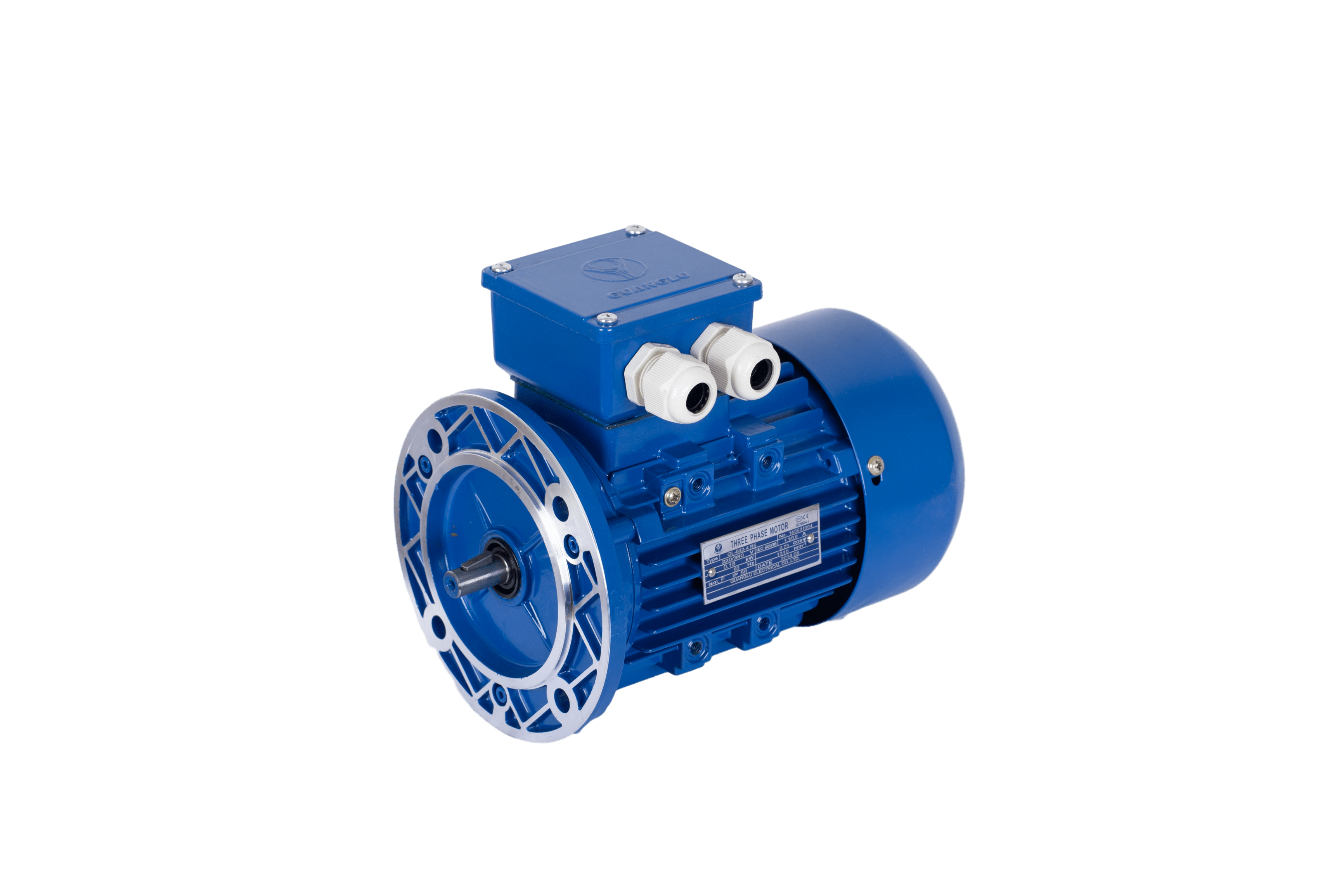

Motor and gearbox data
Power supply
415 V three phase, 50 Hz
Rated power
1.5 kW / 2 HP
Motor speed
1400 rpm
Gearbox
Worm, size 110
Hollow output
35 mm hollow shaft
Max. output torque
655 Nm
Duty class
S1 (continuous)
Installation notes
- Worm gears can creep back under load or vibration, so lifting jobs need a brake.
- Guard the output shaft and anything connected to it.
- The motor must be connected by a licensed electrician.
Shipping and warranty
Freight is worked out at checkout and the geared motor leaves from Glen Waverley, VIC. See the Returns, Refunds & Warranty Policy for warranty.
Call 0401 634 280 or email hankemotors@gmail.com and we will help choose the ratio and size.
