Motor and gearbox set: 1.5 kW, 415 V three phase, NMRV090. Output from about 93 rpm (15:1) to 23 rpm (60:1). Ships from Glen Waverley.
Ratio menu explained

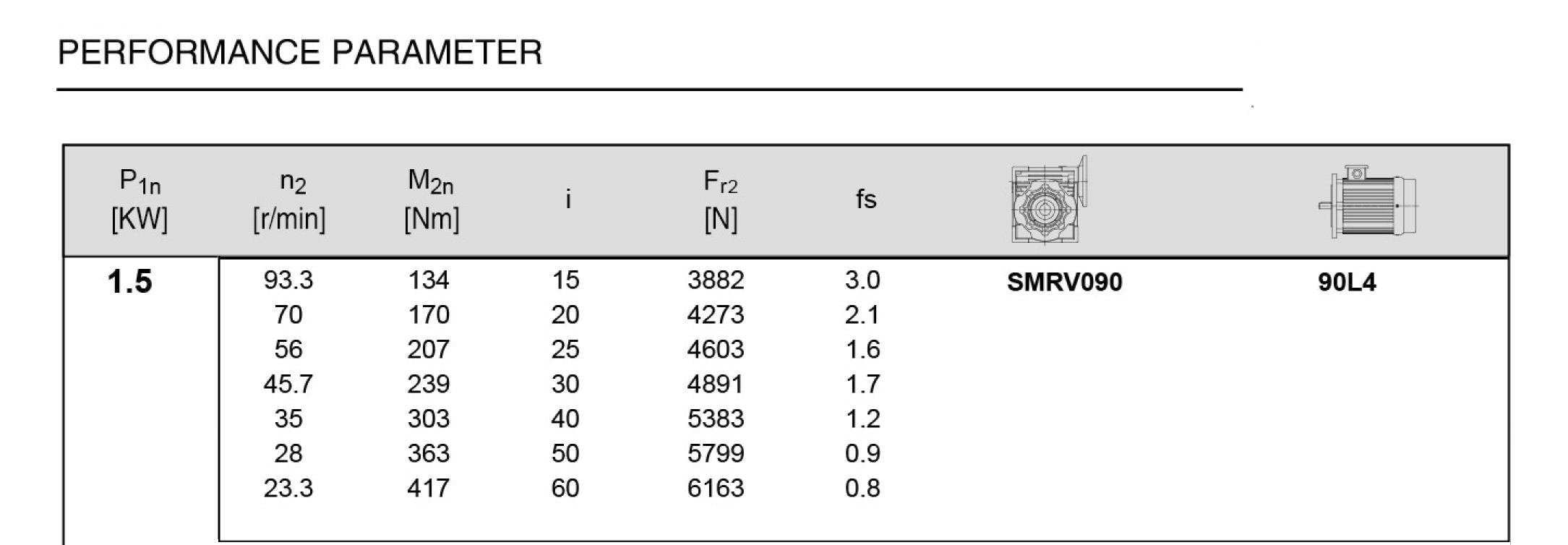

Output speed is the motor's 1400 rpm divided by the ratio you choose:
15:1, 35 mm output
about 93 rpm
20:1, 35 mm output
about 70 rpm
25:1, 35 mm output
about 56 rpm
30:1, 35 mm output
about 47 rpm
40:1, 35 mm output
about 35 rpm
50:1, 35 mm output
about 28 rpm
60:1, 35 mm output
about 23 rpm
Rounded figures; real speed drops a few percent at full load.
Maximum output torque is listed as 417 Nm. Lower ratios give more speed but less torque than that figure; check with us if your load is close to it.
Running it

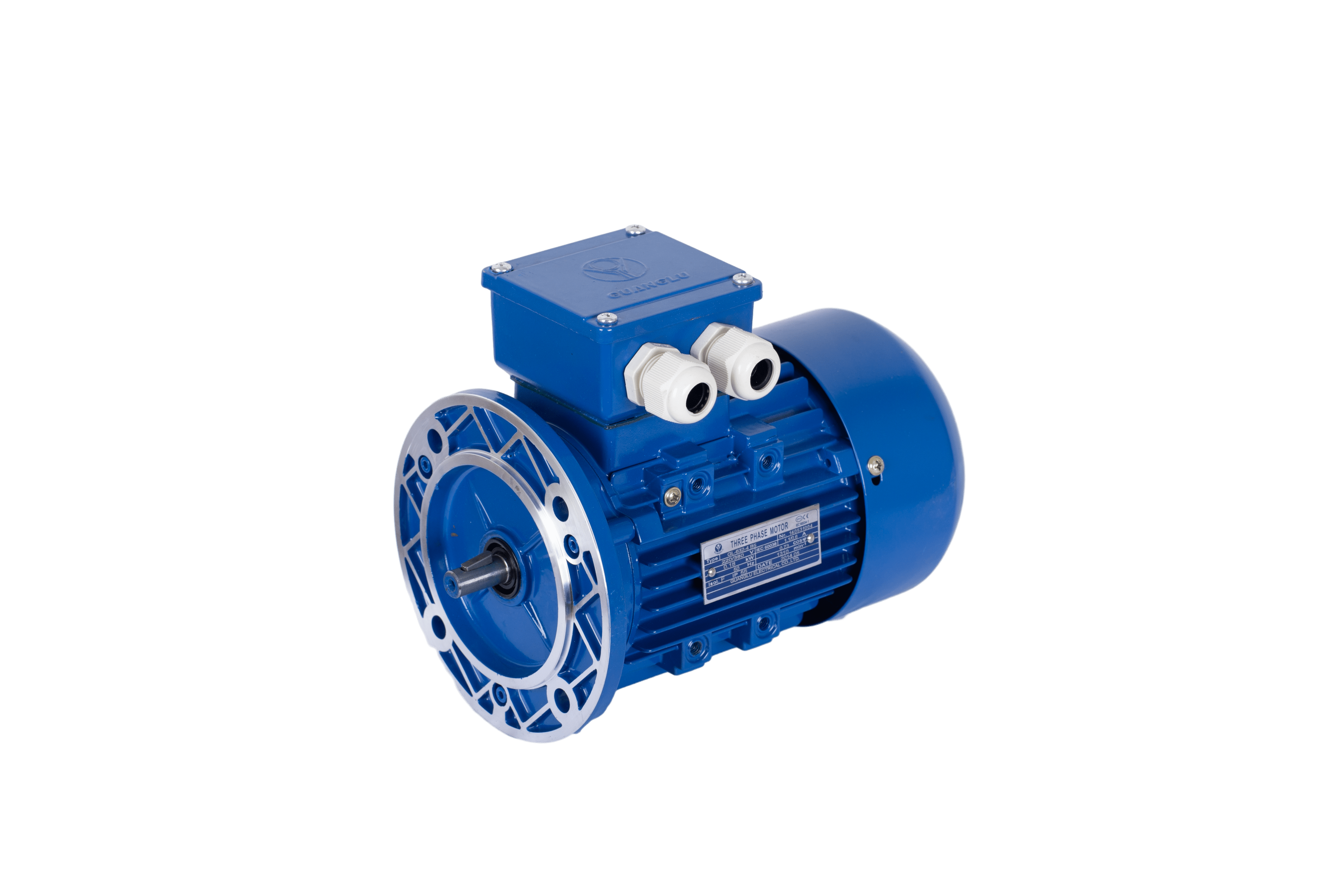

The motor is 415 V three phase. If you only have 240 V, it can be run from a single phase to three phase VFD, which also lets you adjust the output speed.
Mounting the output
With a hollow output of 35 mm the gearbox can sit directly on the machine shaft. A little anti-seize on the shaft makes it much easier to remove later.
Key figures
Power
1.5 kW / 2 HP
Voltage
415 V three phase, 50 Hz
Duty
S1 (continuous)
Max. output torque
417 Nm
Output shaft
35 mm hollow shaft
Reducer
Worm, size 090
Motor speed
1400 rpm
Installation notes
- Worm gears can creep back under load or vibration, so lifting jobs need a brake.
- Guard the output shaft and anything connected to it.
- Get a licensed electrician to connect the supply.
Delivery
Ships Australia-wide from Glen Waverley, VIC; postage is calculated at checkout. Warranty and returns: see our Returns, Refunds & Warranty Policy.
Send us the job details and we will suggest a ratio: hankemotors@gmail.com, 0401 634 280.
