1 HP worm gear motor, 415 V three phase. Size 090 gearbox with a 35 mm hollow output. Pick from 5 ratios; the slowest gives about 14 rpm. In stock at Glen Waverley, VIC.

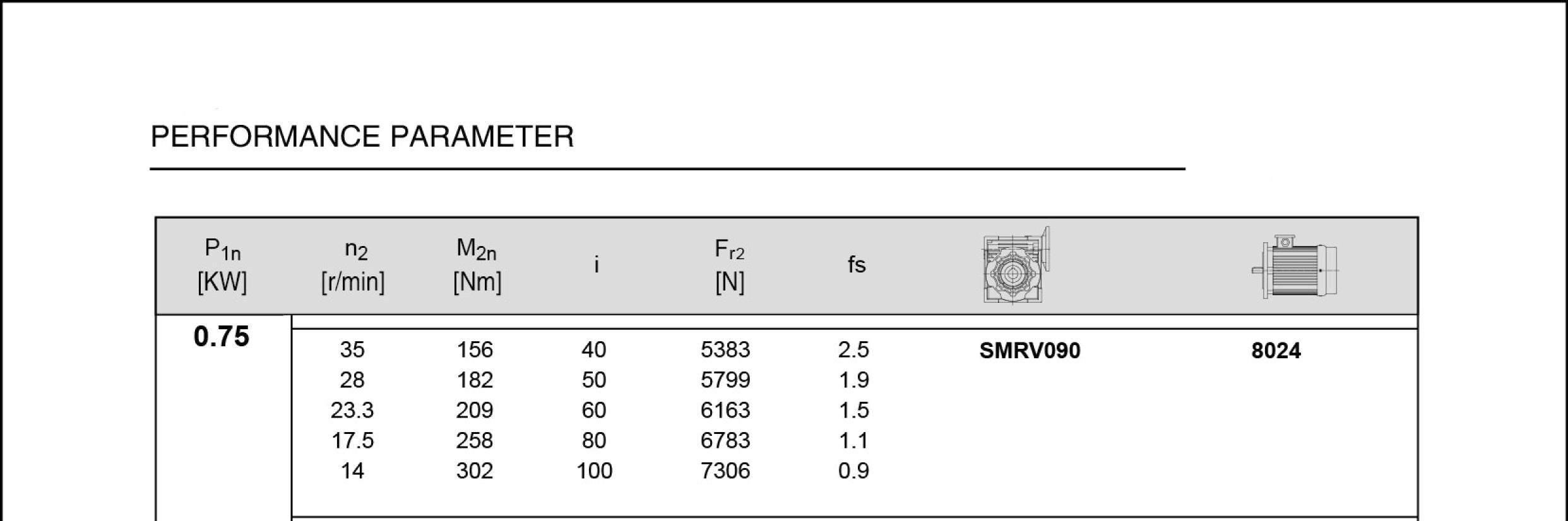

Output speed for each ratio
Output speed is the motor's 1400 rpm divided by the ratio you choose:
40:1, 35 mm output
about 35 rpm
50:1, 35 mm output
about 28 rpm
60:1, 35 mm output
about 23 rpm
80:1, 35 mm output
about 17.5 rpm
100:1, 18 mm output
about 14 rpm
Nominal speeds; under load the motor slows slightly.
Maximum output torque is listed as 302 Nm. Lower ratios give more speed but less torque than that figure; check with us if your load is close to it.
Supply and speed control
Needs 415 V three phase, or a single-to-three phase VFD on a 240 V site. The VFD also gives you variable output speed.
The hollow output
The output is a 35 mm hollow bore. Your driven shaft slides straight through and is driven by a key, so no coupling is needed.
Motor and gearbox data

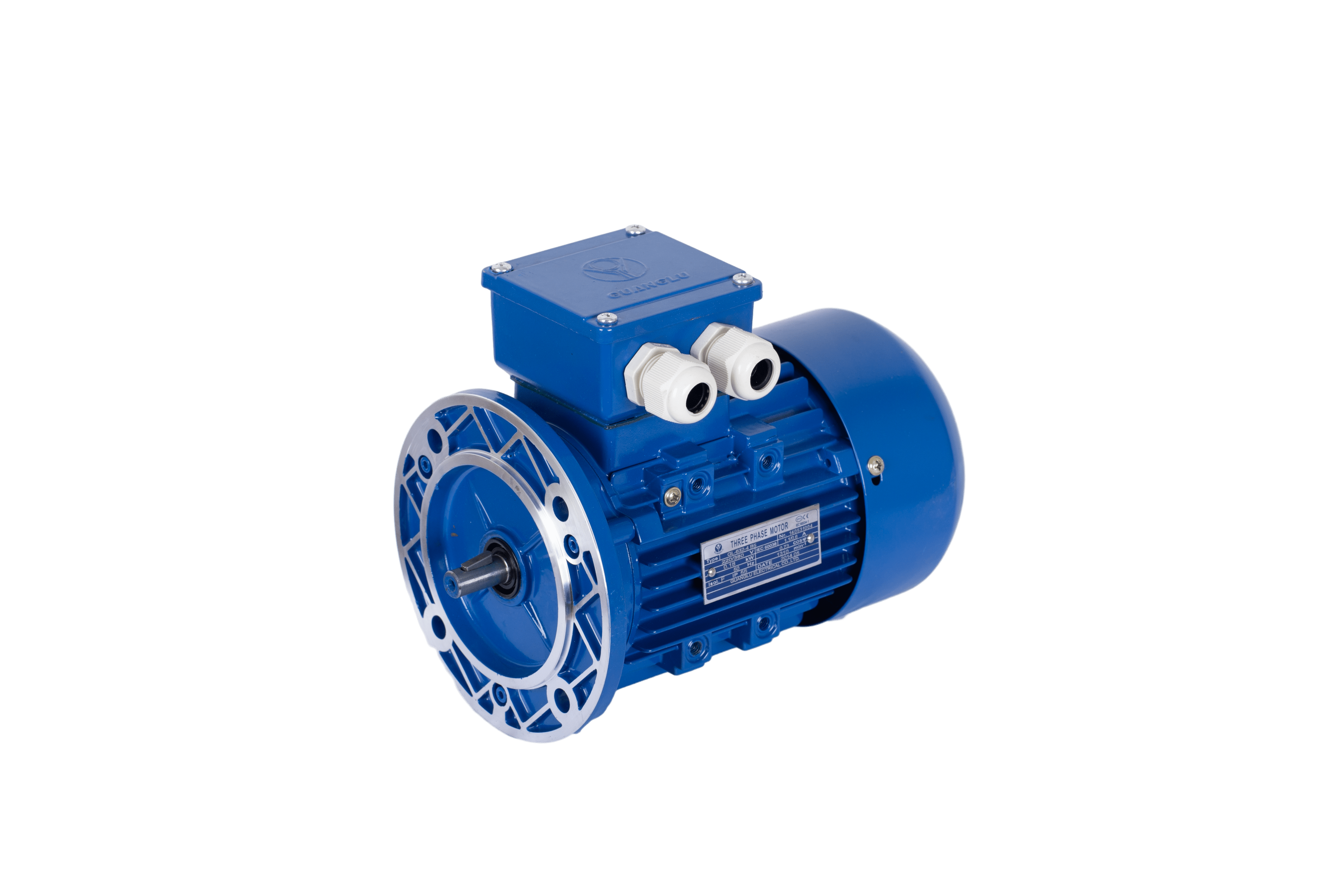

Motor power
0.75 kW / 1 HP
Input speed
1400 rpm
Reducer
Worm, size 090
Hollow output
35 mm hollow shaft
Output torque, max.
302 Nm
Duty rating
S1 (continuous)
Power supply
415 V three phase, 50 Hz
Good to know
- Do not rely on the worm to hold a suspended load; fit a brake.
- Guard the output shaft and anything connected to it.
- Wiring is a job for a licensed electrician.
Postage, returns and warranty
Ships Australia-wide from Glen Waverley, VIC; postage is calculated at checkout. Warranty and returns: see our Returns, Refunds & Warranty Policy.
Not sure which ratio? Tell us the speed you need at the output: 0401 634 280 or hankemotors@gmail.com.
