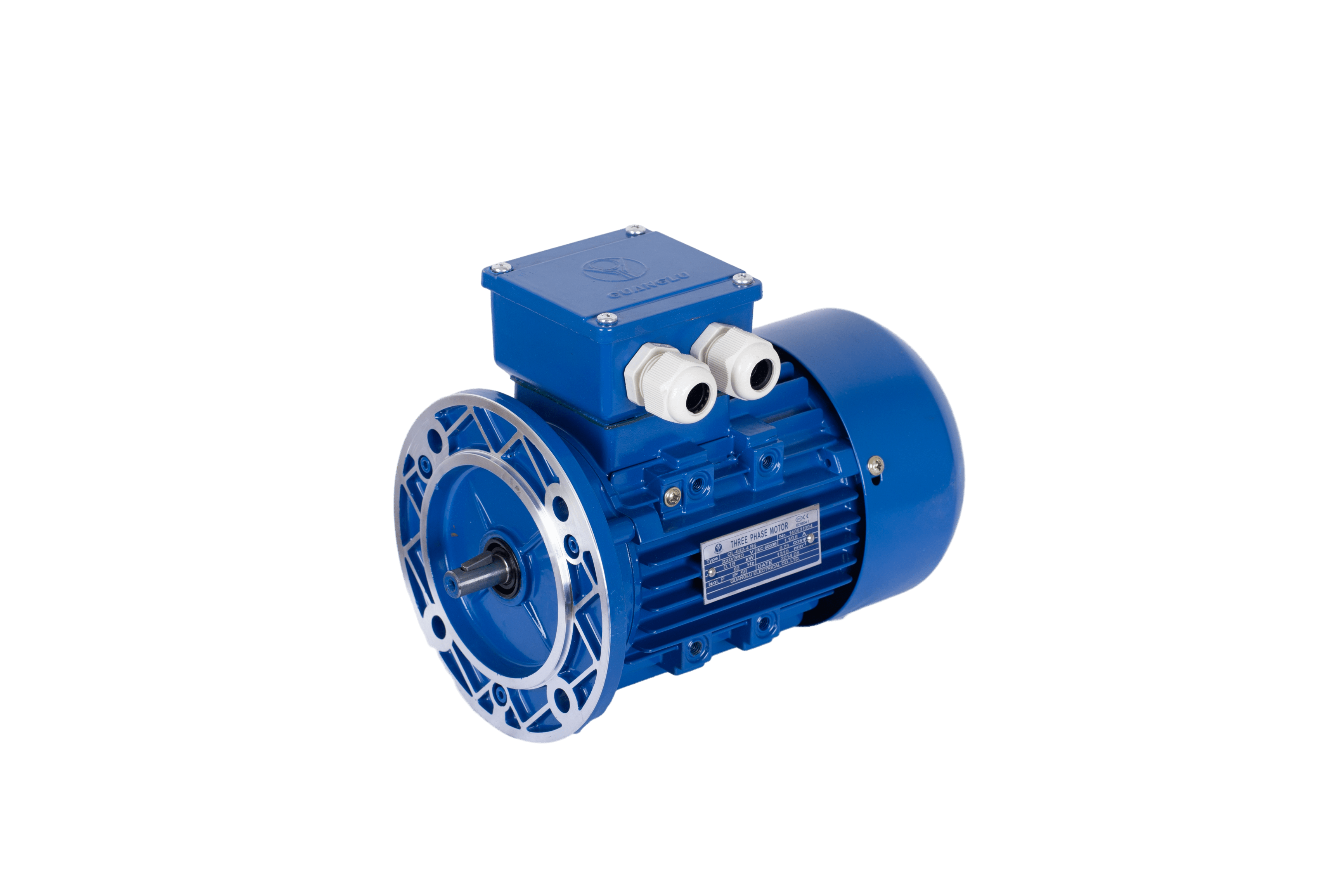

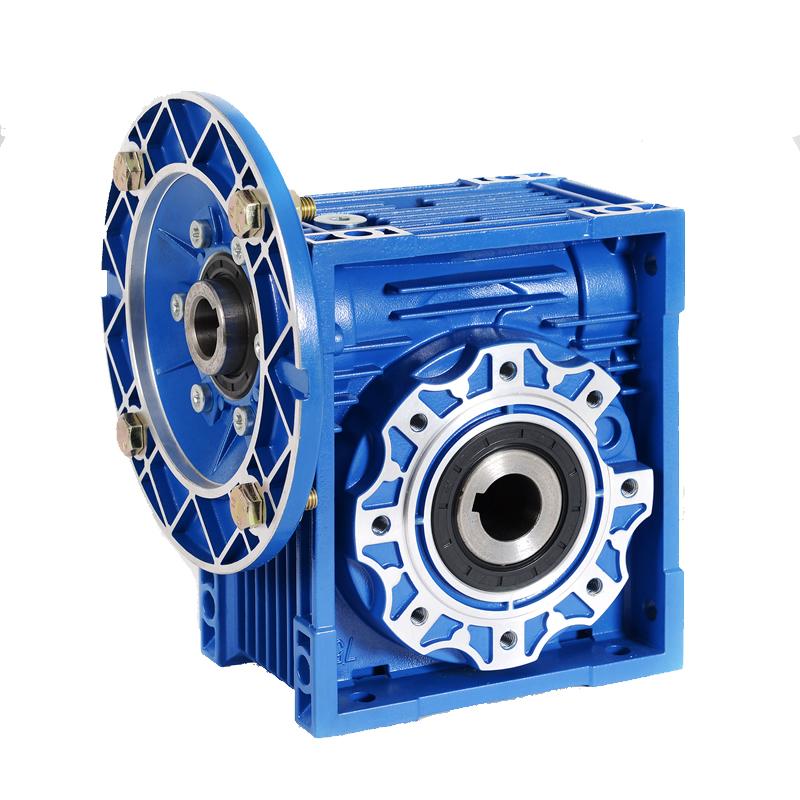

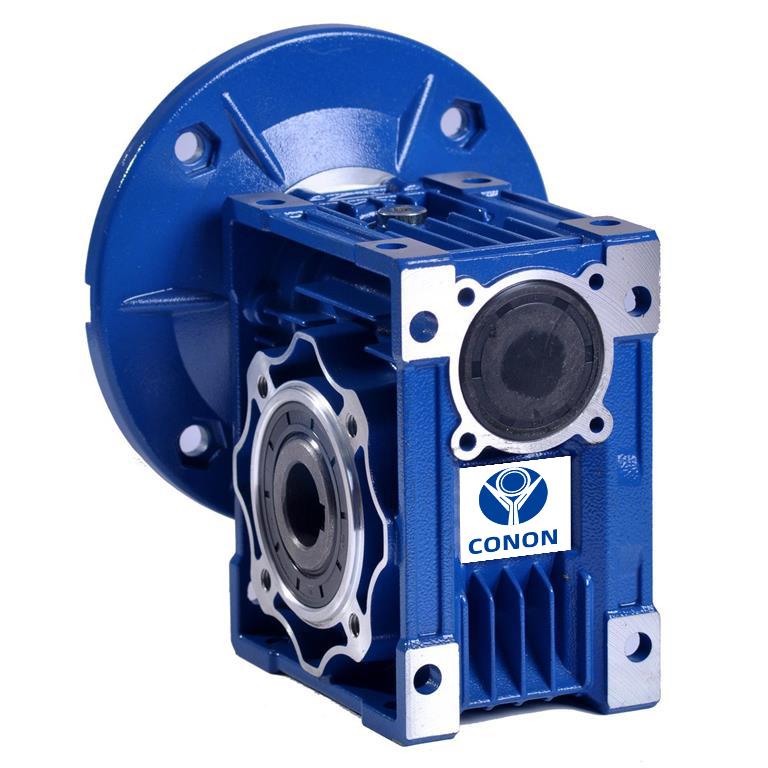

Size 040 worm gearbox with a 0.37 kW 415 V three phase motor and 18 mm hollow output, supplied assembled. Choose one of 6 ratios below. Ships from Glen Waverley.

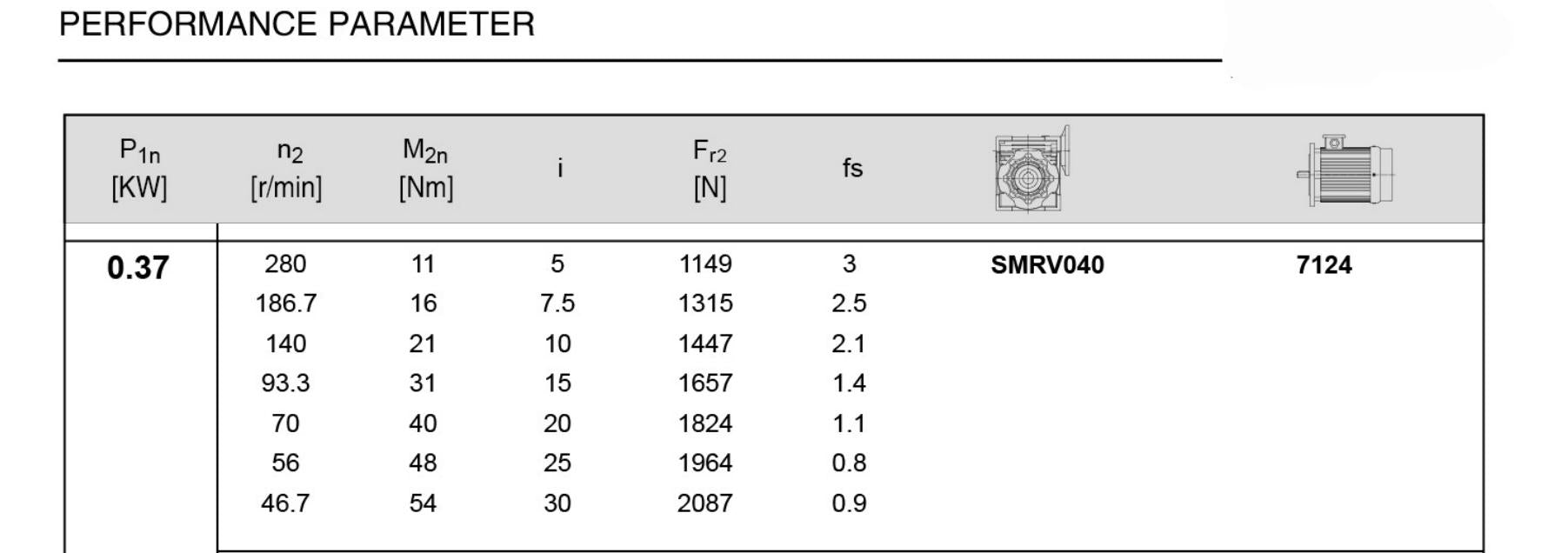

Output speed for each ratio
Speeds below assume the motor's 1400 rpm:
7.5:1, 18 mm output
about 187 rpm
10:1, 18 mm output
about 140 rpm
15:1, 18 mm output
about 93 rpm
20:1, 18 mm output
about 70 rpm
25:1, 18 mm output
about 56 rpm
30:1, 18 mm output
about 47 rpm
Speeds are approximate and assume no slip.
Maximum output torque is listed as 55 Nm. Lower ratios give more speed but less torque than that figure; check with us if your load is close to it.
Supply and speed control
Three phase 415 V. Pair it with a VFD for speed control or to run it from a 240 V single phase supply.
Already have a motor?

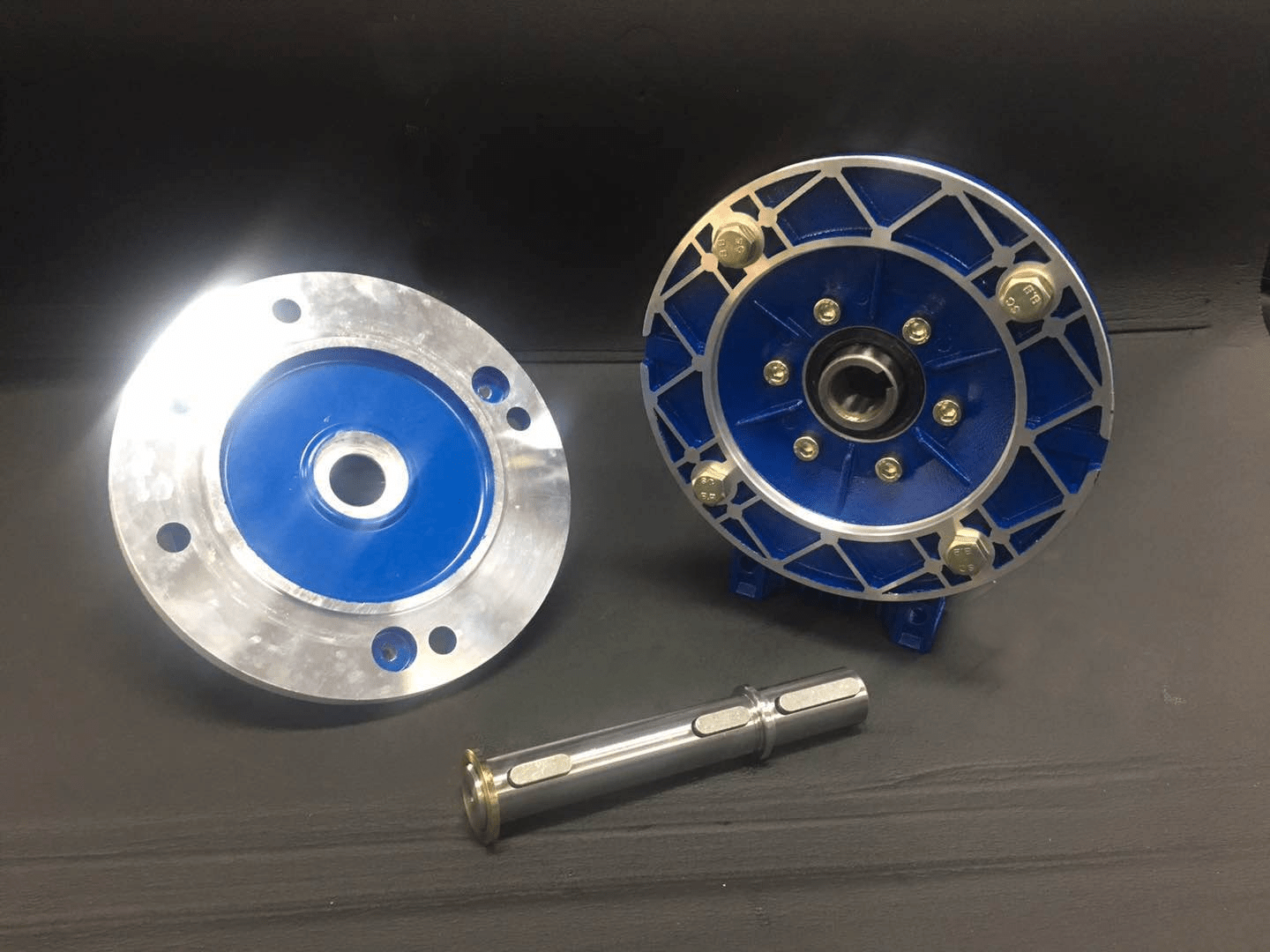

This set includes the motor. To reuse a motor you already have, pick a size 040 gearbox on its own with the matching B5 input.
Details
Rated power
0.37 kW / 0.5 HP
Supply
415 V three phase, 50 Hz
Duty class
S1 (continuous)
Output torque, max.
55 Nm
Output shaft
18 mm hollow shaft
Reducer
Worm, size 040
Motor rpm
1400 rpm
Before you install
- A worm gearbox is not a brake. Anything that lifts or holds a load needs a separate brake.
- Bolt the gearbox down firmly so the housing cannot rotate.
- Electrical connection must be done by a licensed electrician.
Postage, returns and warranty
We post from Glen Waverley to all states, priced at checkout by postcode. Warranty claims are handled by us directly (Returns, Refunds & Warranty Policy).
Send us the job details and we will suggest a ratio: hankemotors@gmail.com, 0401 634 280.
