0.25 kW (0.34 HP) geared motor, 415 V three phase, worm gearbox size 040. Ratios from 7.5:1 (about 187 rpm) to 40:1 (about 35 rpm). Ships from Glen Waverley.

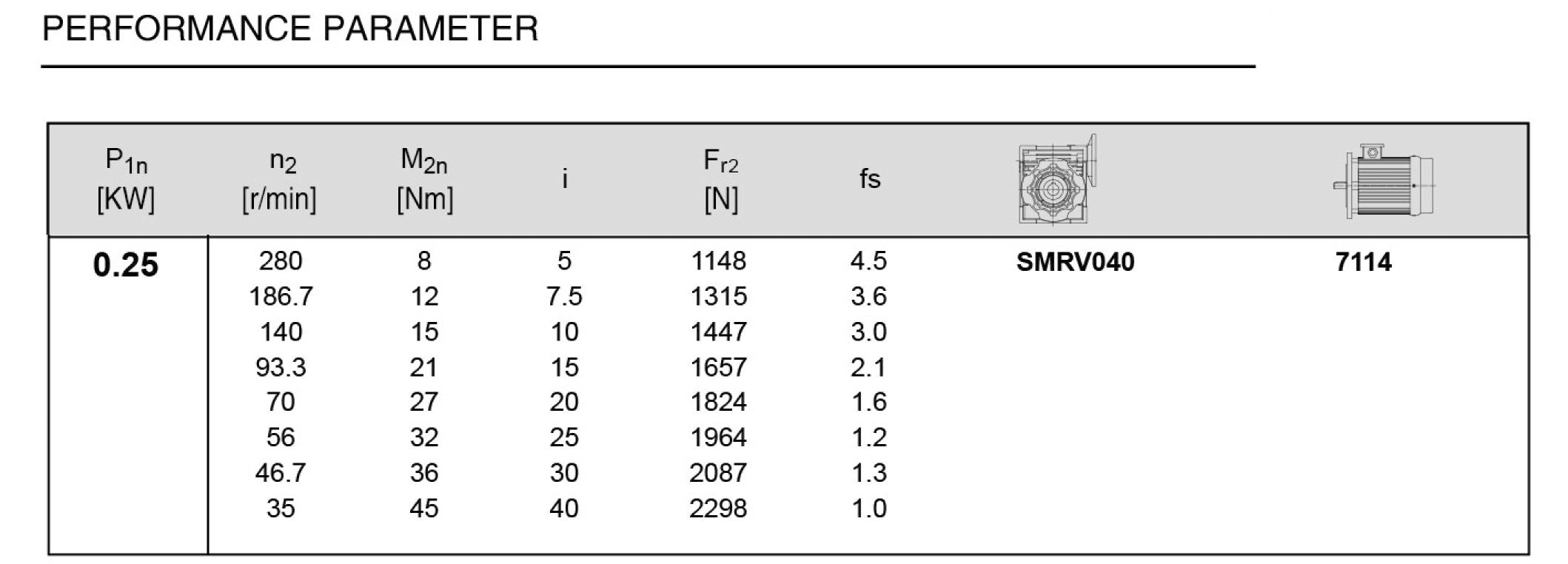

Output speed for each ratio
Each option in the menu gives a different output speed from the 1400 rpm motor:
7.5:1, 18 mm output
about 187 rpm
10:1, 18 mm output
about 140 rpm
15:1, 18 mm output
about 93 rpm
20:1, 18 mm output
about 70 rpm
25:1, 18 mm output
about 56 rpm
30:1, 18 mm output
about 47 rpm
40:1, 18 mm output
about 35 rpm
Figures are motor speed ÷ ratio, rounded.
Torque: up to 45 Nm according to the listing, at the high-ratio end. Faster ratios produce less.
Single or three phase?
The motor is 415 V three phase. If you only have 240 V, it can be run from a single phase to three phase VFD, which also lets you adjust the output speed.
Picking the ratio
If you are between two ratios, choose the slower one when the load is heavy to start, and the faster one when cycle time matters more than torque.
Motor and gearbox data
Power
0.25 kW / 0.34 HP
Voltage
415 V three phase, 50 Hz
Input speed
1400 rpm
Gearbox
Worm, size 040
Hollow output
18 mm hollow shaft
Output torque, max.
45 Nm
Duty class
S1 (continuous)
Good to know
- For hoisting or holding, add a brake; the worm alone is not enough.
- Guard the output shaft and anything connected to it.
- Have a licensed electrician wire the motor.
Shipping and warranty
Australia-wide delivery from our Glen Waverley store; postage appears at checkout. Our Returns, Refunds & Warranty Policy explains warranty and returns.
Questions about torque or speed? 0401 634 280 or hankemotors@gmail.com.
