Hankemotor

3kW 4HP Single Phase 240V Geared Motor – NMRV110 10:1–50:1

$1,232.00 In Stock Sold out
Reduce Ratio
Add to wishlist Added to wishlist
Categories: Geared Motors

1-7 DAYS DELIVERY

100% ORIGINAL AND QUALITY

12 MONTHS GUARANTEE

  • Description

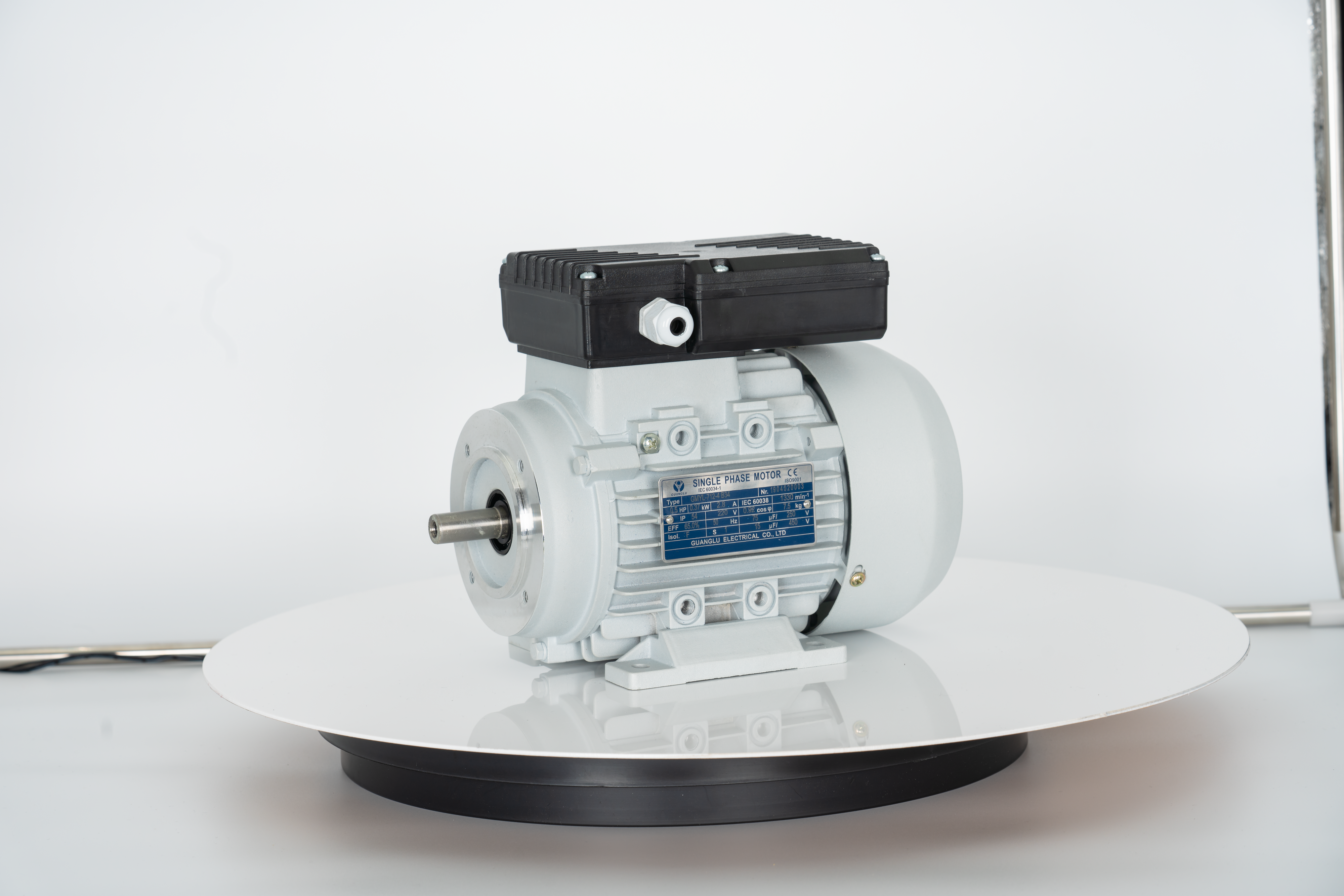

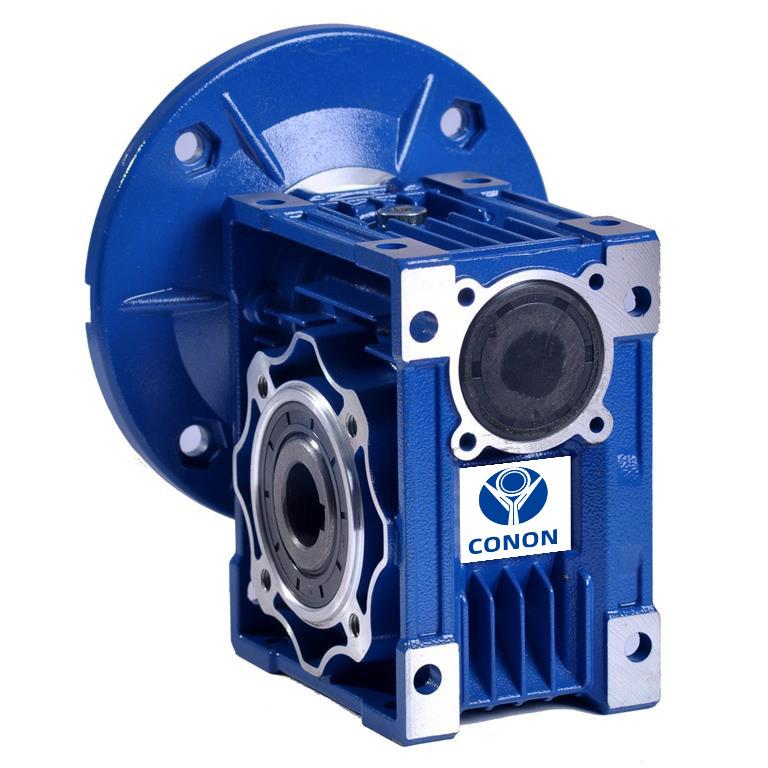

3 kW (4 HP) 240 V single phase motor fitted to a size 110 worm gearbox. Choose the ratio from the menu: 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1. Output speeds run from about 140 rpm down to about 28 rpm. Ships from Glen Waverley.

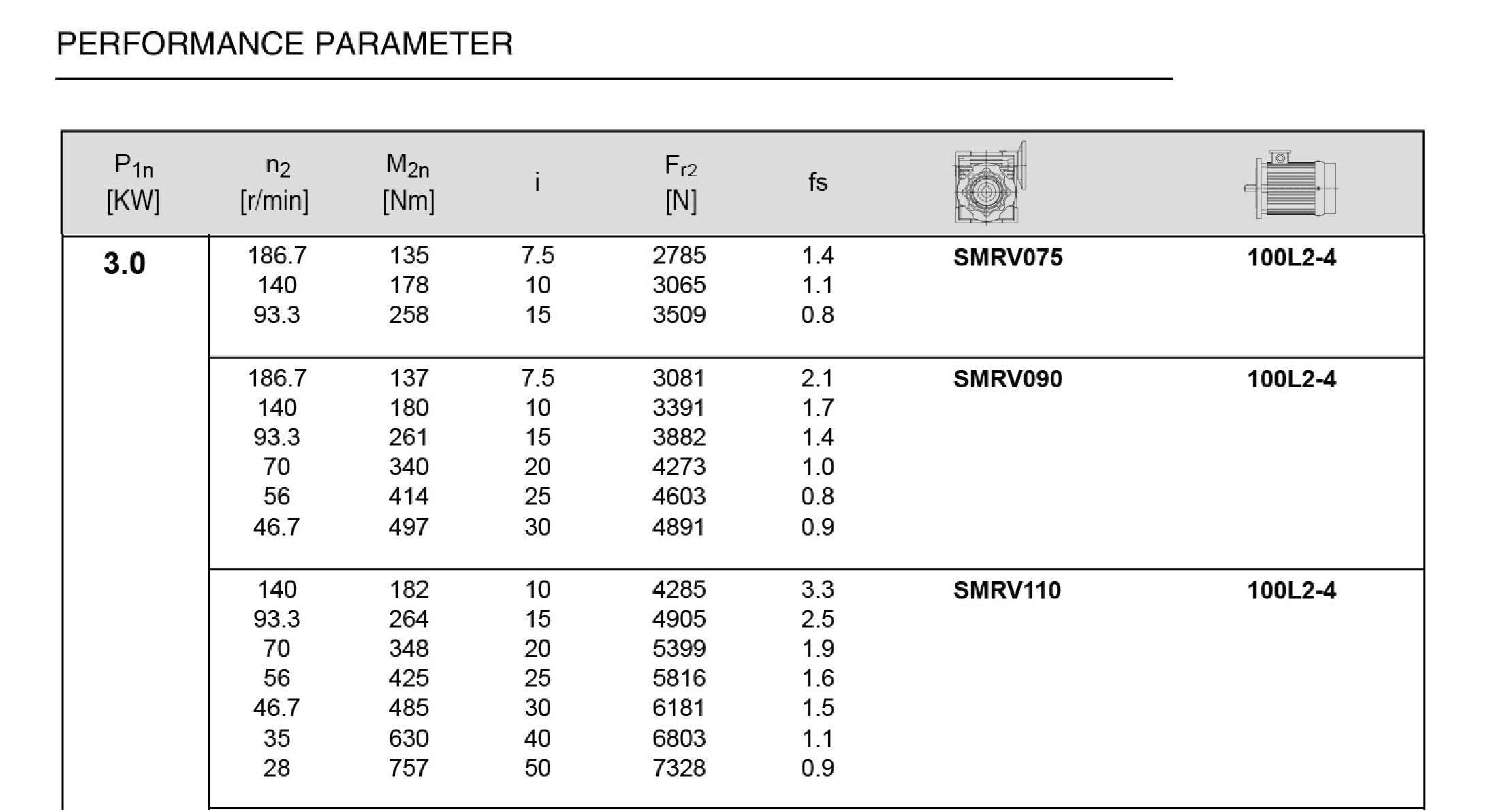

Speed options

Speeds below assume the motor's 1400 rpm:

10:1, 42 mm output about 140 rpm 15:1, 42 mm output about 93 rpm 20:1, 42 mm output about 70 rpm 25:1, 42 mm output about 56 rpm 30:1, 42 mm output about 47 rpm 40:1, 42 mm output about 35 rpm 50:1, 42 mm output about 28 rpm

Nominal speeds; under load the motor slows slightly.

Listed peak output torque is 757 Nm. If your job needs close to that at a low ratio, ask us to check the sizing.

Power supply

The motor runs on standard 240 V single phase power, so it suits sites without three phase. Speed is fixed by the ratio you choose.

The hollow output

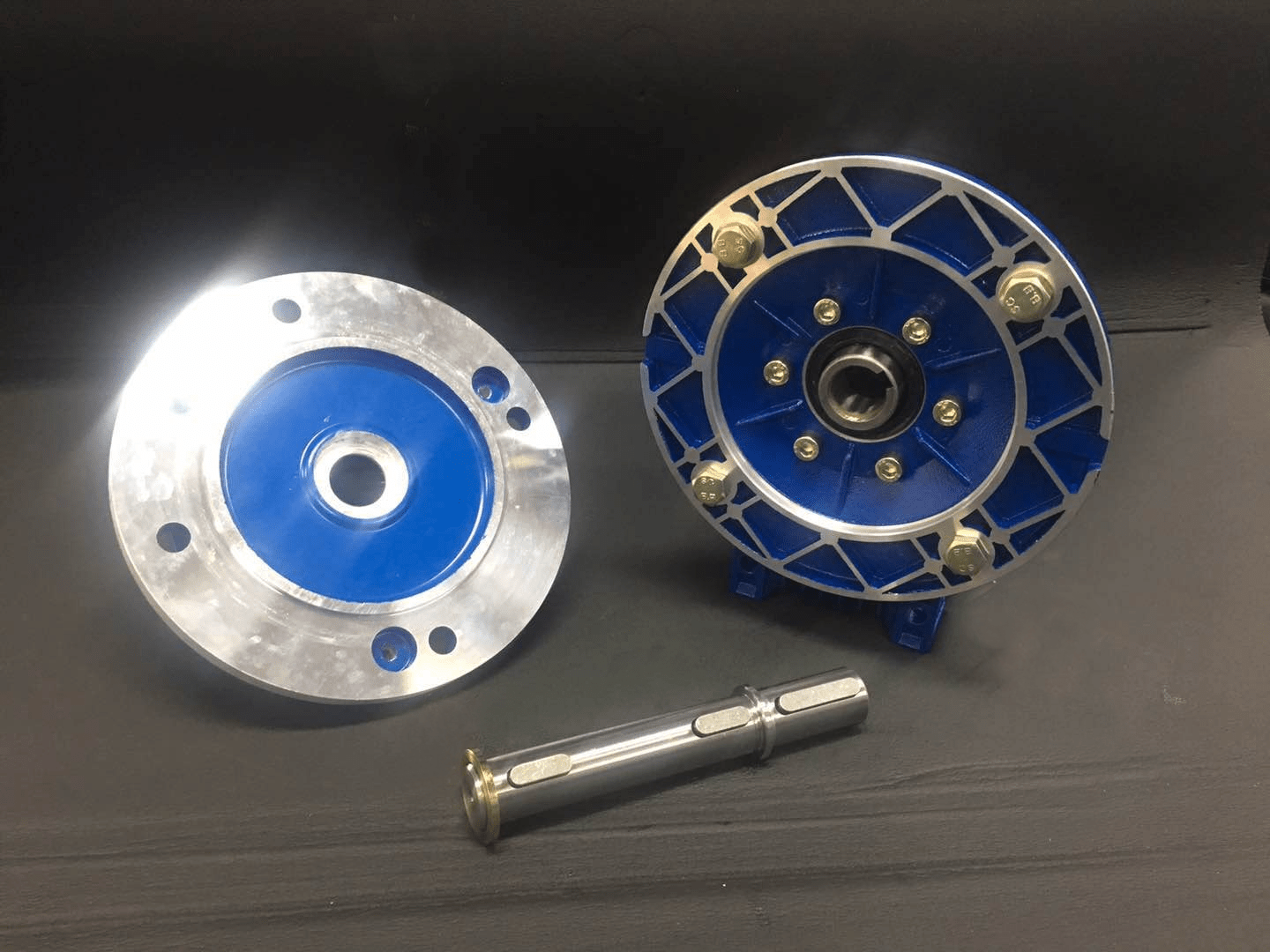

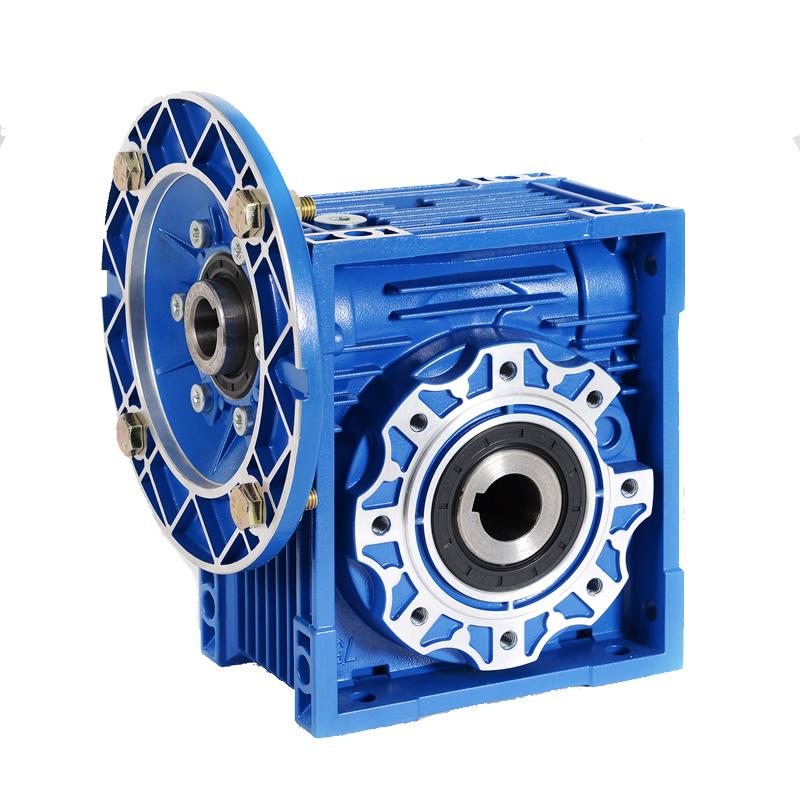

The output is a 35 mm hollow bore. Your driven shaft slides straight through and is driven by a key, so no coupling is needed.

Details

Power 3 kW / 4 HP Power supply 240 V single phase, 50 Hz Duty S1 (continuous) Max. output torque 757 Nm Output 35 mm hollow shaft Reducer Worm, size 110 Motor speed 1400 rpm Good to know
  • Worm gears can creep back under load or vibration, so lifting jobs need a brake.
  • Guard the output shaft and anything connected to it.
  • Have a licensed electrician wire the motor.

Postage, returns and warranty

Freight is worked out at checkout and the geared motor leaves from Glen Waverley, VIC. See the Returns, Refunds & Warranty Policy for warranty.

Not sure which ratio? Tell us the speed you need at the output: 0401 634 280 or hankemotors@gmail.com.
