Motor and gearbox set: 3 kW, 240 V single phase, NMRV090. Output from about 187 rpm (7.5:1) to 47 rpm (30:1). In stock at Glen Waverley, VIC.

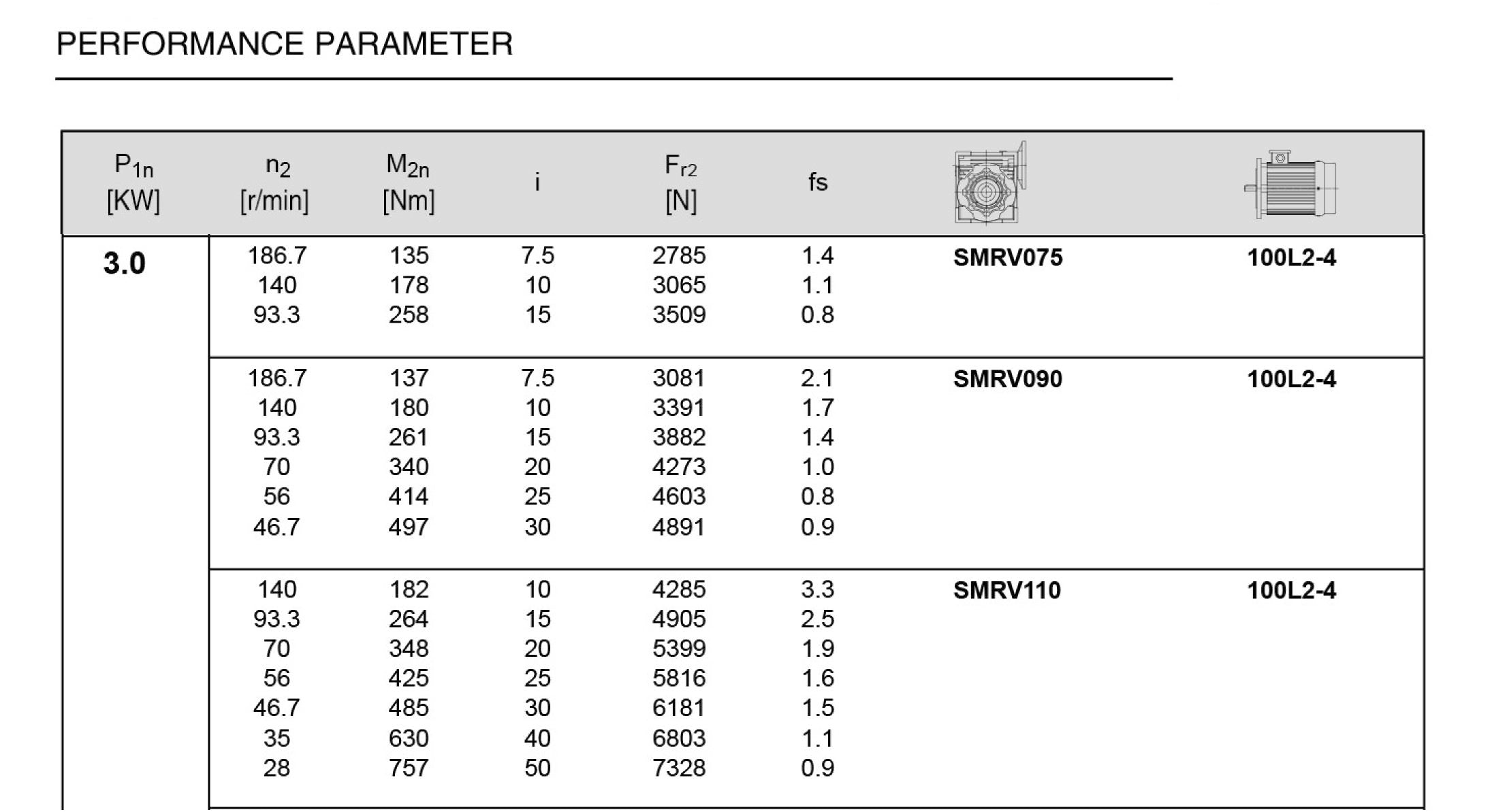

Output speed for each ratio
The motor runs at 1400 rpm. Divide by the ratio to get the output speed:
7.5:1, 35 mm output
about 187 rpm
10:1, 35 mm output
about 140 rpm
15:1, 35 mm output
about 93 rpm
20:1, 35 mm output
about 70 rpm
25:1, 35 mm output
about 56 rpm
30:1, 35 mm output
about 47 rpm
Rounded figures; real speed drops a few percent at full load.
The listing gives a maximum output torque of 497 Nm. Output torque goes up as the ratio goes up and the speed comes down, so the low ratios deliver less than this figure.
Power supply
The motor runs on standard 240 V single phase power, so it suits sites without three phase. Speed is fixed by the ratio you choose.
Where it is used
A 3 kW worm gear motor like this suits conveyors, screw feeders, mixers, rotating tables and gate drives, wherever you need slow, steady turning force.
Motor and gearbox data
Motor power
3 kW / 4 HP
Motor rpm
1400 rpm
Gearbox
Worm, size 090
Output
35 mm hollow shaft
Max. output torque
497 Nm
Duty rating
S1 (continuous)
Supply
240 V single phase, 50 Hz
Good to know
- Worm gears can creep back under load or vibration, so lifting jobs need a brake.
- Guard the output shaft and anything connected to it.
- The motor must be connected by a licensed electrician.
Postage, returns and warranty
Australia-wide delivery from our Glen Waverley store; postage appears at checkout. Our Returns, Refunds & Warranty Policy explains warranty and returns.
Send us the job details and we will suggest a ratio: hankemotors@gmail.com, 0401 634 280.
