1.5 kW (2 HP) 240 V single phase motor fitted to a size 110 worm gearbox. Choose the ratio from the menu: 25:1, 30:1, 40:1, 50:1, 60:1, 80:1, 100:1. Output speeds run from about 56 rpm down to about 14 rpm. Ships from Glen Waverley.
Ratio menu explained
Each option in the menu gives a different output speed from the 1400 rpm motor:
25:1, 42 mm output
about 56 rpm
30:1, 42 mm output
about 47 rpm
40:1, 42 mm output
about 35 rpm
50:1, 42 mm output
about 28 rpm
60:1, 42 mm output
about 23 rpm
80:1, 42 mm output
about 17.5 rpm
100:1, 42 mm output
about 14 rpm
Nominal speeds; under load the motor slows slightly.

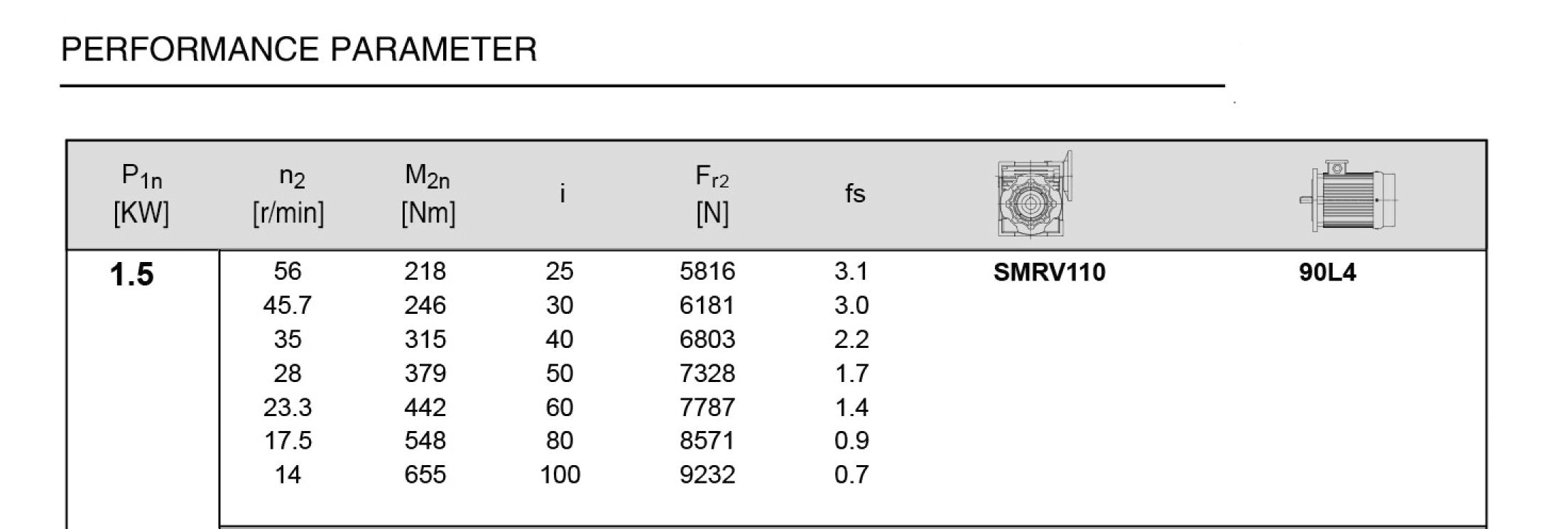

The listing gives a maximum output torque of 655 Nm. Output torque goes up as the ratio goes up and the speed comes down, so the low ratios deliver less than this figure.
Power supply
Runs from 240 V single phase. Output speed is set by the ratio, so choose it to suit the job.
Separate gearbox options
Have a motor already? Browse the gearbox-only range and match the IEC frame and shaft of your motor.
Specifications
Power
1.5 kW / 2 HP
Input speed
1400 rpm
Reducer
Worm, size 110
Output
35 mm hollow shaft
Output torque, max.
655 Nm
Duty class
S1 (continuous)
Voltage
240 V single phase, 50 Hz
Good to know
- A worm gearbox is not a brake. Anything that lifts or holds a load needs a separate brake.
- Guard the output shaft and anything connected to it.
- Have a licensed electrician wire the motor.
Shipping
Dispatched from Glen Waverley, VIC. Enter your address at checkout for postage. Returns and warranty follow our Returns, Refunds & Warranty Policy.
Send us the job details and we will suggest a ratio: hankemotors@gmail.com, 0401 634 280.
