Size 090 worm gearbox with a 1.5 kW 240 V single phase motor and 35 mm hollow output, supplied assembled. Choose one of 7 ratios below. Ships from Glen Waverley.

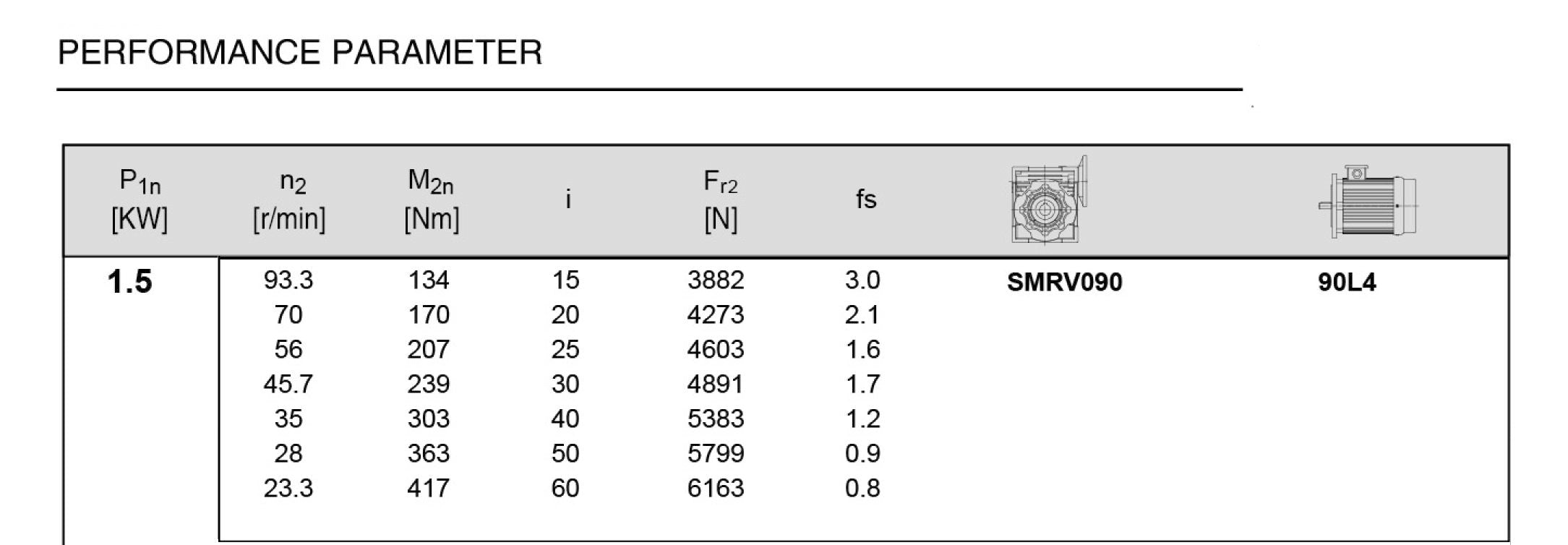

Output speed for each ratio
Speeds below assume the motor's 1400 rpm:
15:1, 35 mm output
about 93 rpm
20:1, 35 mm output
about 70 rpm
25:1, 35 mm output
about 56 rpm
30:1, 35 mm output
about 47 rpm
40:1, 35 mm output
about 35 rpm
50:1, 35 mm output
about 28 rpm
60:1, 35 mm output
about 23 rpm
Figures are motor speed ÷ ratio, rounded.
The listing gives a maximum output torque of 417 Nm. Output torque goes up as the ratio goes up and the speed comes down, so the low ratios deliver less than this figure.
Supply and speed control
Runs from 240 V single phase. Output speed is set by the ratio, so choose it to suit the job.
Already have a motor?
If you already own a suitable B5 flange motor, the gearbox is also sold on its own; see our NMRV worm gearboxes.
Motor and gearbox data
Rated power
1.5 kW / 2 HP
Power supply
240 V single phase, 50 Hz
Duty rating
S1 (continuous)
Output torque, max.
417 Nm
Hollow output
35 mm hollow shaft
Gearbox
Worm, size 090
Motor speed
1400 rpm
Safety and fitting
- For hoisting or holding, add a brake; the worm alone is not enough.
- Guard the output shaft and anything connected to it.
- Get a licensed electrician to connect the supply.
Postage, returns and warranty
We post from Glen Waverley to all states, priced at checkout by postcode. Warranty claims are handled by us directly (Returns, Refunds & Warranty Policy).
Questions about torque or speed? 0401 634 280 or hankemotors@gmail.com.
