1.5 kW (2 HP) geared motor, 240 V single phase, worm gearbox size 075. Ratios from 7.5:1 (about 187 rpm) to 40:1 (about 35 rpm). In stock at Glen Waverley, VIC.

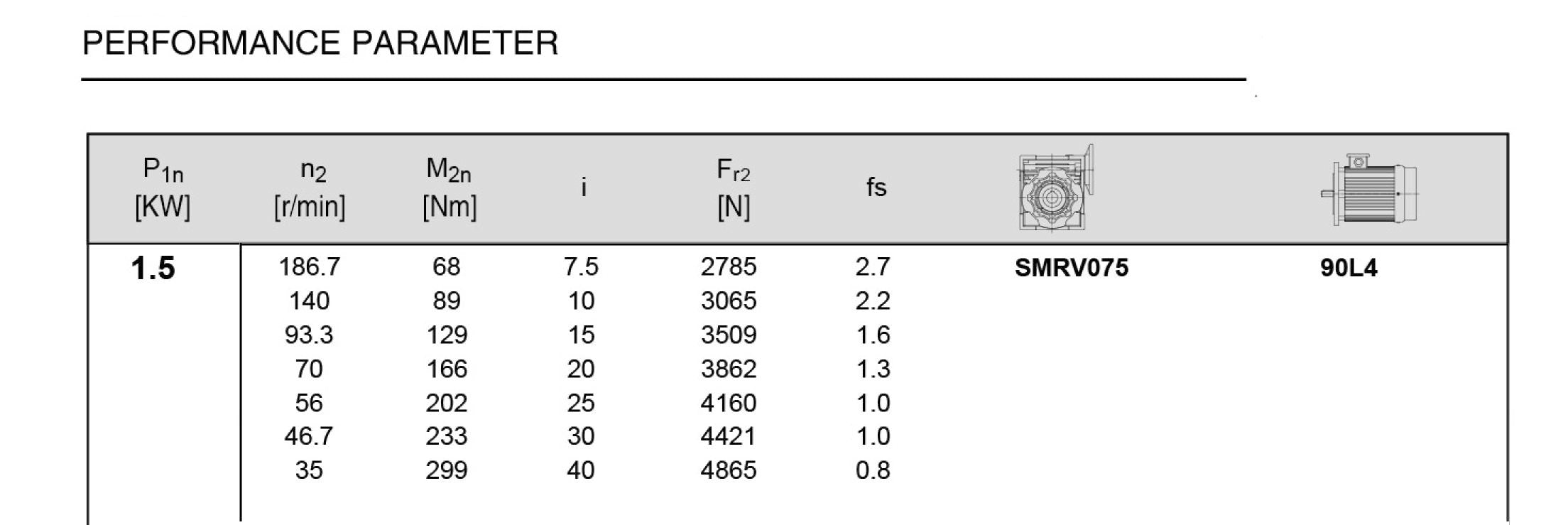

Pick your ratio
Speeds below assume the motor's 1400 rpm:
7.5:1, 28 mm output
about 187 rpm
10:1, 28 mm output
about 140 rpm
15:1, 28 mm output
about 93 rpm
20:1, 28 mm output
about 70 rpm
25:1, 28 mm output
about 56 rpm
30:1, 25 mm output
about 47 rpm
40:1, 28 mm output
about 35 rpm
Rounded figures; real speed drops a few percent at full load.
The listing gives a maximum output torque of 299 Nm. Output torque goes up as the ratio goes up and the speed comes down, so the low ratios deliver less than this figure.
Running it
Single phase 240 V means it can run where only a normal supply is available. For adjustable speed, choose the three phase version with a 240 V input VFD.
Separate gearbox options
This set includes the motor. To reuse a motor you already have, pick a size 075 gearbox on its own with the matching B5 input.
Technical data
Rated power
1.5 kW / 2 HP
Input speed
1400 rpm
Gearbox
Worm, size 075
Hollow output
28 mm hollow shaft
Output torque, max.
299 Nm
Duty
S1 (continuous)
Voltage
240 V single phase, 50 Hz
Good to know
- A worm gearbox is not a brake. Anything that lifts or holds a load needs a separate brake.
- Guard the output shaft and anything connected to it.
- Get a licensed electrician to connect the supply.
Shipping and warranty
In stock at Glen Waverley, Victoria, and delivered nationwide. Checkout works out the postage; our Returns, Refunds & Warranty Policy covers claims.
Not sure which ratio? Tell us the speed you need at the output: 0401 634 280 or hankemotors@gmail.com.
