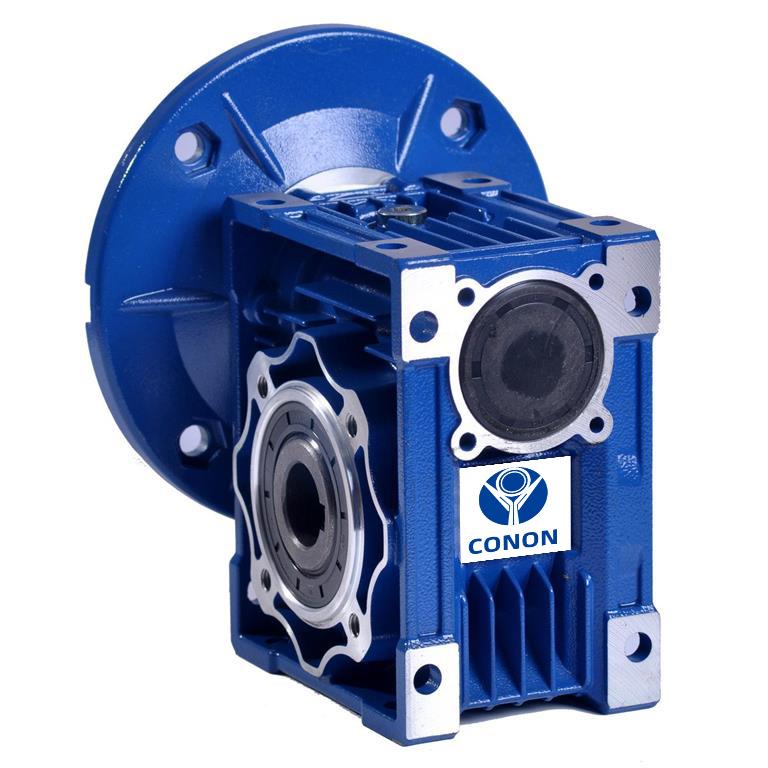

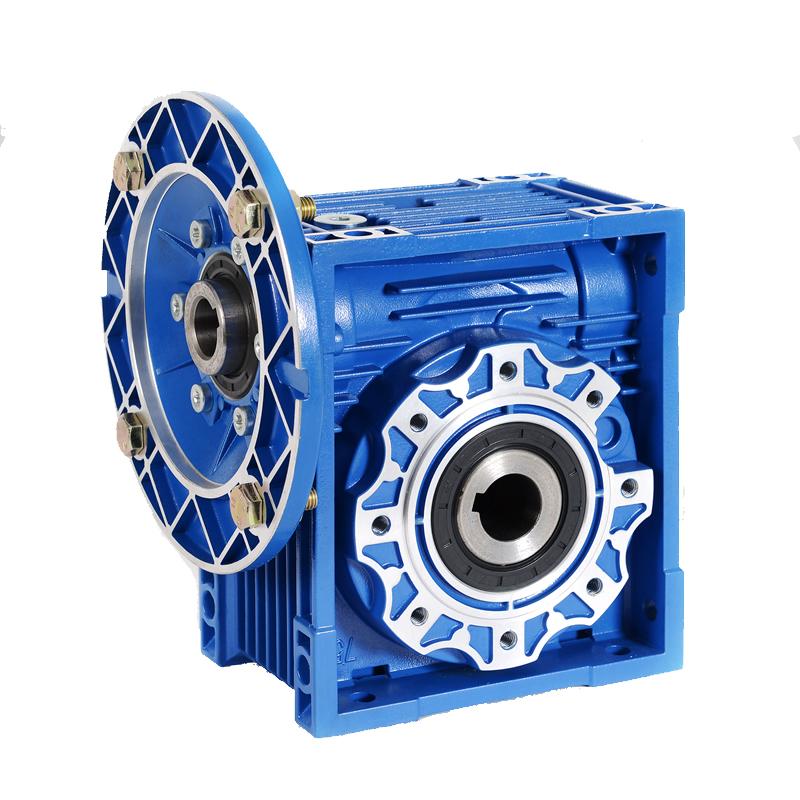

Size 110 worm gearbox with a 1.1 kW 240 V single phase motor and 35 mm hollow output, supplied assembled. Choose one of 5 ratios below. Ships from Glen Waverley.
Pick your ratio
Output speed is the motor's 1400 rpm divided by the ratio you choose:
40:1, 35 mm output
about 35 rpm
50:1, 18 mm output
about 28 rpm
60:1, 18 mm output
about 23 rpm
80:1, 18 mm output
about 17.5 rpm
100:1, 18 mm output
about 14 rpm
Figures are motor speed ÷ ratio, rounded.

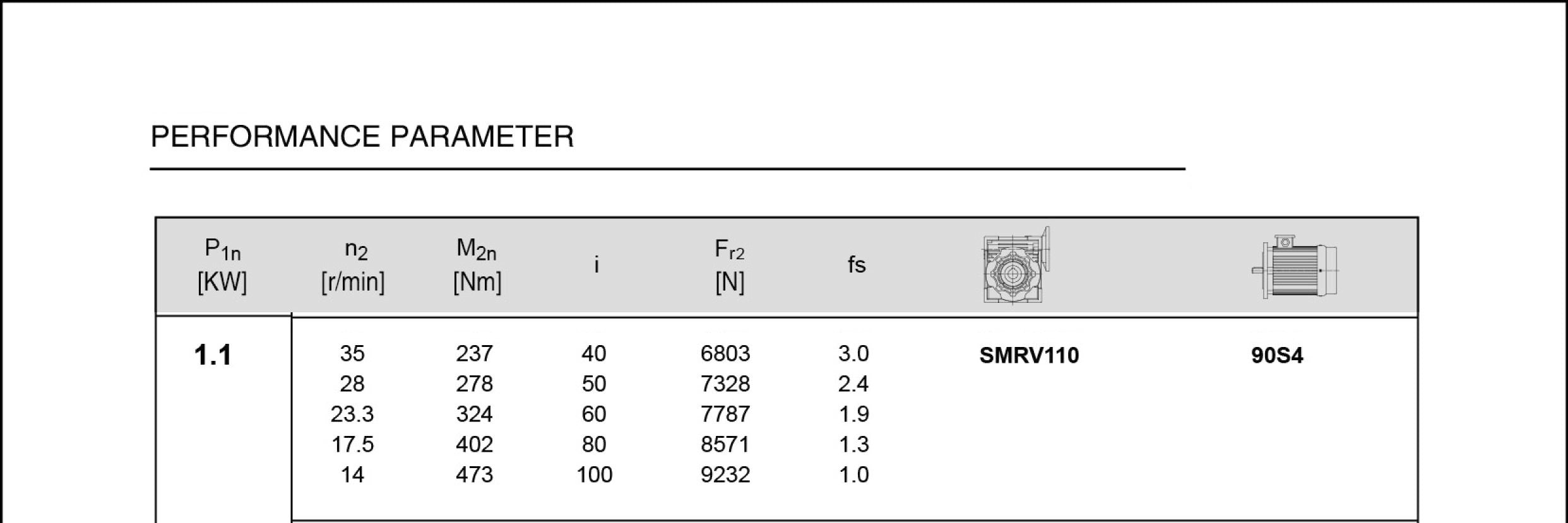

Torque: up to 473 Nm according to the listing, at the high-ratio end. Faster ratios produce less.
Supply and speed control

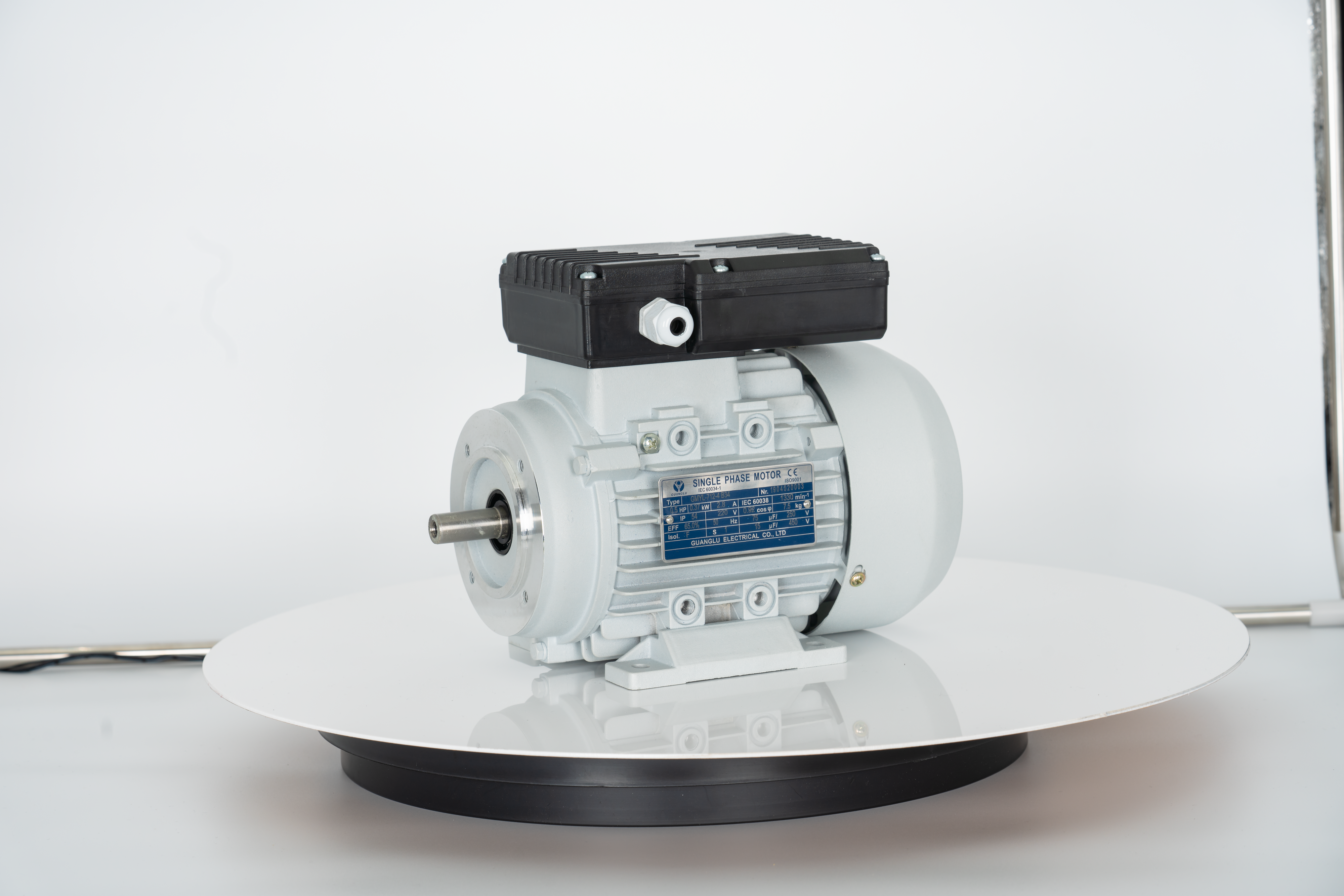

The motor runs on standard 240 V single phase power, so it suits sites without three phase. Speed is fixed by the ratio you choose.
Already have a motor?

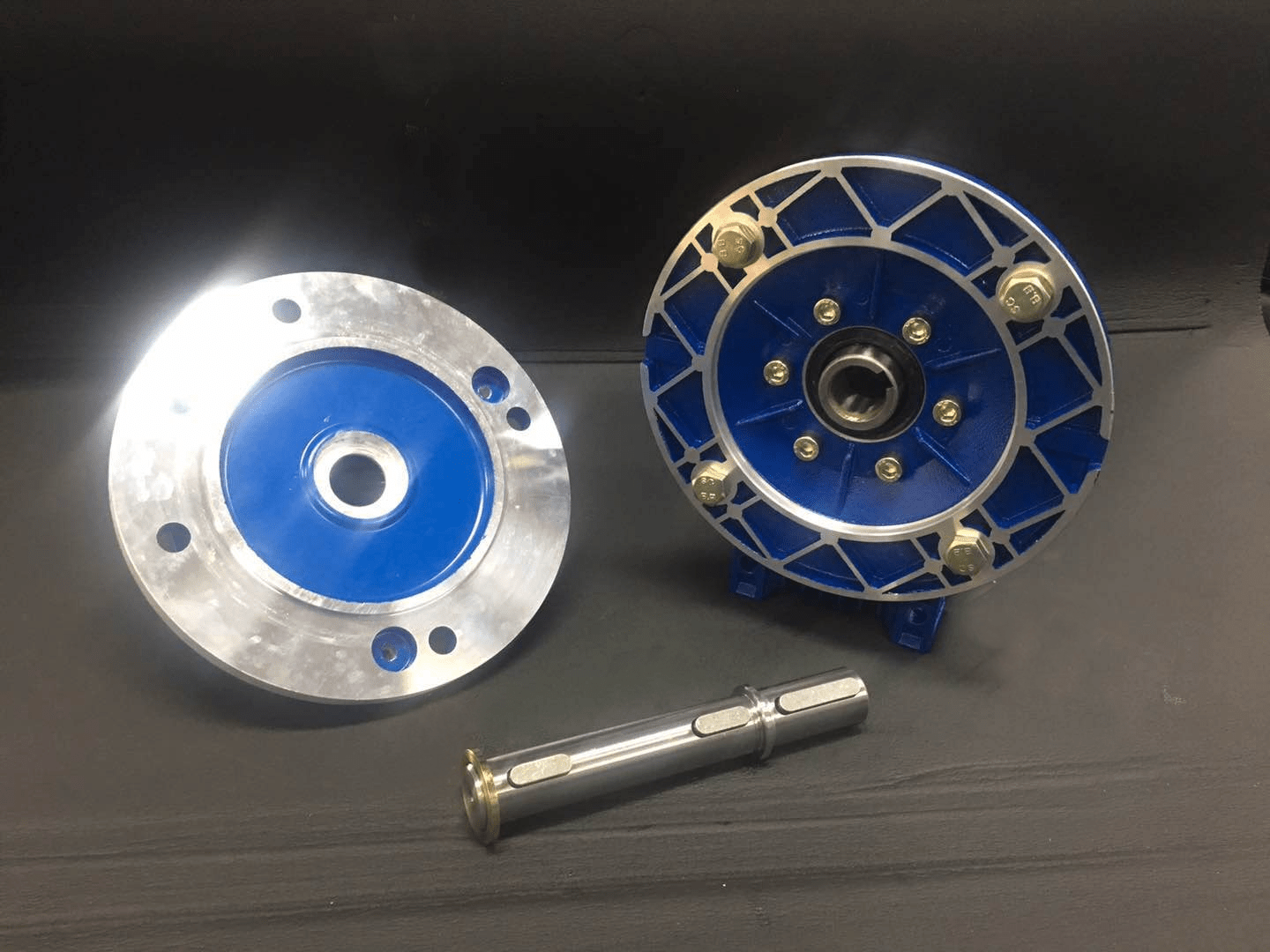

This set includes the motor. To reuse a motor you already have, pick a size 110 gearbox on its own with the matching B5 input.
Technical data
Motor power
1.1 kW / 1.5 HP
Motor rpm
1400 rpm
Gearbox
Worm, size 110
Hollow output
35 mm hollow shaft
Peak torque (listed)
473 Nm
Duty rating
S1 (continuous)
Power supply
240 V single phase, 50 Hz
Before you install
- For hoisting or holding, add a brake; the worm alone is not enough.
- Guard the output shaft and anything connected to it.
- Wiring is a job for a licensed electrician.
Delivery
Sent from our Glen Waverley warehouse to any Australian address, with postage shown at checkout. Warranty terms are in our Returns, Refunds & Warranty Policy.
Send us the job details and we will suggest a ratio: hankemotors@gmail.com, 0401 634 280.
