Hankemotor

1.1kW 1.5HP Single Phase 240V Geared Motor – NMRV090 20:1–80:1

$952.00 In Stock Sold out
Reduce Ratio
Add to wishlist Added to wishlist
Categories: Geared Motors

1-7 DAYS DELIVERY

100% ORIGINAL AND QUALITY

12 MONTHS GUARANTEE

  • Description

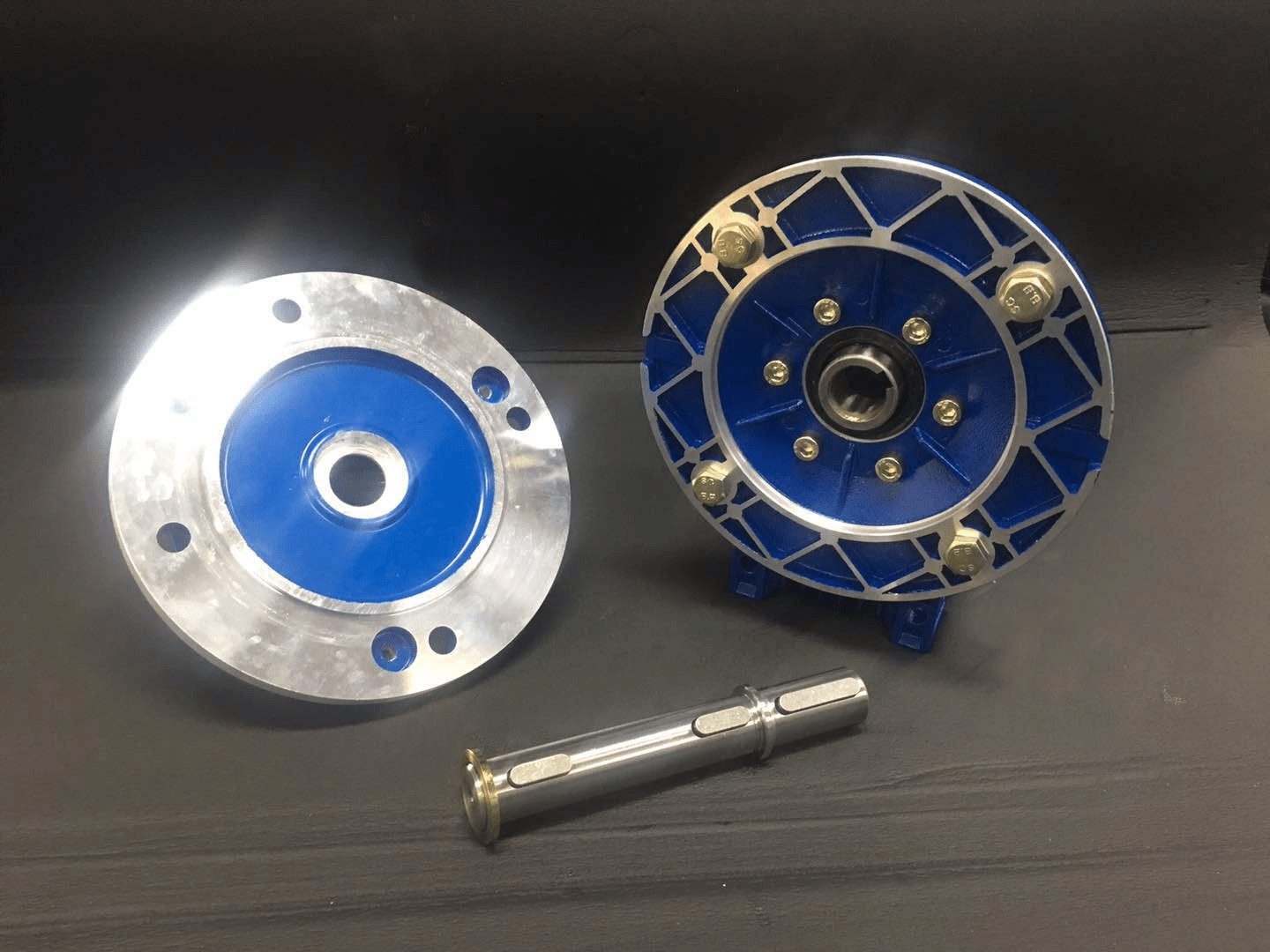

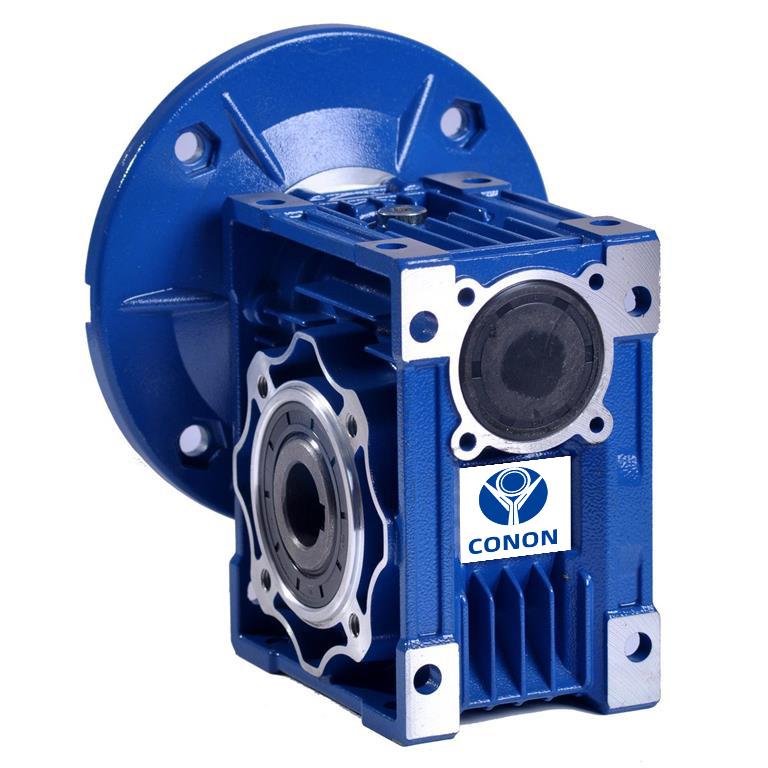

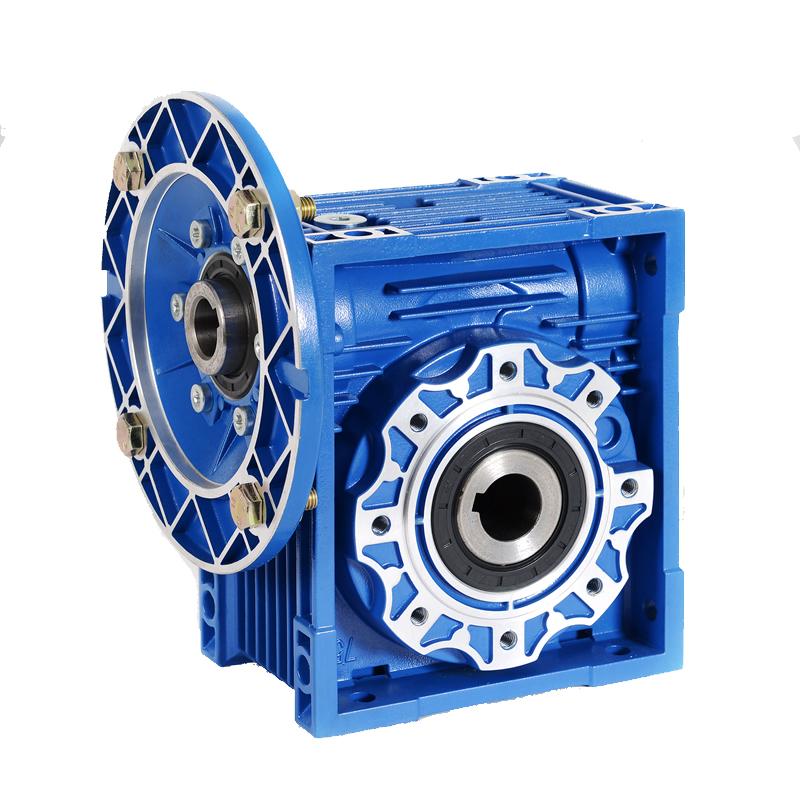

1.1 kW single phase gear motor (NMRV090): motor and worm gearbox supplied together, so the flange and shaft already match. 7 ratio options from 20:1 to 80:1. In stock at Glen Waverley, VIC.

Pick your ratio

Each option in the menu gives a different output speed from the 1400 rpm motor:

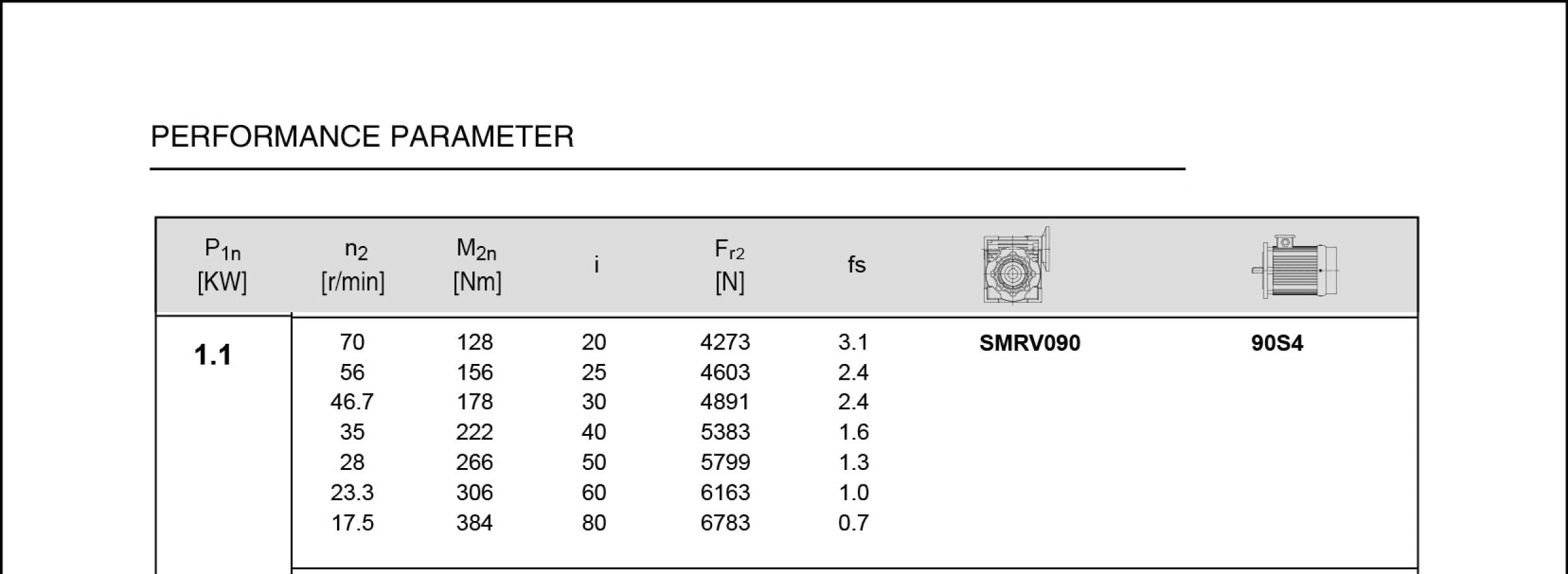

20:1, 35 mm output about 70 rpm 25:1, 35 mm output about 56 rpm 30:1, 35 mm output about 47 rpm 40:1, 35 mm output about 35 rpm 50:1, 18 mm output about 28 rpm 60:1, 18 mm output about 23 rpm 80:1, 18 mm output about 17.5 rpm

Speeds are approximate and assume no slip.

Torque: up to 384 Nm according to the listing, at the high-ratio end. Faster ratios produce less.

Single or three phase?

Single phase 240 V means it can run where only a normal supply is available. For adjustable speed, choose the three phase version with a 240 V input VFD.

Already have a motor?

Have a motor already? Browse the gearbox-only range and match the IEC frame and shaft of your motor.

Motor and gearbox data

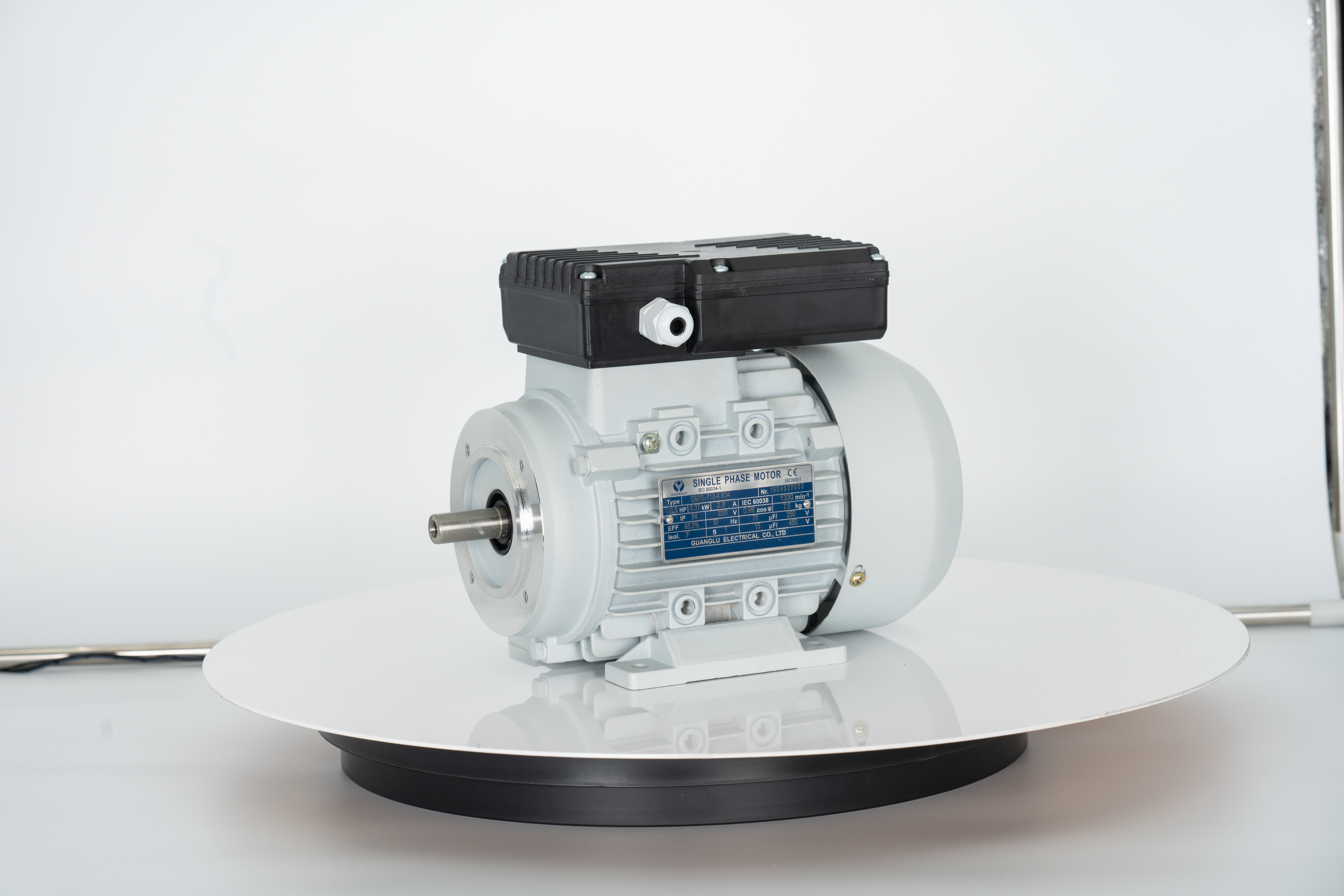

Supply 240 V single phase, 50 Hz Rated power 1.1 kW / 1.5 HP Motor rpm 1400 rpm Gear unit Worm, size 090 Output shaft 35 mm hollow shaft Peak torque (listed) 384 Nm Duty S1 (continuous) Installation notes
  • A worm gearbox is not a brake. Anything that lifts or holds a load needs a separate brake.
  • Guard the output shaft and anything connected to it.
  • The motor must be connected by a licensed electrician.

Postage, returns and warranty

Freight is worked out at checkout and the geared motor leaves from Glen Waverley, VIC. See the Returns, Refunds & Warranty Policy for warranty.

Questions about torque or speed? 0401 634 280 or hankemotors@gmail.com.
