Motor and gearbox set: 1.1 kW, 240 V single phase, NMRV075. Output from about 140 rpm (10:1) to 23 rpm (60:1). In stock at Glen Waverley, VIC.
Ratios and output speeds
Speeds below assume the motor's 1400 rpm:
10:1, 28 mm output
about 140 rpm
15:1, 28 mm output
about 93 rpm
20:1, 28 mm output
about 70 rpm
25:1, 28 mm output
about 56 rpm
30:1, 28 mm output
about 47 rpm
40:1, 28 mm output
about 35 rpm
50:1, 28 mm output
about 28 rpm
60:1, 28 mm output
about 23 rpm
Calculated from nameplate speed. Loaded speed is a little lower.

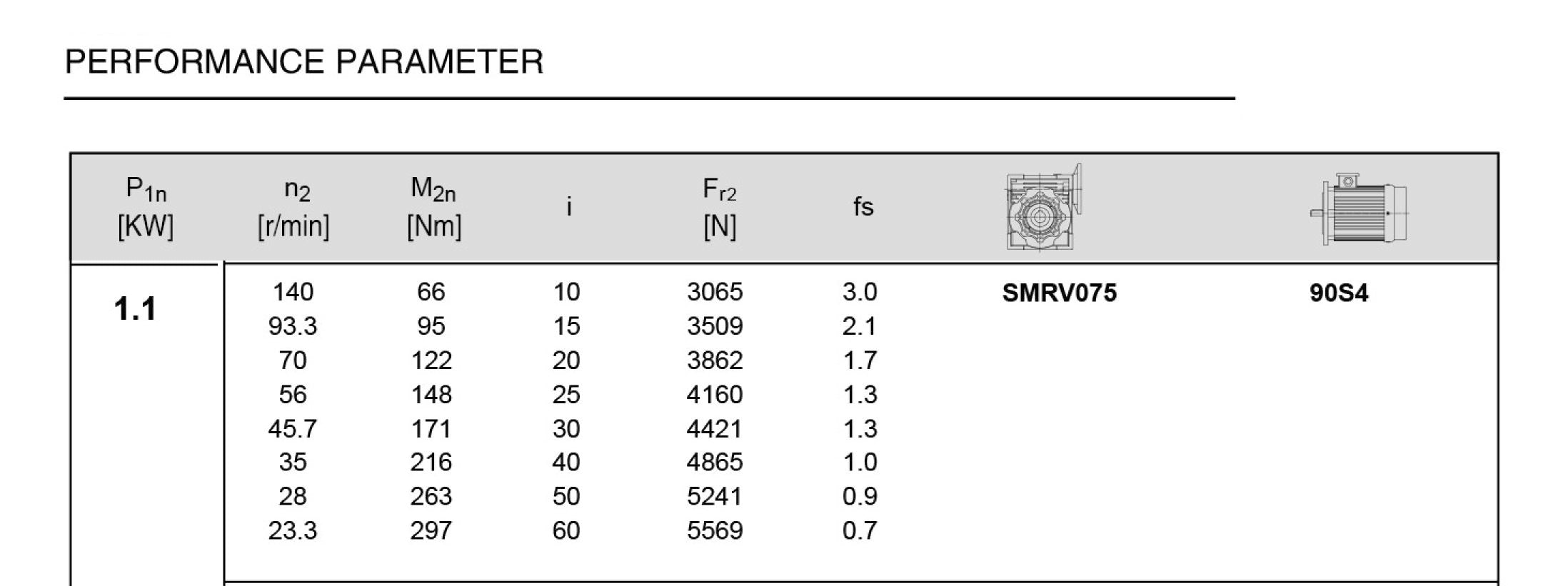

Torque: up to 297 Nm according to the listing, at the high-ratio end. Faster ratios produce less.
Running it
Runs from 240 V single phase. Output speed is set by the ratio, so choose it to suit the job.
Where it is used
Right-angle worm drives are popular where space is tight: the motor sits at 90 degrees to the driven shaft, which keeps the whole unit compact.
Motor and gearbox data
Motor power

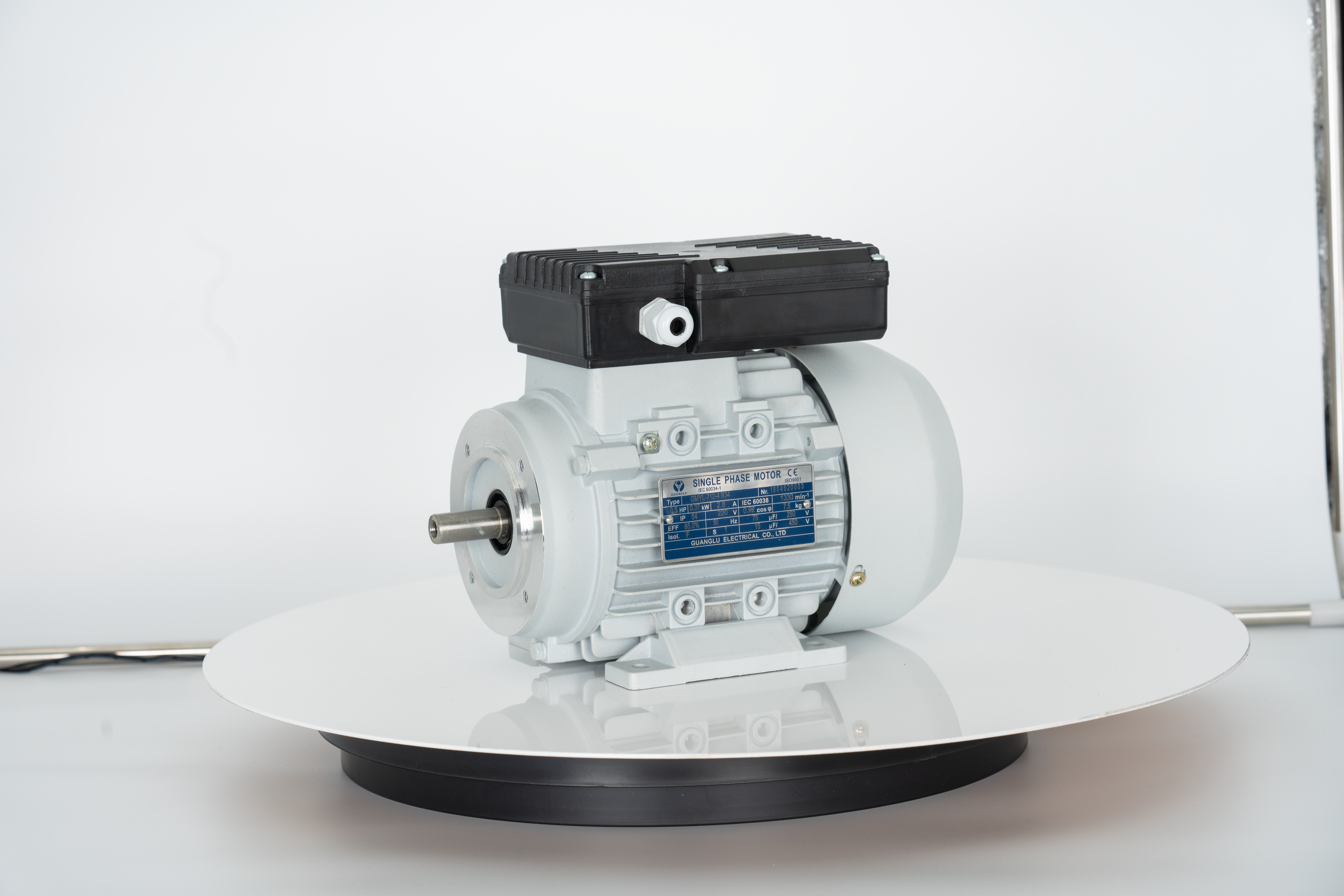

1.1 kW / 1.5 HP
Power supply
240 V single phase, 50 Hz
Duty class
S1 (continuous)
Peak torque (listed)
297 Nm
Output shaft
28 mm hollow shaft

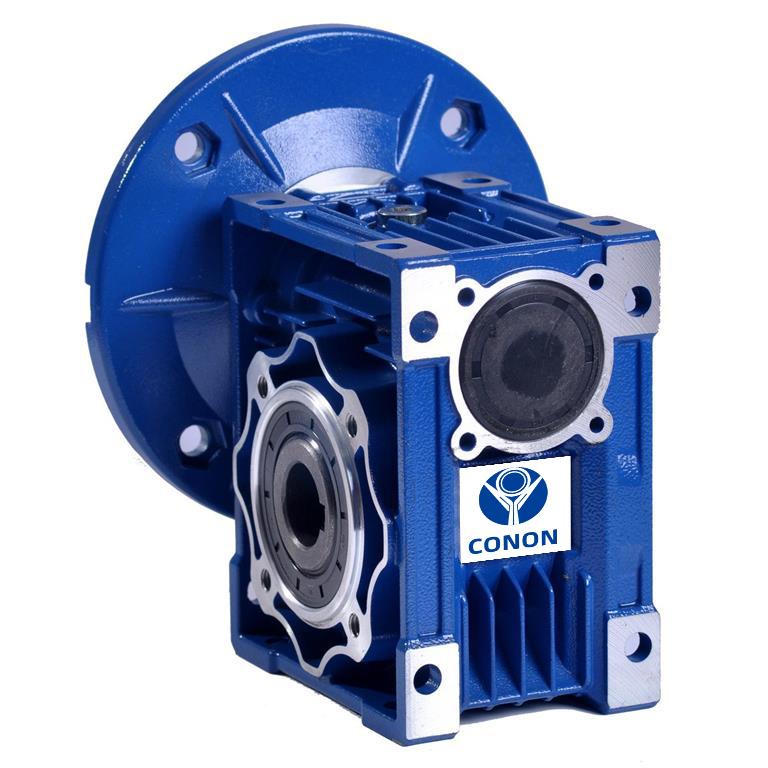

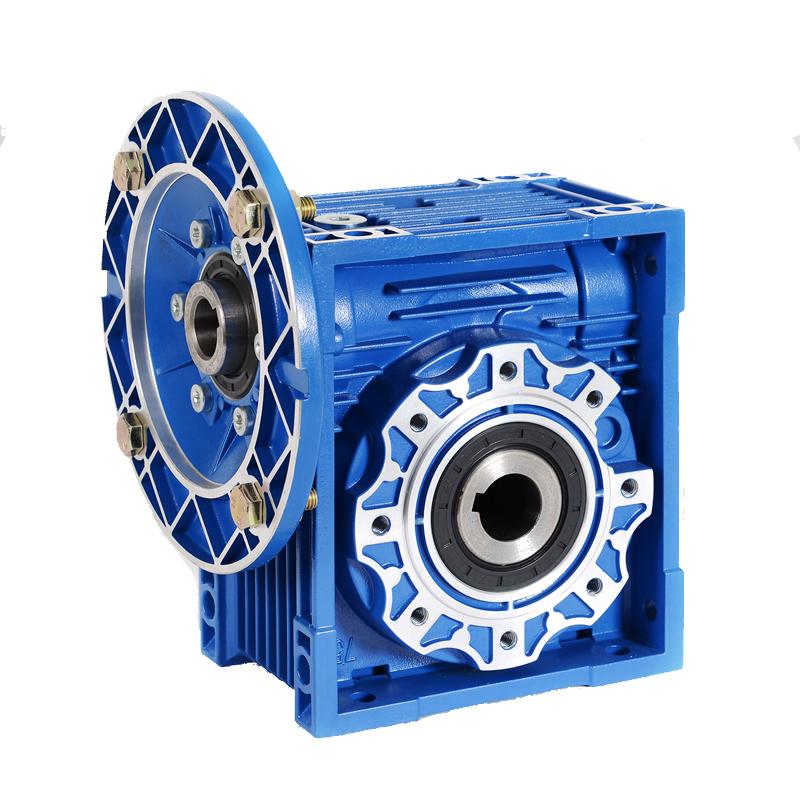

Reducer
Worm, size 075
Input speed
1400 rpm
Good to know
- Never use the gearbox as the only means of holding a load.
- Guard the output shaft and anything connected to it.
- Electrical connection must be done by a licensed electrician.
Shipping and warranty
Ships Australia-wide from Glen Waverley, VIC; postage is calculated at checkout. Warranty and returns: see our Returns, Refunds & Warranty Policy.
Send us the job details and we will suggest a ratio: hankemotors@gmail.com, 0401 634 280.
