Size 075 worm gearbox with a 0.75 kW 240 V single phase motor and 28 mm hollow output, supplied assembled. Choose one of 8 ratios below. In stock at Glen Waverley, VIC.

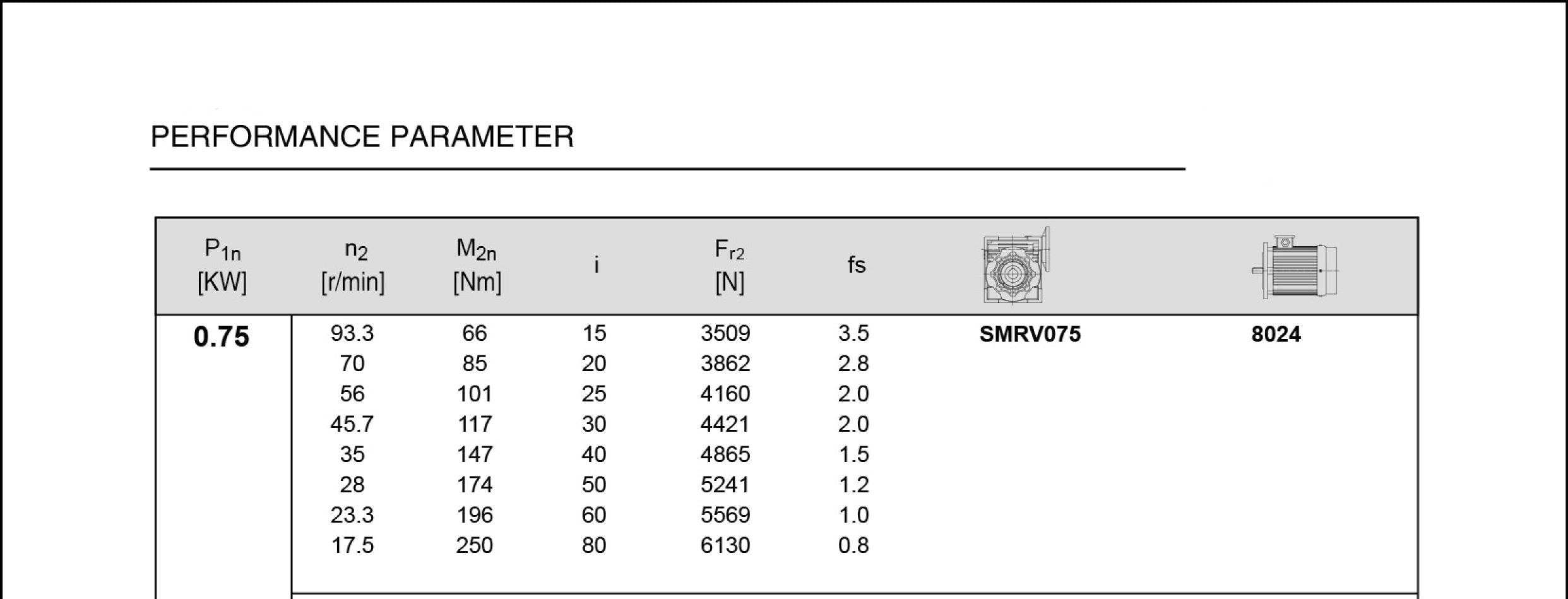

Speed options
Each option in the menu gives a different output speed from the 1400 rpm motor:
15:1, 28 mm output
about 93 rpm
20:1, 28 mm output
about 70 rpm
25:1, 28 mm output
about 56 rpm
30:1, 28 mm output
about 47 rpm
40:1, 28 mm output
about 35 rpm
50:1, 28 mm output
about 28 rpm
60:1, 28 mm output
about 23 rpm
80:1, 28 mm output
about 17.5 rpm
Calculated from nameplate speed. Loaded speed is a little lower.
Maximum output torque is listed as 250 Nm. Lower ratios give more speed but less torque than that figure; check with us if your load is close to it.
Single or three phase?
The motor runs on standard 240 V single phase power, so it suits sites without three phase. Speed is fixed by the ratio you choose.
Picking the ratio
Work backwards from the job: a conveyor or mixer that should turn at about 93 rpm needs 15:1; something that should crawl at 17.5 rpm needs 80:1.
Key figures
Rated power
0.75 kW / 1 HP
Voltage
240 V single phase, 50 Hz
Duty rating
S1 (continuous)
Output torque, max.
250 Nm
Output
28 mm hollow shaft
Gear unit
Worm, size 075
Motor rpm
1400 rpm
Safety and fitting
- Worm gears can creep back under load or vibration, so lifting jobs need a brake.
- Guard the output shaft and anything connected to it.
- Have a licensed electrician wire the motor.
Delivery and warranty
In stock at Glen Waverley, Victoria, and delivered nationwide. Checkout works out the postage; our Returns, Refunds & Warranty Policy covers claims.
Send us the job details and we will suggest a ratio: hankemotors@gmail.com, 0401 634 280.
