0.55 kW (0.75 HP) geared motor, 240 V single phase, worm gearbox size 050. Ratios from 7.5:1 (about 187 rpm) to 30:1 (about 47 rpm). In stock at Glen Waverley, VIC.
Ratio menu explained
Each option in the menu gives a different output speed from the 1400 rpm motor:
7.5:1, 25 mm output
about 187 rpm
10:1, 25 mm output
about 140 rpm
15:1, 25 mm output
about 93 rpm
20:1, 25 mm output
about 70 rpm
25:1, 25 mm output
about 56 rpm
30:1, 25 mm output
about 47 rpm
Nominal speeds; under load the motor slows slightly.
Maximum output torque is listed as 80 Nm. Lower ratios give more speed but less torque than that figure; check with us if your load is close to it.
Power supply
Single phase 240 V means it can run where only a normal supply is available. For adjustable speed, choose the three phase version with a 240 V input VFD.
Picking the ratio
Divide 1400 rpm by the output speed your machine needs; the answer is the ratio to pick. Need roughly 47 rpm? That is the 30:1 option.

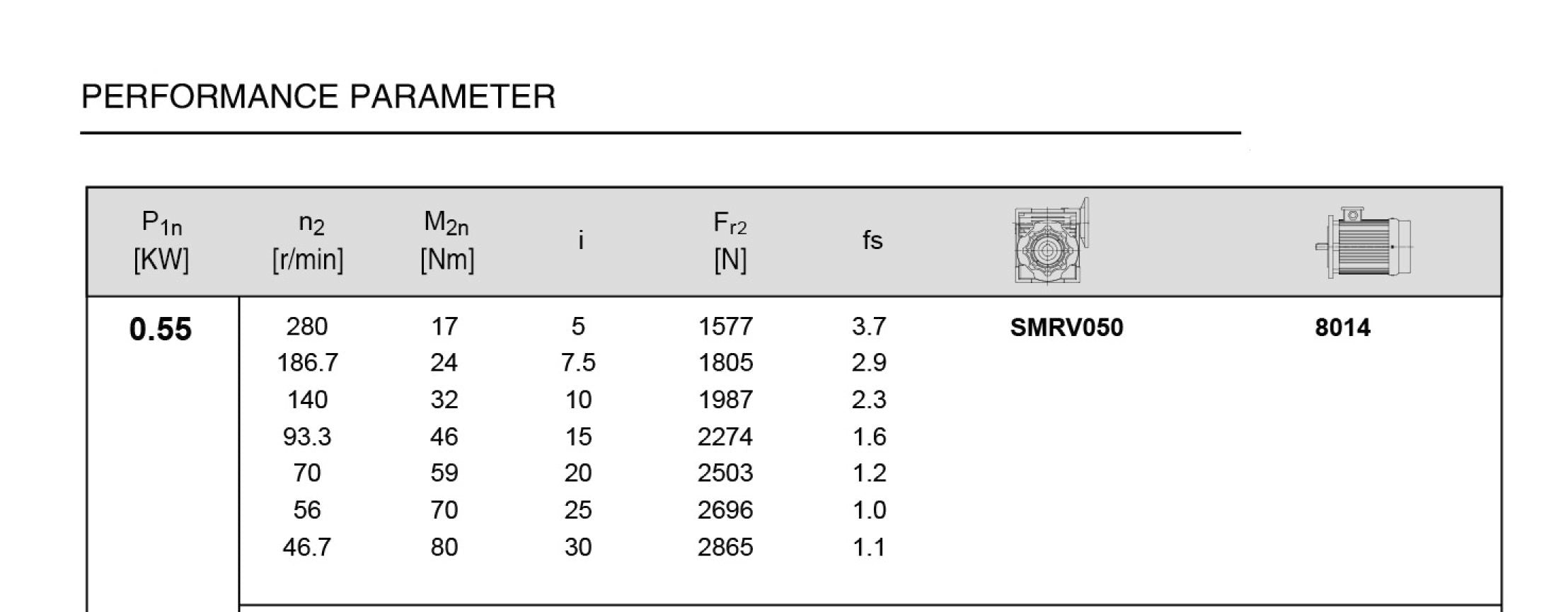

Motor and gearbox data
Rated power
0.55 kW / 0.75 HP
Motor speed
1400 rpm
Reducer
Worm, size 050
Output shaft
25 mm hollow shaft
Peak torque (listed)
80 Nm
Duty rating
S1 (continuous)
Power supply
240 V single phase, 50 Hz
Fitting tips
- Do not rely on the worm to hold a suspended load; fit a brake.
- Guard the output shaft and anything connected to it.
- The motor must be connected by a licensed electrician.
Shipping and warranty
Ships Australia-wide from Glen Waverley, VIC; postage is calculated at checkout. Warranty and returns: see our Returns, Refunds & Warranty Policy.
Send us the job details and we will suggest a ratio: hankemotors@gmail.com, 0401 634 280.
