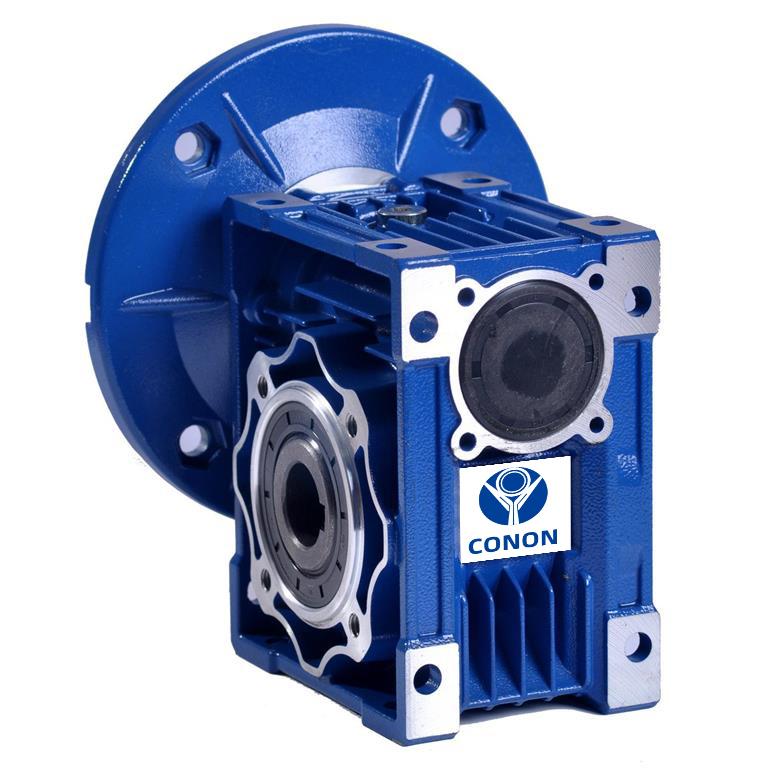

0.37 kW single phase gear motor (NMRV050): motor and worm gearbox supplied together, so the flange and shaft already match. 8 ratio options from 10:1 to 60:1.
Output speed for each ratio
Output speed is the motor's 1400 rpm divided by the ratio you choose:
10:1, 25 mm output
about 140 rpm
15:1, 25 mm output
about 93 rpm
20:1, 25 mm output
about 70 rpm
25:1, 25 mm output
about 56 rpm
30:1, 25 mm output
about 47 rpm
40:1, 25 mm output
about 35 rpm
50:1, 25 mm output
about 28 rpm
60:1, 25 mm output
about 23 rpm
Figures are motor speed ÷ ratio, rounded.
Torque: up to 89 Nm according to the listing, at the high-ratio end. Faster ratios produce less.
Single or three phase?

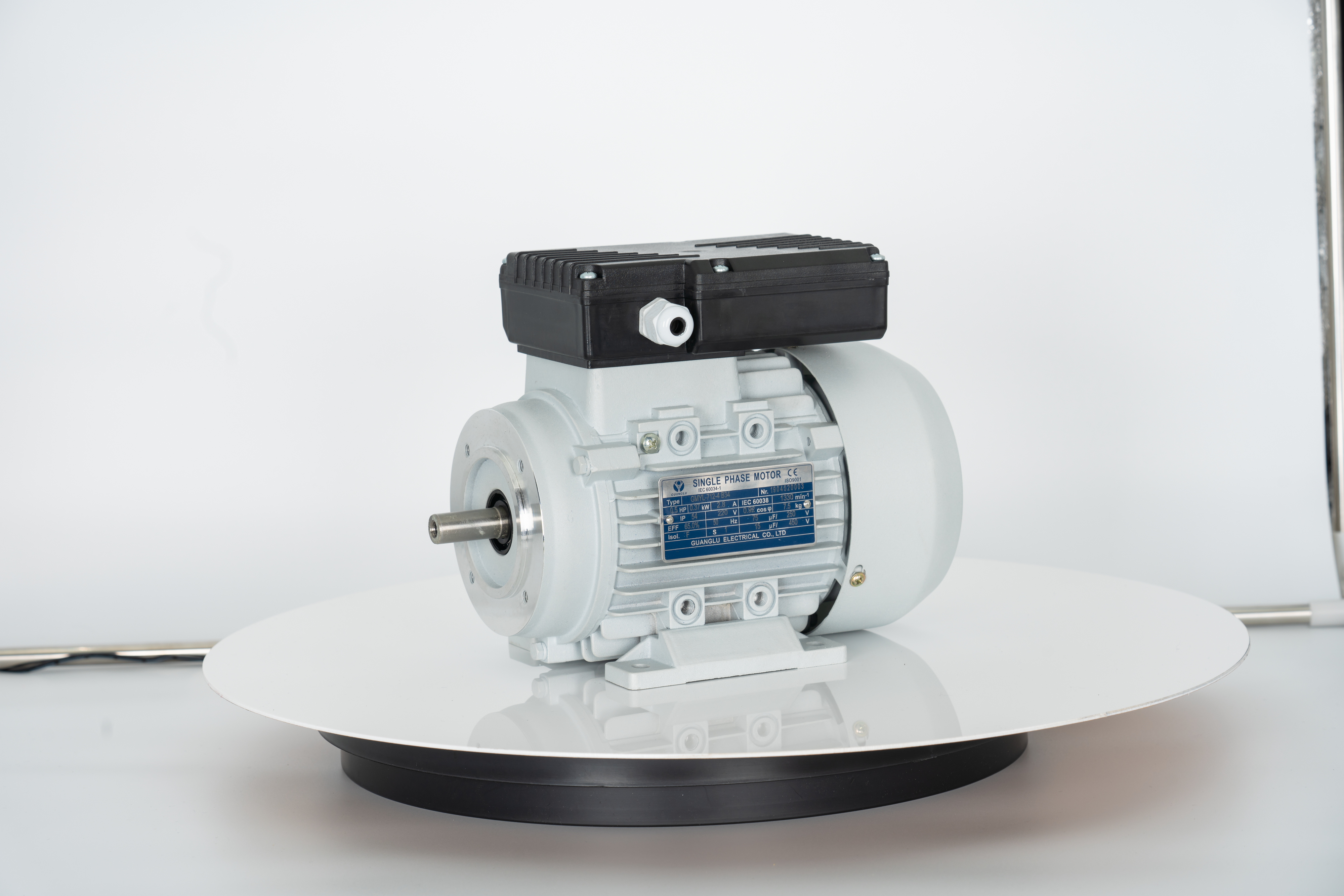

The motor runs on standard 240 V single phase power, so it suits sites without three phase. Speed is fixed by the ratio you choose.

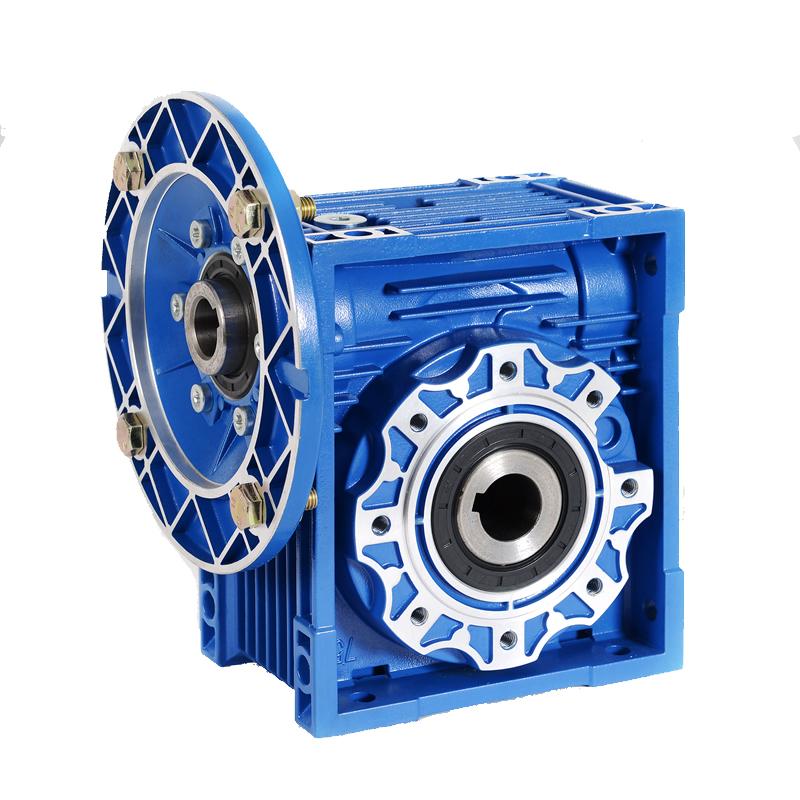

The hollow output
Need a solid shaft for a sprocket or pulley? Add a plug-in output shaft and tell us the gearbox size (050).
Technical data
Rated power
0.37 kW / 0.5 HP
Voltage
240 V single phase, 50 Hz
Duty
S1 (continuous)
Max. output torque
89 Nm
Output shaft
25 mm hollow shaft
Gear unit
Worm, size 050
Motor speed
1400 rpm
Safety and fitting
- Never use the gearbox as the only means of holding a load.
- Guard the output shaft and anything connected to it.
- Get a licensed electrician to connect the supply.
Delivery
Dispatched from Glen Waverley, VIC. Enter your address at checkout for postage. Returns and warranty follow our Returns, Refunds & Warranty Policy.
Questions about torque or speed? 0401 634 280 or hankemotors@gmail.com.
