Motor and gearbox set: 0.37 kW, 240 V single phase, NMRV040. Output from about 187 rpm (7.5:1) to 47 rpm (30:1).

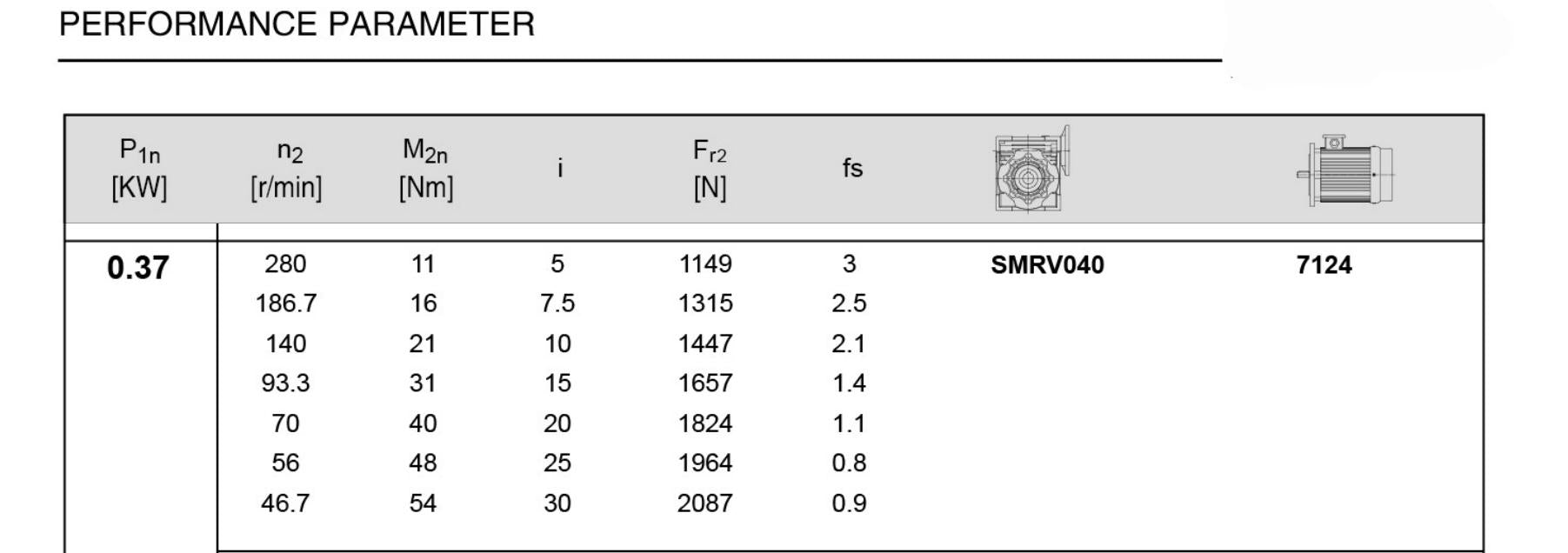

Ratios and output speeds
Each option in the menu gives a different output speed from the 1400 rpm motor:
7.5:1, 18 mm output
about 187 rpm
10:1, 18 mm output
about 140 rpm
15:1, 18 mm output
about 93 rpm
20:1, 18 mm output
about 70 rpm
25:1, 18 mm output
about 56 rpm
30:1, 18 mm output
about 47 rpm
Speeds are approximate and assume no slip.
Listed peak output torque is 55 Nm. If your job needs close to that at a low ratio, ask us to check the sizing.
Supply and speed control
Runs from 240 V single phase. Output speed is set by the ratio, so choose it to suit the job.
Where it is used
Typical installations at this size: farm augers, small conveyors, tumblers, turntables and slow stirrers in tanks.
Technical data
Motor power
0.37 kW / 0.5 HP
Supply
240 V single phase, 50 Hz
Input speed
1400 rpm
Gear unit
Worm, size 040
Hollow output
18 mm hollow shaft
Peak torque (listed)
55 Nm
Duty class
S1 (continuous)
Before you install
- Worm gears can creep back under load or vibration, so lifting jobs need a brake.
- Bolt the gearbox down firmly so the housing cannot rotate.
- Have a licensed electrician wire the motor.
Delivery and warranty
In stock at Glen Waverley, Victoria, and delivered nationwide. Checkout works out the postage; our Returns, Refunds & Warranty Policy covers claims.
Not sure which ratio? Tell us the speed you need at the output: 0401 634 280 or hankemotors@gmail.com.
