Worm geared motor, 0.25 kW / 0.34 HP, 240 V single phase, gearbox size 040 with a hollow output (18 mm). Available ratios 7.5:1 to 40:1. In stock at Glen Waverley, VIC.
Speed options
Output speed is the motor's 1400 rpm divided by the ratio you choose:
7.5:1, 18 mm output
about 187 rpm
10:1, 18 mm output
about 140 rpm
15:1, 18 mm output
about 93 rpm
20:1, 18 mm output
about 70 rpm
25:1, 18 mm output
about 56 rpm
30:1, 18 mm output
about 47 rpm
40:1, 18 mm output
about 35 rpm
Rounded figures; real speed drops a few percent at full load.
Torque: up to 45 Nm according to the listing, at the high-ratio end. Faster ratios produce less.
Electrical supply
The motor runs on standard 240 V single phase power, so it suits sites without three phase. Speed is fixed by the ratio you choose.
Gearbox only?
If you already own a suitable B5 flange motor, the gearbox is also sold on its own; see our NMRV worm gearboxes.

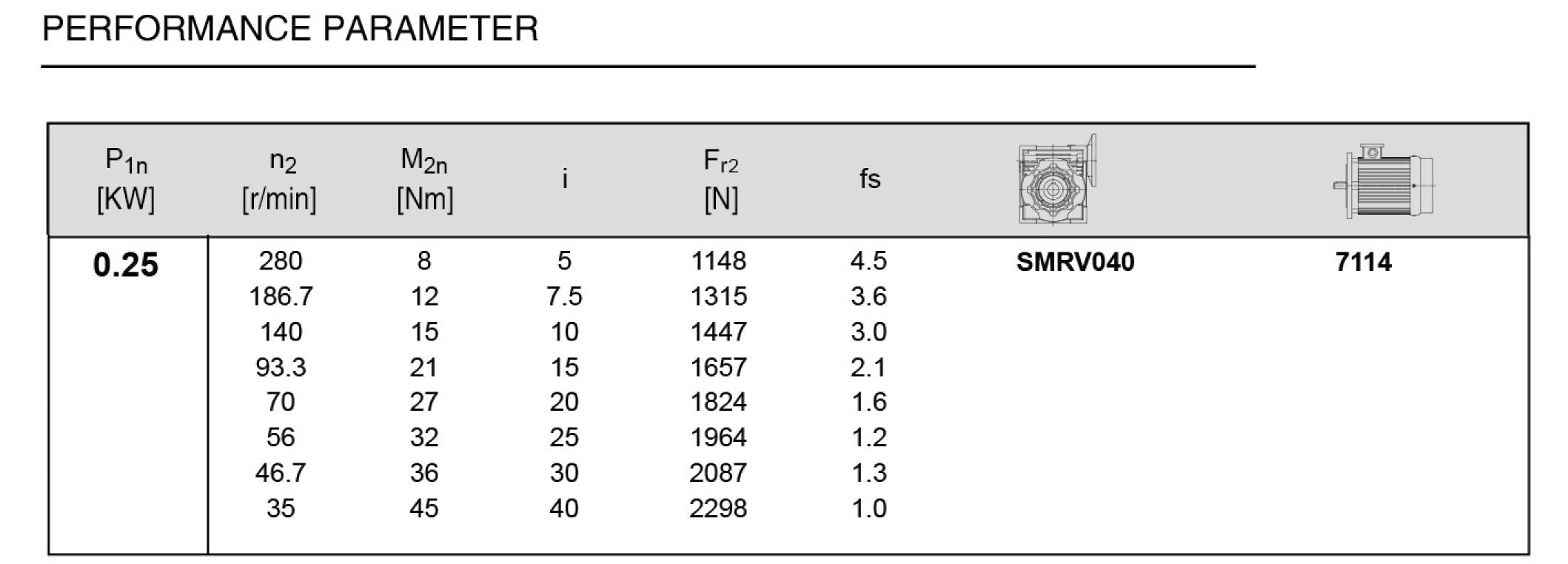

Motor and gearbox data
Voltage
240 V single phase, 50 Hz
Power
0.25 kW / 0.34 HP
Motor speed
1400 rpm
Gearbox
Worm, size 040
Output shaft
18 mm hollow shaft
Max. output torque
45 Nm
Duty
S1 (continuous)
Installation notes
- Do not rely on the worm to hold a suspended load; fit a brake.
- Bolt the gearbox down firmly so the housing cannot rotate.
- Wiring is a job for a licensed electrician.
Delivery and warranty
We post from Glen Waverley to all states, priced at checkout by postcode. Warranty claims are handled by us directly (Returns, Refunds & Warranty Policy).
Ring 0401 634 280 or email hankemotors@gmail.com before you order if you are unsure.
