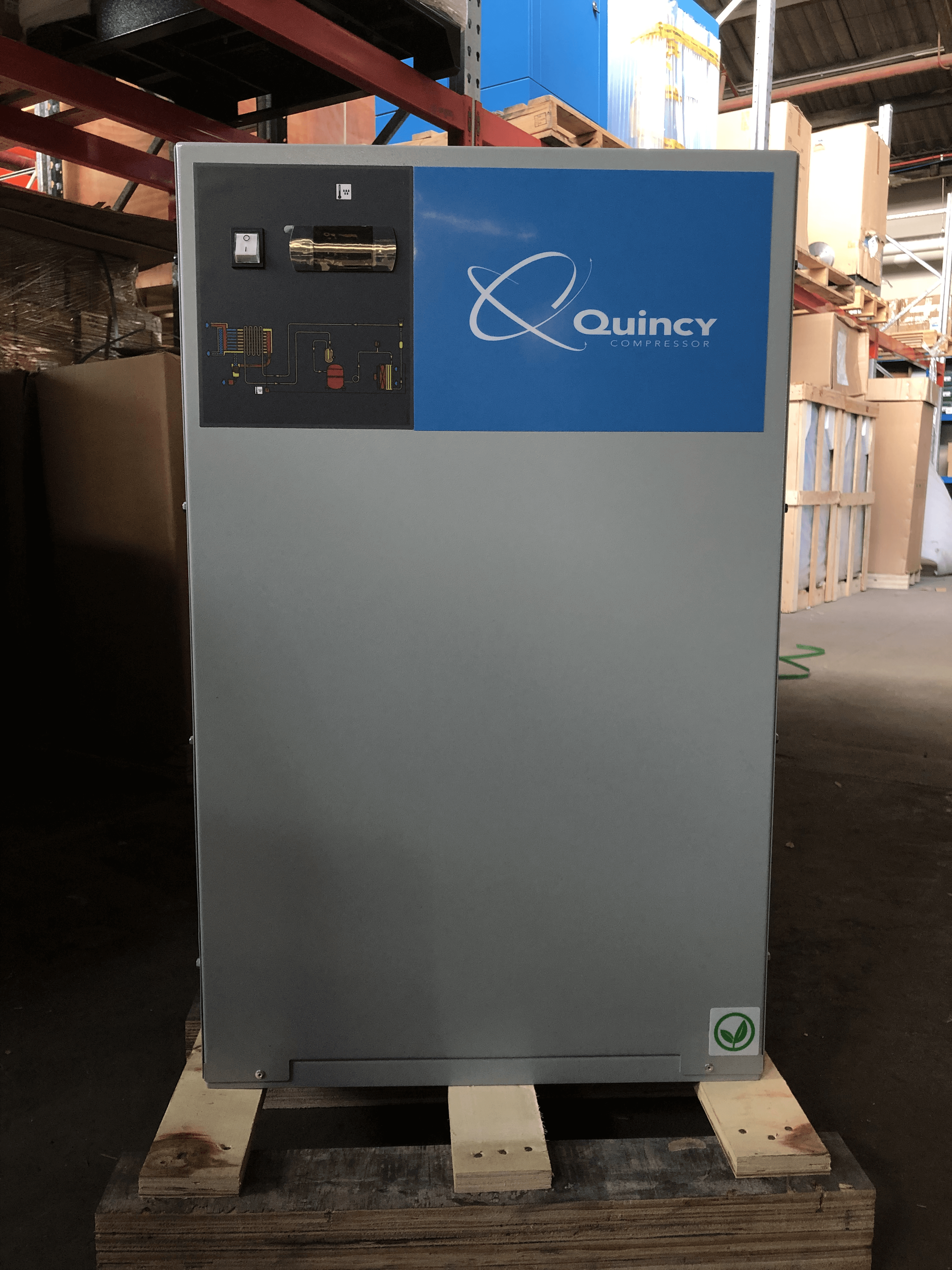

Quincy QPR105: 10.5 m³/min (370 CFM) of refrigerated drying for large compressed air plants. R134a refrigerant, 230 V supply.
Who it suits
The QPR105 handles 10.5 m³/min, which is the combined output of several 37 kW compressors.
Specify it when you are building or upgrading a central compressor room and want a single, easily serviced drying stage.
Specs
Flow rating
10.5 m³/min
PDP
3–10 °C
Voltage
230 V / 1 ph / 50 Hz
Operating pressure
0.7–1.3 MPa
Cooling gas
R134a
Inlet air (max)
50 °C
Ambient (max)
35 °C
Real capacity drops as inlet and room temperatures rise.
At 10.5 m³/min it suits compressors delivering a little less than that. Good matches from our stock include the 37 kW GLF37-8. For still larger plants the QPR140 treats 14.0 m³/min; one size down is the QPR85 at 8.5 m³/min.
- Ask us for the dimensions and weight. Units this size need forklift access.
- Make sure condensate drains to a separator rated for the volume.
Other sizes are in our refrigerated dryer collection. Shipping is calculated at checkout from Glen Waverley, VIC. Warranty terms are available on request.
Request the QPR105 data sheet: hankemotors@gmail.com · 0401 634 280
