Hankemotor

Motor Terminal Box 63-132 for Three phase motor

$44.80 In Stock Sold out
TYPE
Add to wishlist Added to wishlist
Categories: Motor Accessories and Parts

1-7 DAYS DELIVERY

100% ORIGINAL AND QUALITY

12 MONTHS GUARANTEE

  • Description
  • Related Policy

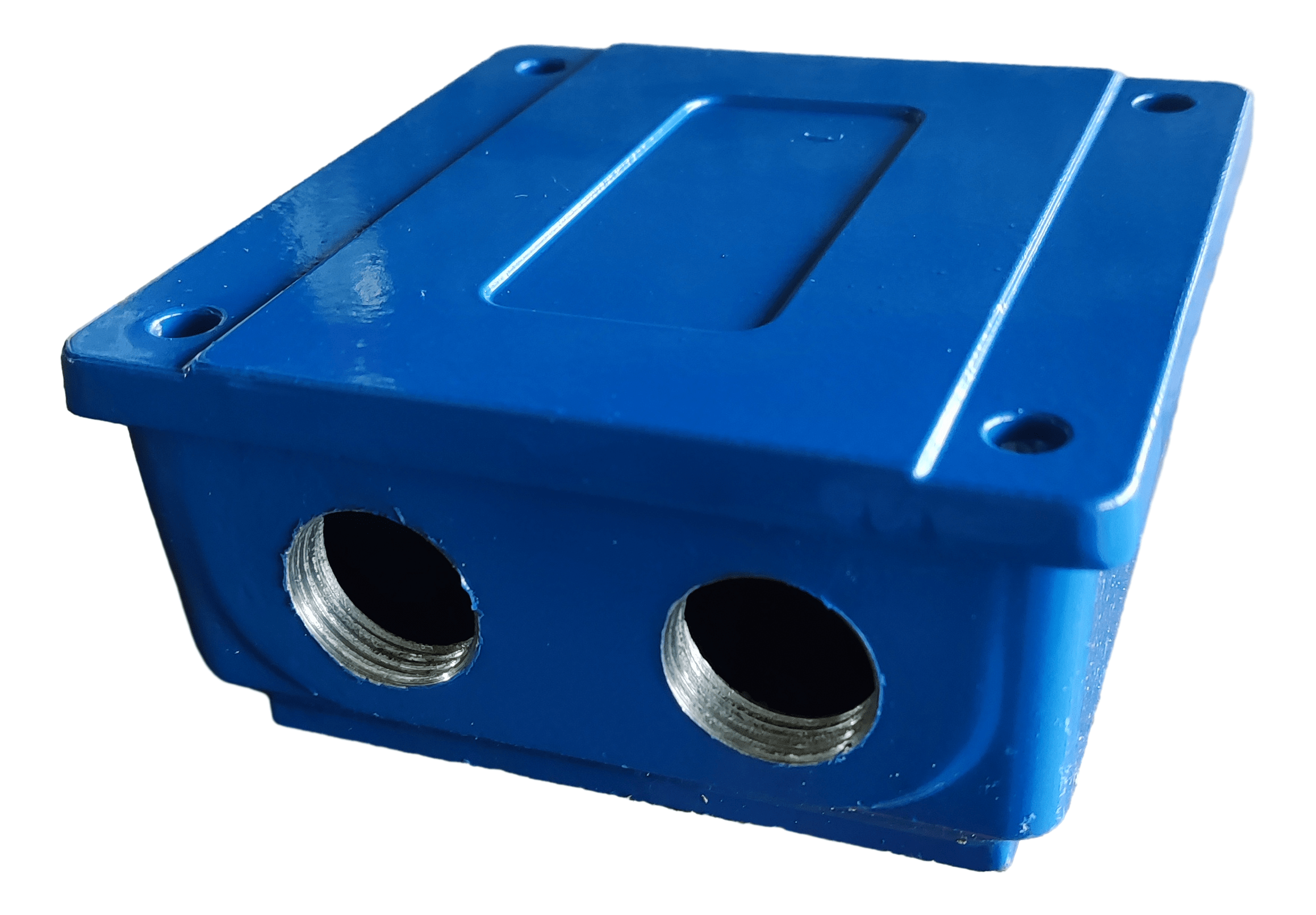

At a glance: Direct replacement terminal box for IEC frame 63–132 three-phase motors. Cast aluminium alloy, IP44 rated, pre-fitted gasket, 6-terminal layout. Fits standard Chinese and European IEC-frame motors. In stock Glen Waverley. From AU$39.

Compatible Motor Frame Sizes

IEC Frame Size Shaft Height (mm) Typical Motor Rating Terminal Box Fits?
Frame 63 63 mm 0.18–0.25 kW ✓
Frame 71 71 mm 0.25–0.55 kW ✓
Frame 80 80 mm 0.55–0.75 kW ✓
Frame 90 90 mm 0.75–1.5 kW ✓
Frame 100 100 mm 1.5–3 kW ✓
Frame 112 112 mm 3–4 kW ✓
Frame 132 132 mm 4–7.5 kW ✓


Specifications

  • Material: Cast aluminium alloy (die-cast)
  • Ingress Protection: IP44 (splash-proof, suitable for indoor and sheltered outdoor)
  • Terminals: 6-terminal layout (3 line + PE earth) — supports star (Y) and delta (△) motor connections
  • Gasket: Pre-fitted rubber gasket included (no separate order required)
  • Conduit entry: Standard M20 × 1.5 cable gland thread
  • Standards: IEC 60034-7 terminal marking, AS/NZS 1359

When to Replace a Motor Terminal Box

Replace the terminal box when: the housing is cracked or corroded; the gasket has hardened and no longer seals (water ingress risk); terminal studs are stripped or corroded; or you're rewiring a motor from star (Y) to delta (△) for use with a single-phase VFD and need a clean 6-terminal layout.

Delta Rewiring Note

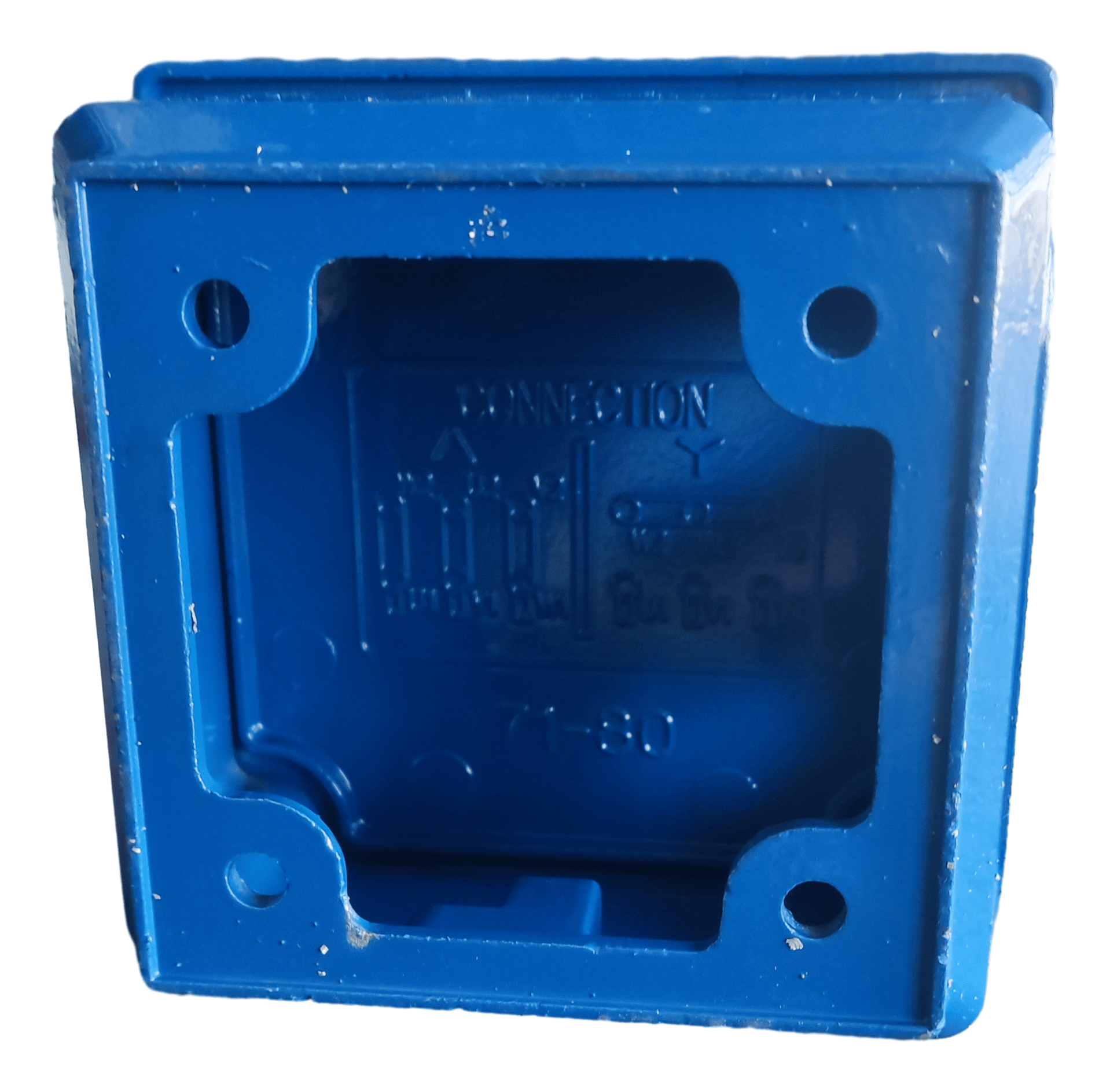

If you're running a 415 V motor on a single-phase 240 V VFD, the motor must be reconnected in delta (△) configuration. This terminal box provides a clean 6-terminal layout to make that reconnection straightforward. The existing links are removed and replaced per the delta wiring diagram on the inside of the terminal box cover.

Questions about compatibility? Call 0401 634 280 or email hankemotors@gmail.com with your motor nameplate details.
