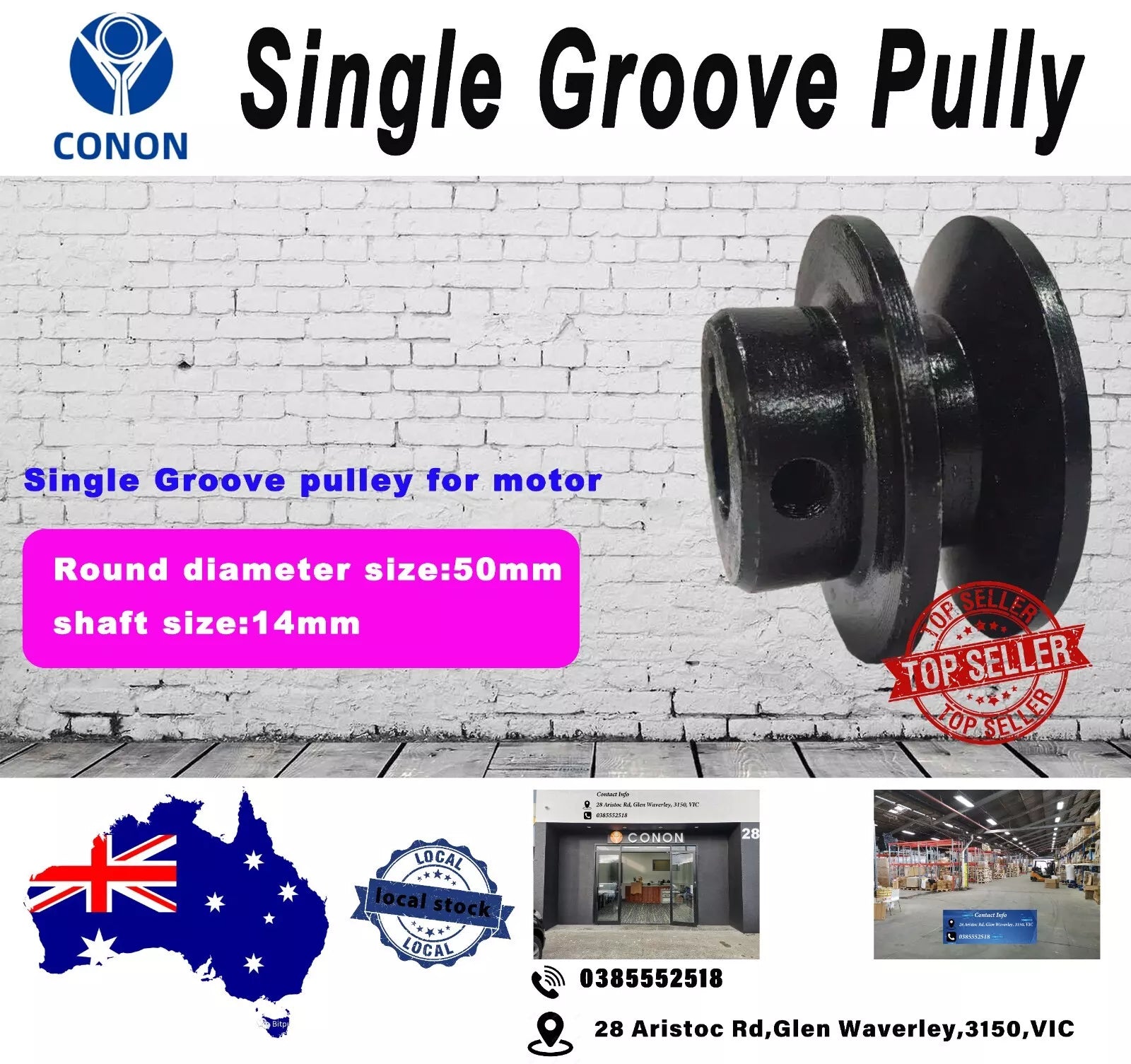

Single-groove belt pulley for a 14 mm shaft: cast iron, 50 mm across. Stocked in Victoria.
Bore and shaft size
It suits a shaft of exactly 14 mm. Most IEC 71 frame motors have a 14 mm shaft. Two set screws lock it to the shaft.
Single, double or triple groove?
A single-groove pulley runs one belt, which suits light to moderate loads. Cast iron holds its shape under belt tension and lasts for years.
Speed ratio between two pulleys follows their pitch diameters. With this 50 mm pulley as the driver, a larger driven pulley slows the machine and a smaller one speeds it up.
Same 14 mm bore, other sizes: 70 mm single, 70 mm double.
Specifications
OD
50 mm
Bore size
14 mm
Number of grooves
1 (single)
Construction
Cast iron
Suits belts
A-section V-belt
Before you install
- Make sure the motor cannot start while you work on it.
- Square the pulley on the shaft; a wobble at the rim means it is not seated.
- Tension the belt so it deflects slightly when pressed midway; too tight overloads the motor bearings.
- Fit a belt guard before running.
Delivery and warranty
Ships Australia-wide from Glen Waverley, VIC; postage is calculated at checkout. Warranty and returns: see our Returns, Refunds & Warranty Policy.
Measuring up a replacement? We can help: 0401 634 280, hankemotors@gmail.com.
