Braking Resistor for Variable Frequency Drive – 80W to 2500W

$56.00 In Stock Sold out
Model
Add to wishlist Added to wishlist
Categories:

1-7 DAYS DELIVERY

100% ORIGINAL AND QUALITY

12 MONTHS GUARANTEE

  • Description

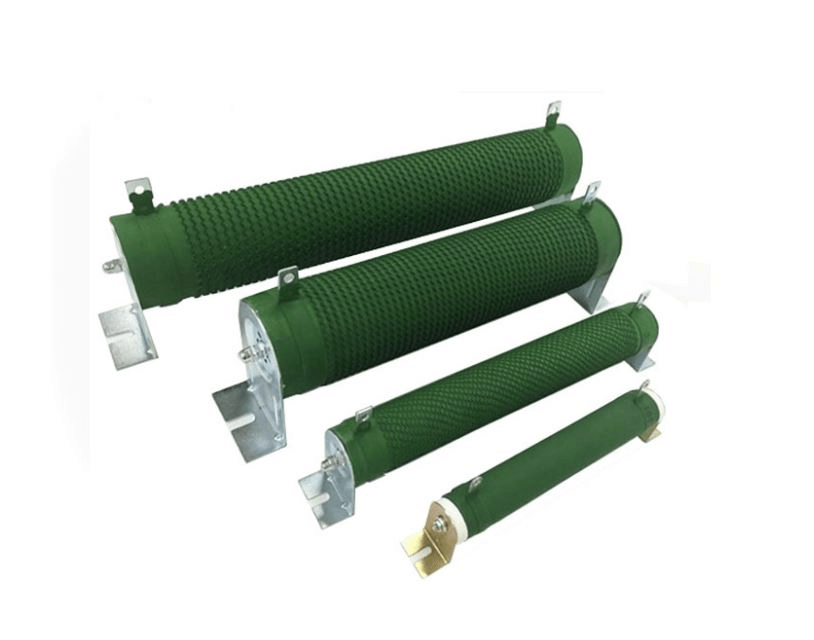

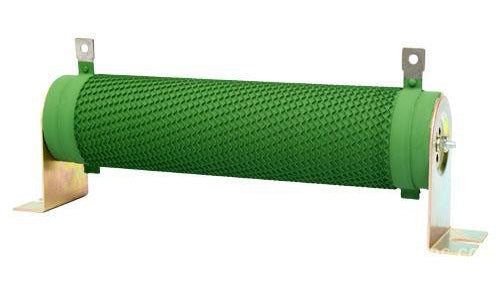

Braking resistors for variable frequency drives, from 80 W to 2500 W and 30 Ω to 300 Ω. Wire-wound resistor with mounting feet at both ends. Choose the variant that matches your drive's voltage and power using the table below. Sent from Glen Waverley, VIC.

When a drive needs a braking resistor

When a drive slows a motor down, the motor briefly works as a generator and pushes energy back into the drive. With a light load that energy is small and the drive copes. With a heavy flywheel, a big saw blade, a loaded conveyor or very short deceleration times, the drive's DC bus voltage rises until it trips on over-voltage, and repeated over-voltage can damage it.

A braking resistor connected to the drive's brake terminals turns that energy into heat, so the drive can stop the load quickly and repeatedly without tripping.

Which resistor for which drive

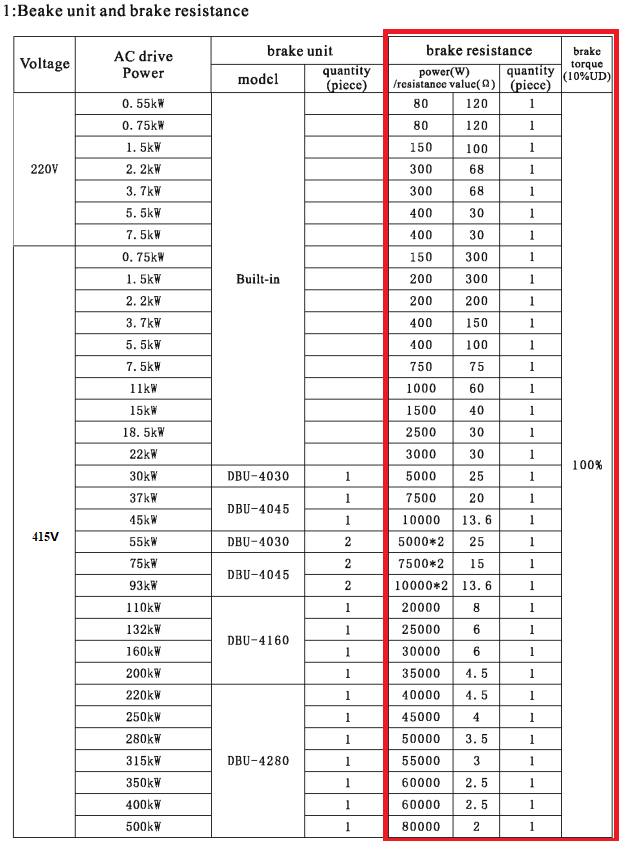

This selection table comes from the parameter sheet for this listing. Pick the row for your drive voltage and power, then order the matching variant.

240 V drives

0.55 kW and 0.75 kW 80 W, 120 Ω 1.5 kW 150 W, 100 Ω 2.2 kW and 3.7 kW 300 W, 68 Ω 5.5 kW and 7.5 kW 400 W, 30 Ω

415 V drives

0.75 kW 150 W, 300 Ω 1.5 kW 200 W, 300 Ω 3.7 kW 400 W, 150 Ω 5.5 kW 400 W, 100 Ω 7.5 kW 750 W, 75 Ω 11 kW 1000 W, 60 Ω 15 kW 1500 W, 40 Ω 18.5 kW 2500 W, 30 Ω

The table is based on drives with a built-in brake unit, at 100% braking torque and 10% duty. A 415 V 2.2 kW drive calls for 200 W, 200 Ω and a 22 kW drive for 3000 W, 30 Ω, which are not listed as variants here; email us. Drives of 30 kW and above need an external brake unit as well as a resistor. For Fulinn H1 drives, also check the braking resistor chapter of the H1 manual (PDF); for BD600 drives see the BD600 manual (PDF).

Available variants

80 W 120 Ω · 150 W 100 Ω · 150 W 300 Ω · 200 W 300 Ω · 300 W 68 Ω · 400 W 30 Ω · 400 W 100 Ω · 400 W 150 Ω · 750 W 75 Ω · 1000 W 60 Ω · 1500 W 40 Ω · 2500 W 30 Ω. Select yours from the options above.

Installation safety
  • Never use a resistance lower than the value for your drive. Too low a value overloads the brake circuit.
  • The resistor gets hot in use. Mount it on a non-flammable surface with free air around it, away from cables and anything that can burn.
  • Connect it only to the drive's braking resistor terminals, as shown in the drive manual. Isolate the drive and wait for the bus capacitors to discharge before working on the terminals.
  • Have a licensed electrician do the wiring.

Drives that suit

Fulinn BD600 drives up to 22 kW and H1 drives up to 37 kW have a built-in brake unit, so they only need the resistor. Browse all variable frequency drives.

Delivery and warranty

Shipped from Glen Waverley, VIC to anywhere in Australia, with postage calculated at checkout. Warranty terms are in our returns and warranty policy.

Not sure which value your drive needs? Tell us the drive model and power. Call 0401 634 280 or email hankemotors@gmail.com.
