5.5kw 7.5HP 15A 415V AC 3 phase variable frequency drive inverter
$606.00
In Stock
Sold out
Add to wishlist
Added to wishlist
100% ORIGINAL AND QUALITY
12 MONTHS GUARANTEE
- description
- Basic Information
- Technical Features
- Related Policy
Please note, This product is designed for the Australian market, which is 415V, unlike some VFDs in the market which is 380V.
- Input/Output Power: 5.5KW
- Input Voltage: Three phase 415V
- Output Voltage: Three phase 415V
- Input/Output Current: 15A/14A
- Input Frequency: 50/60 Hz
- Output Frequency: 0-600 Hz
- Dimension:12 x 18 x 17cm (L x W x H)
This high quality Fulinn brand VFD sold with 2 years replacement warranty!
-
For more information about Fulinn BD600 VFD, please check the following downloads:
- Fulinn BD600 Manual, Please CLICK HERE to download.
- Fulinn BD600 Brochure, Please CLICK HERE to download.
- Fulinn BD600 C-Tick Certification dedicated for Australian Market, Please CLICK HERE to download.
- Fulinn BD600 CE Certification, Please CLICK HERE to download.
- Fulinn BD600 ROHS Certification, Please CLICK HERE to download.
- Fulinn BD600 ISO9001, Please CLICK HERE to download.
Leading brand frequency drive. 2 years replacement warranty.

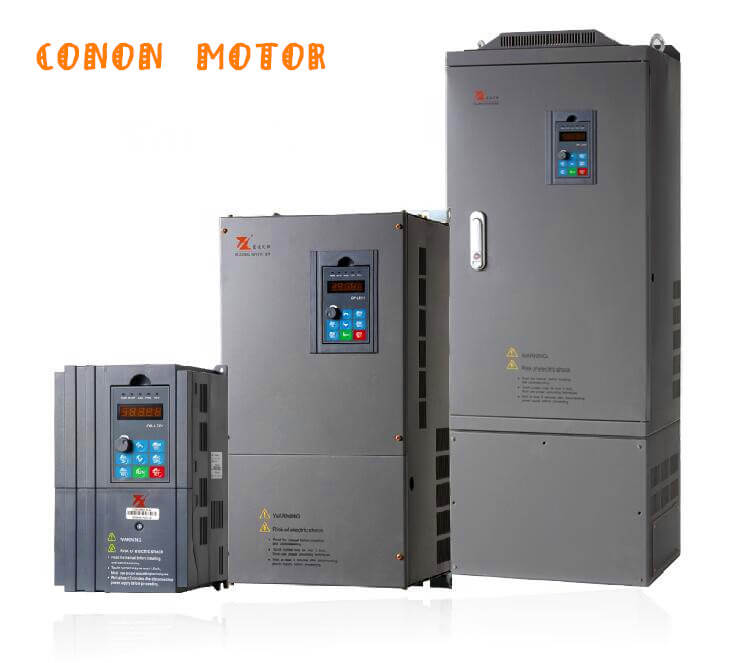

Product overview
BD600 series is latest version for high performance vector inverter based on BD330. Multiple control modes ,New vector control algorithm can achieve stability at slow speed, stronger load capacity at low frequency. Support SVC,VC and V/F control, and achieved using multiple PG cards. Stronger functions, functional of motor control has clearly raised.
Product features
*Outstanding performance
*Accurate motor parameter self learning
*Rapid current limit
*Over-excitation gain and oscillation suppression gainRapid RUN/STOP
*Over voltage stall protection & Over current stall protection
*Support both asynchronous motor and synchronous motor
*Support multiple control mode
*Speed sensorless vector control (SVC), sensor vector control(VC), V/F control
*Swing frequency control function
*None-stop when instantaneous power off
*Simple PLC

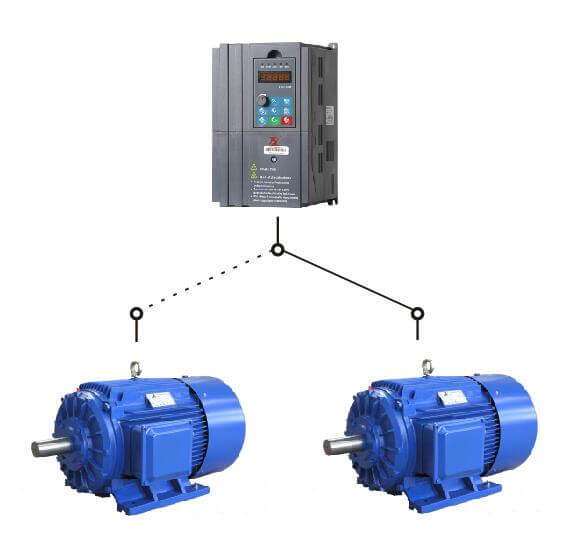

*Multiple motor switch: Two groups of motor parameters, and control two motors by one inverter
Nameplate explanation and exploration of the VFD.
| Technical Features | |||||||||
| I/O Features | Input Voltage Range | 1AC240V±15％ / 3AC240V±15％ / 3AC415V±15％ / 3AC720V±10％ / 3AC1180V±15％ | |||||||
| Input Frequency Range | 47-63Hz | ||||||||
| Output Voltage Range | 0~rated input voltage | ||||||||
| Output Frequency Range | 0~600Hz | ||||||||
| I/O Terminals | Input Terminals | • 6 programmable digital inputs,it can be extended to 4 digital inputs,one of which supports high speed pulse input; • 1 analog volatge input, -10~10VDC; • 2 volatge input 0~10VDC or current input 0~20mA | |||||||
| Output Terminals | • 1 open collector output ,it can be extended to 1 high speed pulse output ; • 2 relay outputs; • 2 analog output: volatge output 0~10VDC or current output 0~20mA | ||||||||
| RUN | Multiple encoder types | A variety of encoder is optional: support differential encoder, ABZ encoder,UVW encoder, rotary transformer | |||||||
| Control Mode | Speed sensorless vector control (SVC) , sensor vector control (VC), V/F control | ||||||||
| Frequency Reference Source | Digital,analog,pulse frequency,serial communication,multi-step speed,simple PLC and PID, The combination of multi-modes and the different modes can be switched. | ||||||||
| Overload Capacity | • G type: 60s for 150% of the rated current, 3s for 180% of the rated current • P type: 60s for 120% of the rated current, 3s for 150% of the rated current | ||||||||
| Start Torque | • G type: 0.5 Hz/150% (SVC); 0 Hz/180% (VC) • P type: 0.5 Hz/100% | ||||||||
| Speed Adjusting Range | 1:100 (SVC) | 1:1000 (VC) | |||||||
| Speed Accuracy | ±0.5%（SVC) | ±0.02%（VC） | |||||||
| Carrier Frequency | 0.5 to 16.0kHz;automatically adjust carrier frequency according to the load characteristics | ||||||||
| Resolution of Frequency setting | Digital setting:0.01Hz Anolog setting:maximum frequency x 0.025% | ||||||||
| Running command source | • Keyboard • Control terminals • Serial communication port | ||||||||
| Functions | Torque Boost | Automatic torque boost;manual torque boost 0.1~30% | |||||||
| V/F curve | • Straight-line V/F curve • Multi-point V/F curve • Square V/F curve • V/F complete separation • V/F half separation • N-power V/F curve (1.2-power, 1.4-power,1.6-power, 1.8-power) | ||||||||
| Acc/Dec Mode | Straight-line or S-curve，Four kinds of acceleration/deceleration time with the range of 0.0 –6500.0s | ||||||||
| DC Braking | Supports starting and stopping DC braking • DC braking frequency: 0.00 Hz to maximum frequency • Braking time: 0.0–100.0s • Braking action current value: 0.0%–100.0% | ||||||||
| Jogging control | Jog frequency range:0.0Hz to 50Hz; Jog Acc/Dec time:0~6500.0s | ||||||||
| Simple PLC and Multi-speed operation | Built-in PLC or control terminal,16 steps speed can be set，Hold time and acceleration/deceleration of each step speed can be adjusted | ||||||||
| Built-in PID | Easy to realize closed-loop control system for the process control | ||||||||
| Automatic voltage regulation(AVR) | Automatically maintain a constant output voltage when the voltage of electricity grid changes | ||||||||
| Stop mode selection | • Decelerate to stop • Coast to stop | ||||||||
| Torque limit and control | “excavator”character, automatic limit torque when running can prevent over-current trip continually; Vector mode can realize torque control | ||||||||
| Multi-motor switchover | Equip with two groups of motor parameter, it can realize switching control of two motors | ||||||||
| Switchover function | Total 10 main and auxiliary frequency source.They can be switched and combined flexibly | ||||||||
| Swing frequency control function | Multiple triangular pulse frequency control | ||||||||
| Common DC bus function | Multiple inverters can use a common DC bus | ||||||||
| Speed tracking function: | Multiple speed trace mode, the speed of trace can be adjusted | ||||||||
| Timing control | Timing setting range 0~6500min | ||||||||
| Jump frequency function | Prevents mechanical resonance and makes the system more stable and reliable | ||||||||
| Protection function | Overvolatge protection, undervoltage protection, overcurrent proteciton, overload protection, overheat protection, overcurrent stall protection, overvoltage stall protection, phase-loss protection, over-speed detection, motor overheat protection, short-circuit protection. | ||||||||
| Other functions | • Parameter restore • Parameter self-learning • PID parameters switchover • PID feedback loss detection • Over-torque and under-torque detection • None-stop when instantaneous power off • Sleep and wake function,etc. • Rapid current limit •Current detection compensation • Fault self-recovery • Backup data for power fail of simple PLC | ||||||||
| Communications | RS485 | ||||||||
| Extension card | I/O extension card, PG card, (Relay extension card and V/I extension card can be customized as your request.) | ||||||||
| PCB coating | Imported conformal protective coating | ||||||||
| Display | LED Display | Can display: setting frequency,output frequency,output voltage,output current etc. | |||||||
| Environmental Constraint | Protection level | IP20 | |||||||
| Temptemperature | -10℃~+40℃，it will be derated if ambient emperature exceeds 40℃ | ||||||||
| Humidity | Below 90%RH (no condensation) | ||||||||
| Vibration | ≤20Hz 9.8m/s(1G), ≥20Hz 5.88m/s(0.6G) | ||||||||
| Altitude | Below 1000m,indoor(place without corrosive gas, liquid) | ||||||||
| Storage temperature | -20℃~+60℃ | ||||||||
| Cooling type | Forced cooling | ||||||||
