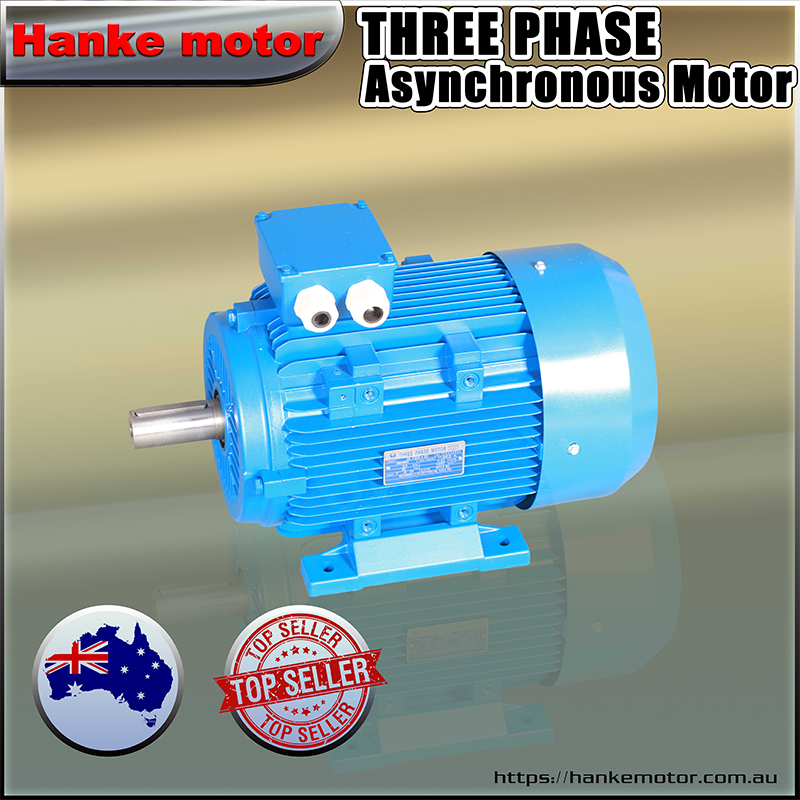

5.5kw 7.5HP 1400rpm shaft 38mm Electric motor Three phase 415v

$554.40 In Stock Sold out
Add to wishlist Added to wishlist
Categories: 4 Poles 1400rpm, Three-phase Motor 415v, Three-phase Motor 415v - 4 Poles 1400rpm

1-7 DAYS DELIVERY

100% ORIGINAL AND QUALITY

12 MONTHS GUARANTEE

  • description
  • Technical parameters
  • Installation dimension
  • Bearing Size
  • Useful Downloads
  • Related Policy
  • Power: 5.5kw/7.5HP
  • Model: YX3-132S-4
  • Three-phase: 415V/715V
  • Maximum Amps draw: 20.9Amps
  • Type: YX3-5.5kw-4 （Type 132）
  • Speed: 4 Pole (1400rpm)
  • Shaft size: 38mm
  • Light weight
  • Please click download for the full measurement of this motor.
  • We have single and three-phase electrical motor.
    ( 0.18kw-315kw ).( 2,4,6 and 8 poles )
  • We also have this product selling on our ebay store.



TEFC (Total Enclosed Fan Cooled)
Reverse Motor: All single phase & three phase motors are reversible!
Brand new motor. One year warranty.



TECHNICAL DATA OF YX3 SERIES
NO. Type Output Speed Amps EFF. P.F. LRT LRA BDT Noise Voltage
kW r/min A % Cosφ RLT RLA RLT LwdB(A) V
1 YX3-80M1-2 0.75 2860 1.77 77.5 0.83 2.3 6.8 2.3 62 415
2 YX3-80M2-2 1.1 2880 2.43 82.8 0.83 2.3 7.3 2.3 62 415
3 YX3-90S-2 1.5 2890 3.23 84.1 0.84 2.3 7.6 2.3 67 415
4 YX3-90L-2 2.2 2890 4.59 85.6 0.85 2.3 7.8 2.3 67 415
5 YX3-100L-2 3 2890 6.04 86.7 0.87 2.3 8.1 2.3 74 415
6 YX3-112M-2 4 2910 7.88 87.6 0.88 2.3 8.3 2.3 77 415
7 YX3-132S1-2 5.5 2910 10.7 88.6 0.88 2.2 8 2.3 79 415
8 YX3-132S2-2 7.5 2910 14.3 89.5 0.89 2.2 7.8 2.3 79 415
9 YX3-160M1-2 11 2940 20.8 90.5 0.89 2.2 7.9 2.3 81 415
10 YX3-160M2-2 15 2940 28 91.3 0.89 2.2 8 2.3 81 415
11 YX3-160L-2 18.5 2940 34.4 91.8 0.89 2.2 8.1 2.3 81 415
12 YX3-180M-2 22 2950 40.7 92.2 0.89 2.2 8.2 2.3 83 415
13 YX3-200L1-2 30 2960 55.1 92.9 0.89 2.2 7.5 2.3 84 415
14 YX3-200L2-2 37 2960 67.7 93.3 0.89 2.2 7.5 2.3 84 415
15 YX3-225M-2 45 2960 82 93.7 0.89 2.2 7.6 2.3 86 415
16 YX3-250M-2 55 2970 100 94 0.89 2.2 7.6 2.3 89 415
25 YX3-80M1-4 0.55 1430 1.38 80.7 0.75 2.3 6.3 2.3 56 415
26 YX3-80M2-4 0.75 1430 1.85 82.3 0.75 2.3 6.5 2.3 56 415
27 YX3-90S-4 1.1 1430 2.66 83.8 0.75 2.3 6.6 2.3 59 415
28 YX3-90L-4 1.5 1430 3.58 85 0.75 2.3 6.9 2.3 59 415
29 YX3-100L1-4 2.2 1450 4.78 86.4 0.81 2.3 7.5 2.3 64 415
30 YX3-100L2-4 3 1450 6.36 87.4 0.82 2.3 7.6 2.3 64 415
31 YX3-112M-4 4 1450 8.39 88.3 0.82 2.3 7.7 2.3 65 415
32 YX3-132S-4 5.5 1450 11.4 89.2 0.82 2 7.5 2.3 71 415
33 YX3-132M-4 7.5 1450 15.2 90.1 0.83 2 7.4 2.3 71 415
34 YX3-160M-4 11 1470 21.6 91 0.85 2.2 7.5 2.3 73 415
35 YX3-160L-4 15 1470 28.9 91.8 0.86 2.2 7.5 2.3 73 415
36 YX3-180M-4 18.5 1470 35.4 92.2 0.86 2.2 7.7 2.3 76 415
37 YX3-180L-4 22 1470 42 92.6 0.86 2.2 7.8 2.3 76 415
38 YX3-200L-4 30 1470 56.9 93.2 0.86 2.2 7.2 2.3 76 415
39 YX3-225S-4 37 1480 69.8 93.6 0.86 2.2 7.3 2.3 78 415
40 YX3-225M-4 45 1480 84.7 93.9 0.86 2.2 7.4 2.3 78 415
41 YX3-250M-4 55 1480 103 94.2 0.86 2.2 7.4 2.3 79 415
Frame size Poles Drive End Non-Drive End
International type International type
80 2-4 6204-2RZ 6204-2RZ
90 2-6 6205-2RZ 6205-2RZ
100 2-6 6206-2RZ 6206-2RZ
112 2-6 6306-2RZ 6306-2RZ
132 2-6 6308-2RZ 6308-2RZ
160 2-6 6309-2RZC3 6309-2RZC3
180 2-6 6311C3 6311C3
200 2-6 6312C3 6312C3
225 2-6 6313C3 6313C3
250 2-6 6314C3 6314C3
280 2 6314C3 6314C3
4-6 6317C3 6317C3
315 2 6317C3 6317C3
4-6 NU319C3 6319C3
355 2 6319C3 6319C3
4-6 NU322C3 NU322C3
YX3 CATALOGUE
YX3-132S Drawing
YX3-132S-4 Test Report
