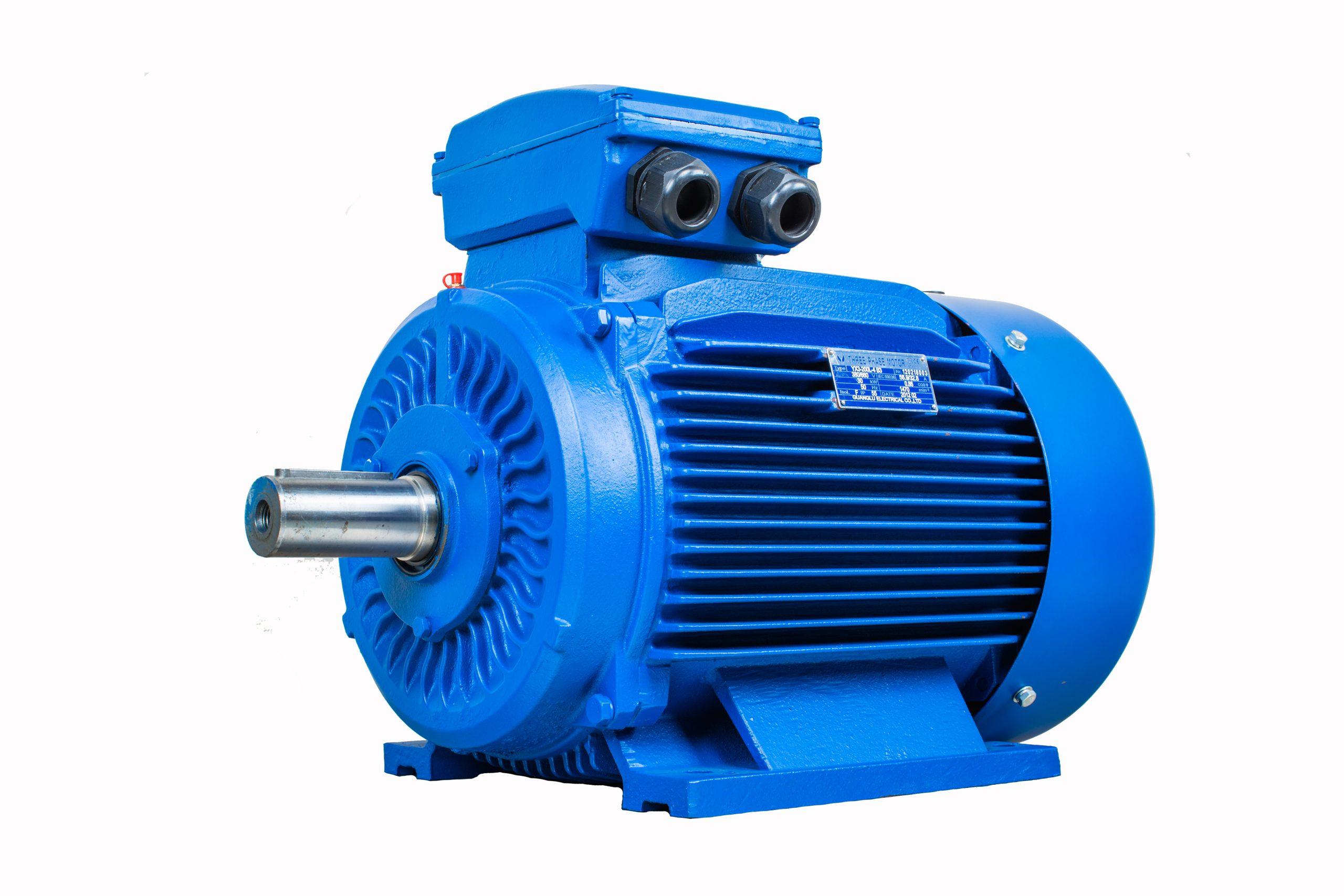

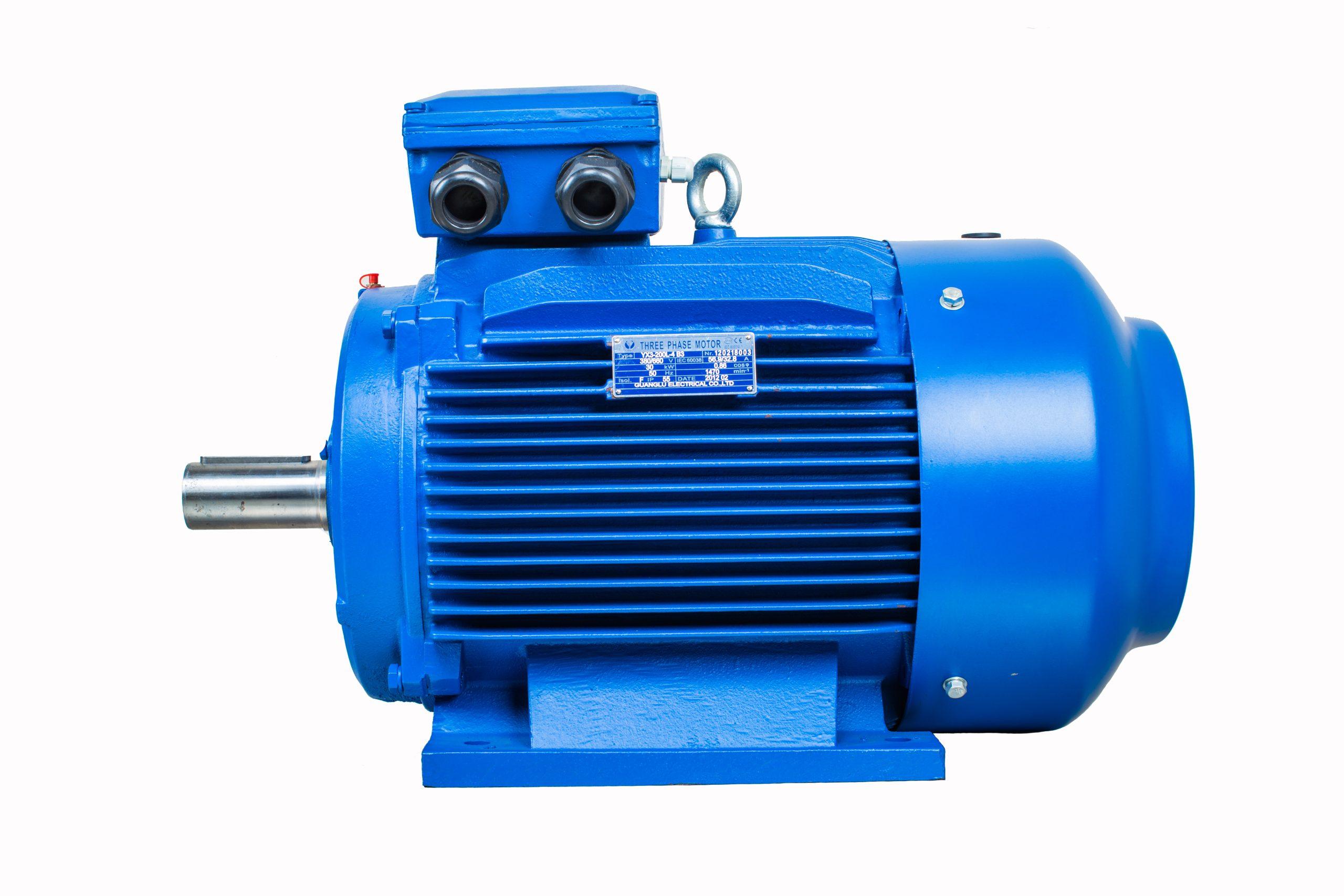

45 kW (60 HP) three phase motor: 4 pole at 1400 rpm, frame 200L, foot mounted, totally enclosed and fan cooled. Built for heavy continuous loads such as large compressors, pumps and fans. 1-year warranty.
A large industrial motor
At 45 kW this is a plant-room motor. It is typically used on rotary screw air compressors, large centrifugal pumps, process fans and crushers. The 200L frame is an IEC size, so replacement on most metric-built equipment is a like-for-like swap.
A motor this size is almost never started direct on line. Your electrician will usually specify a star-delta starter, a soft starter or a VFD to keep the starting current within what the supply allows.
Specifications
Power
45 kW / 60 HP
Speed
1400 rpm (4 pole)
Frame
200L
Supply
Three phase
Cooling
TEFC
Mounting
Foot
Shaft diameter, terminal connection and full dimensions are on the motor data sheet. Email us and we will send it before you order.
Ordering and freight
This is a heavy item and goes by freight from Glen Waverley, VIC, with the cost calculated at checkout from your address. Call before ordering if you need it on a particular day or your site needs a tail-lift. Smaller sizes are in our three phase motor range.
Installation
- Lift it with proper lifting gear on the lifting points. Never lift it by the shaft or terminal box.
- Align the coupling or belts precisely. Misalignment at this power destroys bearings quickly.
- Installation and starter selection must be done by a licensed electrician.
Delivery and warranty
Dispatched from our Glen Waverley, VIC store. Postage is quoted at checkout once your address is in. Warranty: 1 year against manufacturing defects, with claims handled by our own team.
Replacing a compressor motor? Send the old nameplate to hankemotors@gmail.com or call 0401 634 280.
